W4A Big Brake Front Brake Kit (Race)
Wilwood Disc Brakes offers the largest selection of bolt-on brake kits with specifically engineered and matched groups of components designed to provide superior brake system performance and custom appeal over a wide range of applications. Most kits are easily installed with the common hand tools used to perform routine brake service.

Your Search Result for:
W4A Big Brake Front Brake Kit (Race) (1) Brake Kits Available
W4A Big Brake Front Brake Kit (Race)
Pistons: 4 Rotor Diameter:14 Caliper Mount:Radial Min. Wheel Diameter: 18 W4A Big Brake Front Brake Kit (Race)

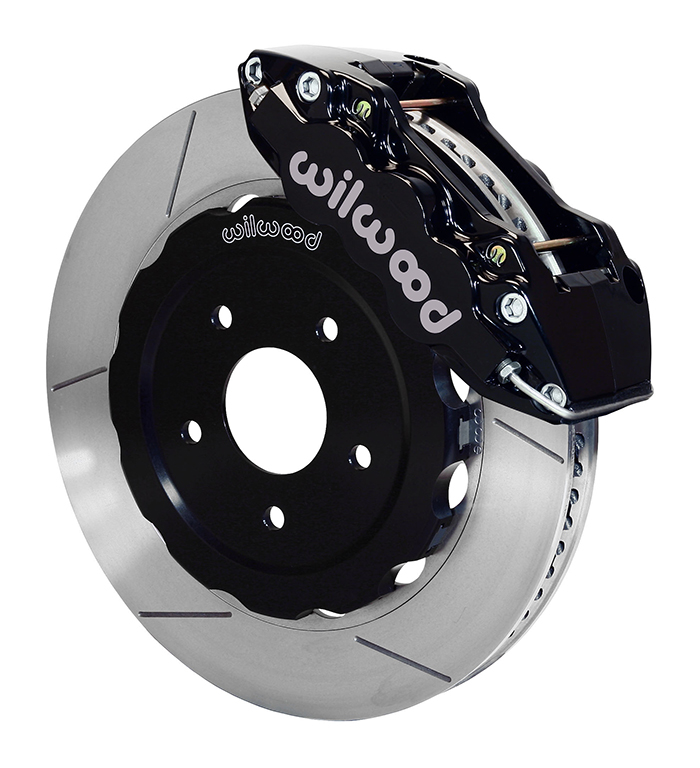

W4A Big Brake Front Brake Kit (Race)

W4A Big Brake Front Brake Kit (Race) zoom image

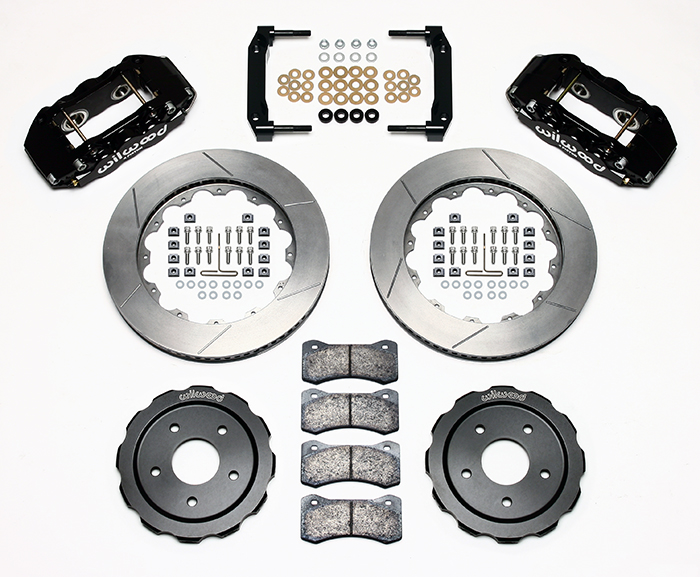

 W4A Big Brake Front Brake Kit (Race) Parts

W4A Big Brake Front Brake Kit (Race) Parts zoom image

W4A Big Brake Front Brake Kit (Race) Description

W4AR/ST four piston radial mount calipers are coupled with the high cooling capacity of 14.00” SV-GT staggered directional vane rotors to provide the ultimate brake package for unrestricted road race competition. Thermlock pistons in the calipers resist fade and extend service life by reducing the heat transfer from the pads, caliper body, fluid, and seals. Rotors mount to the hubs with forged aluminum hats and radial mount brackets secure the caliper to the spindle in the OE location without modification. Kits also include high temperature, high friction race compound pads and all premium grade fasteners.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
Note 2. Kit may fit some 18" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

This kit fits the following vehicles:
Cadillac XLR 2004-2010 Chevrolet Corvette 1997-2004 Chevrolet Corvette 2005-2013 Chevrolet Corvette 2006-2013

   Ordering Information
InfoCaliper ColorRotorLine KitPricePart No / More InfoPurchase
Black Powder Coat
Slotted Multiple Line Kits * $2,654.39
Call (805) 388-1188
*NOTE: Brake Kit does not include flex lines. Flex lines are necessary to complete the installation of the kit and must be ordered separately.
