Narrow Dynalite Rear Inboard Rear Brake Kit
Wilwood Disc Brakes offers the largest selection of bolt-on brake kits with specifically engineered and matched groups of components designed to provide superior brake system performance and custom appeal over a wide range of applications. Most kits are easily installed with the common hand tools used to perform routine brake service.

Your Search Result for:
Narrow Dynalite Rear Inboard Rear Brake Kit (3) Brake Kits Available

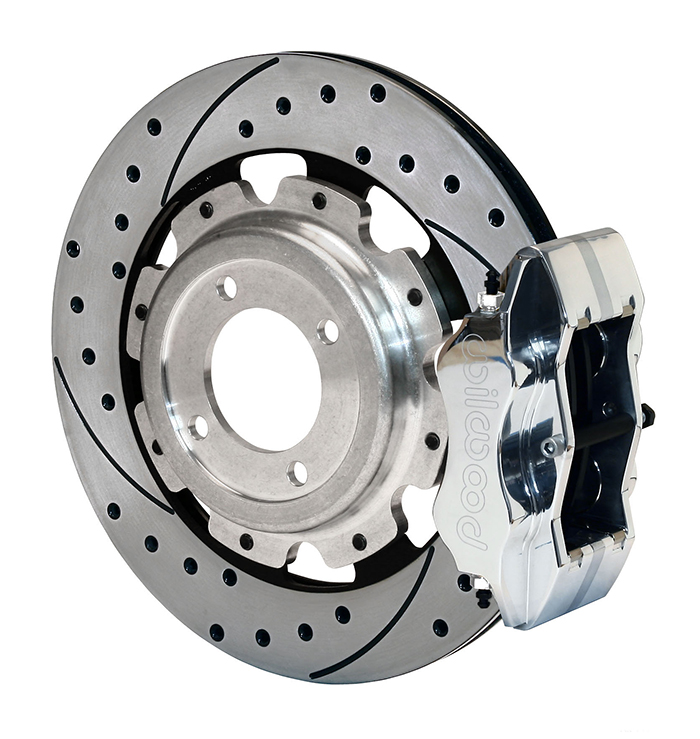

Narrow Dynalite Rear Inboard Rear Brake Kit
Pistons: 4 Rotor Diameter:12.19 Caliper Mount:Lug Min. Wheel Diameter: N/A Flange: OEM Axle Offset: 0 Narrow Dynalite Rear Inboard Rear Brake Kit
Narrow Dynalite Rear Inboard Rear Brake Kit

Narrow Dynalite Rear Inboard Rear Brake Kit zoom image
 Narrow Dynalite Rear Inboard Rear Brake Kit Parts

Narrow Dynalite Rear Inboard Rear Brake Kit Parts zoom image

Narrow Dynalite Rear Inboard Rear Brake Kit Description

Narrow Dynalite Rear Inboard kits offer complete disc brake upgrade solutions for Winters IRS Quick Change applications used on Street Rods. Based on the venerable Styled Billet Narrow Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. kit require no modifications for installation, and contain 12.19 x 0.81 rotors, adapters, bolt kits and BP-10 brake pads.

Note 1. Kit is specific for Winters IRS Quick Change.
Note 2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.



Ordering Information
InfoCaliper ColorRotorP-Brake CableLine KitPricePart No / More InfoPurchase
Polish
Drilled & Slotted  Multiple Line Kits * $980.56
Call (805) 388-1188
Polish
Undrilled  Multiple Line Kits * $865.20
Call (805) 388-1188
Polish
Drilled & Slotted  Multiple Line Kits * $1,022.56
Call (805) 388-1188
*NOTE: Brake Kit does not include flex lines. Flex lines are necessary to complete the installation of the kit and must be ordered separately.
