Calipers:
|
Info / Part Number:
|
|
Left Hand - Part No:
|
120-10123
|
|
Right Hand - Part No:
|
120-10122
|
|
Type:
|
Dynapro 6
|
|
Finish Color:
|
Black Powder Coat
|
|
Piston Count:
|
6
|
|
Piston Area (In²):
|
5.06
|
|
Piston Type:
|
Stainless
|
|
Mount Type:
|
Lug
|
|
Brake Pad Plate:
|
6712
|
|
Brake Pad Area (In²):
|
7.3
|
|
Brake Pad Volume (In³):
|
2.4
|
|
Pad Compound:
|
BP-10
|

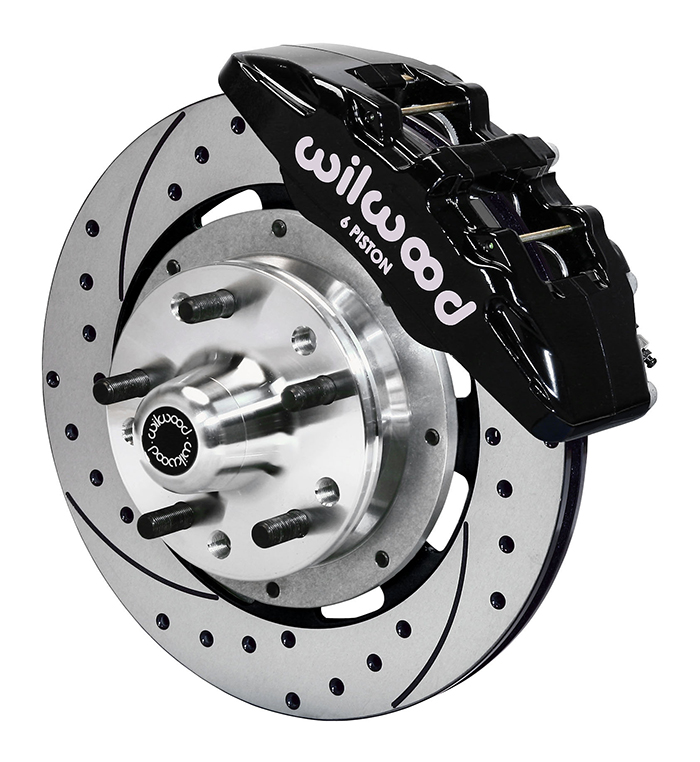

Dynapro 6 Caliper - Black Powder Coat
|
|
|
|
Rotors:
|
Info / Part Number:
|
|
Left Hand - Part No:
|
160-7104-BK
|
|
Right Hand - Part No:
|
160-7103-BK
|
|
Type:
|
SRP Drilled Rotor
|
|
Style:
|
SRP Drilled & Slotted
|
|
Surface Finish:
|
Black Electro Coat
|
|
Material:
|
Iron
|
|
Outside Diameter (In.):
|
12.19
|
|
Width (In.):
|
0.81
|
|
Vane Count:
|
32 V
|
|
Design Type:
|
SRP-BLK
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
No
|
SRP Drilled Rotor - Iron - Black Electro Coat
|
|
|
|
Rotor Hats:
|
Info / Part Number:
|
|
Hat - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Hat Offset Dimension (In.):
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
|
|
|
Hubs:
|
Info / Part Number:
|
|
Hub - Part No:
|
270-7279
|
|
Type:
|
Hub - Vented Rotor Offset
|
|
Material:
|
Aluminum
|
|
Finish Color:
|
Bare
|
|
Mount Style:
|
Adapter
|
|
Bolt Circle 1:
|
5 x 4.50
|
|
Bolt Circle 2:
|
5 x 4.75
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
1/2-20
|
|
Stud Diameter - BC 2:
|
1/2-20
|
|
Stud Diameter - BC 3:
|
|
Hub - Vented Rotor Offset - Aluminum - Bare
|
|
