Front Brake Kit – Part No.: 140-12496-D
Call (805) 388-1188
Promatrix Front Replacement Rotor Kit Select Brake Kit:      Price: $873.25
Available Brake Kit #140-12496 Configurations

140-12496
Slotted Rotors
140-12496-D
Drilled & Slotted Rotors
*NOTE: Brake Line Kit Needed:
Brake Kit No: 140-12496-D

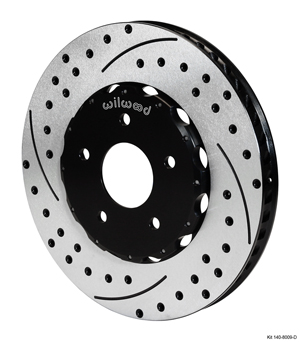

Wilwood Promatrix Front Replacement Rotor Kit - SRP Drilled & Slotted Rotor

Wilwood Promatrix Front Replacement Rotor Kit - SRP Drilled & Slotted Rotor zoom image
Kit Contents:
Wilwood Promatrix Front Replacement Rotor Kit Parts Laid Out - SRP Drilled & Slotted Rotor

Wilwood Promatrix Front Replacement Rotor Kit Parts Laid Out - SRP Drilled & Slotted Rotor zoom image
Kit Summary:
Spindle Type:
Factory Disc Spindle ;
Mount Type:
Caliper Type: 0 - No Calipers Included
Rotor Diameter: 14
Min Wheel Diameter Req'd*: 18
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
Price: $873.25
Promatrix Front Replacement Rotor Kit

ProMatrix pad, rotor, and flexline upgrade kits offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers. High performance pad compounds are specially selected to provide increased brake response and higher resistance against fade. Two-piece directional vane GT rotor kits provide high temperature durability for the track. SRP drilled and slotted black e-coat rotor kits provide high-tech style with corrosion resistance for the street. Stainless steel braided flexlines add style, durability, and firmer response with reduced deflection under load. (-U kits do not containg pads or lines).
