Front Brake Kit – Part No.: 140-8009
Call (805) 388-1188
ProMatrix Front Track Rotor Kit      Product Number: 140-8009     Price: $692.93
*NOTE: Brake Line Kit Needed:
220-8021$80.50

Brake Kit No: 140-8009

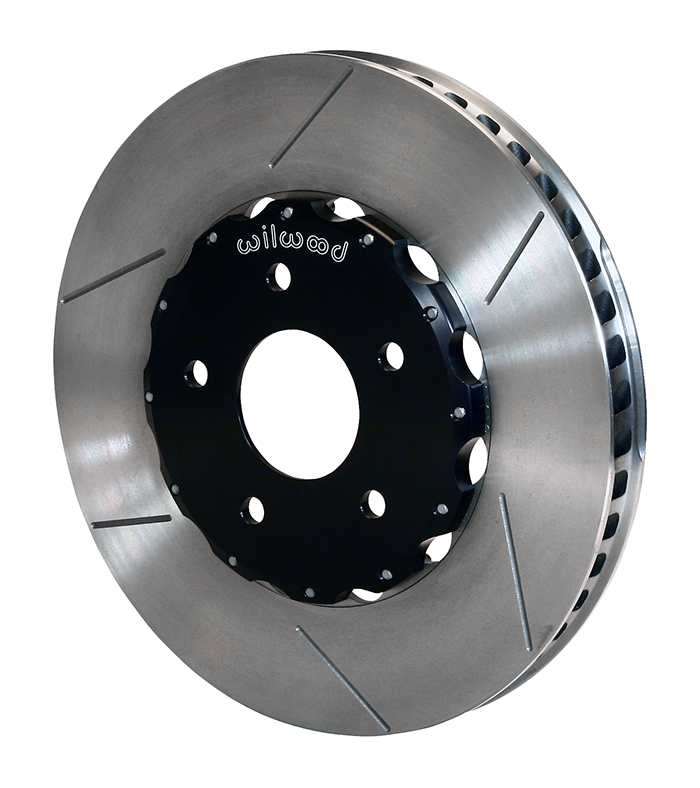

Wilwood ProMatrix Front Track Rotor Kit - GT Slotted Rotor

Wilwood ProMatrix Front Track Rotor Kit - GT Slotted Rotor
zoom image
Kit Contents:

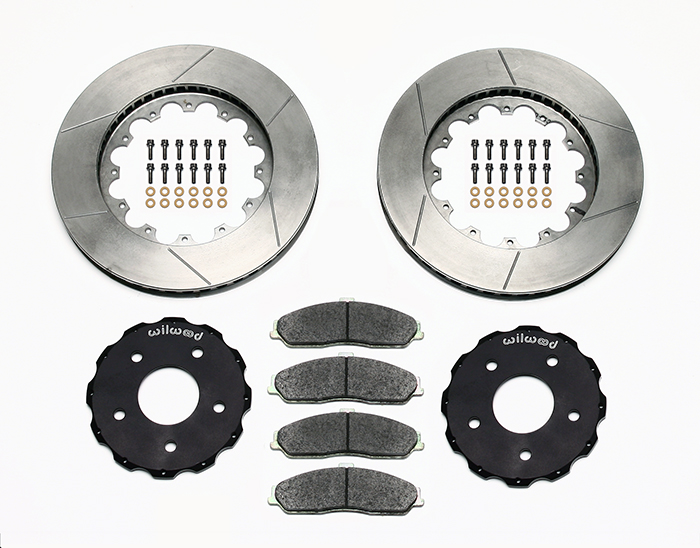

Wilwood ProMatrix Front Track Rotor Kit Parts Laid Out - GT Slotted Rotor

Wilwood ProMatrix Front Track Rotor Kit Parts Laid Out - GT Slotted Rotor
zoom image
Kit Summary:

Spindle Type:
Factory Disc Spindle ;
Mount Type:
Caliper Type: 0 - No Calipers Included
Rotor Diameter: 12.8
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

Price: $692.93
ProMatrix Front Track Rotor Kit

ProMatrix brake pad and rotor upgrade kits offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers. High performance pad compounds are specially selected to provide increased brake response and higher resistance against fade. A choice of either two-piece directional vane GT Spec-37 rotors that provide high temperature durability for the track or SRP drilled and slotted black e-coat rotors that provide high-tech style with corrosion resistance for the street. Wilwood Promatrix pads feature specially selected compounds for enhanced performance through increased friction properties and extended temperature range.(-U kits are replacement rotors only and do not contain brake pads).


Fitment & Installation Details


ProMatrix Front Track Rotor Kit Assembly Schematic

ProMatrix Front Track Rotor Kit Assembly Schematic

ProMatrix Front Track Rotor Kit Assembly Schematic
zoom image
Compatible Vehicles for this Brake Kit:
BRAKE KIT:   ProMatrix Front Track Rotor Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes:   View All Vehicles
Chevrolet

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
lookup vehicles
Search Front Brake Kits by Year-Make-Model
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fenderby this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.
Wheel Clearance: Assembly Instructions:
Wheel Clearance Diagram

Wheel Clearance Diagram
zoom image


Assembly Instructions
Note(s):
1. OE replacement rotor kit with brake pads.




Kit Components & Specifications Click on BLUE LINKS for Additional Details
Calipers: Info / Part Number:
Left Hand - Part No:
Right Hand - Part No:
Type:
Finish Color:
Piston Count:
Piston Area (In²):
Piston Type:
Mount Type:
Brake Pad Plate: D713
Brake Pad Area (In²):
Brake Pad Volume (In³):
Pad Compound: PM - ProMatrix
Rotors: Info / Part Number:
Left Hand - Part No: 160-7743
Right Hand - Part No: 160-7742
Type: GT 48 Curved Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 12.8
Width (in): 1.25
Vane Count: 48 CV
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
GT 48 Curved Vane - Spec-37 Iron - Plain

GT 48 Curved Vane - Spec-37 Iron - Plain
zoom image
Rotor Hats: Info / Part Number:
Hat - Part No: 170-7746
Type: Big Brake Hat - Short Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.25
Bolt Circle 1: 5 X 4.75
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.52
Stud Diameter - BC 2: 0
Stud Diameter - BC 3: 0
Big Brake Hat - Short Offset - Aluminum - Black E-Coat

Big Brake Hat - Short Offset - Aluminum - Black E-Coat
zoom image
Hubs: Info / Part Number:
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Calipers: Info / Part Number:
O-ring Kit:
Replacement Dustboot:
Replacement Piston 1:
Replacement Piston 2:
Replacement Piston 3:
Replacement Piston 4:
CrossOver O-Ring Kit:
Crossover Tube:
Self-Bleeder Tube:
Bridge Bolt Kit:
Wear Plate - Left Hand:
Wear Plate - Right Hand:
Pad Retainer:
Bleed Screw Kit:
Brake Line Kits: Info / Part Number:
Front Line Kit:
220-8021
Hat: Info / Part Number:
Bolt Kit: 230-8008
Hubs: Info / Part Number:
Bolt Kit:
