Combination Parking Brake Caliper Rear Brake Kit
|
Product Number:
140-10159-R
Price:
$1,296.39
|
|
|
|

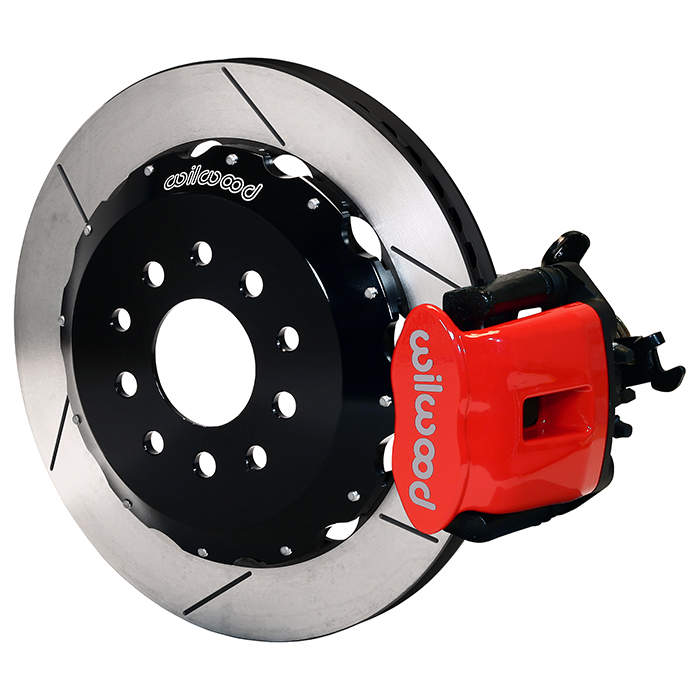

Wilwood Combination Parking Brake Caliper Rear Brake Kit - Red Powder Coat Caliper - GT Slotted Rotor
|
|
|
|
|
Kit Summary:
|
|
Rear End Axle:
|
|
Mustang 05-up
|
|
Axle Offset:
|
|
2.66
|
|
|
Mount Type:
|
|
Radial
|
|
Caliper Type:
|
|
1 - Red Powder Coat
|
|
Rotor Diameter:
|
|
12.88
|
|
Wheel Diameter:
|
|
17
|
|
|
Price:
|
|
1296.39
|
|
Combination Parking Brake Caliper Rear Brake Kit
Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.
|
|
|
|
FITMENT AND INSTALLATION DETAILS
|
Combination Parking Brake Caliper Rear Brake Kit Assembly Schematic
Combination Parking Brake Caliper Rear Brake Kit Assembly Schematic
|
|
|
Rear End / Axle Housing Flange:
|
| Confirm The Configuration! |
Confirm Offset Measurement! |
 |
 |
|
Mustang 05-up Flange
|
AXLE FLANGE CROSS-SECTION
|
|
|
To Search Rear Kits Again By Rear End and Offset.
Click Here
|
|
|
THIS BRAKE KIT HAS AN AXLE OFFSET OF:
2.66
CHECK THE DIAGRAM ABOVE AND VERIFY THIS MEASUREMENT. THIS KIT MAY BE AVAILALE IN SEVERAL DIFFERENT OFFSETS
|
|
PLEASE CALL WITH ANY QUESTIONS:
(805) 388-1188
|
|
|
|
|
|
|
COMPATIBLE VEHICLES FOR THIS BRAKE KIT:
|
|
BRAKE KIT:
Combination Parking Brake Caliper Rear Brake Kit
|
REAR END:
Mustang 05-up - Rear Kit
AXLE OFFSET:
2.66
|
This Brake Kit is Compatible with the Following Vehicle Makes:
Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
|
|
|
FOR A COMPLETE LISTING INCLUDING ALL Makes, Models, and Years, Please Click Here! >>>
|
|
|
|
|
|
KIT COMPONENTS AND SPECIFICATIONS
Click on BLUE LINKS for Additional Details
|
|
|
|
|
Rotors:
|
Info / Part Number:
|
|
Left Hand - Part No:
|
160-7598
|
|
Right Hand - Part No:
|
160-7597
|
|
Type:
|
GT 48 Curved Vane
|
|
Style:
|
GT Slotted
|
|
Surface Finish:
|
Plain
|
|
Material:
|
Iron
|
|
Outside Diameter (In.):
|
12.88
|
|
Width (In.):
|
1
|
|
Vane Count:
|
48 CV
|
|
Design Type:
|
GT
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
Yes
|
GT 48 Curved Vane - Iron - Plain
|
|
|
|
Rotor Hats:
|
Info / Part Number:
|
|
Hat - Part No:
|
170-11328
|
|
Type:
|
Big Brake Hat - Short Offset
|
|
Material:
|
Aluminum
|
|
Finish Color:
|
Black E-Coat
|
|
Hat Offset Dimension (In.):
|
1
|
|
Bolt Circle 1:
|
5 X 4.50
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
0.52
|
|
Stud Diameter - BC 2:
|
0
|
|
Stud Diameter - BC 3:
|
0
|
Big Brake Hat - Short Offset - Aluminum - Black E-Coat
|
|
|
|
Hubs:
|
Info / Part Number:
|
|
Hub - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Mount Style:
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
|
|
|
|
PARTS & ACCESSORIES
|
|
Calipers:
|
Info / Part Number:
|
|
O-ring Kit:
|
Call
|
|
Replacement Dustboot:
|
|
|
Replacement Piston 1:
|
|
|
Replacement Piston 2:
|
|
|
Replacement Piston 3:
|
|
|
Replacement Piston 4:
|
|
|
CrossOver O-Ring Kit:
|
|
|
Crossover Tube:
|
|
|
Self-Bleeder Tube:
|
|
|
Bridge Bolt Kit:
|
|
|
Wear Plate - Left Hand:
|
|
|
Wear Plate - Right Hand:
|
|
|
Pad Retainer:
|
|
|
Bleed Screw Kit:
|
|
|
|
|
Brake Line Kits:
|
Info / Part Number:
|
Rear Line Kit:
|
220-10417
|
|
Parking Brake Cable:
|
330-10791
|
|
|
|
Hat:
|
Info / Part Number:
|
|
Bolt Kit:
|
|
|
|
|
Hubs:
|
Info / Part Number:
|
|
Bolt Kit:
|
|
|
|
|
