1971 American Motors Javelin - Rear Brake Kit No.: 140-11941-R
REAR BRAKE KIT DETAILS:
Call (805) 388-1188
Dynapro Low-Profile Rear Parking Brake Kit Select Brake Kit:      Price: $870.79
AMC - Rear Kit

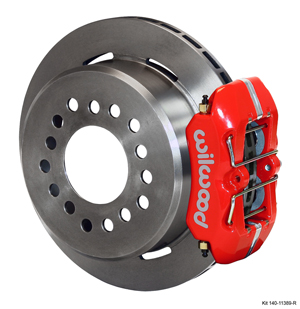

Wilwood Dynapro Low-Profile Rear Parking Brake Kit - Red Powder Coat Caliper - Plain Face Rotor

Wilwood Dynapro Low-Profile Rear Parking Brake Kit - Red Powder Coat Caliper - Plain Face Rotor zoom image
Kit Contents:
Wilwood Dynapro Low-Profile Rear Parking Brake Kit Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor

Wilwood Dynapro Low-Profile Rear Parking Brake Kit Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor
Kit Summary:
Rear End Axle: AMC
Axle Offset: 2.6

Mount Type: Lug
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 11
Wheel Diameter: 14

Price: 870.79
Dynapro Low-Profile Rear Parking Brake Kit

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.


FITMENT AND INSTALLATION DETAILS
Dynapro Low-Profile Rear Parking Brake Kit Assembly Schematic

Dynapro Low-Profile Rear Parking Brake Kit Assembly Schematic

Dynapro Low-Profile Rear Parking Brake Kit Assembly Schematic zoom image
Rear End / Axle Housing Flange:
Confirm The Configuration! Confirm Offset Measurement!
AMC Flange AXLE FLANGE CROSS-SECTION

To Search Rear Kits Again By Rear End and Offset. Click Here
THIS BRAKE KIT HAS AN AXLE OFFSET OF: 2.6
CHECK THE DIAGRAM ABOVE AND VERIFY THIS MEASUREMENT. THIS KIT MAY BE AVAILALE IN SEVERAL DIFFERENT OFFSETS
PLEASE CALL WITH ANY QUESTIONS: (805) 388-1188
Wheel Clearance:
Wheel Clearance Diagram

Wheel Clearance Diagram zoom image
Assembly Instructions:




Assembly Instructions
Note(s):





COMPATIBLE VEHICLES FOR THIS BRAKE KIT:
BRAKE KIT:   Dynapro Low-Profile Rear Parking Brake Kit     REAR END:   AMC - Rear Kit     AXLE OFFSET:   2.6
This Brake Kit is Compatible with the Following Vehicle Makes:
Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
American Motors
FOR A COMPLETE LISTING INCLUDING ALL Makes, Models, and Years, Please Click Here! >>>

KIT COMPONENTS AND SPECIFICATIONS Click on BLUE LINKS for Additional Details
Calipers: Info / Part Number:
Left Hand - Part No: 120-12160-RD
Right Hand - Part No: 120-12160-RD
Type: Forged Dynapro Low Profile
Finish Color: Red Powder Coat
Piston Count: 4
Piston Area (In²): 1.98
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 4812
Brake Pad Area (In²): 5.1
Brake Pad Volume (In³): 1.71
Pad Compound: BP-10
Forged Dynapro Low Profile Caliper - Red Powder Coat

Forged Dynapro Low Profile Caliper - Red Powder Coat zoom image
Rotors: Info / Part Number:
Left Hand - Part No: 160-11364
Right Hand - Part No: 160-11364
Type: Ultralite HP 32 & Hat
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 11
Width (in): 0.81
Vane Count: 32 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Ultralite HP 32  & Hat - Iron - Plain

Ultralite HP 32 & Hat - Iron - Plain zoom image
Rotor Hats: Info / Part Number:
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs: Info / Part Number:
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

PARTS & ACCESSORIES
Calipers: Info / Part Number:
O-ring Kit: 130-2579
Replacement Dustboot:
Replacement Piston 1: 200-8439
Replacement Piston 2: 200-8439
Replacement Piston 3:
Replacement Piston 4:
CrossOver O-Ring Kit: 130-10540
Crossover Tube:
Self-Bleeder Tube:
Bridge Bolt Kit:
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 300-10191
Bleed Screw Kit: 220-0627
Brake Line Kits: Info / Part Number:
1971 American Motors Javelin

Parking Brake Cable: 330-11954
Hat: Info / Part Number:
Bolt Kit:
Hubs: Info / Part Number:
Bolt Kit:
