Dynapro Dual SA Lug Drive Dynamic Rear Drag Brake Kit
|
Product Number:
140-12555-D
Price:
$1,119.99
|
|
|
|

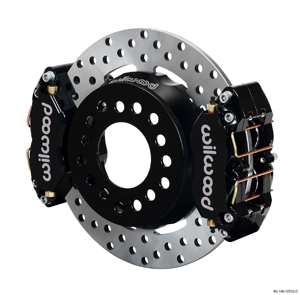

Wilwood Dynapro Dual SA Lug Drive Dynamic Rear Drag Brake Kit - Black Powder Coat Caliper - Drilled Rotor
|
|
|
|
|
Kit Summary:
|
|
Rear End Axle:
|
|
Mark Williams
|
|
Axle Offset:
|
|
2.81
|
|
|
Mount Type:
|
|
Lug
|
|
Caliper Type:
|
|
4 - Black Anodize
|
|
Rotor Diameter:
|
|
11.44
|
|
Wheel Diameter:
|
|
15
|
|
|
Price:
|
|
1119.99
|
|
Dynapro Dual SA Lug Drive Dynamic Rear Drag Brake Kit
Wilwood's new Billet Dynapro Lug-Drive Dynamic Stainless Alloy Rotor Brake Kits are especially beneficial to cars that rely heavily on the rear brakes for stopping and any other high speed, heavy weight cars that generate above average rear brake heat. The lug-drive rotor mounting system eliminates the rotor bolts and instead, a large single internal snap-ring retains the rotor in the hat, making assembly and installation literally a snap. This system allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. Spring-loaded, replaceable stainless steel inserts in each lug-drive slot protect the aluminum hat from wear that would otherwise be caused by loading of the stainless steel rotor against the hat when brake torque is applied. Kits are available in Single and Dual caliper configurations.
|
|
|
|
FITMENT AND INSTALLATION DETAILS
|
Dynapro Dual SA Lug Drive Dynamic Rear Drag Brake Kit Assembly Schematic
Dynapro Dual SA Lug Drive Dynamic Rear Drag Brake Kit Assembly Schematic
|
|
|
Rear End / Axle Housing Flange:
|
| Confirm The Configuration! |
Confirm Offset Measurement! |
 |
 |
|
Mark Williams Flange
|
AXLE FLANGE CROSS-SECTION
|
|
|
To Search Rear Kits Again By Rear End and Offset.
Click Here
|
|
|
THIS BRAKE KIT HAS AN AXLE OFFSET OF:
2.81
CHECK THE DIAGRAM ABOVE AND VERIFY THIS MEASUREMENT. THIS KIT MAY BE AVAILALE IN SEVERAL DIFFERENT OFFSETS
|
|
PLEASE CALL WITH ANY QUESTIONS:
(805) 388-1188
|
|
|
|
|
|
|
COMPATIBLE VEHICLES FOR THIS BRAKE KIT:
|
|
BRAKE KIT:
Dynapro Dual SA Lug Drive Dynamic Rear Drag Brake Kit
|
REAR END:
Mark Williams - Rear Kit
AXLE OFFSET:
2.81
|
This Brake Kit is Compatible with the Following Vehicle Makes:
Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
|
|
|
FOR A COMPLETE LISTING INCLUDING ALL Makes, Models, and Years, Please Click Here! >>>
|
|
|
|
|
|
KIT COMPONENTS AND SPECIFICATIONS
Click on BLUE LINKS for Additional Details
|
|
|
|
|
Rotors:
|
Info / Part Number:
|
|
Left Hand - Part No:
|
160-12483
|
|
Right Hand - Part No:
|
160-12483
|
|
Type:
|
Drilled Super Alloy Rotor
|
|
Style:
|
Drilled
|
|
Surface Finish:
|
Plain
|
|
Material:
|
Stainless
|
|
Outside Diameter (In.):
|
11.44
|
|
Width (In.):
|
0.35
|
|
Vane Count:
|
Solid
|
|
Design Type:
|
Alloy Solid
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
No
|
Drilled Super Alloy Rotor - Stainless - Plain
|
|
|
|
Rotor Hats:
|
Info / Part Number:
|
|
Hat - Part No:
|
170-12429
|
|
Type:
|
Dynamic Drag Hat - Lug Drive
|
|
Material:
|
Aluminum
|
|
Finish Color:
|
Black E-Coat
|
|
Hat Offset Dimension (In.):
|
1.96
|
|
Bolt Circle 1:
|
5 X 4.50
|
|
Bolt Circle 2:
|
5 X 4.75
|
|
Bolt Circle 3:
|
5 X 5.00
|
|
Stud Diameter - BC 1:
|
0.52
|
|
Stud Diameter - BC 2:
|
0.52
|
|
Stud Diameter - BC 3:
|
0.52
|
Dynamic Drag Hat - Lug Drive - Aluminum - Black E-Coat
|
|
|
|
Hubs:
|
Info / Part Number:
|
|
Hub - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Mount Style:
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
|
|
|
|
PARTS & ACCESSORIES
|
|
Calipers:
|
Info / Part Number:
|
|
O-ring Kit:
|
130-2655
|
|
Replacement Dustboot:
|
|
|
Replacement Piston 1:
|
200-7528
|
|
Replacement Piston 2:
|
200-7528
|
|
Replacement Piston 3:
|
|
|
Replacement Piston 4:
|
|
|
CrossOver O-Ring Kit:
|
130-10540
|
|
Crossover Tube:
|
|
|
Self-Bleeder Tube:
|
|
|
Bridge Bolt Kit:
|
|
|
Wear Plate - Left Hand:
|
300-5875
|
|
Wear Plate - Right Hand:
|
300-5875
|
|
Pad Retainer:
|
300-9634
|
|
Bleed Screw Kit:
|
220-0627
|
|
|
|
Brake Line Kits:
|
Info / Part Number:
|
|
|
|
|
|
|
|
|
|
Hat:
|
Info / Part Number:
|
|
Bolt Kit:
|
300-12561
|
|
|
|
