D154 Rear Parking Brake Kit
|
Product Number:
140-12569
Price:
$750.39
|
|
|
|

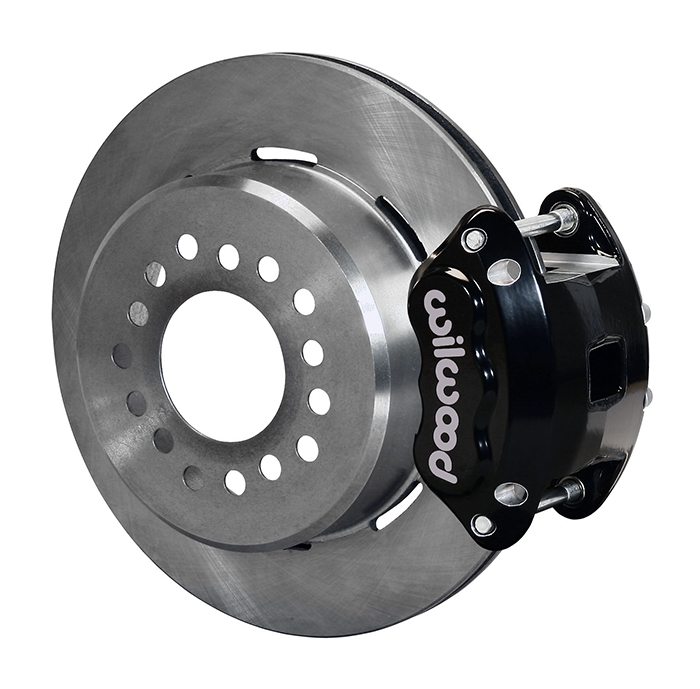

Wilwood D154 Rear Parking Brake Kit - Black Powder Coat Caliper - Plain Face Rotor
|
|
|
|
|
Kit Summary:
|
|
Rear End Axle:
|
|
Large Chevy C10
|
|
Axle Offset:
|
|
2.42
|
|
|
Mount Type:
|
|
Floating
|
|
Caliper Type:
|
|
2 - Black Powder Coat
|
|
Rotor Diameter:
|
|
12.19
|
|
Wheel Diameter:
|
|
16
|
|
|
Price:
|
|
750.39
|
|
D154 Rear Parking Brake Kit
D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.
|
|
|
|
FITMENT AND INSTALLATION DETAILS
|
D154 Rear Parking Brake Kit Assembly Schematic
D154 Rear Parking Brake Kit Assembly Schematic
|
|
|
Rear End / Axle Housing Flange:
|
| Confirm The Configuration! |
Confirm Offset Measurement! |
 |
 |
|
Large Chevy C10 Flange
|
AXLE FLANGE CROSS-SECTION
|
|
|
To Search Rear Kits Again By Rear End and Offset.
Click Here
|
|
|
THIS BRAKE KIT HAS AN AXLE OFFSET OF:
2.42
CHECK THE DIAGRAM ABOVE AND VERIFY THIS MEASUREMENT. THIS KIT MAY BE AVAILALE IN SEVERAL DIFFERENT OFFSETS
|
|
PLEASE CALL WITH ANY QUESTIONS:
(805) 388-1188
|
|
|
Note(s):
|
1. C-10 / C-15 Truck - 5 lug only.
2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
|
Installation Instruction Sheet:
Click To Download
|
|
|
|
|
COMPATIBLE VEHICLES FOR THIS BRAKE KIT:
|
|
BRAKE KIT:
D154 Rear Parking Brake Kit
|
REAR END:
Large Chevy C10 - Rear Kit
AXLE OFFSET:
2.42
|
This Brake Kit is Compatible with the Following Vehicle Makes:
Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
|
|
|
FOR A COMPLETE LISTING INCLUDING ALL Makes, Models, and Years, Please Click Here! >>>
|
|
|
|
|
|
KIT COMPONENTS AND SPECIFICATIONS
Click on BLUE LINKS for Additional Details
|
|
Calipers:
|
Info / Part Number:
|
|
Left Hand - Part No:
|
120-11875-BK
|
|
Right Hand - Part No:
|
120-11875-BK
|
|
Type:
|
D154
|
|
Finish Color:
|
Black Powder Coat
|
|
Piston Count:
|
2
|
|
Piston Area (In²):
|
1.98
|
|
Piston Type:
|
Stainless
|
|
Mount Type:
|
Floating
|
|
Brake Pad Plate:
|
D154
|
|
Brake Pad Area (In²):
|
8.7
|
|
Brake Pad Volume (In³):
|
2.9
|
|
Pad Compound:
|
BP-10
|
D154 Caliper - Black Powder Coat
|
|
|
|
Rotors:
|
Info / Part Number:
|
|
Left Hand - Part No:
|
160-7508
|
|
Right Hand - Part No:
|
160-7508
|
|
Type:
|
Ultralite HP 32 & Hat
|
|
Style:
|
Plain Face
|
|
Surface Finish:
|
Plain
|
|
Material:
|
Iron
|
|
Outside Diameter (In.):
|
12.19
|
|
Width (In.):
|
0.81
|
|
Vane Count:
|
32 V
|
|
Design Type:
|
ULHP
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
No
|
Ultralite HP 32 & Hat - Iron - Plain
|
|
|
|
Rotor Hats:
|
Info / Part Number:
|
|
Hat - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Hat Offset Dimension (In.):
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
|
|
|
Hubs:
|
Info / Part Number:
|
|
Hub - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Mount Style:
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
|
|
|
|
PARTS & ACCESSORIES
|
|
Calipers:
|
Info / Part Number:
|
|
O-ring Kit:
|
130-2579
|
|
Replacement Dustboot:
|
|
|
Replacement Piston 1:
|
200-11795
|
|
Replacement Piston 2:
|
|
|
Replacement Piston 3:
|
|
|
Replacement Piston 4:
|
|
|
CrossOver O-Ring Kit:
|
|
|
Crossover Tube:
|
|
|
Self-Bleeder Tube:
|
|
|
Bridge Bolt Kit:
|
|
|
Wear Plate - Left Hand:
|
|
|
Wear Plate - Right Hand:
|
|
|
Pad Retainer:
|
|
|
Bleed Screw Kit:
|
220-0627
|
|
|
|
Brake Line Kits:
|
Info / Part Number:
|
Rear Line Kit:
|
220-12630
|
|
Parking Brake Cable:
|
330-9371
|
|
|
|
Hat:
|
Info / Part Number:
|
|
Bolt Kit:
|
|
|
|
|
Hubs:
|
Info / Part Number:
|
|
Bolt Kit:
|
|
|
|
|
