Rear Brake Kit No.: 140-7148
REAR BRAKE KIT DETAILS:
Call (805) 388-1188
Forged Dynalite Rear Parking Brake Kit Select Brake Kit:      Price: $755.99
12 Bolt Late - Rear Kit

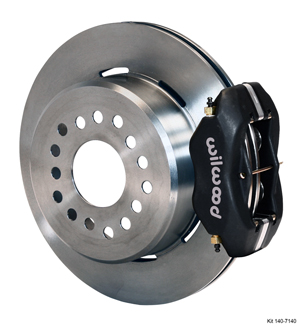

Wilwood Forged Dynalite Rear Parking Brake Kit - Black Anodize Caliper - Plain Face Rotor

Wilwood Forged Dynalite Rear Parking Brake Kit - Black Anodize Caliper - Plain Face Rotor zoom image
Kit Contents:
Wilwood Forged Dynalite Rear Parking Brake Kit Parts Laid Out - Black Anodize Caliper - Plain Face Rotor

Wilwood Forged Dynalite Rear Parking Brake Kit Parts Laid Out - Black Anodize Caliper - Plain Face Rotor zoom image
Kit Summary:
Rear End Axle: 12 Bolt Late
Axle Offset: 2.75

Mount Type: Lug
Caliper Type: 4 - Black Anodize
Rotor Diameter: 12.19
Wheel Diameter: 15

Price: 755.99
Forged Dynalite Rear Parking Brake Kit

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.


FITMENT AND INSTALLATION DETAILS
Forged Dynalite Rear Parking Brake Kit Assembly Schematic

Forged Dynalite Rear Parking Brake Kit Assembly Schematic

Forged Dynalite Rear Parking Brake Kit Assembly Schematic zoom image
Rear End / Axle Housing Flange:
Confirm The Configuration! Confirm Offset Measurement!
12 Bolt Late Flange AXLE FLANGE CROSS-SECTION

To Search Rear Kits Again By Rear End and Offset. Click Here
THIS BRAKE KIT HAS AN AXLE OFFSET OF: 2.75
CHECK THE DIAGRAM ABOVE AND VERIFY THIS MEASUREMENT. THIS KIT MAY BE AVAILALE IN SEVERAL DIFFERENT OFFSETS
PLEASE CALL WITH ANY QUESTIONS: (805) 388-1188
Wheel Clearance:
Wheel Clearance Diagram

Wheel Clearance Diagram zoom image
Assembly Instructions:




Assembly Instructions
Note(s):
1. For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications
2. Hats drilled for 7/16", 1/2" & 12mm studs.
3. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.


COMPATIBLE VEHICLES FOR THIS BRAKE KIT:
BRAKE KIT:   Forged Dynalite Rear Parking Brake Kit     REAR END:   12 Bolt Late - Rear Kit     AXLE OFFSET:   2.75
This Brake Kit is Compatible with the Following Vehicle Makes:
Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
Chevrolet Pontiac
FOR A COMPLETE LISTING INCLUDING ALL Makes, Models, and Years, Please Click Here! >>>

KIT COMPONENTS AND SPECIFICATIONS Click on BLUE LINKS for Additional Details
Calipers: Info / Part Number:
Left Hand - Part No: 120-6806
Right Hand - Part No: 120-6806
Type: Forged Dynalite
Finish Color: Black Anodize
Piston Count: 4
Piston Area (In²): 3.00
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Forged Dynalite Caliper - Black Anodize

Forged Dynalite Caliper - Black Anodize zoom image
Rotors: Info / Part Number:
Left Hand - Part No: 160-10049
Right Hand - Part No: 160-10049
Type: Ultralite HP 32 & Hat
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 12.19
Width (in): 0.81
Vane Count: 32 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Ultralite HP 32  & Hat - Iron - Plain

Ultralite HP 32 & Hat - Iron - Plain zoom image
Rotor Hats: Info / Part Number:
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs: Info / Part Number:
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

PARTS & ACCESSORIES
Calipers: Info / Part Number:
O-ring Kit: 130-2658
Replacement Dustboot:
Replacement Piston 1: 200-7518
Replacement Piston 2: 200-7518
Replacement Piston 3:
Replacement Piston 4:
CrossOver O-Ring Kit: 130-10540
Crossover Tube:
Self-Bleeder Tube:
Bridge Bolt Kit:
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 180-0055
Bleed Screw Kit: 220-0627
Brake Line Kits: Info / Part Number:
Rear Line Kit:
220-6746
Parking Brake Cable: 330-9371
Hat: Info / Part Number:
Bolt Kit:
Hubs: Info / Part Number:
Bolt Kit:
