Dynapro Rear Brake Kit For OE Parking Brake
|
Product Number:
140-8798
Price:
$890.39
|
|
|
|

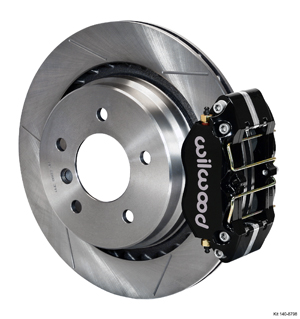

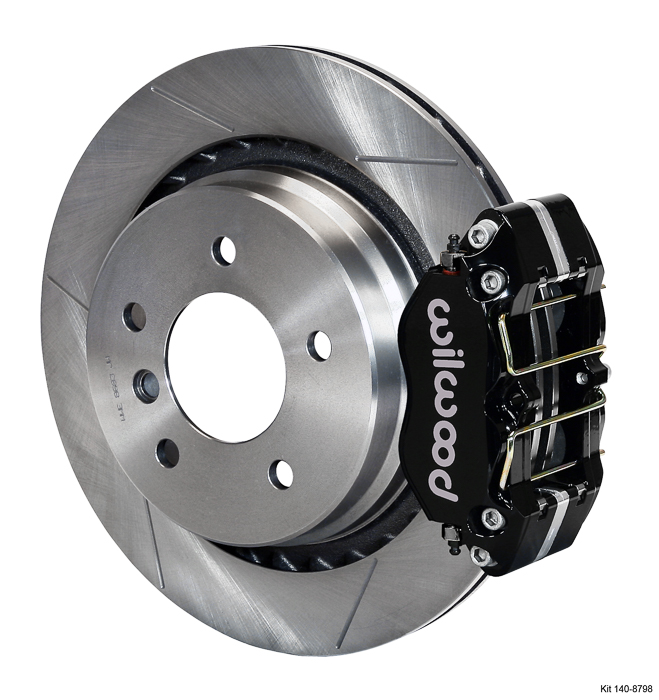

Wilwood Dynapro Rear Brake Kit For OE Parking Brake - Black Powder Coat Caliper - GT Slotted Rotor
|
|
|
|
|
Kit Summary:
|
|
Rear End Axle:
|
|
OEM
|
|
Axle Offset:
|
|
0
|
|
|
Mount Type:
|
|
Lug
|
|
Caliper Type:
|
|
4 - Black Anodize
|
|
Rotor Diameter:
|
|
12.27
|
|
Wheel Diameter:
|
|
16
|
|
|
Price:
|
|
890.39
|
|
Dynapro Rear Brake Kit For OE Parking Brake
Forged billet DynaPro four piston calipers and high performance BP-10 compound pads generate high clamping power with firm pedal response for this group of specialized rear axle brake kits. These kits retain full function of the OE parking brake and provide complimentary performance and style with front big brake upgrades. Caliper piston sizes are selected to provide balanced rear bias ratios using the output from the OE master cylinder. Rear rotor and hat combinations are engineered specific to each vehicle to provide brake performance upgrades and precise fit with the mounting of the DynaPro calipers.
|
|
|
|
FITMENT AND INSTALLATION DETAILS
|
Dynapro Rear Brake Kit For OE Parking Brake Assembly Schematic
Dynapro Rear Brake Kit For OE Parking Brake Assembly Schematic
|
|
|
Rear End / Axle Housing Flange:
|
| Confirm The Configuration! |
Confirm Offset Measurement! |
 |
 |
|
OEM Flange
|
AXLE FLANGE CROSS-SECTION
|
|
|
To Search Rear Kits Again By Rear End and Offset.
Click Here
|
|
|
THIS BRAKE KIT HAS AN AXLE OFFSET OF:
0
CHECK THE DIAGRAM ABOVE AND VERIFY THIS MEASUREMENT. THIS KIT MAY BE AVAILALE IN SEVERAL DIFFERENT OFFSETS
|
|
PLEASE CALL WITH ANY QUESTIONS:
(805) 388-1188
|
|
|
|
|
|
|
COMPATIBLE VEHICLES FOR THIS BRAKE KIT:
|
|
BRAKE KIT:
Dynapro Rear Brake Kit For OE Parking Brake
|
REAR END:
OEM - Rear Kit
AXLE OFFSET:
0
|
This Brake Kit is Compatible with the Following Vehicle Makes:
Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
|
|
|
FOR A COMPLETE LISTING INCLUDING ALL Makes, Models, and Years, Please Click Here! >>>
|
|
|
|
|
|
KIT COMPONENTS AND SPECIFICATIONS
Click on BLUE LINKS for Additional Details
|
|
Calipers:
|
Info / Part Number:
|
|
Left Hand - Part No:
|
120-9706
|
|
Right Hand - Part No:
|
120-9706
|
|
Type:
|
Dynapro Lug Mount
|
|
Finish Color:
|
Black Powder Coat
|
|
Piston Count:
|
4
|
|
Piston Area (In²):
|
1.58
|
|
Piston Type:
|
Stainless
|
|
Mount Type:
|
Lug
|
|
Brake Pad Plate:
|
7812
|
|
Brake Pad Area (In²):
|
6.36
|
|
Brake Pad Volume (In³):
|
2.1
|
|
Pad Compound:
|
BP-10
|
Dynapro Lug Mount Caliper - Black Powder Coat
|
|
|
|
Rotors:
|
Info / Part Number:
|
|
Left Hand - Part No:
|
160-8684
|
|
Right Hand - Part No:
|
160-8683
|
|
Type:
|
GT Vented Rotor & Hat
|
|
Style:
|
GT Slotted
|
|
Surface Finish:
|
Plain
|
|
Material:
|
Iron
|
|
Outside Diameter (In.):
|
12.27
|
|
Width (In.):
|
0.79
|
|
Vane Count:
|
Vented
|
|
Design Type:
|
GT
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
No
|
GT Vented Rotor & Hat - Iron - Plain
|
|
|
|
Rotor Hats:
|
Info / Part Number:
|
|
Hat - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Hat Offset Dimension (In.):
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
|
|
|
Hubs:
|
Info / Part Number:
|
|
Hub - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Mount Style:
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
|
|
|
|
PARTS & ACCESSORIES
|
|
Calipers:
|
Info / Part Number:
|
|
O-ring Kit:
|
130-4320
|
|
Replacement Dustboot:
|
|
|
Replacement Piston 1:
|
200-6979
|
|
Replacement Piston 2:
|
200-6979
|
|
Replacement Piston 3:
|
|
|
Replacement Piston 4:
|
|
|
CrossOver O-Ring Kit:
|
130-10540
|
|
Crossover Tube:
|
|
|
Self-Bleeder Tube:
|
|
|
Bridge Bolt Kit:
|
|
|
Wear Plate - Left Hand:
|
300-5875
|
|
Wear Plate - Right Hand:
|
300-5875
|
|
Pad Retainer:
|
300-9636
|
|
Bleed Screw Kit:
|
220-0627
|
|
|
|
Brake Line Kits:
|
Info / Part Number:
|
Rear Line Kit:
|
220-8800
|
|
|
|
|
|
|
Hat:
|
Info / Part Number:
|
|
Bolt Kit:
|
|
|
|
|
Hubs:
|
Info / Part Number:
|
|
Bolt Kit:
|
|
|
|
|
