Brake Pad Part No: 150-8850K
Brake Pads
Street Performance / Racing Pads

Pad#:   7112
Compound:   BP-10
Wilwood Brake Pad Plate #7112

Wilwood Brake Pad Plate #7112 zoom image
<Go Back>

Call (805) 388-1188

Product Number: 150-8850K     Price: $44.93
Pad Dimensions
Thickness(in): Area(in²): Volume(in³): Beded:
.49 6.36 2.1 N
Temperature & Friction Ratings
Peak Temperture Rating: Peak Friction Rating:
800 to 900 F. 0.46
Dust & Noise Ratings
Dust Production Rating: Pad Noise Rating:
Low Low
Performance Characteristics
  • Medium friction, smooth engagement, low abrasion on iron rotors.
  • Flat torque curve.
  • Low to medium wear rate, increases as temperature increases.
  • Medium friction, smooth engagement, low abrasion on iron rotors.
Vehicle Applications
Driving EnvironmentVehicle Sub-TypesApplication Duty
Junior Dragster Medium Duty
Street Rods  Medium Duty
Street Performance DomesticMedium Duty
Street Performance ImportMedium Duty
Motorcycles Medium Duty
Drag Racing Medium Duty
Off Road Light Duty
Kart Medium Duty
Power Sports ATV, SnowmobileMedium Duty
Industrial Medium Duty

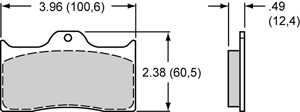

Pad Illustration and Dimensions
Wilwood Brake Pad Plate #7112 Large Drawing

Wilwood Brake Pad Plate #7112 Large Drawing
Compound Characteristics
BP-10

BP-10

Compound Data Sheet
    Application:

  • High performance street / strip, drag race, and track day categories using vented iron rotors.
  • Light to medium braking on dirt tracks including late models, modifieds, sportsman, and street stocks.
  • Disc brake conversions on street rods and muscle cars.
    Characteristics:

  • Compatible with all types of aluminum, steel or iron rotors.
  • Most aggressive friction with aluminum rotors on sprint cars.
Compound Temperature Range & Torque Values
Temperature range and overall friction value are the primary considerations for pad selection. The pads must be capable of maintaining the proper amount of friction for stopping power within the temperatures that will be realized on the track during the event. Then, overall wear rate must be considered. For most asphalt and road race applications, compounds in the high temperature ranges over 1000°F range are usually necessary. Dirt track, drag race, and street performance applications usually operate at temperatures between 500° and 1000°F. Keep in mind that these are general ranges, and not absolute values. Many factors and unforeseen influences can affect brake temperatures. The best indicator for pad selection will always be on track performance. If pad fade (friction loss) due to overheating occurs, then improved cooling, a heavier rotor, or a higher temperature range pad may all become necessary.
Wilwood Compatible Calipers: Pad # 7112
Forged Dynalite
Wilwood Forged Dynalite Caliper

Wilwood Forged Dynalite Caliper zoom image
The Forged Billet Dynalite has wide spread application over many forms over motorsports. It serves as the base model in the majority of Wilwood's Bolt-On Disc Brake Kits. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models. View Forged Dynalite Calipers
Piston Count: Piston Area Range (in²): Pad Area Range (in²):
4 3.00 4.80 6.36
Pad Volume Range (in³): Max Rotor Widths (in): Max Rotor Diameters (in):
2.1 1.27 13.06
Forged Dynalite Polished
Wilwood Forged Dynalite Polished Caliper

Wilwood Forged Dynalite Polished Caliper zoom image
The Forged Billet Dynalite has wide spread application over many forms over motorsports. It serves as the base model in the majority of Wilwood's Bolt-On Disc Brake Kits. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models. View Forged Dynalite Calipers
Piston Count: Piston Area Range (in²): Pad Area Range (in²):
4 3.00 4.12 6.36
Pad Volume Range (in³): Max Rotor Widths (in): Max Rotor Diameters (in):
2.1 1.27 13.06
Forged Dynalite-M
Wilwood Forged Dynalite-M Caliper

Wilwood Forged Dynalite-M Caliper zoom image
The Forged Billet Dynalite-M is further enhancement of the venerable Forged Dynalite series calipers. Specifically designed to enhance outboard clearance and is the basis for Wilwood’s new Classic Style brake kits. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models. View Forged Dynalite-M Calipers
Piston Count: Piston Area Range (in²): Pad Area Range (in²):
4 4.80 6.36
Pad Volume Range (in³): Max Rotor Widths (in): Max Rotor Diameters (in):
2.1 1.04 13.06
Polished Billet Dynalite
Wilwood Polished Billet Dynalite Caliper

Wilwood Polished Billet Dynalite Caliper zoom image
The Billet Dynalite caliper is powerful, compact, and super lightweight. Advanced computer engineering keeps this caliper extremely rigid resulting in incredible brake torque at a bare minimum in weight - only 2.5 pounds. Internal fluid crossover eliminates external tubes and the four position, two-piece bleed screws allow for convenient mounting and easy bleeding. View Billet Dynalite Calipers
Piston Count: Piston Area Range (in²): Pad Area Range (in²):
4 3.00 4.12 6.36
Pad Volume Range (in³): Max Rotor Widths (in): Max Rotor Diameters (in):
2.1 1.27 13.06
