Billet Spot Caliper Calipers
Search Wilwood Calipers - Billet Spot Caliper
  Select from the following options to display a list of calipers matching your required specifications:
  Piston Count: Rotor Width: Piston Area:   Finish:

           Search Results: Calipers
Billet Spot Caliper
  Piston:  1   Piston Area:  2.40   Pad Volume:  0.7   Mount Description:  2.31" Floating Mount   Rotor Width: 0.25 Billet Spot Caliper
  PISTONS: Type:  Aluminum  Finish  Polish  Piston 1 Dia.  1.75  Piston 2 Dia.  -  Piston 3 Dia.  -  Piston 4 Dia.  -   MATERIAL: Aluminum   FIT: Maximum Rotor Dia.  13

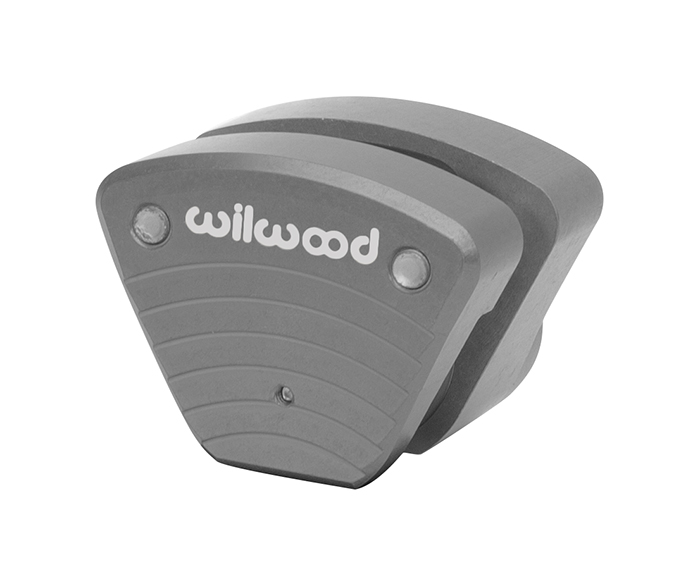

Billet Spot Caliper Caliper

Billet Spot Caliper Caliper zoom image
 Billet Spot Caliper Caliper Drawing

Billet Spot Caliper Caliper Drawing zoom image
 Brake Pad Plate # 4009

Brake Pad Plate # 4009

Billet Spot Caliper Description

Wilwood’s 1.75” diameter single piston Billet Spot Caliper is ideal for Micro and Mini Sprint, Kart, Off Road, Motorcycle, Drag Race Spindle Mount and industrial applications. Designed for light duty use, this floating caliper weighs just 1.20 pounds and holds a round .25” thick, .7 cubic inch brake pad, and accommodates rotors from 6.00” to 13.00” diameter and widths starting at .12”. Maximum rotor width can be adjusted by specific bracket and spacer dimensions. The pads are held in place by stainless steel 10-24 x .38” long flat head cap screw (screws are included), and the caliper is available black anodized.

NOTE:
PAD TYPES AVAILABLE: 4009
InfoMount LocationFinish & ColorPricePart NoPurchase
Universal
Black Anodize
$104.70
Call (805) 388-1188
Universal
Polish
$134.93
Call (805) 388-1188
