Caliper No.: 120-6095-RS
Billet Superlite 6 Lug Mount Caliper

Wilwood Billet Superlite 6 ST Caliper

Wilwood Billet Superlite 6 ST Caliper zoom image
Billet Superlite 6 ST
The billet SL6 series integrates "Big Brake" style and Wilwood's latest technology into the traditional 3.50" centered lug mount Superlite caliper category. Each caliper is precision CNC machined from high strength billet into three specialized configurations that cover a broad range of competition and sports driving applications.

The key to the superior performance of the SL6 comes from the extremely durable, efficient and lightweight body design. Starting at 5.06, pounds it is the product of computer generated solid modeling and FEA stress analysis technology. Full length stiffening ribs and a reinforced radial transition from the piston bore housings to the closed end bridges have produced the strongest Superlite caliper bodies ever built. When compared to open bridge calipers that use tube or stand spacers between the body halves, the closed end bridge design is measurably stronger with less separation or deflection under load. Additional strength and resistance to deflection comes from the four high-strength steel end bridge bolts. A fifth center bridge bolt provides even more overall strength and easy access to the pads without the need to remove the caliper from the mount.    Continue >>

<Go Back>

Call (805) 388-1188

Product Number: 120-6095-RS     Price: $608.00
Billet Superlite 6 ST - Product Summary
Pistons
Count: Area (in²): Type: Dust Boot:
6 4.04 Thermlock
Rotor Dimensions
Rotor Width(In): Rotor Diameter(In):
1.25 13.06
Pad Dimensions
Pad Area (in²): Pad Volume (in³):
8.2 4.9
Mounting
Mount Center(In): Mount Type: Mount Side:
3.5 Lug Left Hand
Duty Rating & Material
Material: Weight(Lbs):
Aluminum 5.6
Colors & Finishes
Color: Finish
Black Black Anodize
Product Documents
Full Product Product Data Sheet Installation Instructions
Click To View Click To Download
Vehicle Applications
Driving EnvironmentVehicle Sub-TypesApplication Duty
Street Performance DomesticHeavy Duty
Street Performance ImportMedium Duty
Rally Heavy Duty
Road Race Heavy Duty
Late Model Asphalt ASA, All Pro, SW Tour, etc...Heavy Duty
Stock Cars NASCAR, BGN, CTS, ARCA, etc... Heavy Duty
Northeast Modified Dirt or PavementHeavy Duty
Open Wheel Sprint, Midget, etc… Dirt or PavementHeavy Duty
Off Road Heavy Duty
Product Specifications
Rotor Compatibility
Rotor Width(In): 1.25
Maximum Rotor Width(In): 1.38
Minimum Rotor Width(In): 1.19
Maximum Rotor Diameter(In): 13.06
Minimum Rotor Diameter(In): 11.75
Brake Pad Specifications
Brake Pad Type 1: 7420
Brake Pad Type 2:
Brake Pad Type 3:
Total Pad Area (in²): 8.2
Total Pad Volume (in³): 4.9
Pad Dimensions & Part Numbers
Pad Dimensions for the Billet Superlite 6 ST

Pad Dimensions for the Billet Superlite 6 ST zoom image
Piston Specifications
Piston 1 Bore(In): 1.62
Piston 2 Bore(In): 1.12
Piston 3 Bore(In): 1.12
Piston 4 Bore(In):
Total Piston Area (in²): 4.04
Mounting Specifications
Mount Type: Lug
Mount Side: Left Hand
Mount Center(In): 3.5
Mount Hole Size(In): 0.45
Mount Height(In): 2.85

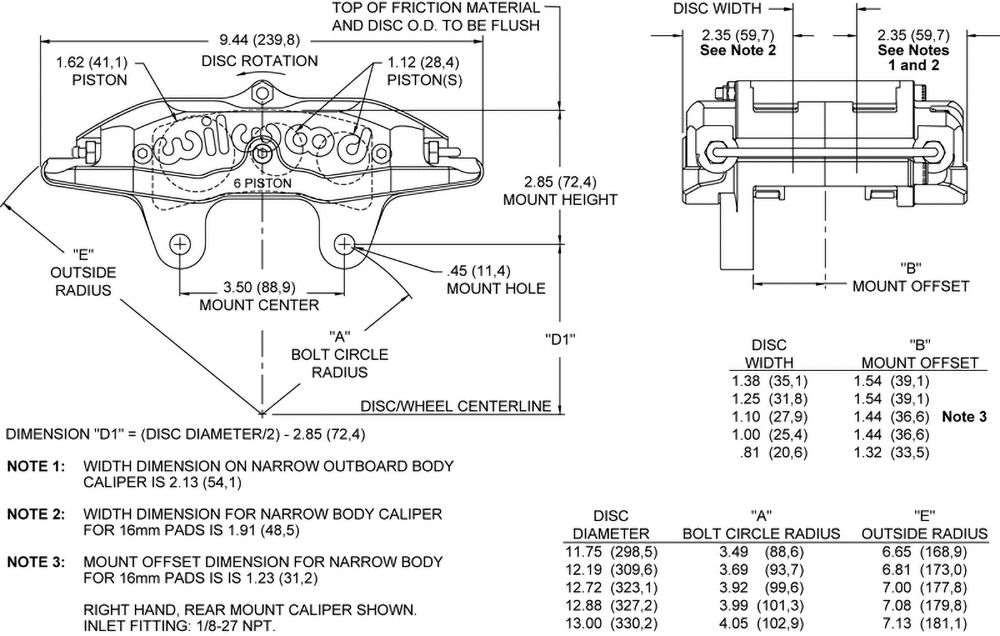

Mount Dimensions & Part Numbers
Dimensions for the Billet Superlite 6 ST

Dimensions for the Billet Superlite 6 ST zoom image
Parts & Accessories
O-Ring Kit: 130-5972
Replacement Dust Boot:
Replacement Piston 1: 200-7553
Replacement Piston 2: 200-7556
Replacement Piston 3: 200-7556
Replacement Piston 4:
Cross-Over O-Ring Kit: -
Bridge Bolt Kit: 230-5978
Wear Plate L/H: 300-5923
Wear Plate R/H: 300-5922
Pad Retainer:
Bleed Screw Kit: 220-6069
Self Bleeder Tube: 190-8310
Cross-Over Tube: 190-5975
