Caliper No.: 120-8062-RP
Billet Narrow Superlite 4R Radial Mount Caliper

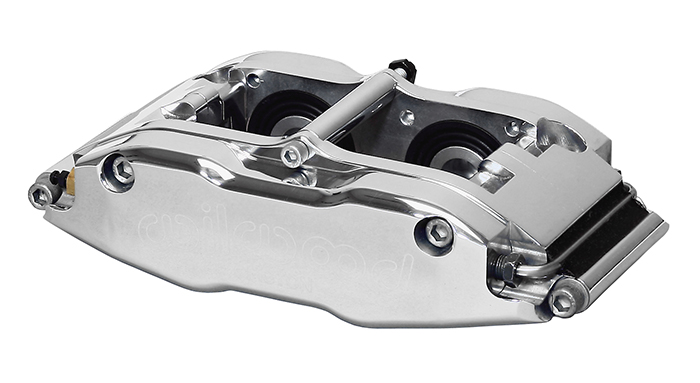

Wilwood Billet Narrow Superlite 4 Caliper

Wilwood Billet Narrow Superlite 4 Caliper zoom image
Billet Narrow Superlite 4
The Superlite caliper series has set the standard for many years in short track, late model, modified and open wheel competition. It has also enjoyed prominence in a variety of road-race, off-road, rally and sport driving applications. Starting at 4.40 pounds, the Forged Billet Superlite (FSL) is the newest innovation to this series from Wilwood. New and adaptive technologies have been applied providing substantial improvements in strength, fluid volume displacement, and overall performance.

The Superlite caliper series has set the standard for many years in short track, late model, modified and open wheel competition. It has also enjoyed prominence in a variety of road-race, off-road, rally and sport driving applications. Starting at 4.40 pounds, the Forged Billet Superlite (FSL) is the newest innovation to this series from Wilwood. New and adaptive technologies have been applied providing substantial improvements in strength, fluid volume displacement, and overall performance.   Continue >>

<Go Back>

Call (805) 388-1188

Product Number: 120-8062-RP     Price: $524.93
Billet Narrow Superlite 4 - Product Summary
Pistons
Count: Area (in²): Type: Dust Boot:
4 2.46 Aluminum
Rotor Dimensions
Rotor Width(In): Rotor Diameter(In):
1.1 14
Pad Dimensions
Pad Area (in²): Pad Volume (in³):
8.2 3.8
Mounting
Mount Center(In): Mount Type: Mount Side:
5.98 Radial Right Hand
Duty Rating & Material
Material: Weight(Lbs):
Aluminum 5
Colors & Finishes
Color: Finish
Polished Polish
Product Documents
Full Product Product Data Sheet Installation Instructions
Click To View
Vehicle Applications
Driving EnvironmentVehicle Sub-TypesApplication Duty
Street Rods  Heavy Duty
Street Performance DomesticHeavy Duty
Street Performance ImportHeavy Duty
Rally Medium Duty
Road Race Medium Duty
Product Specifications
Rotor Compatibility
Rotor Width(In): 1.1
Maximum Rotor Width(In): 1.1
Minimum Rotor Width(In): 1
Maximum Rotor Diameter(In): 14
Minimum Rotor Diameter(In): 11.75
Brake Pad Specifications
Brake Pad Type 1: 7416
Brake Pad Type 2:
Brake Pad Type 3:
Total Pad Area (in²): 8.2
Total Pad Volume (in³): 3.8
Pad Dimensions & Part Numbers
Pad Dimensions for the Billet Narrow Superlite 4

Pad Dimensions for the Billet Narrow Superlite 4 zoom image
Piston Specifications
Piston 1 Bore(In): 1.25
Piston 2 Bore(In): 1.25
Piston 3 Bore(In):
Piston 4 Bore(In):
Total Piston Area (in²): 2.46
Mounting Specifications
Mount Type: Radial
Mount Side: Right Hand
Mount Center(In): 5.98
Mount Hole Size(In): 0.39
Mount Height(In): 1.45
Mount Dimensions & Part Numbers
Dimensions for the Billet Narrow Superlite 4

Dimensions for the Billet Narrow Superlite 4 zoom image
Parts & Accessories
O-Ring Kit: 130-2479
Replacement Dust Boot: 210-7210
Replacement Piston 1: 200-7318
Replacement Piston 2: 200-7318
Replacement Piston 3:
Replacement Piston 4:
Cross-Over O-Ring Kit: -
Bridge Bolt Kit: 230-7710
Wear Plate L/H: 300-6596
Wear Plate R/H: 300-6595
Pad Retainer:
Bleed Screw Kit: 220-6069
Self Bleeder Tube:
Cross-Over Tube: 190-7711
