Caliper No.: 120-8476
DH4 Caliper

Wilwood DH4 Dual Hydraulic Caliper

Wilwood DH4 Dual Hydraulic Caliper zoom image
DH4 Dual Hydraulic
Text Description Needed.

   Continue >>

<Go Back>

Call (805) 388-1188

Product Number: 120-8476     Price: $96.29
DH4 Dual Hydraulic - Product Summary
Pistons
Count: Area (in²): Type: Dust Boot:
1 1.77 Aluminum
Rotor Dimensions
Rotor Width(In): Rotor Diameter(In):
0.19
Pad Dimensions
Pad Area (in²): Pad Volume (in³):
1.99 0.33
Mounting
Mount Center(In): Mount Type: Mount Side:
3.38 Floating Universal
Duty Rating & Material
Material: Weight(Lbs):
Aluminum 1.3
Colors & Finishes
Color: Finish
Clear Clear Anodize
Product Documents
Full Product Product Data Sheet Installation Instructions
Click To View
Vehicle Applications
Driving EnvironmentVehicle Sub-TypesApplication Duty
Power Sports ATV, SnowmobileMedium Duty
Industrial Medium Duty
Product Specifications
Rotor Compatibility
Rotor Width(In): 0.19
Maximum Rotor Width(In):
Minimum Rotor Width(In):
Maximum Rotor Diameter(In):
Minimum Rotor Diameter(In):
Brake Pad Specifications
Brake Pad Type 1: 4508
Brake Pad Type 2:
Brake Pad Type 3:
Total Pad Area (in²): 1.99
Total Pad Volume (in³): 0.33

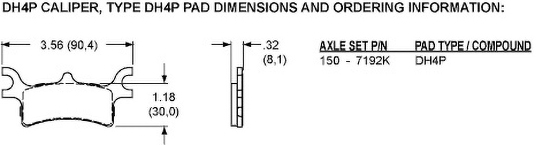

Pad Dimensions & Part Numbers
Pad Dimensions for the DH4 Dual Hydraulic

Pad Dimensions for the DH4 Dual Hydraulic zoom image
Piston Specifications
Piston 1 Bore(In): 1.5
Piston 2 Bore(In):
Piston 3 Bore(In):
Piston 4 Bore(In):
Total Piston Area (in²): 1.77
Mounting Specifications
Mount Type: Floating
Mount Side: Universal
Mount Center(In): 3.38
Mount Hole Size(In): 0
Mount Height(In): 0.03
Mount Dimensions & Part Numbers
Dimensions for the DH4 Dual Hydraulic

Dimensions for the DH4 Dual Hydraulic zoom image
Parts & Accessories
O-Ring Kit: 130-10536
Replacement Dust Boot:
Replacement Piston 1: 200-7773
Replacement Piston 2:
Replacement Piston 3:
Replacement Piston 4:
Cross-Over O-Ring Kit: -
Bridge Bolt Kit:
Wear Plate L/H:
Wear Plate R/H:
Pad Retainer:
Bleed Screw Kit: 220-4269
Self Bleeder Tube:
Cross-Over Tube:
