Pedal No: 340-4630

Pedal Remote M/C Mount

60 Degree Mount Pedal
Wilwood 60 Degree Mount Pedal

Wilwood 60 Degree Mount Pedal
zoom image
This lightweight 1.8 pound unit is ideal for dirt modifieds, champ cars, sprint Cars, midgets, or any application where the master cylinders and bias balance bar must be mounted in a remote location from the pedal. To accommodate fitment in tight space locations, the master cylinders are mounted at 60 degrees from the pedal base for use with remote fill fluid reservoirs. This unit features a high leverage, machined billet pivot arm that multiplies input force at a ratio of 1.48:1. The balance bar within incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. When mounted within the driver’s reach, the included adjustment knob can be used for quick and easy on-track bias adjustments. For other applications, a remote adjuster cable can be attached.

<Go Back>

Call (805) 388-1188

Product Number: 340-4630     Price: $205.14
60 Degree Mount Pedal - Product Summary
Pedal Type
Type: Material: Finish:
60 Degree Mount Pedal Aluminum Black E-coat
Pedal Description
Mount Loc: Mount Facing: Balance Bar: Mount Length (in):
Swing Reverse Yes 1.74
Ratio / Length
Pedal 1 Ratio: Pedal 2 Ratio: Pedal 1 Length (in): Pedal 2 Length (in):
1.48 to 1 2.19
Notes
Desc 1: Desc 2:
PEDAL ASSEMBLY,DUAL M/C,60 DEG,REMOTE
Cautionary Info
Remote fill master cylinders are required with this unit and are ordered separately by type and bore size. Compact remote flange mount master cylinders are recommended
Product Documents
Product Data Sheets
Click To View Click To View

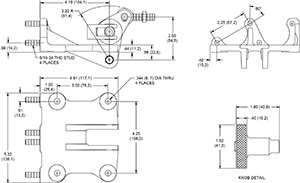

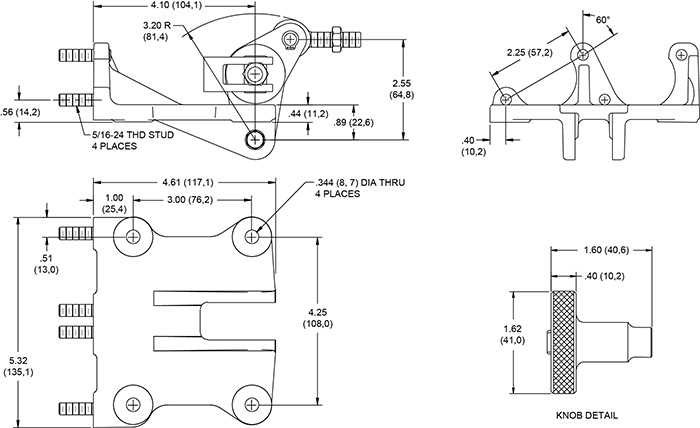

Pedal Dimensions
Remote fill master cylinders are required with this unit and are ordered separately by type and bore size. Compact remote flange mount master cylinders are recommended Drawing

Remote fill master cylinders are required with this unit and are ordered separately by type and bore size. Compact remote flange mount master cylinders are recommended Drawing
zoom image
Additional Pedal Dimensions
Mount Length (in): 1.74
Pedal 1 Length (in): 2.19
Pedal 2 Length (in):
Additional Notes:
