Hat (Bell) Mount Rotors

Search Hat (Bell) Mount Rotors Search One-Piece Iron Rotors

Search All Hat (Bell) Mount Rotors

Select from the following options to display a list of rotors matching your required specifications:
Rotor Diameter:	Rotor Width:	Rotor Bolt Circle:	Rotor Material:

Rotor Search Results >> All

Sort Results List By:

Rotor Diameter	Rotor Width	Rotor Bolt Circle


Drilled Steel Rotor

Diameter: 10 Width: 0.25 Rotor Bolt Circle(s): 5 x 5.00

Drilled Steel Rotor

Drilled Steel Rotor Drawing

Drilled Steel Rotor Description

Steel rotors have applications in all types of motorsports. Steel rotors provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range, and high heat spikes are only observed on an intermittent basis. This could be anything from a hard stopping drag race car at the end of a quarter mile, or a high speed stock car coming in from a qualifier at a super speedway. Steel rotors can also be found in lighter weight open wheel cars such as sprints and modifieds, and a variety of light weight, open wheel road course racers. A special alloy and proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads.

NOTE & CAUTIONS:
Suitable applications: Drag / Dirt racing

Ordering Information for Drilled Steel Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Steel	4.1		$113.93	160-1602	Call (805) 388-1188


Solid Steel Rotor

Diameter: 10 Width: 0.25 Rotor Bolt Circle(s): 5 x 5.00

Solid Steel Rotor

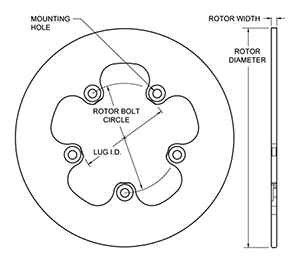

Solid Steel Rotor Drawing

Solid Steel Rotor Description

Ordering Information for Solid Steel Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	Solid	Solid	Steel	4.1		$91.43	160-0867	Call (805) 388-1188


Drilled Steel Rotor

Diameter: 10 Width: 0.32 Rotor Bolt Circle(s): 5 x 3.88

Drilled Steel Rotor

Drilled Steel Rotor Drawing

Drilled Steel Rotor Description

Ordering Information for Drilled Steel Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Steel	3.12		$113.93	160-2182	Call (805) 388-1188


Solid Steel Rotor

Diameter: 10 Width: 0.32 Rotor Bolt Circle(s): 5 x 3.88

Solid Steel Rotor

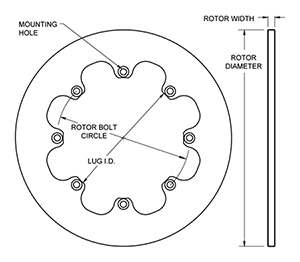

Solid Steel Rotor Drawing

Solid Steel Rotor Description

Ordering Information for Solid Steel Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	Solid	Solid	Steel	3.12		$91.43	160-2181	Call (805) 388-1188

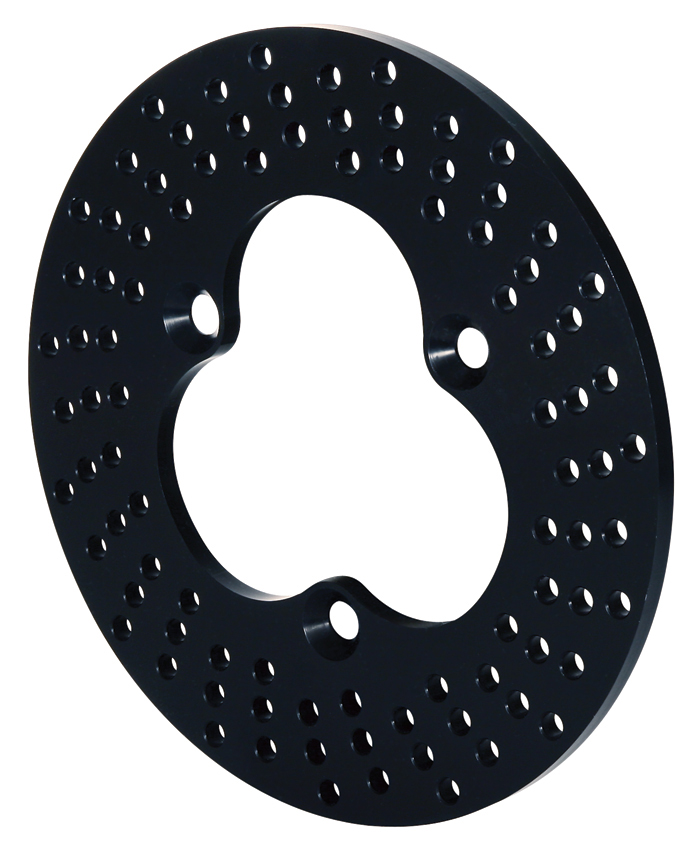

Aluminum Sprint / Midget Rotor-3H

Diameter: 10.2 Width: 0.31 Rotor Bolt Circle(s): 3 x 5.00

Aluminum Sprint / Midget Rotor-3H

Aluminum Sprint / Midget Rotor-3H Drawing

Aluminum Sprint / Midget Rotor-3H Description

Wilwoods 3 hole mount rotors are precision CNC machined from high strength billet plate. Full symmetrical machining provides perfect balance, perfect flatness and the truest rotation of any rotor being built. These rotors fit the popular 3 x 5.00" mount bolt circle found on most sprint and midget front hubs. Wilwoods engineered drill slot pattern combines the highest degree of weight reduction with the highest resistance to thermal distortion in the contact faces. You get smooth engagement and a consistent full pedal from the low knock-back characteristics of this design. A durable black anodized finish prevents corrosion and simplifies the visual inspection of the contact faces. The best results are always achieved using PolyMatrix Q compound brake pads with these rotors.

NOTE & CAUTIONS:
Unsafe for street use & unsuitable for most forms of Racing.

Ordering Information for Aluminum Sprint / Midget Rotor-3H

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Aluminum	Solid	Aluminum	3.88		$67.50	160-3411	Call (805) 388-1188


Aluminum Sprint / Midget Rotor-42T

Diameter: 10.2 Width: 0.31 Rotor Bolt Circle(s): 42 Tooth

Aluminum Sprint / Midget Rotor-42T

Aluminum Sprint / Midget Rotor-42T Drawing

Aluminum Sprint / Midget Rotor-42T Description

Wilwoods 3.00" x 42 splined axle mount rotors are manufactured from the same high strength billets with the same precision as our 3 hole mount front rotors. Full symmetrical machining provides perfect balance, perfect flatness and the truest rotation of any aluminum rotor being built. Wilwoods engineered drill pattern combines the highest degree of weight reduction with the highest resistance to thermal distortion in the contact faces. You get smooth engagement and a consistent full pedal from the low knock-back characteristics of this design. A durable black anodized finish prevents corrosion and simplifies the visual inspection of the contact faces. The best results are always achieved using PolyMatrix Q compound brake pads with these rotors.

NOTE & CAUTIONS:
Unsafe for street use & unsuitable for most forms of Racing.

Ordering Information for Aluminum Sprint / Midget Rotor-42T

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Aluminum	Solid	Aluminum	2.69		$67.50	160-3270	Call (805) 388-1188


Drilled Steel Rotor

Diameter: 10.25 Width: 0.31 Rotor Bolt Circle(s): 3 x 5.00

Drilled Steel Rotor

Drilled Steel Rotor Drawing

Drilled Steel Rotor Description

Ordering Information for Drilled Steel Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Steel	4.1		$113.93	160-3458	Call (805) 388-1188


Drilled Steel Rotor

Diameter: 10.25 Width: 0.35 Rotor Bolt Circle(s): 6 x 5.50

Drilled Steel Rotor

Drilled Steel Rotor Drawing

Drilled Steel Rotor Description

Ordering Information for Drilled Steel Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Steel	4.94		$113.93	160-3748	Call (805) 388-1188

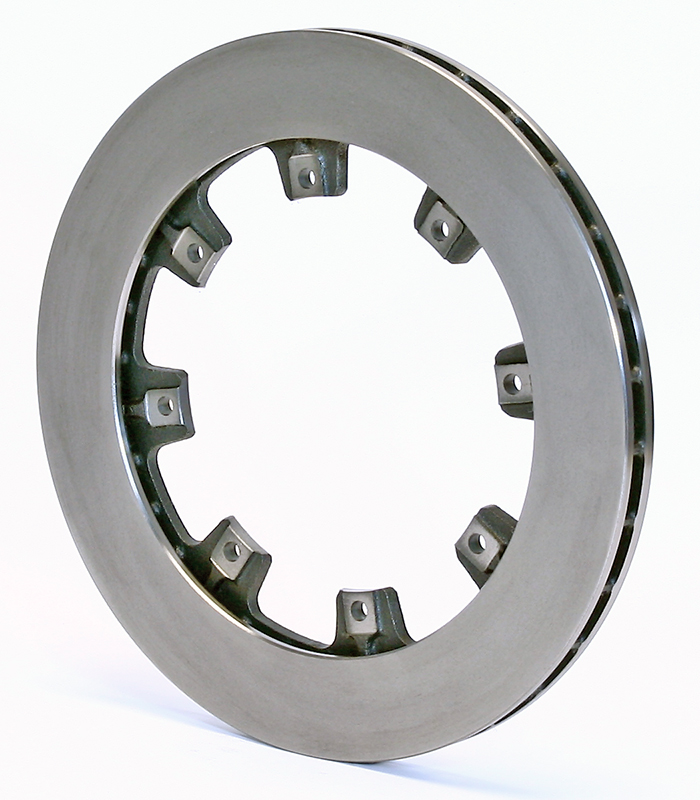

Ultralite 30 Vane Rotor

Diameter: 10.25 Width: 0.75 Rotor Bolt Circle(s): 6 x 5.50

Ultralite 30 Vane Rotor

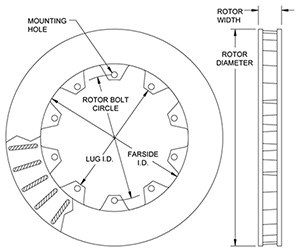

Ultralite 30 Vane Rotor Drawing

Ultralite 30 Vane Rotor Description

Ultra-Light UL straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale ecoNmies, make it possible to offer this level of quality and performance at such an affordable price.

NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite 30 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	UL	30 V	Iron	4.94	6.75	$74.93	160-3747	Call (805) 388-1188


Super Alloy Scalloped Rotor

Diameter: 10.5 Width: 0.16 Rotor Bolt Circle(s): 9 x 7.00

Super Alloy Scalloped Rotor

Super Alloy Scalloped Rotor Drawing

Super Alloy Scalloped Rotor Description

Super Alloy Steel 10.50” x .16” Solid Rotors are one of Sprint racing's lightest rotor at a weight of only 1.40 pounds. Wilwood’s proprietary Super Alloy Steel greatly enhances the durability and lifespan of this rotor over comparable lightweight steel or aluminum rotors. A Drilled and scalloped design provides excellent high temperature stability, rapid heat dissipation, and consistent performance from the brake pads. The fine micro-finish surface beds quickly with new pads. It provides a cost effective, lightweight solution with quick response, long service life from the pads, and consistent braking at all temperatures.. Lowered rotating weight promotes quick acceleration, deceleration, and improved handling.

NOTE & CAUTIONS:
Dirt Sprint car L/F or R/R use

Ordering Information for Super Alloy Scalloped Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Alloy Scalloped	Solid	Super Alloy	6.5		$172.50	160-10717	Call (805) 388-1188


Drilled Steel Rotor

Diameter: 10.5 Width: 0.35 Rotor Bolt Circle(s): 6 x 5.50

Drilled Steel Rotor

Drilled Steel Rotor Drawing

Drilled Steel Rotor Description

Ordering Information for Drilled Steel Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Steel	4.94		$113.93	160-3455	Call (805) 388-1188


Motorcycle Rotor & Sprocket

Diameter: 10.57 Width: 0.35 Rotor Bolt Circle(s): 5 X 3.25

Motorcycle Rotor & Sprocket

Motorcycle Rotor & Sprocket Drawing

Motorcycle Rotor & Sprocket Description

The Wilwood Sprocket Brake Rotor and Brake System provides four-piston stopping power with Wilwood performance and classic styling you expect. Multiple mounting options include both left or right side. The Sprocket Brake fits custom applications with 1" axles.

NOTE & CAUTIONS:
Motorcycle Sprocket Brake, Sprocket & Rotor 51 Tooth

Ordering Information for Motorcycle Rotor & Sprocket

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Stainless	2.23		$356.42	160-10470	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 10.5 Width: 0.75 Rotor Bolt Circle(s): 6 x 5.50

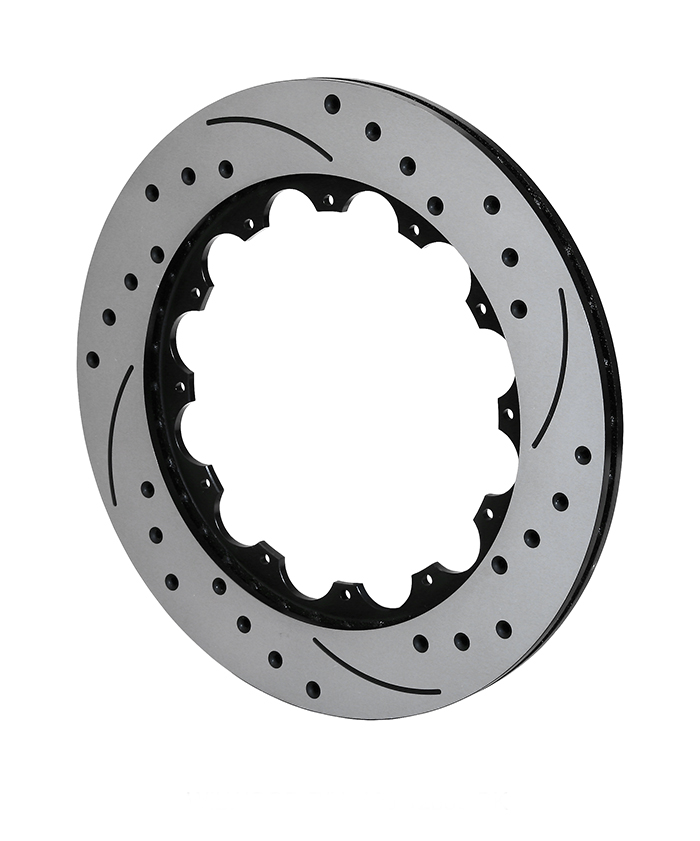

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

SRP Drilled Performance Rotors feature a specially engineered directional cross drill and face slot pattern that improve brake response and pad performance throughout the entire range of light to heavy braking. The venting and cleaning action of the holes and slots will reduce pad glaze and disperse gasses and heat generated during the pad to rotor interface. The holes and slots also inhibit irregular pad compound build-up on the rotor faces resulting in smoother engagement and improved pedal response in all conditions. The material removed also contributes to lower rotating and unsprung suspension weight.

NOTE & CAUTIONS:
Obsolete Part Number

Ordering Information for SRP Drilled Performance Rotor

Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
SRP Drilled & Slotted	N	SRP	30 V	Iron	4.94	6.75	$177.90	160-9249	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP-BLK	30 V	Iron	4.94	6.75	$147.90	160-9249-BK	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP	30 V	Iron	4.94	6.75	$177.90	160-9250	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP-BLK	30 V	Iron	4.94	6.75	$147.90	160-9250-BK	Call (805) 388-1188


Ultralite 30 Vane Rotor

Diameter: 10.5 Width: 0.75 Rotor Bolt Circle(s): 6 x 5.50

Ultralite 30 Vane Rotor

Ultralite 30 Vane Rotor Drawing

Ultralite 30 Vane Rotor Description

Ordering Information for Ultralite 30 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	UL	30 V	Iron	4.94	6.75	$74.93	160-3450	Call (805) 388-1188


Ultralite 30 Vane Scalloped Rotor

Diameter: 10.5 Width: 0.75 Rotor Bolt Circle(s): 6 x 5.50

Ultralite 30 Vane Scalloped Rotor

Ultralite 30 Vane Scalloped Rotor Drawing

Ultralite 30 Vane Scalloped Rotor Description

When it comes to rotors, racers are constantly searching for the ultimate balance between the lowest weight and the ability to effectively manage heat. Decreased rotating weight in the drive line provides quicker deceleration under braking and quicker acceleration out of the corners. Lower weight also benefits handling with improved spring and shock control over the unsprung suspension mass. Wilwood's ULS-32 scalloped iron rotors provides effective lightweight options for sprints, late models, modifieds, and other competition applications that race in low to medium temperature ranges.

NOTE & CAUTIONS:
Suitable applications: Dirt Sprint / Midget Racing

Ordering Information for Ultralite 30 Vane Scalloped Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	UL Scalloped	30 V	Iron	4.94	7.3	$104.93	160-8427	Call (805) 388-1188


Super Alloy Scalloped Rotor

Diameter: 10.5 Width: 0.78 Rotor Bolt Circle(s): 6 x 5.50

Super Alloy Scalloped Rotor

Super Alloy Scalloped Rotor Drawing

Super Alloy Scalloped Rotor Description

Super Alloy Steel 10.50” x .810” Vented Rotors are one of Sprint racing's lightest .810" rotor at a weight of only 3.20 pounds. Wilwood’s proprietary Super Alloy Steel greatly enhances the durability and lifespan of this rotor over comparable lightweight steel or iron rotors. A Drilled, slotted, and scalloped design with 24 cooling vanes provides excellent high temperature stability, rapid heat dissipation, and consistent performance from the brake pads.

NOTE & CAUTIONS:
Dirt Sprint Car Inboard Use

Ordering Information for Super Alloy Scalloped Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Alloy Scalloped	24 V	Super Alloy	4.94	7.3	$215.94	160-11217	Call (805) 388-1188


Drilled Steel Rotor

Diameter: 10.75 Width: 0.35 Rotor Bolt Circle(s): 6 x 6.25

Drilled Steel Rotor

Drilled Steel Rotor Drawing

Drilled Steel Rotor Description

Ordering Information for Drilled Steel Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Steel	5.59		$113.93	160-3306	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 10.75 Width: 0.81 Rotor Bolt Circle(s): 6 x 6.25

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	30 V	Iron	5.59	7	$147.90	160-7097-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	30 V	Iron	5.59	7	$147.90	160-7098-BK	Call (805) 388-1188


Ultralite HP 30 Vane Rotor

Diameter: 10.75 Width: 0.81 Rotor Bolt Circle(s): 6 x 6.25

Ultralite HP 30 Vane Rotor

Ultralite HP 30 Vane Rotor Drawing

Ultralite HP 30 Vane Rotor Description

Ultra-Light ULHP straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Do not confuse these rotors with bargain priced off-brand named parts. Wilwoods modern manufacturing capability, combined with large scale economics, make it possible to offer this level of quality and performance at such an affordable price.

NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite HP 30 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	ULHP	30 V	Iron	5.59	7	$87.90	160-5839	Call (805) 388-1188


Super Alloy Slotted Rotor

Diameter: 10.94 Width: 0.25 Rotor Bolt Circle(s): 3 x 5.00

Super Alloy Slotted Rotor

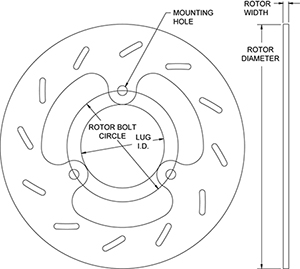

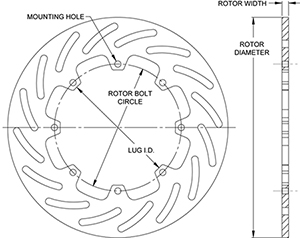

Super Alloy Slotted Rotor Drawing

Super Alloy Slotted Rotor Description

Super Alloy Titanium Slotted Rotors are Sprint racing's lightest rotors at a weight of between 2.8 to 3 pounds. Wilwood’s proprietary Super Alloy Titanium greatly enhances the durability and lifespan of this rotor over comparable lightweight steel or iron rotors. A directional slotted surface allowing for full pad contact. This provides excellent high temperature stability, with rapid heat dissipation and consistent performance from the brake pads. The fine micro-finish surface beds quickly with new pads. It provides a cost effective, lightweight solution with quick response, long service life from the pads, and consistent braking at all temperatures. Lowered rotating weight promotes quick acceleration, deceleration, and improved handling.

NOTE & CAUTIONS:
Dirt Sprint Car L/F use

Ordering Information for Super Alloy Slotted Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Slotted	N	Alloy Solid	Solid	Titanium	4		$641.92	160-14184	Call (805) 388-1188


Aluminum Sprint / Midget Rotor-3H

Diameter: 10.95 Width: 0.31 Rotor Bolt Circle(s): 3 x 5.00

Aluminum Sprint / Midget Rotor-3H

Aluminum Sprint / Midget Rotor-3H Drawing

Aluminum Sprint / Midget Rotor-3H Description

Ordering Information for Aluminum Sprint / Midget Rotor-3H

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Aluminum	Solid	Aluminum	3.88		$67.50	160-3327	Call (805) 388-1188


Drilled Steel Rotor

Diameter: 10.95 Width: 0.31 Rotor Bolt Circle(s): 3 x 5.00

Drilled Steel Rotor

Drilled Steel Rotor Drawing

Drilled Steel Rotor Description

Ordering Information for Drilled Steel Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Steel	4.1		$113.93	160-2084	Call (805) 388-1188


Aluminum Sprint / Midget Rotor-42T

Diameter: 10.95 Width: 0.31 Rotor Bolt Circle(s): 42 Tooth

Aluminum Sprint / Midget Rotor-42T

Aluminum Sprint / Midget Rotor-42T Drawing

Aluminum Sprint / Midget Rotor-42T Description

Ordering Information for Aluminum Sprint / Midget Rotor-42T

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Aluminum	Solid	Aluminum	2.69		$67.50	160-3275	Call (805) 388-1188


Drilled Steel Scalloped Rotor

Diameter: 11 Width: 0.31 Rotor Bolt Circle(s): 3 x 5.00

Drilled Steel Scalloped Rotor

Drilled Steel Scalloped Rotor Drawing

Drilled Steel Scalloped Rotor Description

Wilwoods Scalloped Steel 3 hole mount rotors are precision machined from special alloy. Proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads. These rotors fit the popular 3 x 5.00" mount bolt circle on sprint and midget front hubs.

NOTE & CAUTIONS:
Suitable applications: Dirt Racing

Ordering Information for Drilled Steel Scalloped Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Steel Scalloped	Solid	Steel	4.1		$89.99	160-10475	Call (805) 388-1188


GT 72 Straight Vane Rotor

Diameter: 11 Width: 0.81 Rotor Bolt Circle(s): 6 x 6.25

GT 72 Straight Vane Rotor

GT 72 Straight Vane Rotor Drawing

GT 72 Straight Vane Rotor Description

GT 72 straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale economies, make it possible to offer this level of quality and performance at such an affordable price. Coupled with Wilwood's exclusive Spec-37 material, a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear.

NOTE & CAUTIONS:
Premium grade, Heavy weight castings.

Ordering Information for GT 72 Straight Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	72 V	Spec-37 Iron	5.59	7.42	$97.16	160-12892	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 11 Width: 0.81 Rotor Bolt Circle(s): 6 x 6.25

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
SRP Drilled & Slotted	N	SRP	30 V	Iron	5.59	7.42	$177.90	160-7099	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP-BLK	30 V	Iron	5.59	7.42	$147.90	160-7099-BK	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP	30 V	Iron	5.59	7.42	$177.90	160-7100	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP-BLK	30 V	Iron	5.59	7.42	$147.90	160-7100-BK	Call (805) 388-1188


Ultralite HP 30 Vane Rotor

Diameter: 11 Width: 0.81 Rotor Bolt Circle(s): 6 x 6.25

Ultralite HP 30 Vane Rotor

Ultralite HP 30 Vane Rotor Drawing

Ultralite HP 30 Vane Rotor Description

Ordering Information for Ultralite HP 30 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	ULHP	30 V	Iron	5.59	7.42	$87.90	160-5840	Call (805) 388-1188


Ultralite HPS 30 Vane Rotor

Diameter: 11 Width: 0.81 Rotor Bolt Circle(s): 6 x 6.25

Ultralite HPS 30 Vane Rotor

Ultralite HPS 30 Vane Rotor Drawing

Ultralite HPS 30 Vane Rotor Description

Ultra-Light ULHP straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale ecoNmies, make it possible to offer this level of quality and performance at such an affordable price.

NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite HPS 30 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	ULHPS	30 V	Iron	5.59	7.42	$116.99	160-10358	Call (805) 388-1188


Super Alloy Drilled Rotor

Diameter: 11.25 Width: 0.35 Rotor Bolt Circle(s): 8 x Lug

Super Alloy Drilled Rotor

Super Alloy Drilled Rotor Drawing

Super Alloy Drilled Rotor Description

Super Alloy Steel Rotors have applications in all types of motorsports. Steel rotors provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range, and high heat spikes are only observed on an intermittent basis. This could be anything from a hard stopping drag race car at the end of a quarter mile, or a high speed stock car coming in from a qualifier at a super speedway. Steel rotors can also be found in lighter weight open wheel cars such as sprints and modifieds, and a variety of light weight, open wheel road course racers. A special alloy and proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads.

NOTE & CAUTIONS:
Drag Race use only, Not recommended for street use.

Ordering Information for Super Alloy Drilled Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Alloy Solid	Solid	Super Alloy	6.38		$181.43	160-14155	Call (805) 388-1188


Drilled Steel Scalloped Rotor

Diameter: 11.44 Width: 0.25 Rotor Bolt Circle(s): 8 x 7.00

Drilled Steel Scalloped Rotor

Drilled Steel Scalloped Rotor Drawing

Drilled Steel Scalloped Rotor Description

Ordering Information for Drilled Steel Scalloped Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Steel Scalloped	Solid	Steel	6.38		$113.93	160-15011	Call (805) 388-1188


Super Alloy Drilled Rotor

Diameter: 11.44 Width: 0.35 Rotor Bolt Circle(s): 8 x 7.00

Super Alloy Drilled Rotor

Super Alloy Drilled Rotor Drawing

Super Alloy Drilled Rotor Description

Ordering Information for Super Alloy Drilled Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Alloy Solid	Solid	Super Alloy	6.38		$143.93	160-12155	Call (805) 388-1188


Drilled Steel Rotor

Diameter: 11.44 Width: 0.35 Rotor Bolt Circle(s): 8 x 7.00

Drilled Steel Rotor

Drilled Steel Rotor Drawing

Drilled Steel Rotor Description

Ordering Information for Drilled Steel Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Steel	6.38		$113.93	160-1601	Call (805) 388-1188


Super Alloy Drilled Rotor

Diameter: 11.44 Width: 0.35 Rotor Bolt Circle(s): 8 x Lug

Super Alloy Drilled Rotor

Super Alloy Drilled Rotor Drawing

Super Alloy Drilled Rotor Description

Ordering Information for Super Alloy Drilled Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Alloy Solid	Solid	Super Alloy	6.38		$181.43	160-12483	Call (805) 388-1188


Motorcycle Rotor

Diameter: 11.5 Width: 0.2 Rotor Bolt Circle(s): 5 x 3.25

Motorcycle Rotor

Motorcycle Rotor Drawing

Motorcycle Rotor Description

Wilwood's Satin finished stainless rotors combine the ultimate in performance and distinctive style for production bikes and full customs using OE dimension brake components. A proprietary finishing & coating process on a select stainless alloy provides a appealing, high-tech finish, and the stopping power you expect from the world leader in high performance brake systems. Available in Black or Bright Stainless finish.

NOTE & CAUTIONS:
1984-1999 Harley-Davidson® Front

Ordering Information for Motorcycle Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Stainless	1.99		$117.10	160-10662-BK	Call (805) 388-1188


Motorcycle Rotor

Diameter: 11.5 Width: 0.2 Rotor Bolt Circle(s): 5 x 3.25

Motorcycle Rotor

Motorcycle Rotor Drawing

Motorcycle Rotor Description

Ordering Information for Motorcycle Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Stainless	1.99		$98.80	160-10662	Call (805) 388-1188


Motorcycle Rotor

Diameter: 11.5 Width: 0.2 Rotor Bolt Circle(s): 5 x 3.25

Motorcycle Rotor

Motorcycle Rotor Drawing

Motorcycle Rotor Description

Ordering Information for Motorcycle Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Stainless	1.99		$117.10	160-10663-BK	Call (805) 388-1188


Motorcycle Rotor

Diameter: 11.5 Width: 0.2 Rotor Bolt Circle(s): 5 x 3.25

Motorcycle Rotor

Motorcycle Rotor Drawing

Motorcycle Rotor Description

Ordering Information for Motorcycle Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Stainless	1.99		$98.80	160-10663	Call (805) 388-1188


Motorcycle Rotor

Diameter: 11.5 Width: 0.2 Rotor Bolt Circle(s): 5 x 3.25

Motorcycle Rotor

Motorcycle Rotor Drawing

Motorcycle Rotor Description

Ordering Information for Motorcycle Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Stainless	2.22		$117.10	160-10664-BK	Call (805) 388-1188


Motorcycle Rotor

Diameter: 11.5 Width: 0.2 Rotor Bolt Circle(s): 5 x 3.25

Motorcycle Rotor

Motorcycle Rotor Drawing

Motorcycle Rotor Description

Ordering Information for Motorcycle Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Stainless	2.22		$98.80	160-10664	Call (805) 388-1188


Motorcycle Rotor

Diameter: 11.5 Width: 0.2 Rotor Bolt Circle(s): 5 x 3.25

Motorcycle Rotor

Motorcycle Rotor Drawing

Motorcycle Rotor Description

Ordering Information for Motorcycle Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Stainless	2.22		$117.10	160-10665-BK	Call (805) 388-1188


Motorcycle Rotor

Diameter: 11.5 Width: 0.2 Rotor Bolt Circle(s): 5 x 3.25

Motorcycle Rotor

Motorcycle Rotor Drawing

Motorcycle Rotor Description

Ordering Information for Motorcycle Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Stainless	2.22		$98.80	160-10665	Call (805) 388-1188


Drilled Steel Scalloped Rotor

Diameter: 11.75 Width: 0.35 Rotor Bolt Circle(s): 8 x 7.00

Drilled Steel Scalloped Rotor

Drilled Steel Scalloped Rotor Drawing

Drilled Steel Scalloped Rotor Description

Ordering Information for Drilled Steel Scalloped Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Steel Scalloped	Solid	Steel	6.38		$89.99	160-9772	Call (805) 388-1188


Drilled Steel Rotor

Diameter: 11.75 Width: 0.35 Rotor Bolt Circle(s): 8 x 7.00

Drilled Steel Rotor

Drilled Steel Rotor Drawing

Drilled Steel Rotor Description

Ordering Information for Drilled Steel Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Steel	6.38		$113.93	160-3202	Call (805) 388-1188


Solid Steel Rotor

Diameter: 11.75 Width: 0.35 Rotor Bolt Circle(s): 8 x 7.00

Solid Steel Rotor

Solid Steel Rotor Drawing

Solid Steel Rotor Description

Ordering Information for Solid Steel Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	Solid	Solid	Steel	6.38		$98.93	160-3201	Call (805) 388-1188


Drilled Steel Scalloped Dynamic Mount Rotor

Diameter: 11.75 Width: 0.35 Rotor Bolt Circle(s): 8 x 7.00

Drilled Steel Scalloped Dynamic Mount Rotor

Drilled Steel Scalloped Dynamic Mount Rotor Drawing

Drilled Steel Scalloped Dynamic Mount Rotor Description

Ordering Information for Drilled Steel Scalloped Dynamic Mount Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Steel Scalloped	Solid	Steel	6.56		$151.14	160-5855	Call (805) 388-1188


Ultralite 32 Vane Rotor

Diameter: 11.75 Width: 0.75 Rotor Bolt Circle(s): 8 x 7.62

Ultralite 32 Vane Rotor

Ultralite 32 Vane Rotor Drawing

Ultralite 32 Vane Rotor Description

Ultra-Light UL straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale economy, make it possible to offer this level of quality and performance at such an affordable price.

NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite 32 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	UL	32 V	Iron	7.13	8.5	$94.50	160-1949	Call (805) 388-1188

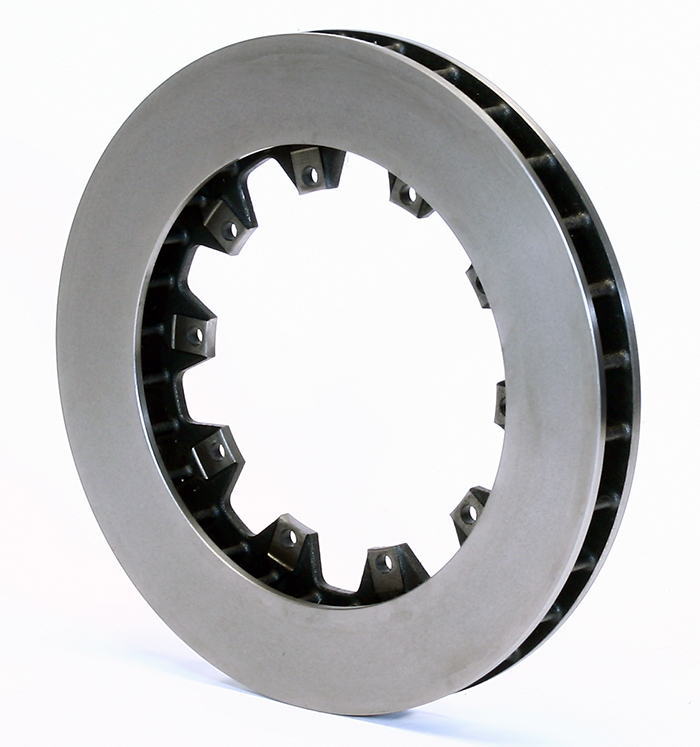

Ultralite 30 Vane Rotor

Diameter: 11.75 Width: 0.81 Rotor Bolt Circle(s): 10 x 6.81

Ultralite 30 Vane Rotor

Ultralite 30 Vane Rotor Drawing

Ultralite 30 Vane Rotor Description

Ordering Information for Ultralite 30 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	UL	30 V	Iron	6.27	8	$97.14	160-0790	Call (805) 388-1188


GT 36 Curved Vane Rotor

Diameter: 11.75 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

GT 36 Curved Vane Rotor

GT 36 Curved Vane Rotor Drawing

GT 36 Curved Vane Rotor Description

Wilwood's GT 36 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest braking available.

NOTE & CAUTIONS:
Premium grade, Spec-37 Heavy Wall Castings

Ordering Information for GT 36 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	36 CV	Spec-37 Iron	6.38	7.87	$129.59	160-12285	Call (805) 388-1188
		GT Slotted	N	GT	36 CV	Spec-37 Iron	6.38	7.87	$129.59	160-12286	Call (805) 388-1188


HD 36 Curved Vane Rotor

Diameter: 11.75 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

HD 36 Curved Vane Rotor

HD 36 Curved Vane Rotor Drawing

HD 36 Curved Vane Rotor Description

Wilwood's HD 36 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Our HD Series preparation includes full detail machining and smooth pad contact faces without slots.

NOTE & CAUTIONS:
Premium grade, Spec-37 Heavy Wall Castings

Ordering Information for HD 36 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	HD	36 CV	Spec-37 Iron	6.38	7.87	$106.91	160-12283	Call (805) 388-1188
		Plain Face	N	HD	36 CV	Spec-37 Iron	6.38	7.87	$106.91	160-12284	Call (805) 388-1188


Super Alloy Scalloped Rotor

Diameter: 11.75 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

Super Alloy Scalloped Rotor

Super Alloy Scalloped Rotor Drawing

Super Alloy Scalloped Rotor Description

Our newest Super Alloy rotor in 11.75” diameter is targeted directly to Dirt Late Model and Modified racing. Wilwood’s proprietary Super Alloy material provides the lowest rotating and un-sprung weight, without degradation, shrinkage and warping like comparable Iron & Steel lightweight rotors. Super Alloy rotors provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range, and high heat spikes are only observed on an intermittent basis. Our special alloy and proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads.

NOTE & CAUTIONS:
Recommended Brake Pads: BP40 and CM (Sintered Metallic) compounds.

Ordering Information for Super Alloy Scalloped Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Slotted	N	Alloy Scalloped	32 V	Super Alloy	6.38	8.19	$215.94	160-13373	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 11.75 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	32 V	Iron	6.38	8.34	$147.90	160-7101-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	32 V	Iron	6.38	8.34	$147.90	160-7102-BK	Call (805) 388-1188


Ultralite 32 Vane Rotor

Diameter: 11.75 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

Ultralite 32 Vane Rotor

Ultralite 32 Vane Rotor Drawing

Ultralite 32 Vane Rotor Description

Ultra-Light UL straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale economy, make it possible to offer this level of quality and performance at such an affordable price.

NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite 32 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	UL	32 V	Iron	6.38	8.34	$38.70	160-0471	Call (805) 388-1188


Ulltralite 32 Vane Rotor Drilled

Diameter: 11.75 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

Ulltralite 32 Vane Rotor Drilled

Ulltralite 32 Vane Rotor Drilled Drawing

Ulltralite 32 Vane Rotor Drilled Description

When it comes to rotors, racers are constantly searching for the ultimate balance between the lowest weight and the ability to effectively manage heat. Decreased rotating weight in the drive line provides quicker deceleration under braking and quicker acceleration out of the corners. Lower weight also benefits handling with improved spring and shock control over the unsprung suspension mass. Wilwood's ULD-32 drilled iron rotors provides effective lightweight options for sprints, late models, modifieds, and other competition applications that race in low to medium temperature ranges.

NOTE & CAUTIONS:
Race Drilled Rotors are unsafe for street use.

Ordering Information for Ulltralite 32 Vane Rotor Drilled

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Race Drilled	N	ULD	32 V	Iron	6.38	8.34	$53.99	160-5863	Call (805) 388-1188


Ultralite HP 32 Vane Rotor

Diameter: 11.75 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

Ultralite HP 32 Vane Rotor

Ultralite HP 32 Vane Rotor Drawing

Ultralite HP 32 Vane Rotor Description

Ultra-Light ULHP-32 straight vane rotors provide an excellent balance of efficient cooling and lower rotating mass on hard braking dirt tracks or rear axle service on pavement cars. UL rotors are cast from premium grade, long grain carbon iron for long wear, high thermal stability, and resistance to distortion. ULHP-32 rotors offered the added performance and smoother operation of precision turned faces with less than .001" variation in flatness, parallelism, or run-out.

NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite HP 32 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	ULHP	32 V	Iron	6.38	8.34	$87.90	160-5841	Call (805) 388-1188


Ultralite 32 Vane Scalloped Rotor

Diameter: 11.75 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

Ultralite 32 Vane Scalloped Rotor

Ultralite 32 Vane Scalloped Rotor Drawing

Ultralite 32 Vane Scalloped Rotor Description

Ordering Information for Ultralite 32 Vane Scalloped Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	UL Scalloped	32 V	Iron	6.38	8.34	$97.14	160-8135	Call (805) 388-1188

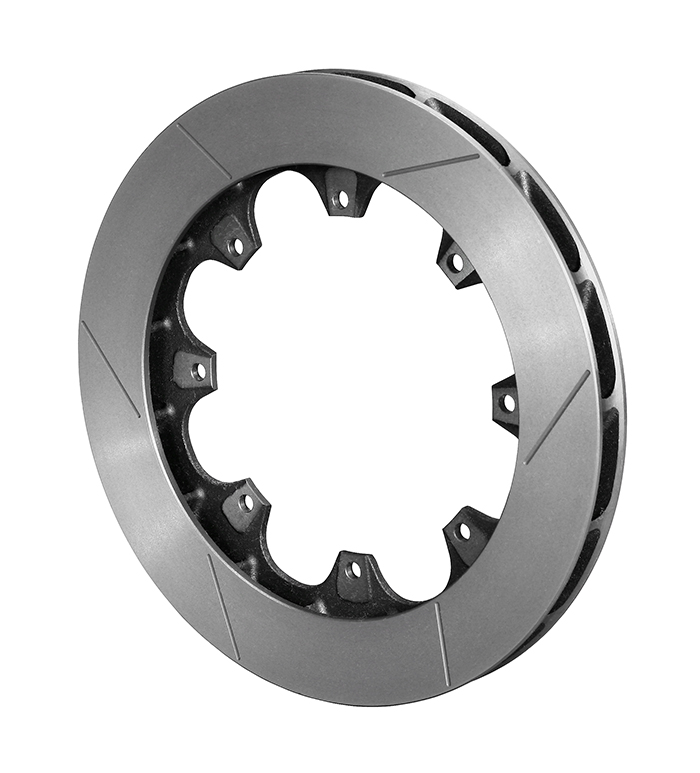

ULGT 16 Curved Vane Rotor

Diameter: 11.75 Width: 0.99 Rotor Bolt Circle(s): 8 x 7.00

ULGT 16 Curved Vane Rotor

ULGT 16 Curved Vane Rotor Drawing

ULGT 16 Curved Vane Rotor Description

Wilwood''s ULGT-16 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Style asymmetrical face slot pattern, you are assured the smoothest braking available.

NOTE & CAUTIONS:
Premium grade, Spec-37 Castings.

Ordering Information for ULGT 16 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	16 CV	Spec-37 Iron	6.38	8.46	$129.59	160-13980	Call (805) 388-1188
		GT Slotted	N	GT	16 CV	Spec-37 Iron	6.38	8.46	$129.59	160-13981	Call (805) 388-1188

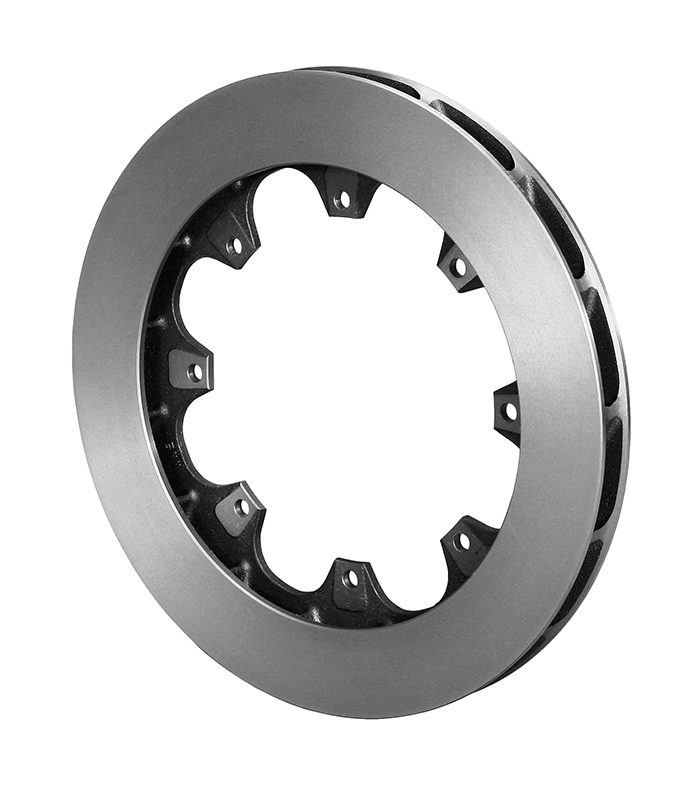

ULHD 16 Curved Vane Rotor

Diameter: 11.75 Width: 0.99 Rotor Bolt Circle(s): 8 x 7.00

ULHD 16 Curved Vane Rotor

ULHD 16 Curved Vane Rotor Drawing

ULHD 16 Curved Vane Rotor Description

Wilwood''s ULHD-16 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Our HP Series preparation includes full detail machining and smooth pad contact faces without slots.

NOTE & CAUTIONS:
Premium grade, Spec-37 Castings.

Ordering Information for ULHD 16 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	HD	16 CV	Spec-37 Iron	6.38	8.46	$86.25	160-13978	Call (805) 388-1188
		Plain Face	N	HD	16 CV	Spec-37 Iron	6.38	8.46	$86.25	160-13979	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 11.75 Width: 1.21 Rotor Bolt Circle(s): 8 x 7.00

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

Wilwood's GT 48 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest, vibration free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.

NOTE & CAUTIONS:
Premium grade, Spec-37 Castings.

Ordering Information for GT 48 Curved Vane Rotor

Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
GT Slotted	N	GT	48 CV	Spec-37 Iron	6.38	8.34	$129.59	160-13499	Call (805) 388-1188
GT Slotted	Y	GT	48 CV	Spec-37 Iron	6.38	8.34	$219.59	160-13499-B	Call (805) 388-1188
GT Slotted	N	GT	48 CV	Spec-37 Iron	6.38	8.34	$129.59	160-13500	Call (805) 388-1188
GT Slotted	Y	GT	48 CV	Spec-37 Iron	6.38	8.34	$219.59	160-13500-B	Call (805) 388-1188


HD 48 Curved Vane Rotor

Diameter: 11.75 Width: 1.21 Rotor Bolt Circle(s): 8 x 7.00

HD 48 Curved Vane Rotor

HD 48 Curved Vane Rotor Drawing

HD 48 Curved Vane Rotor Description

Wilwood's HD 48 Curved Vane Spec-37 rotors are are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Our HD Series preparation includes full detail machining and smooth pad contact faces without slots.

NOTE & CAUTIONS:
Premium grade, Spec-37 Castings.

Ordering Information for HD 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	HD	48 CV	Spec-37 Iron	6.38	8.34	$106.91	160-13497	Call (805) 388-1188
		Plain Face	N	HD	48 CV	Spec-37 Iron	6.38	8.34	$106.91	160-13498	Call (805) 388-1188

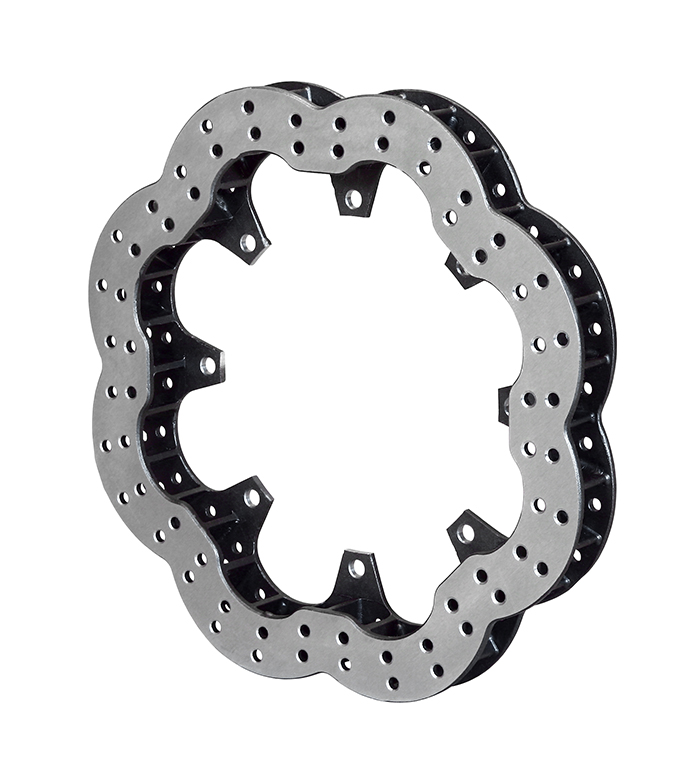

Super Alloy Scalloped Rotor

Diameter: 11.75 Width: 1.25 Rotor Bolt Circle(s): 8 x 7.00

Super Alloy Scalloped Rotor

Super Alloy Scalloped Rotor Drawing

Super Alloy Scalloped Rotor Description

Ordering Information for Super Alloy Scalloped Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Alloy Scalloped	32 V	Super Alloy	6.38	8.19	$215.94	160-12041	Call (805) 388-1188


Ultralite 32 Curved Vane Rotor

Diameter: 11.75 Width: 1.25 Rotor Bolt Circle(s): 8 x 7.00

Ultralite 32 Curved Vane Rotor

Ultralite 32 Curved Vane Rotor Drawing

Ultralite 32 Curved Vane Rotor Description

Ultra-Light UL-32 directional vane rotors provide an excellent balance of efficient cooling and lower rotating mass on hard braking dirt tracks or rear axle service on pavement cars. UL rotors are cast from premium grade, long grain carbon iron for long wear, high thermal stability, and resistance to distortion. UL-32 rotors are production machined and well suited to a wide range of sportsman racing categories.

NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite 32 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	UL	32 CV	Iron	6.38	8.34	$47.21	160-2898	Call (805) 388-1188
		Plain Face	N	UL	32 CV	Iron	6.38	8.34	$47.21	160-2899	Call (805) 388-1188


Ultralite 32 Vane Rotor

Diameter: 11.75 Width: 1.25 Rotor Bolt Circle(s): 8 x 7.00

Ultralite 32 Vane Rotor

Ultralite 32 Vane Rotor Drawing

Ultralite 32 Vane Rotor Description

Ultra-Light UL straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale economy, make it possible to offer this level of quality and performance at such an affordable price.

NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite 32 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	UL	32 V	Iron	6.38	8.34	$38.70	160-0483	Call (805) 388-1188


Ulltralite 32 Vane Rotor Drilled

Diameter: 11.75 Width: 1.25 Rotor Bolt Circle(s): 8 x 7.00

Ulltralite 32 Vane Rotor Drilled

Ulltralite 32 Vane Rotor Drilled Drawing

Ulltralite 32 Vane Rotor Drilled Description

When it comes to rotors, racers are constantly searching for the ultimate balance between the lowest weight and the ability to effectively manage heat. Decreased rotating weight in the drive line provides quicker deceleration under braking and quicker acceleration out of the corners. Lower weight also benefits handling with improved spring and shock control over the unsprung suspension mass. Wilwood's ULD-32 drilled iron rotors provides effective lightweight options for sprints, late models, modifieds, and other competition applications that race in low to medium temperature ranges.

NOTE & CAUTIONS:
Race Drilled Rotors are unsafe for street use.

Ordering Information for Ulltralite 32 Vane Rotor Drilled

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Race Drilled	N	ULD	32 V	Iron	6.38	8.34	$53.99	160-5864	Call (805) 388-1188


Ultralite 32 Vane Scalloped Rotor

Diameter: 11.75 Width: 1.25 Rotor Bolt Circle(s): 8 x 7.00

Ultralite 32 Vane Scalloped Rotor

Ultralite 32 Vane Scalloped Rotor Drawing

Ultralite 32 Vane Scalloped Rotor Description

Ordering Information for Ultralite 32 Vane Scalloped Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	UL Scalloped	32 V	Iron	6.38	8.34	$97.14	160-8343	Call (805) 388-1188
		Plain Face	N	UL Scalloped	32 V	Iron	6.38	8.75	$97.14	160-8814	Call (805) 388-1188


Motorcycle Rotor

Diameter: 11.8 Width: 0.2 Rotor Bolt Circle(s): 5 x 3.25

Motorcycle Rotor

Motorcycle Rotor Drawing

Motorcycle Rotor Description

Ordering Information for Motorcycle Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Stainless	2.22		$98.80	160-13355	Call (805) 388-1188


Motorcycle Rotor

Diameter: 11.8 Width: 0.2 Rotor Bolt Circle(s): 5 x 3.25

Motorcycle Rotor

Motorcycle Rotor Drawing

Motorcycle Rotor Description

Ordering Information for Motorcycle Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Stainless	2.22		$117.10	160-13355-BK	Call (805) 388-1188


Motorcycle Rotor

Diameter: 11.8 Width: 0.28 Rotor Bolt Circle(s): 5 x 3.25

Motorcycle Rotor

Motorcycle Rotor Drawing

Motorcycle Rotor Description

Ordering Information for Motorcycle Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Stainless	2.22		$143.70	160-14087-BK	Call (805) 388-1188


Motorcycle Rotor

Diameter: 11.8 Width: 0.28 Rotor Bolt Circle(s): 5 x 3.25

Motorcycle Rotor

Motorcycle Rotor Drawing

Motorcycle Rotor Description

Ordering Information for Motorcycle Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Stainless	2.22		$125.40	160-14087	Call (805) 388-1188


Drilled Steel Rotor

Diameter: 12 Width: 0.31 Rotor Bolt Circle(s): 8 x 7.62

Drilled Steel Rotor

Drilled Steel Rotor Drawing

Drilled Steel Rotor Description

Ordering Information for Drilled Steel Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Steel	7		$113.93	160-0495	Call (805) 388-1188

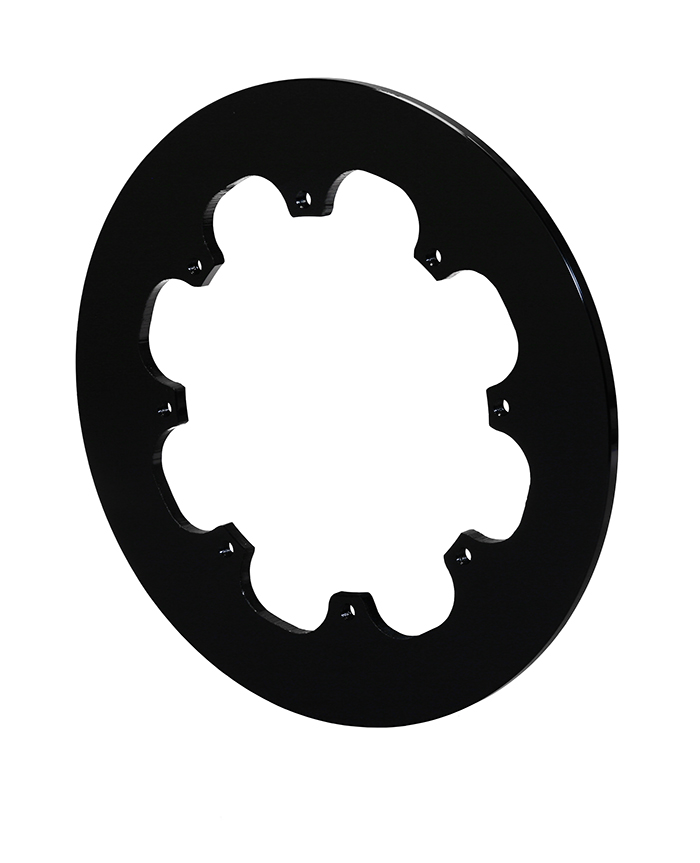

Solid Steel Rotor

Diameter: 12 Width: 0.31 Rotor Bolt Circle(s): 8 x 7.62

Solid Steel Rotor

Solid Steel Rotor Drawing

Solid Steel Rotor Description

Ordering Information for Solid Steel Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	Solid	Solid	Steel	7		$98.93	160-0490	Call (805) 388-1188


Drilled Steel Rotor

Diameter: 12 Width: 0.35 Rotor Bolt Circle(s): 8 x 7.00

Drilled Steel Rotor

Drilled Steel Rotor Drawing

Drilled Steel Rotor Description

Ordering Information for Drilled Steel Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Steel	6.38		$113.93	160-0525	Call (805) 388-1188


Super Alloy Slotted Rotor

Diameter: 12 Width: 0.36 Rotor Bolt Circle(s): 8 x 7.00

Super Alloy Slotted Rotor

Super Alloy Slotted Rotor Drawing

Super Alloy Slotted Rotor Description

Ordering Information for Super Alloy Slotted Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Slotted	N	Alloy Solid	Solid	Titanium	6.36		$829.95	160-12571	Call (805) 388-1188


GT 36 Curved Vane Rotor

Diameter: 12 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

GT 36 Curved Vane Rotor

GT 36 Curved Vane Rotor Drawing

GT 36 Curved Vane Rotor Description

Ordering Information for GT 36 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	36 CV	Spec-37 Iron	6.38	8.41	$164.93	160-12287	Call (805) 388-1188
		GT Slotted	N	GT	36 CV	Spec-37 Iron	6.38	8.41	$164.93	160-12288	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 12 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	36 CV	Spec-37 Iron	6.38	8.41	$200.34	160-8496-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	36 CV	Spec-37 Iron	6.38	8.41	$200.34	160-8497-BK	Call (805) 388-1188


Ultralite 32 Vane Rotor

Diameter: 12 Width: 1.2 Rotor Bolt Circle(s): 8 x 7.00

Ultralite 32 Vane Rotor

Ultralite 32 Vane Rotor Drawing

Ultralite 32 Vane Rotor Description

Ultra-Light UL straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale economy, make it possible to offer this level of quality and performance at such an affordable price.

NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite 32 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	UL	32 V	Iron	6.38	8.34	$59.67	160-0586	Call (805) 388-1188


Drilled Steel Scalloped Rotor

Diameter: 12.19 Width: 0.35 Rotor Bolt Circle(s): 8 x 7.00

Drilled Steel Scalloped Rotor

Drilled Steel Scalloped Rotor Drawing

Drilled Steel Scalloped Rotor Description

Ordering Information for Drilled Steel Scalloped Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Steel Scalloped	Solid	Steel	6.38		$89.99	160-9773	Call (805) 388-1188


Drilled Steel Scalloped Dynamic Mount Rotor

Diameter: 12.19 Width: 0.35 Rotor Bolt Circle(s): 8 x 7.00

Drilled Steel Scalloped Dynamic Mount Rotor

Drilled Steel Scalloped Dynamic Mount Rotor Drawing

Drilled Steel Scalloped Dynamic Mount Rotor Description

Ordering Information for Drilled Steel Scalloped Dynamic Mount Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Steel Scalloped	Solid	Steel	6.56		$151.14	160-5538	Call (805) 388-1188


GT 36 Curved Vane Rotor

Diameter: 12.19 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

GT 36 Curved Vane Rotor

GT 36 Curved Vane Rotor Drawing

GT 36 Curved Vane Rotor Description

Ordering Information for GT 36 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	36 CV	Spec-37 Iron	6.38	8.56	$129.59	160-12291	Call (805) 388-1188
		GT Slotted	N	GT	36 CV	Spec-37 Iron	6.38	8.56	$129.59	160-12292	Call (805) 388-1188


HD 36 Curved Vane Rotor

Diameter: 12.19 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

HD 36 Curved Vane Rotor

HD 36 Curved Vane Rotor Drawing

HD 36 Curved Vane Rotor Description

Ordering Information for HD 36 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	HD	36 CV	Spec-37 Iron	6.38	8.56	$106.91	160-12289	Call (805) 388-1188
		Plain Face	N	HD	36 CV	Spec-37 Iron	6.38	8.56	$106.91	160-12290	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 12.19 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
SRP Drilled & Slotted	N	SRP	32 V	Iron	6.38	8.56	$177.90	160-7103	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP-BLK	32 V	Iron	6.38	8.56	$147.90	160-7103-BK	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP	32 V	Iron	6.38	8.56	$177.90	160-7104	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP-BLK	32 V	Iron	6.38	8.56	$147.90	160-7104-BK	Call (805) 388-1188


Ultralite 32 Vane Rotor

Diameter: 12.19 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

Ultralite 32 Vane Rotor

Ultralite 32 Vane Rotor Drawing

Ultralite 32 Vane Rotor Description

Ultra-Light UL straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale economy, make it possible to offer this level of quality and performance at such an affordable price.

NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite 32 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	UL	32 V	Iron	6.38	8.56	$40.50	160-0277	Call (805) 388-1188


Ulltralite 32 Vane Rotor Drilled

Diameter: 12.19 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

Ulltralite 32 Vane Rotor Drilled

Ulltralite 32 Vane Rotor Drilled Drawing

Ulltralite 32 Vane Rotor Drilled Description

When it comes to rotors, racers are constantly searching for the ultimate balance between the lowest weight and the ability to effectively manage heat. Decreased rotating weight in the drive line provides quicker deceleration under braking and quicker acceleration out of the corners. Lower weight also benefits handling with improved spring and shock control over the unsprung suspension mass. Wilwood's ULD-32 drilled iron rotors provides effective lightweight options for sprints, late models, modifieds, and other competition applications that race in low to medium temperature ranges.

NOTE & CAUTIONS:
Race Drilled Rotors are unsafe for street use.

Ordering Information for Ulltralite 32 Vane Rotor Drilled

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Race Drilled	N	ULD	32 V	Iron	6.38	8.56	$56.15	160-5865	Call (805) 388-1188


Ultralite HP 32 Vane Rotor

Diameter: 12.19 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

Ultralite HP 32 Vane Rotor

Ultralite HP 32 Vane Rotor Drawing

Ultralite HP 32 Vane Rotor Description

Ordering Information for Ultralite HP 32 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	ULHP	32 V	Iron	6.38	8.56	$87.90	160-5843	Call (805) 388-1188


Ultralite 32 Vane Scalloped Rotor

Diameter: 12.19 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.00

Ultralite 32 Vane Scalloped Rotor

Ultralite 32 Vane Scalloped Rotor Drawing

Ultralite 32 Vane Scalloped Rotor Description

Ordering Information for Ultralite 32 Vane Scalloped Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	UL Scalloped	32 V	Iron	6.38	8.56	$97.14	160-8136	Call (805) 388-1188


GT 36 Curved Vane Rotor

Diameter: 12.19 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.62

GT 36 Curved Vane Rotor

GT 36 Curved Vane Rotor Drawing

GT 36 Curved Vane Rotor Description

Ordering Information for GT 36 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	36 CV	Spec-37 Iron	7.13	8.34	$164.93	160-12293	Call (805) 388-1188
		GT Slotted	N	GT	36 CV	Spec-37 Iron	7.13	8.34	$164.93	160-12294	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 12.19 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.62

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
SRP Drilled & Slotted	N	SRP	32 V	Iron	7.13	8.5	$177.90	160-7105	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP-BLK	32 V	Iron	7.13	8.5	$147.90	160-7105-BK	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP	32 V	Iron	7.13	8.5	$177.90	160-7106	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP-BLK	32 V	Iron	7.13	8.5	$147.90	160-7106-BK	Call (805) 388-1188


Ultralite HP 32 Vane Rotor

Diameter: 12.19 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.62

Ultralite HP 32 Vane Rotor

Ultralite HP 32 Vane Rotor Drawing

Ultralite HP 32 Vane Rotor Description

Ordering Information for Ultralite HP 32 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	ULHP	32 V	Iron	7.13	8.5	$87.90	160-5844	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 12.19 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.78

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	32 V	Iron	7.29	8.53	$157.14	160-6924-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	32 V	Iron	7.29	8.53	$157.14	160-6925-BK	Call (805) 388-1188


Ultralite HP 32 Vane Rotor

Diameter: 12.19 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.78

Ultralite HP 32 Vane Rotor

Ultralite HP 32 Vane Rotor Drawing

Ultralite HP 32 Vane Rotor Description

Ordering Information for Ultralite HP 32 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	ULHP	32 V	Iron	7.29	8.53	$97.14	160-6218	Call (805) 388-1188
		Plain Face	N	ULHP	32 V	Iron	7.29	8.53	$112.43	160-6984	Call (805) 388-1188


Ultralite HPS 32 Vane Rotor

Diameter: 12.19 Width: 0.81 Rotor Bolt Circle(s): 8 x 7.78

Ultralite HPS 32 Vane Rotor

Ultralite HPS 32 Vane Rotor Drawing

Ultralite HPS 32 Vane Rotor Description

Ultra-Light ULHP straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale ecoNmies, make it possible to offer this level of quality and performance at such an affordable price.

NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite HPS 32 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	ULHPS	32 V	Iron	7.29	8.53	$119.93	160-9585	Call (805) 388-1188


Ultralite HPS 32 Vane Rotor

Diameter: 12.19 Width: 1.1 Rotor Bolt Circle(s): 8 x 7.00

Ultralite HPS 32 Vane Rotor

Ultralite HPS 32 Vane Rotor Drawing

Ultralite HPS 32 Vane Rotor Description

Ultra-Light ULHP straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale ecoNmies, make it possible to offer this level of quality and performance at such an affordable price.

NOTE & CAUTIONS:

Ordering Information for Ultralite HPS 32 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	ULHPS	32 V	Iron	6.38	8.34	$104.93	160-12206	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 12.19 Width: 1.1 Rotor Bolt Circle(s): 8 x 7.00

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	32 V	Iron	6.38	8.34	$164.93	160-12204-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	32 V	Iron	6.38	8.34	$164.93	160-12205-BK	Call (805) 388-1188


Ultralite HP 32 Vane Rotor

Diameter: 12.19 Width: 1.1 Rotor Bolt Circle(s): 8 x 7.00

Ultralite HP 32 Vane Rotor

Ultralite HP 32 Vane Rotor Drawing

Ultralite HP 32 Vane Rotor Description

Ultra-Light ULHP straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale ecoNmies, make it possible to offer this level of quality and performance at such an affordable price.

NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite HP 32 Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	ULHP	32 V	Iron	6.38	8.34	$56.93	160-11862	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 12.19 Width: 1.25 Rotor Bolt Circle(s): 8 x 7.00

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

Ordering Information for GT 48 Curved Vane Rotor

Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
GT Slotted	N	GT	48 CV	Spec-37 Iron	6.38	8.41	$129.59	160-11839	Call (805) 388-1188
GT Slotted	Y	GT	48 CV	Spec-37 Iron	6.38	8.41	$219.59	160-11839-B	Call (805) 388-1188
GT Slotted	N	GT	48 CV	Spec-37 Iron	6.38	8.41	$129.59	160-11840	Call (805) 388-1188
GT Slotted	Y	GT	48 CV	Spec-37 Iron	6.38	8.41	$219.59	160-11840-B	Call (805) 388-1188


HD 48 Curved Vane Rotor

Diameter: 12.19 Width: 1.25 Rotor Bolt Circle(s): 8 x 7.00

HD 48 Curved Vane Rotor

HD 48 Curved Vane Rotor Drawing

HD 48 Curved Vane Rotor Description

Ordering Information for HD 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	HD	48 CV	Spec-37 Iron	6.38	8.41	$106.91	160-11835	Call (805) 388-1188
		Plain Face	N	HD	48 CV	Spec-37 Iron	6.38	8.41	$106.91	160-11836	Call (805) 388-1188


Ultralite 32 Curved Vane Rotor

Diameter: 12.19 Width: 1.25 Rotor Bolt Circle(s): 8 x 7.00

Ultralite 32 Curved Vane Rotor

Ultralite 32 Curved Vane Rotor Drawing

Ultralite 32 Curved Vane Rotor Description

Ordering Information for Ultralite 32 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	UL	32 CV	Iron	6.38	8.56	$74.94	160-2894	Call (805) 388-1188
		Plain Face	N	UL	32 CV	Iron	6.38	8.56	$74.94	160-2895	Call (805) 388-1188


HD 48 Curved Vane Rotor

Diameter: 12.19 Width: 1.25 Rotor Bolt Circle(s): 8 x 7.62

HD 48 Curved Vane Rotor

HD 48 Curved Vane Rotor Drawing

HD 48 Curved Vane Rotor Description

Ordering Information for HD 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	HD	48 CV	Spec-37 Iron	7.13	8.41	$134.94	160-3872	Call (805) 388-1188
		Plain Face	N	HD	48 CV	Spec-37 Iron	7.13	8.41	$134.94	160-3873	Call (805) 388-1188


Ultralite 32 Curved Vane Rotor

Diameter: 12.19 Width: 1.25 Rotor Bolt Circle(s): 8 x 7.62

Ultralite 32 Curved Vane Rotor

Ultralite 32 Curved Vane Rotor Drawing

Ultralite 32 Curved Vane Rotor Description

Ordering Information for Ultralite 32 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	UL	32 CV	Iron	7.13	8.5	$80.94	160-2900	Call (805) 388-1188
		Plain Face	N	UL	32 CV	Iron	7.13	8.5	$80.94	160-2901	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 12.44 Width: 1.19 Rotor Bolt Circle(s): 12 x 7.00

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Spec-37 Iron	6.38	7.87	$269.93	160-12157-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Spec-37 Iron	6.38	7.87	$269.93	160-12158-BK	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 12.6 Width: 1.29 Rotor Bolt Circle(s): 12 x 7.00

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

Ordering Information for GT 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	48 CV	Spec-37 Iron	6.38	7.69	$224.93	160-8746	Call (805) 388-1188
		GT Slotted	N	GT	48 CV	Spec-37 Iron	6.38	7.69	$224.93	160-8747	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 12.72 Width: 1.25 Rotor Bolt Circle(s): 8 x 7.00

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

Ordering Information for GT 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	48 CV	Spec-37 Iron	6.53	8.88	$224.93	160-2540	Call (805) 388-1188
		GT Slotted	N	GT	48 CV	Spec-37 Iron	6.53	8.88	$224.93	160-2541	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 12.72 Width: 1.25 Rotor Bolt Circle(s): 8 x 7.62

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

Ordering Information for GT 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	48 CV	Spec-37 Iron	7.13	8.88	$224.93	160-2978	Call (805) 388-1188
		GT Slotted	N	GT	48 CV	Spec-37 Iron	7.13	8.88	$224.93	160-2979	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 12.72 Width: 1.38 Rotor Bolt Circle(s): 12 x 6.75

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

Ordering Information for GT 48 Curved Vane Rotor

Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
GT Slotted	N	GT	48 CV	Spec-37 Iron	6.25	7.69	$224.93	160-3314	Call (805) 388-1188
GT Slotted	Y	GT	48 CV	Spec-37 Iron	6.25	7.69	$314.93	160-3314-B	Call (805) 388-1188
GT Slotted	N	GT	48 CV	Spec-37 Iron	6.25	7.69	$224.93	160-3315	Call (805) 388-1188
GT Slotted	Y	GT	48 CV	Spec-37 Iron	6.25	7.69	$314.93	160-3315-B	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 12.8 Width: 1.25 Rotor Bolt Circle(s): 12 x 7.06

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

Ordering Information for GT 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	48 CV	Spec-37 Iron	6.55	8.41	$239.93	160-7742	Call (805) 388-1188
		GT Slotted	N	GT	48 CV	Spec-37 Iron	6.55	8.41	$239.93	160-7743	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 12.8 Width: 1.25 Rotor Bolt Circle(s): 12 x 7.06

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Spec-37 Iron	6.55	8.41	$269.93	160-7744-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Spec-37 Iron	6.55	8.41	$269.93	160-7745-BK	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 12.88 Width: 0.81 Rotor Bolt Circle(s): 12 x 8.75

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

GT-48 curved vane rotors are built for the extreme conditions of professional motorsports. The superior heat absorption and dissipation characteristics of these heavy wall directional vane rotors are the keys to preventing heat fade and realizing long service life from the rotors and pads. All rotors are cast from premium grade, long grain carbon iron for long wear, thermal stability, and resistance to distortion. Every GT rotor is fully detail machined to eliminate stress points and unnecessary weight away from the pad sweep face. The faces and O.D. are precision turned to less than .001" for flatness, parallelism, and run-out. An asymmetrical face slot pattern provides smoother engagement through reduced harmonics and improved thermal balance between the I.D. and O.D. of the rotor. Every rotor is then individually dynamic balanced to provide vibration free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.

NOTE & CAUTIONS:
Heavy Duty 48 Vane Iron castings.

Ordering Information for GT 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	48 CV	Iron	8.25	9.46	$224.93	160-9959	Call (805) 388-1188
		GT Slotted	N	GT	48 CV	Iron	8.25	9.46	$224.93	160-9960	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 12.88 Width: 0.81 Rotor Bolt Circle(s): 12 x 8.75

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Iron	8.25	9.46	$269.93	160-9961-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Iron	8.25	9.46	$269.93	160-9962-BK	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 12.88 Width: 0.75 Rotor Bolt Circle(s): 12 x 8.75

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Iron	8.25	9.46	$269.93	160-12469-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Iron	8.25	9.46	$269.93	160-12470-BK	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 12.88 Width: 1 Rotor Bolt Circle(s): 12 x 8.75

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

Ordering Information for GT 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	48 CV	Spec-37 Iron	8.25	9.46	$239.93	160-13356	Call (805) 388-1188
		GT Slotted	N	GT	48 CV	Spec-37 Iron	8.25	9.46	$239.93	160-13357	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 12.88 Width: 1 Rotor Bolt Circle(s): 12 x 8.75

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Spec-37 Iron	8.25	9.46	$269.93	160-13358-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Spec-37 Iron	8.25	9.46	$269.93	160-13359-BK	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 12.88 Width: 1.1 Rotor Bolt Circle(s): 12 x 8.75

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

Ordering Information for GT 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	48 CV	Spec-37 Iron	8.25	9.46	$199.14	160-12961	Call (805) 388-1188
		GT Slotted	N	GT	48 CV	Spec-37 Iron	8.25	9.46	$199.14	160-12962	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 12.88 Width: 1.1 Rotor Bolt Circle(s): 12 x 8.75

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
SRP Drilled & Slotted	N	SRP	48 CV	Spec-37 Iron	8.25	9.46	$274.14	160-13543	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP-BLK	48 CV	Spec-37 Iron	8.25	9.46	$244.14	160-13543-BK	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP	48 CV	Spec-37 Iron	8.25	9.46	$274.14	160-13544	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP-BLK	48 CV	Spec-37 Iron	8.25	9.46	$244.14	160-13544-BK	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 12.88 Width: 1.25 Rotor Bolt Circle(s): 12 x 8.75

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

Ordering Information for GT 48 Curved Vane Rotor

Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
GT Slotted	N	GT	48 CV	Spec-37 Iron	8.25	9.46	$224.93	160-4564	Call (805) 388-1188
GT Slotted	Y	GT	48 CV	Spec-37 Iron	8.25	9.46	$314.93	160-4564-B	Call (805) 388-1188
GT Slotted	N	GT	48 CV	Spec-37 Iron	8.25	9.46	$224.93	160-4565	Call (805) 388-1188
GT Slotted	Y	GT	48 CV	Spec-37 Iron	8.25	9.46	$314.93	160-4565-B	Call (805) 388-1188


HD 48 Curved Vane Rotor

Diameter: 12.88 Width: 1.25 Rotor Bolt Circle(s): 12 x 8.75

HD 48 Curved Vane Rotor

HD 48 Curved Vane Rotor Drawing

HD 48 Curved Vane Rotor Description

Ordering Information for HD 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	HD	48 CV	Spec-37 Iron	8.25	9.46	$209.93	160-12784	Call (805) 388-1188
		Plain Face	N	HD	48 CV	Spec-37 Iron	8.25	9.46	$209.93	160-12785	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 12.88 Width: 1.25 Rotor Bolt Circle(s): 12 x 8.75

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Spec-37 Iron	8.25	9.46	$269.93	160-7172-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Spec-37 Iron	8.25	9.46	$269.93	160-7173-BK	Call (805) 388-1188


Drilled Steel Dynamic Mount Rotor

Diameter: 12.9 Width: 0.38 Rotor Bolt Circle(s): 12 x 8.75

Drilled Steel Dynamic Mount Rotor

Drilled Steel Dynamic Mount Rotor Drawing

Drilled Steel Dynamic Mount Rotor Description

Ordering Information for Drilled Steel Dynamic Mount Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Steel	8.25		$225.00	160-4766	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 12.9 Width: 1.38 Rotor Bolt Circle(s): 12 x 7.15

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

Ordering Information for GT 48 Curved Vane Rotor

Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
GT Slotted	N	GT	48 CV	Spec-37 Iron	6.25	7.86	$224.93	160-6843	Call (805) 388-1188
GT Slotted	Y	GT	48 CV	Spec-37 Iron	6.25	7.86	$314.93	160-6843-B	Call (805) 388-1188
GT Slotted	N	GT	48 CV	Spec-37 Iron	6.25	7.86	$224.93	160-6844	Call (805) 388-1188
GT Slotted	Y	GT	48 CV	Spec-37 Iron	6.25	7.86	$314.93	160-6844-B	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 13 Width: 1.1 Rotor Bolt Circle(s): 12 x 7.00

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

Ordering Information for GT 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	48 CV	Spec-37 Iron	6.38	8.57	$239.93	160-13360	Call (805) 388-1188
		GT Slotted	N	GT	48 CV	Spec-37 Iron	6.38	8.57	$239.93	160-13361	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 13 Width: 1.1 Rotor Bolt Circle(s): 12 x 7.00

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Spec-37 Iron	6.38	8.57	$269.93	160-13362-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Spec-37 Iron	6.38	8.57	$269.93	160-13363-BK	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 13.06 Width: 1.25 Rotor Bolt Circle(s): 12 x 8.75

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

Ordering Information for GT 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	48 CV	Spec-37 Iron	8.25	9.46	$224.93	160-8165	Call (805) 388-1188
		GT Slotted	N	GT	48 CV	Spec-37 Iron	8.25	9.46	$224.93	160-8166	Call (805) 388-1188


HD 48 Curved Vane Rotor

Diameter: 13.06 Width: 1.25 Rotor Bolt Circle(s): 12 x 8.75

HD 48 Curved Vane Rotor

HD 48 Curved Vane Rotor Drawing

HD 48 Curved Vane Rotor Description

Ordering Information for HD 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	HD	48 CV	Spec-37 Iron	8.25	9.46	$209.93	160-12786	Call (805) 388-1188
		Plain Face	N	HD	48 CV	Spec-37 Iron	8.25	9.46	$209.93	160-12787	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 13.06 Width: 1.25 Rotor Bolt Circle(s): 12 x 8.75

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Spec-37 Iron	8.25	9.46	$269.93	160-7798-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	48 CV	Spec-37 Iron	8.25	9.46	$269.93	160-7799-BK	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 13.06 Width: 1.38 Rotor Bolt Circle(s): 8 x 7.00

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

Ordering Information for GT 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	48 CV	Spec-37 Iron	6.53	9.21	$224.93	160-3584	Call (805) 388-1188
		GT Slotted	N	GT	48 CV	Spec-37 Iron	6.53	9.21	$224.93	160-3585	Call (805) 388-1188


GT 48 Curved Vane Rotor

Diameter: 13.06 Width: 1.38 Rotor Bolt Circle(s): 8 x 7.62

GT 48 Curved Vane Rotor

GT 48 Curved Vane Rotor Drawing

GT 48 Curved Vane Rotor Description

Ordering Information for GT 48 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	48 CV	Spec-37 Iron	6.81	9.21	$224.93	160-3582	Call (805) 388-1188
		GT Slotted	N	GT	48 CV	Spec-37 Iron	6.81	9.21	$224.93	160-3583	Call (805) 388-1188


GT 36 Straight Vane Rotor

Diameter: 14 Width: 0.76 Rotor Bolt Circle(s): 12 x 8.75

GT 36 Straight Vane Rotor

GT 36 Straight Vane Rotor Drawing

GT 36 Straight Vane Rotor Description

GT-36 straight vane rotors are built for the extreme conditions of professional motorsports. The superior heat absorption and dissipation characteristics of these heavy wall directional vane rotors are the keys to preventing heat fade and realizing long service life from the rotors and pads. All rotors are cast from premium grade, long grain carbon iron for long wear, thermal stability, and resistance to distortion. Every GT-36 rotor is fully detail machined to eliminate stress points and unnecessary weight away from the pad sweep face. The faces and O.D. are precision turned to less than .001" for flatness, parallelism, and run-out. An asymmetrical face slot pattern provides smoother engagement through reduced harmonics and improved thermal balance between the I.D. and O.D. of the rotor. Every rotor is then individually dynamic balanced to provide vibration free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.

NOTE & CAUTIONS:
36 Vane Iron castings.

Ordering Information for GT 36 Straight Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	36 V	Iron	8.25	10	$224.93	160-12887	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 14 Width: 0.76 Rotor Bolt Circle(s): 12 x 8.75

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	36 V	Iron	8.25	10	$269.93	160-12888-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	36 V	Iron	8.25	10	$269.93	160-12889-BK	Call (805) 388-1188


GT 36 Straight Vane Rotor

Diameter: 14 Width: 0.81 Rotor Bolt Circle(s): 12 x 8.75

GT 36 Straight Vane Rotor

GT 36 Straight Vane Rotor Drawing

GT 36 Straight Vane Rotor Description

Ordering Information for GT 36 Straight Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	36 V	Iron	8.25	10	$224.93	160-12884	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 14 Width: 0.81 Rotor Bolt Circle(s): 12 x 8.75

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	36 V	Iron	8.25	10	$269.93	160-12885-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	36 V	Iron	8.25	10	$269.93	160-12886-BK	Call (805) 388-1188


C/SiC Rotors

Diameter: 14 Width: 1.1 Rotor Bolt Circle(s): 12 x 8.75

C/SiC Rotors

C/SiC Rotors Drawing

C/SiC Rotors Description

Wilwood's C/SiC rotors are made form a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic. C/SiC rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight. Developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this composite is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood.

NOTE & CAUTIONS:

Ordering Information for C/SiC Rotors

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	C/SiC	24 V	C/SiC	7.92	9.49	$2,338.00	160-12441	Call (805) 388-1188


GT 72 Curved Vane Rotor

Diameter: 14 Width: 1.1 Rotor Bolt Circle(s): 12 x 8.75

GT 72 Curved Vane Rotor

GT 72 Curved Vane Rotor Drawing

GT 72 Curved Vane Rotor Description

Wilwood's GT 72 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest braking available.

NOTE & CAUTIONS:
Premium grade, Spec-37 Castings.

Ordering Information for GT 72 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	72 CV	Spec-37 Iron	8.25	10	$284.93	160-8402	Call (805) 388-1188
		GT Slotted	N	GT	72 CV	Spec-37 Iron	8.25	10	$284.93	160-8403	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 14 Width: 1.1 Rotor Bolt Circle(s): 12 x 8.75

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
SRP Drilled & Slotted	N	SRP	72 CV	Spec-37 Iron	8.25	10	$367.43	160-8400	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP-BLK	72 CV	Spec-37 Iron	8.25	10	$329.93	160-8400-BK	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP	72 CV	Spec-37 Iron	8.25	10	$367.43	160-8401	Call (805) 388-1188
SRP Drilled & Slotted	N	SRP-BLK	72 CV	Spec-37 Iron	8.25	10	$329.93	160-8401-BK	Call (805) 388-1188


GT 72 Curved Vane Rotor

Diameter: 14 Width: 1.25 Rotor Bolt Circle(s): 12 x 8.25

GT 72 Curved Vane Rotor

GT 72 Curved Vane Rotor Drawing

GT 72 Curved Vane Rotor Description

Ordering Information for GT 72 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	72 CV	Spec-37 Iron	7.75	9	$269.93	160-12391	Call (805) 388-1188
		GT Slotted	N	GT	72 CV	Spec-37 Iron	7.75	9	$269.93	160-12392	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 14 Width: 1.25 Rotor Bolt Circle(s): 12 x 8.25

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	72 CV	Spec-37 Iron	7.75	9	$329.93	160-12341-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	72 CV	Spec-37 Iron	7.75	9	$329.93	160-12342-BK	Call (805) 388-1188


C/SiC Rotors

Diameter: 14 Width: 1.25 Rotor Bolt Circle(s): 12 x 8.75

C/SiC Rotors

C/SiC Rotors Drawing

C/SiC Rotors Description

Ordering Information for C/SiC Rotors

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Plain Face	N	C/SiC	24 V	C/SiC	7.92	9.49	$2,338.00	160-12442	Call (805) 388-1188


GT 72 Curved Vane Rotor

Diameter: 14 Width: 1.25 Rotor Bolt Circle(s): 12 x 8.75

GT 72 Curved Vane Rotor

GT 72 Curved Vane Rotor Drawing

GT 72 Curved Vane Rotor Description

Ordering Information for GT 72 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	72 CV	Spec-37 Iron	8.25	10	$284.93	160-8398	Call (805) 388-1188
		GT Slotted	N	GT	72 CV	Spec-37 Iron	8.25	10	$284.93	160-8399	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 14 Width: 1.25 Rotor Bolt Circle(s): 12 x 8.75

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	72 CV	Spec-37 Iron	8.25	10	$329.93	160-8396-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	72 CV	Spec-37 Iron	8.25	10	$329.93	160-8397-BK	Call (805) 388-1188


GT 72 Curved Vane Rotor

Diameter: 14 Width: 1.25 Rotor Bolt Circle(s): 12 x 9.19

GT 72 Curved Vane Rotor

GT 72 Curved Vane Rotor Drawing

GT 72 Curved Vane Rotor Description

Ordering Information for GT 72 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	72 CV	Spec-37 Iron	8.57	10	$291.54	160-8023	Call (805) 388-1188
		GT Slotted	N	GT	72 CV	Spec-37 Iron	8.57	10	$291.54	160-8024	Call (805) 388-1188


GT 72 Curved Vane Rotor

Diameter: 14.25 Width: 1.1 Rotor Bolt Circle(s): 12 x 8.75

GT 72 Curved Vane Rotor

GT 72 Curved Vane Rotor Drawing

GT 72 Curved Vane Rotor Description

Ordering Information for GT 72 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	72 CV	Spec-37 Iron	8.25	10	$291.54	160-11311	Call (805) 388-1188
		GT Slotted	N	GT	72 CV	Spec-37 Iron	8.25	10	$291.54	160-11312	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 14.25 Width: 1.1 Rotor Bolt Circle(s): 12 x 8.75

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	72 CV	Spec-37 Iron	8.25	10	$359.04	160-11309-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	72 CV	Spec-37 Iron	8.25	10	$359.04	160-11310-BK	Call (805) 388-1188


GT 72 Curved Vane Rotor

Diameter: 14.25 Width: 1.25 Rotor Bolt Circle(s): 12 x 8.75

GT 72 Curved Vane Rotor

GT 72 Curved Vane Rotor Drawing

GT 72 Curved Vane Rotor Description

Ordering Information for GT 72 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	72 CV	Spec-37 Iron	8.25	10	$291.54	160-11315	Call (805) 388-1188
		GT Slotted	N	GT	72 CV	Spec-37 Iron	8.25	10	$291.54	160-11316	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 14.25 Width: 1.25 Rotor Bolt Circle(s): 12 x 8.75

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	72 CV	Spec-37 Iron	8.25	10	$359.04	160-11313-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	72 CV	Spec-37 Iron	8.25	10	$359.04	160-11314-BK	Call (805) 388-1188


GT 72 Curved Vane Rotor

Diameter: 14.25 Width: 1.25 Rotor Bolt Circle(s): 12 x 9.19

GT 72 Curved Vane Rotor

GT 72 Curved Vane Rotor Drawing

GT 72 Curved Vane Rotor Description

Wilwood's GT & GTB 72 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest braking available. GTB rotor have additional black e-coat finish applied for applications where corrosion resistance is concern.

NOTE & CAUTIONS:
Premium grade, Spec-37 Heavy Wall Castings

Ordering Information for GT 72 Curved Vane Rotor

Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
GT Slotted	N	GT	72 CV	Spec-37 Iron	8.63	10	$291.54	160-9787	Call (805) 388-1188
GT Slotted	N	GT-BLK	72 CV	Spec-37 Iron	8.63	10	$321.54	160-9787-GTB	Call (805) 388-1188
GT Slotted	N	GT	72 CV	Spec-37 Iron	8.63	10	$291.54	160-9788	Call (805) 388-1188
GT Slotted	N	GT-BLK	72 CV	Spec-37 Iron	8.63	10	$321.54	160-9788-GTB	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 14.25 Width: 1.25 Rotor Bolt Circle(s): 12 x 9.19

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	72 CV	Spec-37 Iron	8.63	10	$359.04	160-9762-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	72 CV	Spec-37 Iron	8.63	10	$359.04	160-9763-BK	Call (805) 388-1188


GT 60 Curved Vane Rotor

Diameter: 15 Width: 1.25 Rotor Bolt Circle(s): 12 X 10.25

GT 60 Curved Vane Rotor

GT 60 Curved Vane Rotor Drawing

GT 60 Curved Vane Rotor Description

Wilwood's GT 60 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest, vibration free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.

NOTE & CAUTIONS:
Premium grade, Spec-37 Heavy Wall Castings

Ordering Information for GT 60 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	Y	GT	60 CV	Spec-37 Iron	9.64	10.91	$382.44	160-13806	Call (805) 388-1188
		GT Slotted	Y	GT	60 CV	Spec-37 Iron	9.64	10.91	$382.44	160-13807	Call (805) 388-1188


GT 60 Curved Vane Rotor

Diameter: 15 Width: 1.25 Rotor Bolt Circle(s): 12 x 8.75

GT 60 Curved Vane Rotor

GT 60 Curved Vane Rotor Drawing

GT 60 Curved Vane Rotor Description

Ordering Information for GT 60 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	60 CV	Spec-37 Iron	8.25	10.67	$308.94	160-13470	Call (805) 388-1188
		GT Slotted	N	GT	60 CV	Spec-37 Iron	8.25	10.67	$308.94	160-13471	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 15 Width: 1.25 Rotor Bolt Circle(s): 12 x 8.75

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	60 CV	Spec-37 Iron	8.25	10.67	$368.94	160-13472-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	60 CV	Spec-37 Iron	8.25	10.67	$368.94	160-13473-BK	Call (805) 388-1188


GT 60 Curved Vane Rotor

Diameter: 15 Width: 1.25 Rotor Bolt Circle(s): 12 X 9.50

GT 60 Curved Vane Rotor

GT 60 Curved Vane Rotor Drawing

GT 60 Curved Vane Rotor Description

Ordering Information for GT 60 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	Y	GT	60 CV	Spec-37 Iron	8.93	10	$382.44	160-13804	Call (805) 388-1188
		GT Slotted	Y	GT	60 CV	Spec-37 Iron	8.93	10	$382.44	160-13805	Call (805) 388-1188


GT 60 Curved Vane Rotor

Diameter: 15 Width: 1.38 Rotor Bolt Circle(s): 12 x 9.75

GT 60 Curved Vane Rotor

GT 60 Curved Vane Rotor Drawing

GT 60 Curved Vane Rotor Description

Ordering Information for GT 60 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT	60 CV	Spec-37 Iron	9.03	10.55	$382.44	160-15049	Call (805) 388-1188
		GT Slotted	N	GT	60 CV	Spec-37 Iron	9.03	10.55	$382.44	160-15050	Call (805) 388-1188


GT 60 Curved Vane Rotor

Diameter: 15 Width: 1.5 Rotor Bolt Circle(s): 12 x 9.75

GT 60 Curved Vane Rotor

GT 60 Curved Vane Rotor Drawing

GT 60 Curved Vane Rotor Description

Wilwood's GT & GTB 60 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest, vibration free performance at any speed. GTB rotor have additional black e-coat finish applied for applications where corrosion resistance is concern. GT 60 Curved Vane rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.

NOTE & CAUTIONS:
Premium grade, Spec-37 Heavy Wall Castings

Ordering Information for GT 60 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT-BLK	60 CV	Spec-37 Iron	9.03	10.55	$412.44	160-13785-GTB	Call (805) 388-1188
		GT Slotted	N	GT-BLK	60 CV	Spec-37 Iron	9.03	10.55	$412.44	160-13786-GTB	Call (805) 388-1188


GT 60 Curved Vane Rotor

Diameter: 15.5 Width: 1.38 Rotor Bolt Circle(s): 12 x 10.25

GT 60 Curved Vane Rotor

GT 60 Curved Vane Rotor Drawing

GT 60 Curved Vane Rotor Description

Ordering Information for GT 60 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT-BLK	60 CV	Spec-37 Iron	9.64	11.05	$412.44	160-13789-GTB	Call (805) 388-1188
		GT Slotted	N	GT-BLK	60 CV	Spec-37 Iron	9.64	11.05	$412.44	160-13790-GTB	Call (805) 388-1188


GT 60 Curved Vane Rotor

Diameter: 16 Width: 1.38 Rotor Bolt Circle(s): 12 x 10.75

GT 60 Curved Vane Rotor

GT 60 Curved Vane Rotor Drawing

GT 60 Curved Vane Rotor Description

Ordering Information for GT 60 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT-BLK	60 CV	Spec-37 Iron	10	11.76	$412.44	160-8953-GTB	Call (805) 388-1188
		GT Slotted	N	GT-BLK	60 CV	Spec-37 Iron	10	11.76	$412.44	160-8954-GTB	Call (805) 388-1188


SRP Drilled Performance Rotor

Diameter: 16 Width: 1.38 Rotor Bolt Circle(s): 12 x 10.75

SRP Drilled Performance Rotor

SRP Drilled Performance Rotor Drawing

SRP Drilled Performance Rotor Description

Ordering Information for SRP Drilled Performance Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		SRP Drilled & Slotted	N	SRP-BLK	60 CV	Spec-37 Iron	10	11.76	$442.44	160-8955-BK	Call (805) 388-1188
		SRP Drilled & Slotted	N	SRP-BLK	60 CV	Spec-37 Iron	10	11.76	$442.44	160-8956-BK	Call (805) 388-1188


GT 60 Curved Vane Rotor

Diameter: 16 Width: 1.5 Rotor Bolt Circle(s): 12 x 9.75

GT 60 Curved Vane Rotor

GT 60 Curved Vane Rotor Drawing

GT 60 Curved Vane Rotor Description

Ordering Information for GT 60 Curved Vane Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		GT Slotted	N	GT-BLK	60 CV	Spec-37 Iron	9.03	11.55	$412.44	160-13787-GTB	Call (805) 388-1188
		GT Slotted	N	GT-BLK	60 CV	Spec-37 Iron	9.03	11.55	$412.44	160-13788-GTB	Call (805) 388-1188


Aluminum Mini Sprint Rotor

Diameter: 7 Width: 0.25 Rotor Bolt Circle(s): 5 x 2.375

Aluminum Mini Sprint Rotor

Aluminum Mini Sprint Rotor Drawing

Aluminum Mini Sprint Rotor Description

Wilwood’s new Mini Spring rotor are specifically designed for Keizer hubs with 5 x 2.38” mount circle and precision CNC machined from high strength alloy plate. Heat treated, anodized, drilled and scalloped, the full symmetrical machining provides perfect balance and flatness. You get smooth engagement and a consistent full pedal from the low knock-back characteristics of this design. A durable black anodized finish prevents corrosion and simplifies the visual inspection of the contact faces. The best results are always achieved using Purple compound brake pads with these rotors.

NOTE & CAUTIONS:
Unsafe for street use & unsuitable for most forms of Racing.

Ordering Information for Aluminum Mini Sprint Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Aluminum	Solid	Aluminum	1.9		$46.73	160-13712	Call (805) 388-1188


Super Alloy Slotted Rotor

Diameter: 9.56 Width: 0.25 Rotor Bolt Circle(s): 6 x 5.25

Super Alloy Slotted Rotor

Super Alloy Slotted Rotor Drawing

Super Alloy Slotted Rotor Description

Ordering Information for Super Alloy Slotted Rotor

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Slotted	N	Alloy Solid	Solid	Titanium	4.76		$447.40	160-14185	Call (805) 388-1188


Motorcycle Rotor & Sprocket

Diameter: 9.88 Width: 0.35 Rotor Bolt Circle(s): 5 X 3.25

Motorcycle Rotor & Sprocket

Motorcycle Rotor & Sprocket Drawing

Motorcycle Rotor & Sprocket Description

Ordering Information for Motorcycle Rotor & Sprocket

	Info	Rotor Style	Bedded	Rotor Type	Vane Count	Material	Lug I.D.	Far Side I.D.	Price	Part No More Info	Purchase
		Drilled	N	Solid	Solid	Stainless	2.23		$356.42	160-10469	Call (805) 388-1188


	General About Wilwood Contact Us Give Us Feedback New Dealer Inquiry Newsletter Browse Our Gallery	Product Info Catalogs Data Sheets Flyers Press Releases Retail Price List Approved NSN	Brake Kits Search Vehicle Aftermarket Spindles Rear End/Axle Flange Brake Kit Sets Calipers Rotors	Products Brake Fluid Brake Pads Hats Hubs Master Cylinders Prop & Pressure Valves Pedal Assemblies	Sales/Tech Support Get the FAQs How To Instructions How To Videos Tech Center Guide Technical Tips Troubleshooting Guide	Contact Wilwood Phone: (805) 388-1188 6:00am - 5:00pm PST Monday - Friday Find a Dealer Ask a Question Email Us
		Home Page Mobile Site Copyright © 2018 Wilwood Engineering, Inc. - All Rights Reserved Privacy Statement
All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
