Search Results: pedals





Web Pages found: 1
Product Groups found: 24

Clutch Pedal Kits

Clutch Pedal Kits

Clutch Pedal Kits
Wilwood’s Clutch Pedal Kit comes with a floor mount clutch pedal of a 6 to 1 ratio, Integral Reservoir Master cylinder in a ¾ bore and universal pull type slave cylinder.
Info Description Price Item No Purchase
PEDAL KIT,CLUTCH,6 TO 1,3/4in. M/C SLAVE $231.71 340-1469 Call (805) 388-1188

Clutch Pedal Kits

Clutch Pedal Kits

Clutch Pedal Kits
Wilwood’s Clutch Pedal Kit comes with a floor mount forged adjustable clutch pedal of a 6 to 1 ratio, Integral Reservoir Master cylinder in a ¾ bore and universal pull type slave cylinder in a convenient kit.
Info Description Price Item No Purchase
PEDAL KIT,FORGED,CLUTCH,6:1,3/4in.,M/C SLAVE CYLINDER,FLOOR MOUNT $222.75 341-15169 Call (805) 388-1188

Clutch Pedal Kits

Clutch Pedal Kits

Clutch Pedal Kits
Wilwood’s Clutch Pedal Kit comes with a swing mount clutch pedal of a 7 to 1 ratio, Integral Reservoir Master cylinder in a ¾ bore and universal pull type slave cylinder.
Info Description Price Item No Purchase
PEDAL KIT,CLUTCH,7 TO 1,3/4in. M/C SLAVE,SWING $231.71 340-1470 Call (805) 388-1188

Clutch Pedal Kits

Clutch Pedal Kits

Clutch Pedal Kits
Wilwood’s Clutch Pedal Kit comes with a swing mount forged adjustable clutch pedal of a 7 to 1 ratio, Integral Reservoir Master cylinder in a ¾ bore and universal pull type slave cylinder in a convenient kit.
Info Description Price Item No Purchase
PEDAL KIT,FORGED,CLUTCH,7:1,3/4in.,M/C SLAVE CYLINDER,SWING MOUNT $222.75 341-15170 Call (805) 388-1188

Brake / Clutch and Throttle Pedal

Brake / Clutch and Throttle Pedal

Brake / Clutch and Throttle Pedal

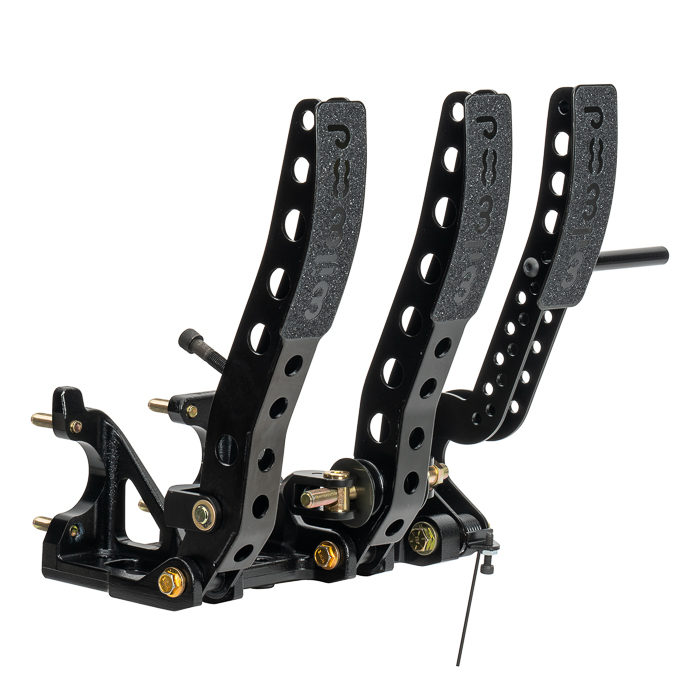

Wilwood’s new floor mount pedal assembly has a brake / clutch / throttle triple pedal design. There are three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle. Pedal assembly part number 340-12410 is for rear engine cars and does not include a throttle bell crank and linkage. This unit features an aluminum frame with strong lightweight fabricated steel pedal arms. The frame and the pedal arms have a black e-coat finish for protection and an attractive appearance. Also included with the pedal assembly are mounting studs, clevises, and balance bar assembly that is designed to provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. The pedal assembly provides a 5.25 to 1 nominal ratio.
Info Description Price Item No Purchase
PEDAL ASSEMBLY,FLOOR MT,BRAKE/CLUTCH/GAS $314.94 340-12410 Call (805) 388-1188

Brake / Clutch and Throttle Pedal

Brake / Clutch and Throttle Pedal

Brake / Clutch and Throttle Pedal
Wilwood’s new floor mount pedal assembly has a brake / clutch / throttle triple pedal design. There are three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle. Pedal assembly part number 340-12411 is for front engine cars and includes a throttle bell crank and linkage assembly. This unit features an aluminum frame with strong lightweight fabricated steel pedal arms. The frame and the pedal arms have a black e-coat finish for protection and an attractive appearance. Also included with the pedal assembly are mounting studs, clevises, and balance bar assembly that is designed to provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. The pedal assembly provides a 5.25 to 1 nominal ratio.
Info Description Price Item No Purchase
PEDAL ASSEMBLY,FLOOR MT,BRAKE/CLUTCH/GAS W/THROTTLE LINKAGE $415.44 340-12411 Call (805) 388-1188

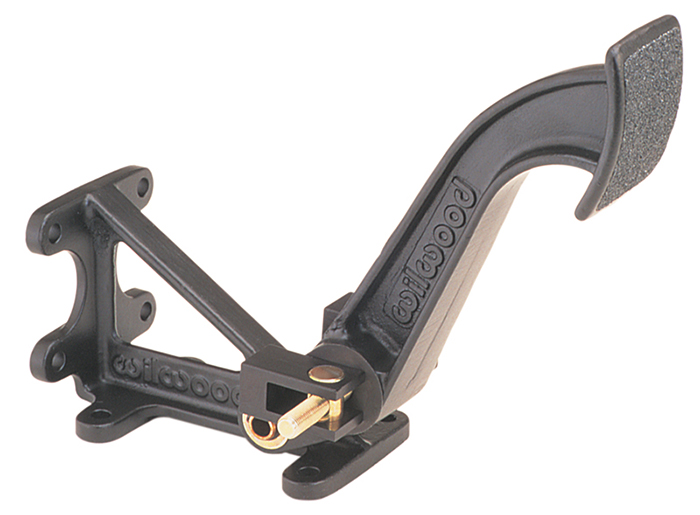

Floor Mount Brake Pedal

Floor Mount Brake Pedal

Floor Mount Brake Pedal
This floor mount pedal assembly mounts two single outlet brake master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.
Info Description Price Item No Purchase
PEDAL ASSEMBLY,6:1,DUAL,M/C,FORGED PEDAL $140.36 340-13831 Call (805) 388-1188

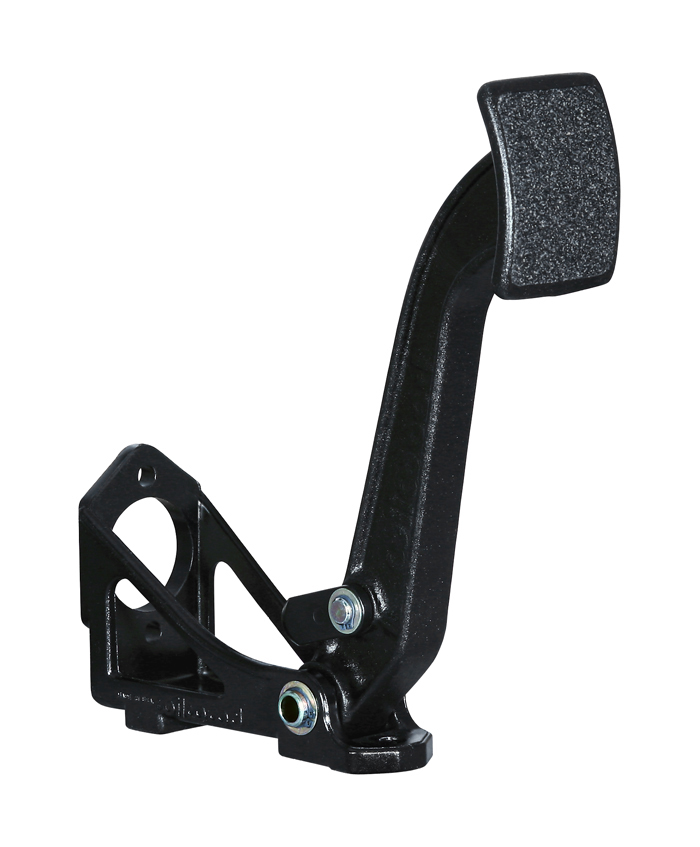

Floor Mount Clutch / Brake Pedal

Floor Mount Clutch / Brake Pedal

Floor Mount Clutch / Brake Pedal
This floor mount pedal assembly mounts a single brake or clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are ordered separately by style and bore size
Info Description Price Item No Purchase
PEDAL ASSEMBLY,6:1,SINGLE CLUTCH/BRAKE ALUMINUM BASE,FORGED PEDAL $83.03 340-13833 Call (805) 388-1188

Pedal Accessories

Pedal Accessories

Pedal Accessories

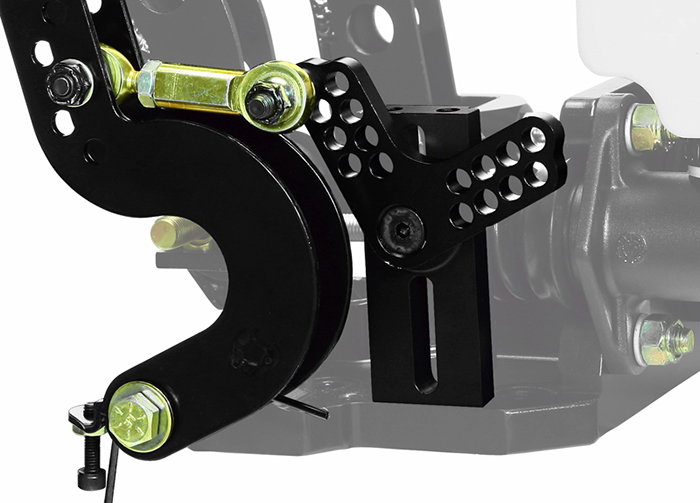

The throttle bell crank assembly is part of pedal kit 340-12411 that is best suited for front engine vehicle applications. This kit can be used to convert a 340-12410 rear engine vehicle pedal kit for front engine use.
Info Description Price Item No Purchase
THROTTLE LINKAGE,FLOOR MT PEDALS $130.43 340-12412 Call (805) 388-1188

Pedal Accessories

Pedal Accessories

Pedal Accessories

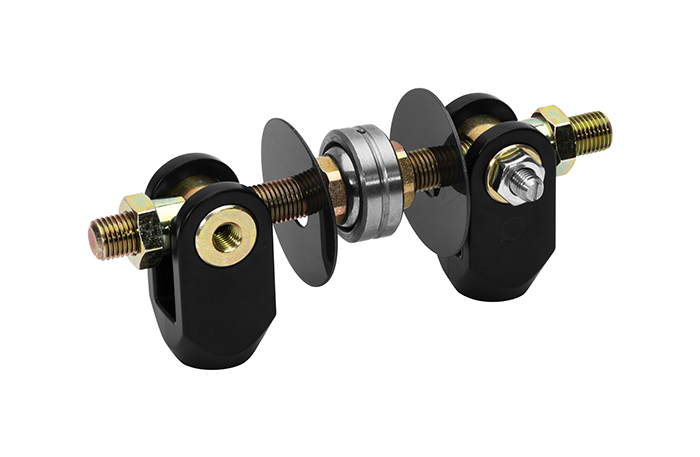

This balance bar assembly is used in all current Wilwood standard balance bar pedals and remote pedal 60 degree master cylinder mounts. It can be used to replace a damaged or worn balance bar, or to update an older model balance bar that did not included the detent assembly. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable or adjustment knob for quick on-track adjustments
Info Description Price Item No Purchase
BALANCE BAR,ASSY $57.78 340-4745 Call (805) 388-1188

Pedal Accessories

Pedal Accessories

Pedal Accessories

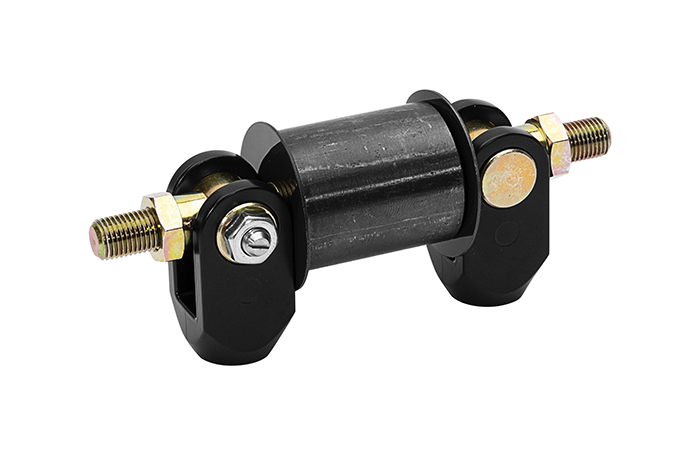

This balance bar kit includes a steel sleeve to use when fabricating custom steel arm pedals. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable or adjustment knob for quick on-track adjustments
Info Description Price Item No Purchase
BALANCE BAR,ASSY,WITH TUBE $65.93 340-1757 Call (805) 388-1188

Pedal Accessories

Pedal Accessories

Pedal Accessories

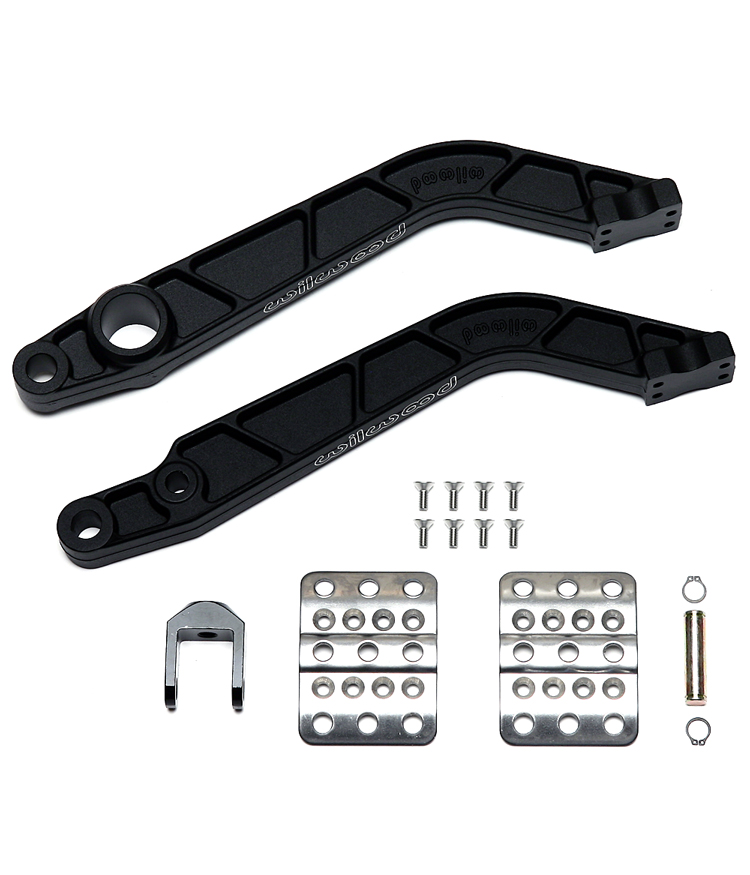

Wilwood’s new Adjustable Forward Mount Pedal Replacement Kit includes the brake and clutch pedals together, with the appropriate hardware to retrofit earlier design cast pedal assemblies. Pedals feature an all aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads are of special adjustable design that allows fine-tuning of the pedal location and clearance. Included with this assembly: Clevis and clevis pins required in the conversion. 340-12043 kits will convert the following forward mount assemblies 340-3950, 340-6916
Info Description Price Item No Purchase
KIT,PEDAL REPLACEMENT,FORGED,FORWARD MT DUAL PEDAL $128.93 340-12043 Call (805) 388-1188

Pedal Accessories

Pedal Accessories

Pedal Accessories

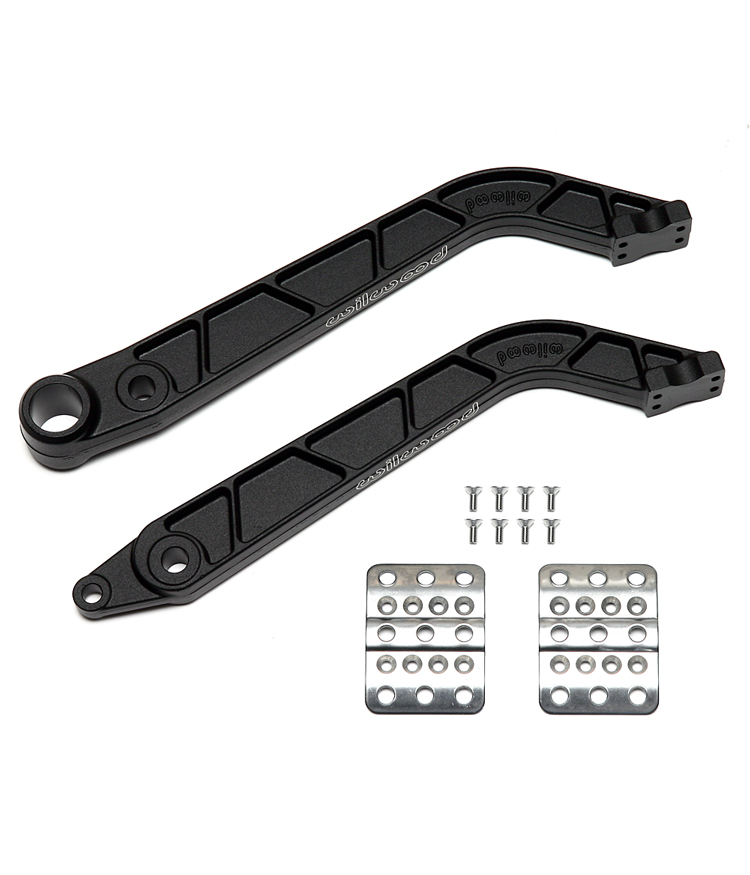

Wilwood’s new Adjustable Reverse Mount Pedal Replacement Kit includes the brake and clutch pedals together, with the appropriate hardware to retrofit earlier design cast pedal assemblies. Pedals feature an all aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads are of special adjustable design that allows fine-tuning of the pedal location and clearance. 340-12044 kits, will convert the following reverse assemblies 340-3342, 340-4828 (w/ increase in pedal length & ratio).
Info Description Price Item No Purchase
KIT,PEDAL REPLACEMENT,FORGED,REVERSE MT DUAL PEDAL $119.93 340-12044 Call (805) 388-1188

60 Degree Mount Pedal

60 Degree Mount Pedal

60 Degree Mount Pedal
This lightweight 1.8 pound unit is ideal for dirt modifieds, champ cars, sprint Cars, midgets, or any application where the master cylinders and bias balance bar must be mounted in a remote location from the pedal. To accommodate fitment in tight space locations, the master cylinders are mounted at 60 degrees from the pedal base for use with remote fill fluid reservoirs. This unit features a high leverage, machined billet pivot arm that multiplies input force at a ratio of 1.48:1. The balance bar within incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. When mounted within the driver’s reach, the included adjustment knob can be used for quick and easy on-track bias adjustments. For other applications, a remote adjuster cable can be attached.
Info Description Price Item No Purchase
PEDAL ASSY,DUAL M/C,60 DEG REMOTE $205.14 340-4630 Call (805) 388-1188

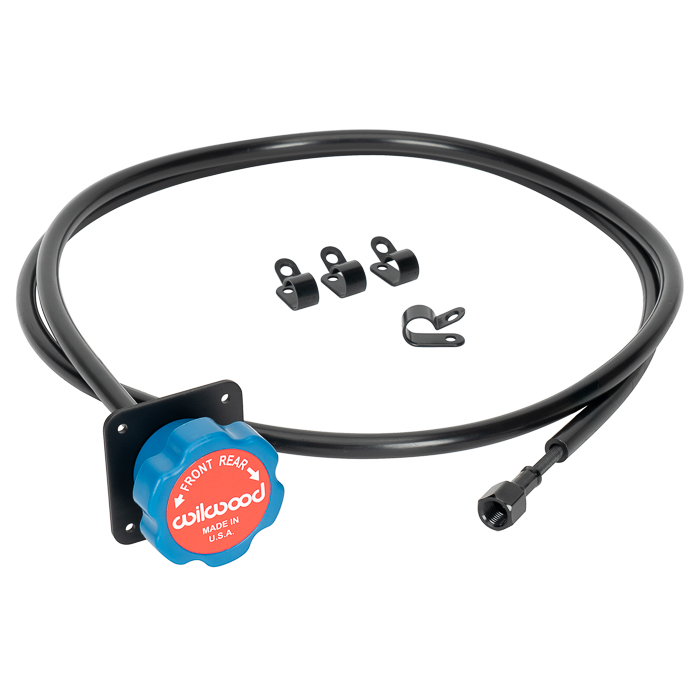

Remote Bias Adjuster

Remote Bias Adjuster

Remote Bias Adjuster
Wilwood’s Remote Balance Bar Cable Adjuster is used with balance bars to adjust front-to-rear brake bias during changing race conditions. The highly visible bright blue knob features a special bi-directional detente control providing the driver with positive adjustment feedback. The special five foot cable and housing (which can be cut to any length for a custom fit) provides an optimum bending radius for easy installation and smooth performance in tight confines. The assembly comes with two label faces for either front-to-rear or rear-to-front adjustment. Standard 3/8-24 thread fits Wilwood and most commonly used balance bars.
Info Description Price Item No Purchase
REMOTE BRAKE BIAS ADJUSTER $51.30 340-4990 Call (805) 388-1188

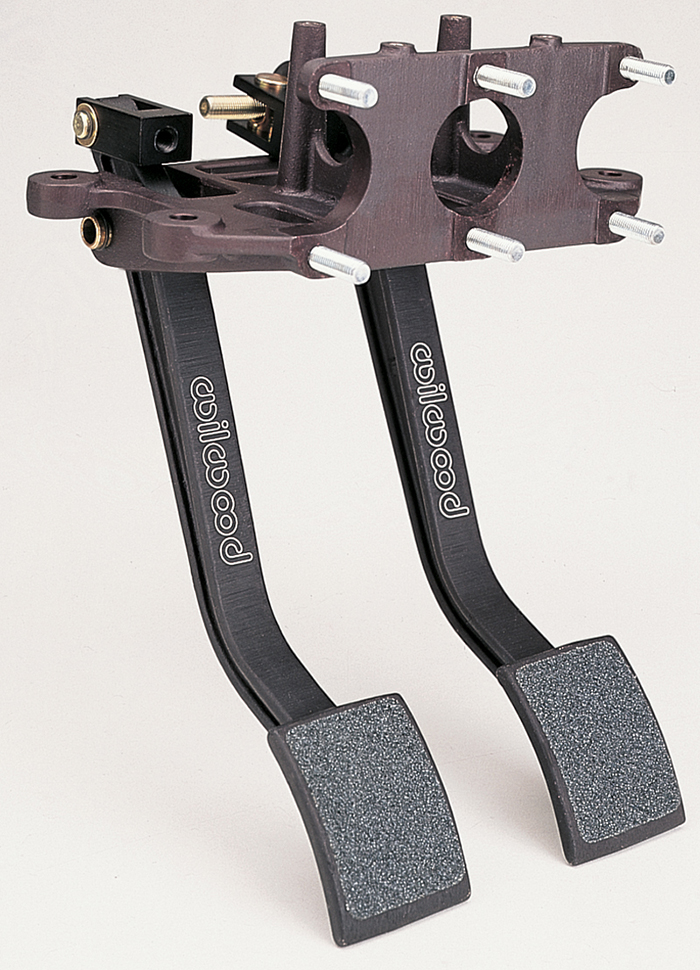

Reverse Swing Mount Brake and Clutch Pedals

Reverse Swing Mount Brake and Clutch Pedals

Reverse Swing Mount Brake and Clutch Pedals
This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged pedal arms. The brake pedal uses a 6.25:1 ratio arm, but with a shorter 5.1:1 ratio arm on the clutch pedal for additional clearance when necessary. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size. .
Info Description Price Item No Purchase
PEDAL ASSEMBLY,REVERSE MT,6.25:1 BRAKE 5:1 CLUTCH,FORGED PEDAL $244.02 340-13836 Call (805) 388-1188

Reverse Swing Mount Brake and Clutch Pedals

Reverse Swing Mount Brake and Clutch Pedals

Reverse Swing Mount Brake and Clutch Pedals
This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged 5.1:1 ratio pedal arms. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.
Info Description Price Item No Purchase
PEDAL ASSEMBLY,REVERSE MT,5:1 TRIPLE M/C,FORGED PEDAL $244.02 340-13835 Call (805) 388-1188

Reverse Swing Mount Brake and Clutch Pedals

Reverse Swing Mount Brake and Clutch Pedals

Reverse Swing Mount Brake and Clutch Pedals
This swinging mount pedal assembly mounts two single outlet brake master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 5.1:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.
Info Description Price Item No Purchase
PEDAL ASSEMBLY,REVERSE MT,5:1,DUAL M/C,FORGED PEDAL $176.94 340-13837 Call (805) 388-1188

Reverse Swing Mount Brake and Clutch Pedals

Reverse Swing Mount Brake and Clutch Pedals

Reverse Swing Mount Brake and Clutch Pedals
This swinging mount pedal assembly mounts two single outlet brake master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6.25:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size
Info Description Price Item No Purchase
PEDAL ASSY,REVERSE MT,6.25 TO 1 ADJUSTABLE,DUAL M/C $176.94 340-12509 Call (805) 388-1188

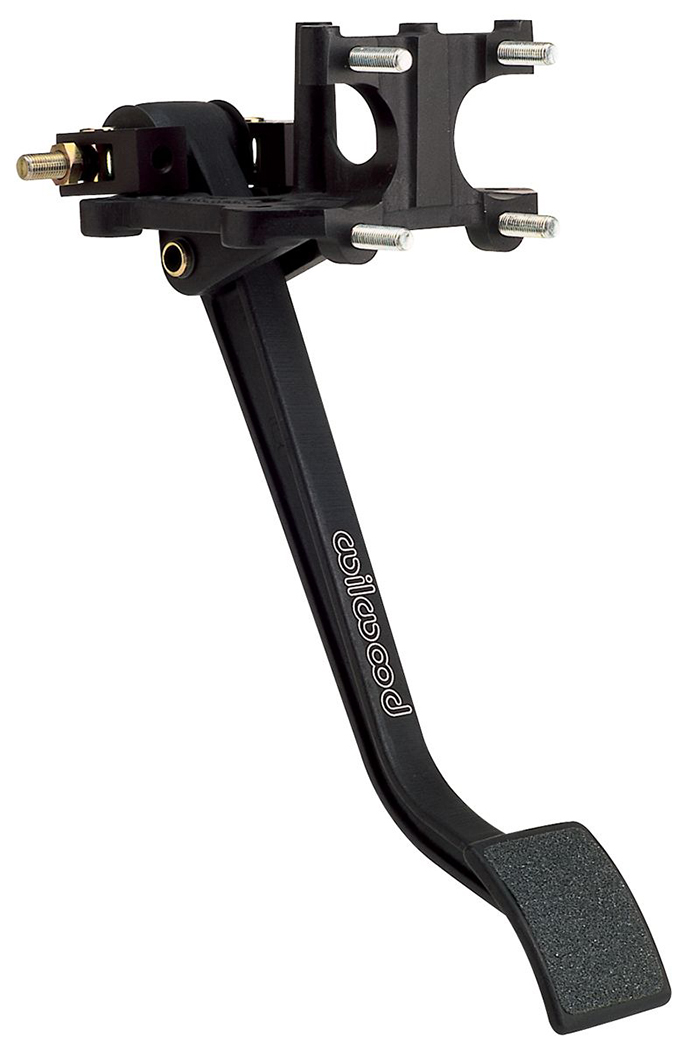

Reverse Swing Mount Clutch / Brake Pedal

Reverse Swing Mount Clutch / Brake Pedal

Reverse Swing Mount Clutch / Brake Pedal
This swinging mount pedal assembly mounts a single brake or clutch master cylinder in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6;1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are ordered separately by style and bore size.
Info Description Price Item No Purchase
PEDAL ASSEMBLY,REVERSE MT,6:1,CLUTCH ADJUSTABLE $96.39 340-13574 Call (805) 388-1188

Swing Mount Brake and Clutch Pedal

Swing Mount Brake and Clutch Pedal

Swing Mount Brake and Clutch Pedal
This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged 6.25:1 ratio pedal arms. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.
Info Description Price Item No Purchase
PEDAL ASSY,REAR MT,HD,6.25 TO 1,ADJUSTABLE,TRIPLE M/C $244.02 340-11299 Call (805) 388-1188

Swing Mount Brake and Clutch Pedal

Swing Mount Brake and Clutch Pedal

Swing Mount Brake and Clutch Pedal
This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged 6.25:1 ratio pedal arms. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.
Info Description Price Item No Purchase
PEDAL ASSY,FORWARD MT,HD,6.25 TO 1,ADJUSTABLE,TRIPLE M/C $244.02 340-11295 Call (805) 388-1188

Swing Mount Brake Pedal

Swing Mount Brake Pedal

Swing Mount Brake Pedal
This swinging mount pedal assembly mounts two single outlet brake master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 7:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size
Info Description Price Item No Purchase
PEDAL ASSEMBLY,7:1,DUAL,M/C,FORGED PEDAL $140.36 340-13832 Call (805) 388-1188

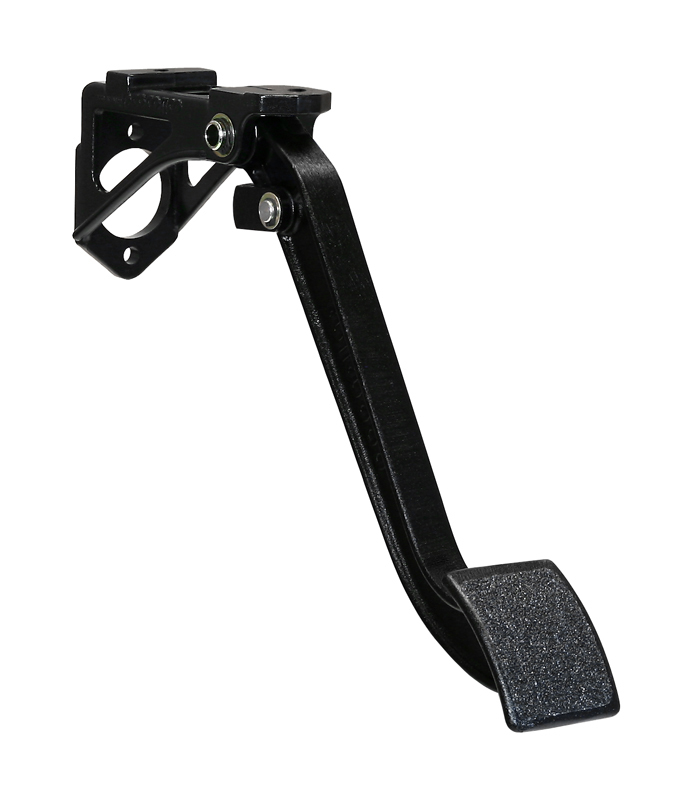

Swing Mount Clutch / Brake Pedal

Swing Mount Clutch / Brake Pedal

Swing Mount Clutch / Brake Pedal
This swinging mount pedal assembly mounts a single brake or clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 7:1 ratio pedal Arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are ordered separately by style and bore size.
Info Description Price Item No Purchase
PEDAL ASSEMBLY,7:1,SINGLE,M/C ,ALUMINUM BASE,FORGED PEDAL $83.03 340-13834 Call (805) 388-1188


PDFs found: 10
Wilwood Announces New Road Race Brake Kits for 1993-2002 Camaro and Firebird
Wilwood Disc Brakes has configured two new front disc brake kits for 1998-2002 Camaros and Firebirds, or 1993-97 cars that have been upgraded with 1998-02 spindles. Four piston forged Superlite 4R/ST nickel finish Quick-Silver calipers, PolyMatrix race pads, and two-piece Spec 37 alloy 13.06” directional vane rotors, are combined in these easy bolt-on kits to meet rules in NASA’s Camaro / Mustang Challenge, American Iron, American Iron Express, and other similar sanctions using 17” or larger wheels. The calipers are volume matched to original equipment power brake system output, and can easily be matched to common master cylinder sizes on manual balance bar pedals
Wilwood is pleased to announce a new universal / adjustable brake pedal pushrod kit
Wilwood’s new brake pedal pushrod kit provides the last missing link when installing a custom or modified brake system. The kit includes several options for adjustable length rods, with the commonly found connection end hardware necessary to connect Original Equipment and aftermarket pedals to all common types of manual master cylinders and power brake boosters
Wilwood’s New Swing Mount Pedal and Triple Master Cylinder Assemblies
If you are building a racecar, street rod or Pro Touring vehicle you should be aware of Wilwood’s new Adjustable Reverse Mount Pedal assembly or the new Forward Mount Pedal Assembly that combines the brake and clutch pedals together in one unit.
Wilwood’s New Swing Mount Pedal and Triple Master Cylinder Assemblies
If you are building a racecar, street rod or Pro-Touring vehicle you should be aware of Wilwood’s new Adjustable Reverse Mount Pedal assembly or the new Forward Mount Pedal Assembly that combines the brake and clutch pedals together in one unit.
Wilwood Disc Brakes Introduces New Floor Mount Triple Pedal Assembly
This floor mount pedal assembly has a brake / clutch / throttle triple pedal design. There are three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle. Pedal assembly part number 340-12410 is for rear engine cars and part number 340-12411 is for front engine cars.
Wilwood Disc Brakes introduces new swing mount pedal and dual master cylinder assembly
If building a racecar, street rod, or Pro-Touring vehicle, Wilwood’s has a new Adjustable Reverse Mount Adjustable Pedal assembly with two master cylinders positioned inside the firewall and away from engine heat
Wilwood introduces new Reverse Mount Swing 6:1 Single Pedal Assembly
Wilwood’s new Reverse Mount Swing Pedal Assembly, part number 340-13574 can be used as a clutch or brake pedal. Pedal features a lightweight aluminum frame with a super strong I-beam design forged aluminum pedal, and a laterally adjustable, non-slip waffled foot pad.
Wilwood Disc Brakes Introduces New Line of Forged Aluminum Pedal Assemblies
Wilwood Disc Brakes has expanded their pedal line with all new, lightweight, super-strong, forged aluminum pedal assemblies. The pedals are built around a forged I-Beam arm design incorporating a laterally adjustable, non-slip waffled foot pad. Wilwood’s full range of single, dual, and triple cylinder mount models has been duplicated, along with a new reverse swing mount single cylinder model.
Floor Mount Triple Pedal Assembly
This floor mount pedal assembly has a brake / clutch / throttle triple pedal design. There are three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle. Pedal assembly part number 340-12410 is for rear engine cars and part number 340-12411 is for front engine cars. Both units feature an aluminum frame with strong lightweight fabricated steel pedal arms.
Flyer: fl369.pdf
FORGED ALUMINUM PEDALS
