Bolt-On Brake Kits
Wilwood Disc Brakes offers the largest selection of bolt-on brake kits with specifically engineered and matched groups of components designed to provide superior brake system performance and custom appeal over a wide range of applications. Most kits are easily installed with the common hand tools used to perform routine brake service.
(2)
Brake Kits Available
AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit
Pistons:
4
Rotor Diameter:
14.00
Caliper Mount:
Radial
Min. Wheel Diameter:
18
Flange:
0
Axle Offset:
0.00
Pistons:
4
Rotor Diameter:
14.00
Caliper Mount:
Radial
Min. Wheel Diameter:
18

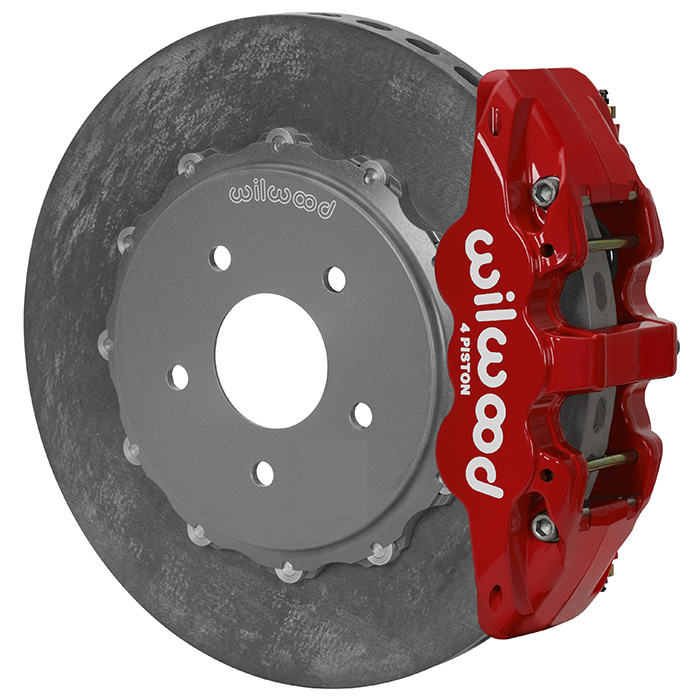

AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit
Click Image to Close

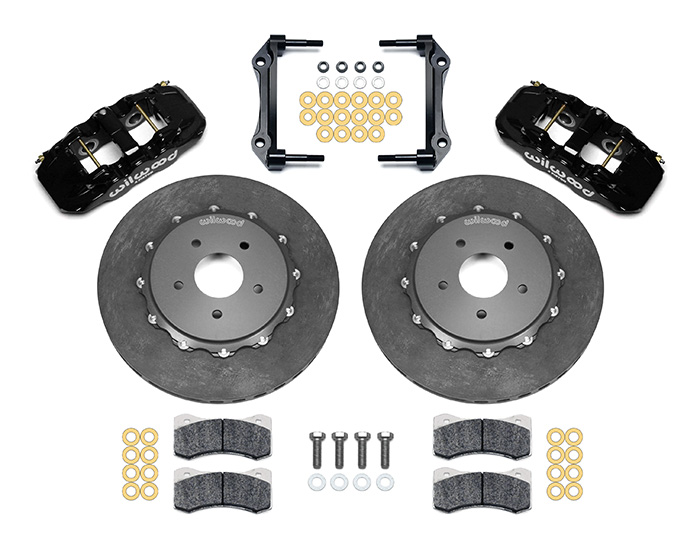

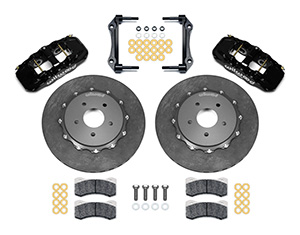

AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit Parts
Click Image to Close
View Custom Caliper Colors
AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit Description
AERO4 WCCB Carbon-Ceramic Rotor Rear OE Parking Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO4 WCCB kits are engineered to maximize braking capacity inside custom wheels. Rear parking brake kits offer a simple bolt-on installation with OE original internal shoe parking brakes for outstanding holding power and are fully compatible with ABS and OE master cylinder output. AERO4 calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. Black or Red powder coat calipers are available as options. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.
Note 1. 14" Rotor Note 2. Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.
This kit fits the following vehicles:
Cadillac XLR 2004-2010
Chevrolet Corvette 1997-2004
Chevrolet Corvette 2005-2008
Chevrolet Corvette 2006-2008
Chevrolet Corvette 2009-2013
Chevrolet Corvette 2010-2013
Chevrolet Corvette 2011
Chevrolet Corvette 2013
Factory Five Racing GTM Supercar 2010-9998
Ordering Information for AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit
Info
Caliper Color
Rotor
P-Brake Cable
Line Kit
Price
Item No
Purchase
Details
Black Powder Coat
Plain Face
Multiple Line Kits *
$9,040.44
140-13161-CSIC
Call (805) 388-1188
Details
Red Powder Coat
Plain Face
Multiple Line Kits *
$9,040.44
140-13161-CSICR
Call (805) 388-1188
Item No
140-13161-CSIC
Info
Details
Caliper Color
Black Powder Coat
Rotor
Plain Face
P-Brake Cable
Line Kit
Multiple Line Kits *
Price
$9,040.44
Purchase
Call (805) 388-1188
Item No
140-13161-CSICR
Info
Details
Caliper Color
Red Powder Coat
Rotor
Plain Face
P-Brake Cable
Line Kit
Multiple Line Kits *
Price
$9,040.44
Purchase
Call (805) 388-1188
