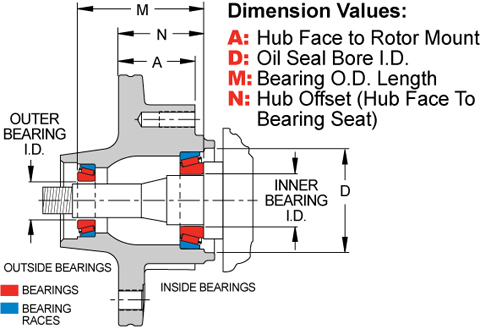

Hub Side-View Diagram: 270-7275


Hub Dimensions - Part Number: 270-7275

Hub Dimensions (in)
Dim A 1.850
Dim D 2.495
Dim M 3.150
Dim N 2.060
Dim C 2.330
Dim K 1.780
More Info DataSheet
