Open Wheel Sprint & Midget Rotors

Search Hat (Bell) Mount Rotors
Select one or any combination to display a list of Rotors:
Category:
Diameter:
Width:
Bolt Circle:
Material:
Search Results All
Super Alloy Slotted Rotor
Rotor Diameter: 10.20
Rotor Width: 0.31
Rotor Bolt Circle(s): 3 x 5.00
Material: Titanium

Super Alloy Slotted Rotor Super Alloy Slotted Rotor Zoom Image

Super Alloy Slotted Rotor Drawing Super Alloy Slotted Rotor Drawing

Super Alloy Slotted Rotor Description

Super Alloy Titanium Slotted Rotors are Sprint racing's lightest rotors at a weight of between 2.8 to 3 pounds. Wilwood’s proprietary Super Alloy Titanium greatly enhances the durability and lifespan of this rotor over comparable lightweight steel or iron rotors. A directional slotted surface allowing for full pad contact. This provides excellent high temperature stability, with rapid heat dissipation and consistent performance from the brake pads. The fine micro-finish surface beds quickly with new pads. It provides a cost effective, lightweight solution with quick response, long service life from the pads, and consistent braking at all temperatures. Lowered rotating weight promotes quick acceleration, deceleration, and improved handling.
NOTE & CAUTIONS:
Dirt Sprint Car L/F use

Ordering Information for Super Alloy Slotted Rotor
Item No 160-16113
Info Details
Rotor Style Slotted
Bedded N
Lug I.D. 3.88
Far Side I.D.
Price $661.37
Purchase
Call (805) 388-1188

Aluminum Sprint / Midget Rotor-3H
Rotor Diameter: 10.20
Rotor Width: 0.31
Rotor Bolt Circle(s): 3 x 5.00
Material: Aluminum

Aluminum Sprint / Midget Rotor-3H Aluminum Sprint / Midget Rotor-3H Zoom Image

Aluminum Sprint / Midget Rotor-3H Drawing Aluminum Sprint / Midget Rotor-3H Drawing Zoom Image

Aluminum Sprint / Midget Rotor-3H Description

Wilwood's New Type III hard-anodized aluminum rotor finish improves performance and increases life over all other aluminum rotors. Precision CNC machined from high strength billet, full symmetrical machining provides perfect balance, flatness, and the truest rotation of any rotor made. This 10.20” rotor fits the 3 x 5.00" mount bolt circle for Sprint Car and Midget front hubs.

Wilwood's specifically engineered drilled pattern for each rotor, along with Type III hard-anodized aluminum, combines the greatest weight reduction with the highest resistance to thermal distortion. This design's low knock-back characteristics give lap after lap of smooth engagement and a consistent full pedal. For best results, use PolyMatrix Q compound brake pads with these rotors.

  • Hard-anodized for greater friction and longer life than other aluminum rotors
  • Lowest thermal distortion and run-out of any aluminum rotors
  • Withstands higher heat than competitor’s aluminum rotors

NOTE & CAUTIONS:
Specialized product for certain applications. Unsafe for street use and many types of racing.

Ordering Information for Aluminum Sprint / Midget Rotor-3H
Item No 160-3270A
Info Details
Rotor Style Drilled
Bedded N
Lug I.D. 2.69
Far Side I.D.
Price $99.89
Purchase
Call (805) 388-1188
Item No 160-3411A
Info Details
Rotor Style Drilled
Bedded N
Lug I.D. 3.88
Far Side I.D.
Price $85.49
Purchase
Call (805) 388-1188

Aluminum Sprint / Midget Rotor-42T
Rotor Diameter: 10.20
Rotor Width: 0.31
Rotor Bolt Circle(s): 42 Tooth
Material: Aluminum

Aluminum Sprint / Midget Rotor-42T Aluminum Sprint / Midget Rotor-42T Zoom Image

Aluminum Sprint / Midget Rotor-42T Drawing Aluminum Sprint / Midget Rotor-42T Drawing Zoom Image

Aluminum Sprint / Midget Rotor-42T Description

Wilwood's New Type III hard-anodized aluminum rotor finish improves performance and increases life over all other aluminum rotors. Precision CNC machined from high strength billet, full symmetrical machining provides perfect balance, flatness, and the truest rotation of any rotor made. This 10.20" rotor mounts directly outboard on 42 spline 2.75" Sprint Car axles.

Wilwood's specifically engineered drilled pattern for each rotor, along with Type III hard-anodized aluminum, combines the greatest weight reduction with the highest resistance to thermal distortion. This design's low knock-back characteristics give lap after lap of smooth engagement and a consistent full pedal. For best results, use PolyMatrix Q compound brake pads with these rotors.

  • Hard-anodized for greater friction and longer life than other aluminum rotors
  • Lowest thermal distortion and run-out of any aluminum rotors
  • Withstands higher heat than competitor’s aluminum rotors

NOTE & CAUTIONS:
Specialized product for certain applications. Unsafe for street use and many types of racing.

Ordering Information for Aluminum Sprint / Midget Rotor-42T
Item No 160-3270A
Info Details
Rotor Style Drilled
Bedded N
Lug I.D. 2.69
Far Side I.D.
Price $99.89
Purchase
Call (805) 388-1188
Item No 160-3411A
Info Details
Rotor Style Drilled
Bedded N
Lug I.D. 3.88
Far Side I.D.
Price $85.49
Purchase
Call (805) 388-1188

Super Alloy Scalloped Rotor
Rotor Diameter: 10.50
Rotor Width: 0.16
Rotor Bolt Circle(s): 9 x 7.00
Material: Super Alloy

Super Alloy Scalloped Rotor Super Alloy Scalloped Rotor Zoom Image

Super Alloy Scalloped Rotor Drawing Super Alloy Scalloped Rotor Drawing Zoom Image

Super Alloy Scalloped Rotor Description

Super Alloy Steel 10.50” x .16” Solid Rotors are one of Sprint racing's lightest rotor at a weight of only 1.40 pounds. Wilwood’s proprietary Super Alloy Steel greatly enhances the durability and lifespan of this rotor over comparable lightweight steel or aluminum rotors. A Drilled and scalloped design provides excellent high temperature stability, rapid heat dissipation, and consistent performance from the brake pads. The fine micro-finish surface beds quickly with new pads. It provides a cost effective, lightweight solution with quick response, long service life from the pads, and consistent braking at all temperatures.. Lowered rotating weight promotes quick acceleration, deceleration, and improved handling.
NOTE & CAUTIONS:
Dirt Sprint car L/F or R/R use

Ordering Information for Super Alloy Scalloped Rotor
Item No 160-10717
Info Details
Rotor Style Drilled
Bedded N
Lug I.D. 6.50
Far Side I.D.
Price $172.50
Purchase
Call (805) 388-1188

Ultralite 30 Vane Rotor
Rotor Diameter: 10.50
Rotor Width: 0.75
Rotor Bolt Circle(s): 6 x 5.50
Material: Iron

Ultralite 30 Vane Rotor Ultralite 30 Vane Rotor Zoom Image

Ultralite 30 Vane Rotor Drawing Ultralite 30 Vane Rotor Drawing Zoom Image

Ultralite 30 Vane Rotor Description

Ultra-Light UL straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale economies, make it possible to offer this level of quality and performance at such an affordable price.
NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite 30 Vane Rotor
Item No 160-3450
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 4.94
Far Side I.D. 6.75
Price $74.93
Purchase
Call (805) 388-1188

Super Alloy Scalloped Rotor
Rotor Diameter: 10.50
Rotor Width: 0.78
Rotor Bolt Circle(s): 6 x 5.50
Material: Super Alloy

Super Alloy Scalloped Rotor Super Alloy Scalloped Rotor Zoom Image

Super Alloy Scalloped Rotor Drawing Super Alloy Scalloped Rotor Drawing Zoom Image

Super Alloy Scalloped Rotor Description

Super Alloy Steel 10.50” x .780” Vented Rotors are one of Sprint racing's lightest .750" to .810" thickness class rotor at a weight of only 3.20 pounds. Wilwood's proprietary Super Alloy Steel greatly enhances the durability and lifespan of this rotor over comparable lightweight steel or iron rotors. A Drilled, slotted, and scalloped design with 24 cooling vanes provides excellent high temperature stability, rapid heat dissipation, and consistent performance from the brake pads.
NOTE & CAUTIONS:
Dirt Sprint Car Inboard Use

Ordering Information for Super Alloy Scalloped Rotor
Item No 160-11217
Info Details
Rotor Style Drilled
Bedded N
Lug I.D. 4.94
Far Side I.D. 7.30
Price $215.94
Purchase
Call (805) 388-1188

Aluminum Sprint / Midget Rotor-3H
Rotor Diameter: 10.95
Rotor Width: 0.31
Rotor Bolt Circle(s): 3 x 5.00
Material: Aluminum

Aluminum Sprint / Midget Rotor-3H Aluminum Sprint / Midget Rotor-3H Zoom Image

Aluminum Sprint / Midget Rotor-3H Drawing Aluminum Sprint / Midget Rotor-3H Drawing Zoom Image

Aluminum Sprint / Midget Rotor-3H Description

Wilwood's New Type III hard-anodized aluminum rotor finish improves performance and increases life over all other aluminum rotors. Precision CNC machined from high strength billet, full symmetrical machining provides perfect balance, flatness, and the truest rotation of any rotor made. This 10.20” rotor fits the 3 x 5.00" mount bolt circle for Sprint Car and Midget front hubs.

Wilwood's specifically engineered drilled pattern for each rotor, along with Type III hard-anodized aluminum, combines the greatest weight reduction with the highest resistance to thermal distortion. This design's low knock-back characteristics give lap after lap of smooth engagement and a consistent full pedal. For best results, use PolyMatrix Q compound brake pads with these rotors.

  • Hard-anodized for greater friction and longer life than other aluminum rotors
  • Lowest thermal distortion and run-out of any aluminum rotors
  • Withstands higher heat than competitor’s aluminum rotors

NOTE & CAUTIONS:
Specialized product for certain applications. Unsafe for street use and many types of racing.

Ordering Information for Aluminum Sprint / Midget Rotor-3H
Item No 160-3327A
Info Details
Rotor Style Drilled
Bedded N
Lug I.D. 3.88
Far Side I.D.
Price $85.49
Purchase
Call (805) 388-1188

Drilled Steel Scalloped Rotor
Rotor Diameter: 11.00
Rotor Width: 0.31
Rotor Bolt Circle(s): 3 x 5.00
Material: Steel

Drilled Steel Scalloped Rotor Drilled Steel Scalloped Rotor Zoom Image

Drilled Steel Scalloped Rotor Drawing Drilled Steel Scalloped Rotor Drawing Zoom Image

Drilled Steel Scalloped Rotor Description

Wilwoods Scalloped Steel 3 hole mount rotors are precision machined from special alloy. Proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads. These rotors fit the popular 3 x 5.00" mount bolt circle on sprint and midget front hubs.
NOTE & CAUTIONS:
Suitable applications: Dirt Racing

Ordering Information for Drilled Steel Scalloped Rotor
Item No 160-10475
Info Details
Rotor Style Drilled
Bedded N
Lug I.D. 4.10
Far Side I.D.
Price $89.99
Purchase
Call (805) 388-1188

Drilled Steel Rotor
Rotor Diameter: 11.75
Rotor Width: 0.35
Rotor Bolt Circle(s): 8 x 7.00
Material: Steel

Drilled Steel Rotor Drilled Steel Rotor Zoom Image

Drilled Steel Rotor Drawing Drilled Steel Rotor Drawing Zoom Image

Drilled Steel Rotor Description

Steel rotors have applications in all types of motorsports. Steel rotors provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range, and high heat spikes are only observed on an intermittent basis. This could be anything from a hard stopping drag race car at the end of a quarter mile, or a high speed stock car coming in from a qualifier at a super speedway. Steel rotors can also be found in lighter weight open wheel cars such as sprints and modifieds, and a variety of light weight, open wheel road course racers. A special alloy and proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads.
NOTE & CAUTIONS:
Suitable applications: Drag / Dirt racing

Ordering Information for Drilled Steel Rotor
Item No 160-3202
Info Details
Rotor Style Drilled
Bedded N
Lug I.D. 6.38
Far Side I.D.
Price $85.47
Purchase
Call (805) 388-1188

GT 36 Curved Vane Rotor
Rotor Diameter: 11.75
Rotor Width: 0.81
Rotor Bolt Circle(s): 8 x 7.00
Material: Spec-37 Iron

GT 36 Curved Vane Rotor GT 36 Curved Vane Rotor Zoom Image

GT 36 Curved Vane Rotor Drawing GT 36 Curved Vane Rotor Drawing Zoom Image

GT 36 Curved Vane Rotor Description

Wilwood's GT 36 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest braking available.
NOTE & CAUTIONS:
Premium grade, Spec-37 Heavy Wall Castings

Ordering Information for GT 36 Curved Vane Rotor
Item No 160-12285
Info Details
Rotor Style GT Slotted
Bedded N
Lug I.D. 6.38
Far Side I.D. 7.87
Price $134.78
Purchase
Call (805) 388-1188
Item No 160-12286
Info Details
Rotor Style GT Slotted
Bedded N
Lug I.D. 6.38
Far Side I.D. 7.87
Price $134.78
Purchase
Call (805) 388-1188

HD 36 Curved Vane Rotor
Rotor Diameter: 11.75
Rotor Width: 0.81
Rotor Bolt Circle(s): 8 x 7.00
Material: Spec-37 Iron

HD 36 Curved Vane Rotor HD 36 Curved Vane Rotor Zoom Image

HD 36 Curved Vane Rotor Drawing HD 36 Curved Vane Rotor Drawing Zoom Image

HD 36 Curved Vane Rotor Description

Wilwood's HD 36 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Our HD Series preparation includes full detail machining and smooth pad contact faces without slots.
NOTE & CAUTIONS:
Premium grade, Spec-37 Heavy Wall Castings

Ordering Information for HD 36 Curved Vane Rotor
Item No 160-12283
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 6.38
Far Side I.D. 7.87
Price $112.28
Purchase
Call (805) 388-1188
Item No 160-12284
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 6.38
Far Side I.D. 7.87
Price $112.28
Purchase
Call (805) 388-1188

Super Alloy Scalloped Rotor
Rotor Diameter: 11.75
Rotor Width: 0.81
Rotor Bolt Circle(s): 8 x 7.00
Material: Super Alloy

Super Alloy Scalloped Rotor Super Alloy Scalloped Rotor Zoom Image

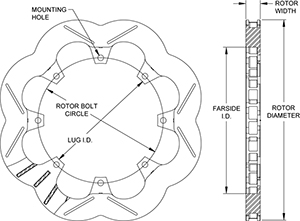

Super Alloy Scalloped Rotor Drawing Super Alloy Scalloped Rotor Drawing Zoom Image

Super Alloy Scalloped Rotor Description

Our newest Super Alloy rotor in 11.75” diameter is targeted directly to Dirt Late Model and Modified racing. Wilwood’s proprietary Super Alloy material provides the lowest rotating and un-sprung weight, without degradation, shrinkage and warping like comparable Iron & Steel lightweight rotors. Super Alloy rotors provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range, and high heat spikes are only observed on an intermittent basis. Our special alloy and proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads.
NOTE & CAUTIONS:
Recommended Brake Pads: BP40 and CM (Sintered Metallic) compounds.

Ordering Information for Super Alloy Scalloped Rotor
Item No 160-13373
Info Details
Rotor Style Slotted
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.19
Price $215.94
Purchase
Call (805) 388-1188

Ultralite 32 Vane Rotor
Rotor Diameter: 11.75
Rotor Width: 0.81
Rotor Bolt Circle(s): 8 x 7.00
Material: Iron

Ultralite 32 Vane Rotor Ultralite 32 Vane Rotor Zoom Image

Ultralite 32 Vane Rotor Drawing Ultralite 32 Vane Rotor Drawing Zoom Image

Ultralite 32 Vane Rotor Description

Ultra-Light UL straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale economy, make it possible to offer this level of quality and performance at such an affordable price.
NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite 32 Vane Rotor
Item No 160-0471
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.34
Price $40.64
Purchase
Call (805) 388-1188

Ulltralite 32 Vane Rotor Drilled
Rotor Diameter: 11.75
Rotor Width: 0.81
Rotor Bolt Circle(s): 8 x 7.00
Material: Iron

Ulltralite 32 Vane Rotor Drilled Ulltralite 32 Vane Rotor Drilled Zoom Image

Ulltralite 32 Vane Rotor Drilled Drawing Ulltralite 32 Vane Rotor Drilled Drawing Zoom Image

Ulltralite 32 Vane Rotor Drilled Description

When it comes to rotors, racers are constantly searching for the ultimate balance between the lowest weight and the ability to effectively manage heat. Decreased rotating weight in the drive line provides quicker deceleration under braking and quicker acceleration out of the corners. Lower weight also benefits handling with improved spring and shock control over the unsprung suspension mass. Wilwood's ULD-32 drilled iron rotors provides effective lightweight options for sprints, late models, modifieds, and other competition applications that race in low to medium temperature ranges.
NOTE & CAUTIONS:
Race Drilled Rotors are unsafe for street use.

Ordering Information for Ulltralite 32 Vane Rotor Drilled
Item No 160-5863
Info Details
Rotor Style Race Drilled
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.34
Price $78.69
Purchase
Call (805) 388-1188

Ultralite HP 32 Vane Rotor
Rotor Diameter: 11.75
Rotor Width: 0.81
Rotor Bolt Circle(s): 8 x 7.00
Material: Iron

Ultralite HP 32 Vane Rotor Ultralite HP 32 Vane Rotor Zoom Image

Ultralite HP 32 Vane Rotor Drawing Ultralite HP 32 Vane Rotor Drawing Zoom Image

Ultralite HP 32 Vane Rotor Description

Ultra-Light ULHP-32 straight vane rotors provide an excellent balance of efficient cooling and lower rotating mass on hard braking dirt tracks or rear axle service on pavement cars. UL rotors are cast from premium grade, long grain carbon iron for long wear, high thermal stability, and resistance to distortion. ULHP-32 rotors offered the added performance and smoother operation of precision turned faces with less than .001" variation in flatness, parallelism, or run-out.
NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite HP 32 Vane Rotor
Item No 160-5841
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.34
Price $87.90
Purchase
Call (805) 388-1188

Ultralite 32 Vane Scalloped Rotor
Rotor Diameter: 11.75
Rotor Width: 0.81
Rotor Bolt Circle(s): 8 x 7.00
Material: Iron

Ultralite 32 Vane Scalloped Rotor Ultralite 32 Vane Scalloped Rotor Zoom Image

Ultralite 32 Vane Scalloped Rotor Drawing Ultralite 32 Vane Scalloped Rotor Drawing Zoom Image

Ultralite 32 Vane Scalloped Rotor Description

When it comes to rotors, racers are constantly searching for the ultimate balance between the lowest weight and the ability to effectively manage heat. Decreased rotating weight in the drive line provides quicker deceleration under braking and quicker acceleration out of the corners. Lower weight also benefits handling with improved spring and shock control over the unsprung suspension mass. Wilwood's ULS-32 scalloped iron rotors provides effective lightweight options for sprints, late models, modifieds, and other competition applications that race in low to medium temperature ranges.
NOTE & CAUTIONS:
Scalloped Rotors are unsafe for street use.

Ordering Information for Ultralite 32 Vane Scalloped Rotor
Item No 160-8135
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.34
Price $97.14
Purchase
Call (805) 388-1188

Ultralite 32 Vane Rotor
Rotor Diameter: 11.75
Rotor Width: 1.25
Rotor Bolt Circle(s): 8 x 7.00
Material: Iron

Ultralite 32 Vane Rotor Ultralite 32 Vane Rotor Zoom Image

Ultralite 32 Vane Rotor Drawing Ultralite 32 Vane Rotor Drawing Zoom Image

Ultralite 32 Vane Rotor Description

Ultra-Light UL straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale economy, make it possible to offer this level of quality and performance at such an affordable price.
NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite 32 Vane Rotor
Item No 160-0483
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.34
Price $40.64
Purchase
Call (805) 388-1188

Drilled Steel Rotor
Rotor Diameter: 12.00
Rotor Width: 0.31
Rotor Bolt Circle(s): 8 x 7.62
Material: Steel

Drilled Steel Rotor Drilled Steel Rotor Zoom Image

Drilled Steel Rotor Drawing Drilled Steel Rotor Drawing Zoom Image

Drilled Steel Rotor Description

Steel rotors have applications in all types of motorsports. Steel rotors provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range, and high heat spikes are only observed on an intermittent basis. This could be anything from a hard stopping drag race car at the end of a quarter mile, or a high speed stock car coming in from a qualifier at a super speedway. Steel rotors can also be found in lighter weight open wheel cars such as sprints and modifieds, and a variety of light weight, open wheel road course racers. A special alloy and proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads.
NOTE & CAUTIONS:
Suitable applications: Drag / Dirt racing

Ordering Information for Drilled Steel Rotor
Item No 160-0495
Info Details
Rotor Style Drilled
Bedded N
Lug I.D. 7.00
Far Side I.D.
Price $85.47
Purchase
Call (805) 388-1188

Super Alloy Slotted Rotor
Rotor Diameter: 12.00
Rotor Width: 0.36
Rotor Bolt Circle(s): 8 x 7.00
Material: Titanium

Super Alloy Slotted Rotor Super Alloy Slotted Rotor Zoom Image

Super Alloy Slotted Rotor Drawing Super Alloy Slotted Rotor Drawing

Super Alloy Slotted Rotor Description

Super Alloy Titanium Slotted Rotors are Sprint racing's lightest rotors at a weight of between 2.8 to 3 pounds. Wilwood’s proprietary Super Alloy Titanium greatly enhances the durability and lifespan of this rotor over comparable lightweight steel or iron rotors. A directional slotted surface allowing for full pad contact. This provides excellent high temperature stability, with rapid heat dissipation and consistent performance from the brake pads. The fine micro-finish surface beds quickly with new pads. It provides a cost effective, lightweight solution with quick response, long service life from the pads, and consistent braking at all temperatures. Lowered rotating weight promotes quick acceleration, deceleration, and improved handling.
NOTE & CAUTIONS:
Dirt Sprint Car Inboard Use

Ordering Information for Super Alloy Slotted Rotor
Item No 160-16114
Info Details
Rotor Style Slotted
Bedded N
Lug I.D. 6.36
Far Side I.D.
Price $680.82
Purchase
Call (805) 388-1188

GT 36 Curved Vane Rotor
Rotor Diameter: 12.19
Rotor Width: 0.81
Rotor Bolt Circle(s): 8 x 7.00
Material: Spec-37 Iron

GT 36 Curved Vane Rotor GT 36 Curved Vane Rotor Zoom Image

GT 36 Curved Vane Rotor Drawing GT 36 Curved Vane Rotor Drawing Zoom Image

GT 36 Curved Vane Rotor Description

Wilwood's GT 36 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest braking available.
NOTE & CAUTIONS:
Premium grade, Spec-37 Heavy Wall Castings

Ordering Information for GT 36 Curved Vane Rotor
Item No 160-12291
Info Details
Rotor Style GT Slotted
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.56
Price $134.78
Purchase
Call (805) 388-1188
Item No 160-12292
Info Details
Rotor Style GT Slotted
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.56
Price $134.78
Purchase
Call (805) 388-1188

HD 36 Curved Vane Rotor
Rotor Diameter: 12.19
Rotor Width: 0.81
Rotor Bolt Circle(s): 8 x 7.00
Material: Spec-37 Iron

HD 36 Curved Vane Rotor HD 36 Curved Vane Rotor Zoom Image

HD 36 Curved Vane Rotor Drawing HD 36 Curved Vane Rotor Drawing Zoom Image

HD 36 Curved Vane Rotor Description

Wilwood's HD 36 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Our HD Series preparation includes full detail machining and smooth pad contact faces without slots.
NOTE & CAUTIONS:
Premium grade, Spec-37 Heavy Wall Castings

Ordering Information for HD 36 Curved Vane Rotor
Item No 160-12289
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.56
Price $112.28
Purchase
Call (805) 388-1188
Item No 160-12290
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.56
Price $112.28
Purchase
Call (805) 388-1188

Ultralite 32 Vane Rotor
Rotor Diameter: 12.19
Rotor Width: 0.81
Rotor Bolt Circle(s): 8 x 7.00
Material: Iron

Ultralite 32 Vane Rotor Ultralite 32 Vane Rotor Zoom Image

Ultralite 32 Vane Rotor Drawing Ultralite 32 Vane Rotor Drawing Zoom Image

Ultralite 32 Vane Rotor Description

Ultra-Light UL straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale economy, make it possible to offer this level of quality and performance at such an affordable price.
NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite 32 Vane Rotor
Item No 160-0277
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.56
Price $42.53
Purchase
Call (805) 388-1188

Ultralite HP 32 Vane Rotor
Rotor Diameter: 12.19
Rotor Width: 0.81
Rotor Bolt Circle(s): 8 x 7.00
Material: Iron

Ultralite HP 32 Vane Rotor Ultralite HP 32 Vane Rotor Zoom Image

Ultralite HP 32 Vane Rotor Drawing Ultralite HP 32 Vane Rotor Drawing Zoom Image

Ultralite HP 32 Vane Rotor Description

Ultra-Light ULHP-32 straight vane rotors provide an excellent balance of efficient cooling and lower rotating mass on hard braking dirt tracks or rear axle service on pavement cars. UL rotors are cast from premium grade, long grain carbon iron for long wear, high thermal stability, and resistance to distortion. ULHP-32 rotors offered the added performance and smoother operation of precision turned faces with less than .001" variation in flatness, parallelism, or run-out.
NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite HP 32 Vane Rotor
Item No 160-5843
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.56
Price $87.90
Purchase
Call (805) 388-1188

GT 36 Curved Vane Rotor
Rotor Diameter: 12.19
Rotor Width: 0.81
Rotor Bolt Circle(s): 8 x 7.62
Material: Spec-37 Iron

GT 36 Curved Vane Rotor GT 36 Curved Vane Rotor Zoom Image

GT 36 Curved Vane Rotor Drawing GT 36 Curved Vane Rotor Drawing Zoom Image

GT 36 Curved Vane Rotor Description

Wilwood's GT 36 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest braking available.
NOTE & CAUTIONS:
Premium grade, Spec-37 Heavy Wall Castings

Ordering Information for GT 36 Curved Vane Rotor
Item No 160-12293
Info Details
Rotor Style GT Slotted
Bedded N
Lug I.D. 7.13
Far Side I.D. 8.34
Price $173.18
Purchase
Call (805) 388-1188
Item No 160-12294
Info Details
Rotor Style GT Slotted
Bedded N
Lug I.D. 7.13
Far Side I.D. 8.34
Price $173.18
Purchase
Call (805) 388-1188

Ultralite HP 32 Vane Rotor
Rotor Diameter: 12.19
Rotor Width: 0.81
Rotor Bolt Circle(s): 8 x 7.62
Material: Iron

Ultralite HP 32 Vane Rotor Ultralite HP 32 Vane Rotor Zoom Image

Ultralite HP 32 Vane Rotor Drawing Ultralite HP 32 Vane Rotor Drawing Zoom Image

Ultralite HP 32 Vane Rotor Description

Ultra-Light ULHP-32 straight vane rotors provide an excellent balance of efficient cooling and lower rotating mass on hard braking dirt tracks or rear axle service on pavement cars. UL rotors are cast from premium grade, long grain carbon iron for long wear, high thermal stability, and resistance to distortion. ULHP-32 rotors offered the added performance and smoother operation of precision turned faces with less than .001" variation in flatness, parallelism, or run-out.
NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite HP 32 Vane Rotor
Item No 160-5844
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 7.13
Far Side I.D. 8.50
Price $87.90
Purchase
Call (805) 388-1188

GT 48 Curved Vane Rotor
Rotor Diameter: 12.19
Rotor Width: 1.25
Rotor Bolt Circle(s): 8 x 7.00
Material: Spec-37 Iron

GT 48 Curved Vane Rotor GT 48 Curved Vane Rotor Zoom Image

GT 48 Curved Vane Rotor Drawing GT 48 Curved Vane Rotor Drawing Zoom Image

GT 48 Curved Vane Rotor Description

Wilwood's GT 48 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest, vibration free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.
NOTE & CAUTIONS:
Premium grade, Spec-37 Heavy Wall Castings

Ordering Information for GT 48 Curved Vane Rotor
Item No 160-11839
Info Details
Rotor Style GT Slotted
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.41
Price $149.94
Purchase
Call (805) 388-1188
Item No 160-11839-B
Info Details
Rotor Style GT Slotted
Bedded Y
Lug I.D. 6.38
Far Side I.D. 8.41
Price $225.00
Purchase
Call (805) 388-1188
Item No 160-11840
Info Details
Rotor Style GT Slotted
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.41
Price $149.94
Purchase
Call (805) 388-1188
Item No 160-11840-B
Info Details
Rotor Style GT Slotted
Bedded Y
Lug I.D. 6.38
Far Side I.D. 8.41
Price $225.00
Purchase
Call (805) 388-1188

HD 48 Curved Vane Rotor
Rotor Diameter: 12.19
Rotor Width: 1.25
Rotor Bolt Circle(s): 8 x 7.00
Material: Spec-37 Iron

HD 48 Curved Vane Rotor HD 48 Curved Vane Rotor Zoom Image

HD 48 Curved Vane Rotor Drawing HD 48 Curved Vane Rotor Drawing Zoom Image

HD 48 Curved Vane Rotor Description

Wilwood's HD 48 Curved Vane Spec-37 rotors are are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Our HD Series preparation includes full detail machining and smooth pad contact faces without slots.
NOTE & CAUTIONS:
Premium grade, Spec-37 Heavy Wall Castings

Ordering Information for HD 48 Curved Vane Rotor
Item No 160-11835
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.41
Price $134.94
Purchase
Call (805) 388-1188
Item No 160-11836
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.41
Price $134.94
Purchase
Call (805) 388-1188

Ultralite 32 Curved Vane Rotor
Rotor Diameter: 12.19
Rotor Width: 1.25
Rotor Bolt Circle(s): 8 x 7.00
Material: Iron

Ultralite 32 Curved Vane Rotor Ultralite 32 Curved Vane Rotor Zoom Image

Ultralite 32 Curved Vane Rotor Drawing Ultralite 32 Curved Vane Rotor Drawing Zoom Image

Ultralite 32 Curved Vane Rotor Description

Ultra-Light UL-32 directional vane rotors provide an excellent balance of efficient cooling and lower rotating mass on hard braking dirt tracks or rear axle service on pavement cars. UL rotors are cast from premium grade, long grain carbon iron for long wear, high thermal stability, and resistance to distortion. UL-32 rotors are production machined and well suited to a wide range of sportsman racing categories.
NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite 32 Curved Vane Rotor
Item No 160-2894
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.56
Price $80.24
Purchase
Call (805) 388-1188
Item No 160-2895
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 6.38
Far Side I.D. 8.56
Price $80.24
Purchase
Call (805) 388-1188

HD 48 Curved Vane Rotor
Rotor Diameter: 12.19
Rotor Width: 1.25
Rotor Bolt Circle(s): 8 x 7.62
Material: Spec-37 Iron

HD 48 Curved Vane Rotor HD 48 Curved Vane Rotor Zoom Image

HD 48 Curved Vane Rotor Drawing HD 48 Curved Vane Rotor Drawing Zoom Image

HD 48 Curved Vane Rotor Description

Wilwood's HD 48 Curved Vane Spec-37 rotors are are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Our HD Series preparation includes full detail machining and smooth pad contact faces without slots.
NOTE & CAUTIONS:
Premium grade, Spec-37 Heavy Wall Castings

Ordering Information for HD 48 Curved Vane Rotor
Item No 160-3872
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 7.13
Far Side I.D. 8.41
Price $149.94
Purchase
Call (805) 388-1188
Item No 160-3873
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 7.13
Far Side I.D. 8.41
Price $149.94
Purchase
Call (805) 388-1188

Ultralite 32 Curved Vane Rotor
Rotor Diameter: 12.19
Rotor Width: 1.25
Rotor Bolt Circle(s): 8 x 7.62
Material: Iron

Ultralite 32 Curved Vane Rotor Ultralite 32 Curved Vane Rotor Zoom Image

Ultralite 32 Curved Vane Rotor Drawing Ultralite 32 Curved Vane Rotor Drawing Zoom Image

Ultralite 32 Curved Vane Rotor Description

Ultra-Light UL-32 directional vane rotors provide an excellent balance of efficient cooling and lower rotating mass on hard braking dirt tracks or rear axle service on pavement cars. UL rotors are cast from premium grade, long grain carbon iron for long wear, high thermal stability, and resistance to distortion. UL-32 rotors are production machined and well suited to a wide range of sportsman racing categories.
NOTE & CAUTIONS:
Premium grade, medium weight castings.

Ordering Information for Ultralite 32 Curved Vane Rotor
Item No 160-2900
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 7.13
Far Side I.D. 8.50
Price $83.94
Purchase
Call (805) 388-1188
Item No 160-2901
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 7.13
Far Side I.D. 8.50
Price $83.94
Purchase
Call (805) 388-1188

Aluminum Mini Sprint Rotor
Rotor Diameter: 7.00
Rotor Width: 0.25
Rotor Bolt Circle(s): 5 x 2.375
Material: Aluminum

Aluminum Mini Sprint Rotor Aluminum Mini Sprint Rotor Zoom Image

Aluminum Mini Sprint Rotor Drawing Aluminum Mini Sprint Rotor Drawing Zoom Image

Aluminum Mini Sprint Rotor Description

Wilwood’s new Mini Sprint rotor are specifically designed for Keizer hubs with 5 x 2.38” mount circle and precision CNC machined from high strength alloy plate. Heat treated, anodized, drilled and scalloped, the full symmetrical machining provides perfect balance and flatness. You get smooth engagement and a consistent full pedal from the low knock-back characteristics of this design. A durable black anodized finish prevents corrosion and simplifies the visual inspection of the contact faces. The best results are always achieved using Purple compound brake pads with these rotors.
NOTE & CAUTIONS:
Unsafe for street use & unsuitable for most forms of Racing.

Ordering Information for Aluminum Mini Sprint Rotor
Item No 160-13712
Info Details
Rotor Style Drilled
Bedded N
Lug I.D. 1.90
Far Side I.D.
Price $62.93
Purchase
Call (805) 388-1188

Super Alloy Slotted Rotor
Rotor Diameter: 9.56
Rotor Width: 0.25
Rotor Bolt Circle(s): 6 x 5.25
Material: Titanium

Super Alloy Slotted Rotor Super Alloy Slotted Rotor Zoom Image

Super Alloy Slotted Rotor Drawing Super Alloy Slotted Rotor Drawing Zoom Image

Super Alloy Slotted Rotor Description

Super Alloy Titanium Slotted Rotors are Sprint racing's lightest rotors at a weight of between 2.8 to 3 pounds. Wilwood’s proprietary Super Alloy Titanium greatly enhances the durability and lifespan of this rotor over comparable lightweight steel or iron rotors. A directional slotted surface allowing for full pad contact. This provides excellent high temperature stability, with rapid heat dissipation and consistent performance from the brake pads. The fine micro-finish surface beds quickly with new pads. It provides a cost effective, lightweight solution with quick response, long service life from the pads, and consistent braking at all temperatures. Lowered rotating weight promotes quick acceleration, deceleration, and improved handling.
NOTE & CAUTIONS:
Dirt Sprint Car Inboard Use

Ordering Information for Super Alloy Slotted Rotor
Item No 160-14185
Info Details
Rotor Style Slotted
Bedded N
Lug I.D. 4.76
Far Side I.D.
Price $447.40
Purchase
Call (805) 388-1188


All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
Copyright ©2021 Wilwood Engineering, Inc. - All Rights Reserved
Version: 1.5.4c March 29, 2021
