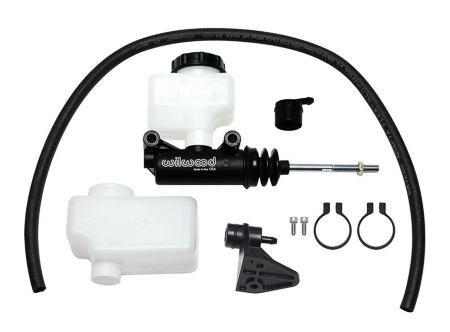

Compact Remote Flange Mount Master Cylinder

Wilwood’s Compact Combination Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

Ordering Information for Compact Remote Flange Mount Master Cylinder
KIT,M/C,COMPACT REMOTE,15/16in. W/RESERVOIR
$97.43
Call (805) 388-1188

Compact Remote Flange Mt Master Cyl-Banjo Outlet

‘This new version of Wilwood's Compact Combination Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra-short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

Ordering Information for Compact Remote Flange Mt Master Cyl-Banjo Outlet
KIT,M/C,COMPACT REMOTE,15/16in.,BANJO W/RESERVOIR
$100.28
Call (805) 388-1188

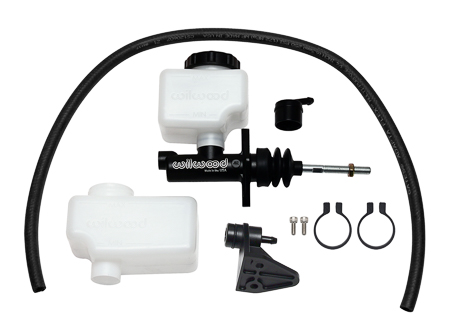

Compact Remote Side Mount Master Cylinder

Wilwood’s Compact Combination (Side Mount) Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting boss and the fluid outlet. The new body design incorporates integral side mounting lugs with a 3.00” center to distance and no traditional mounting flange, which further enhances its ability to mount in tight spaces. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

Ordering Information for Compact Remote Side Mount Master Cylinder
KIT,M/C,COMPACT REMOTE,SIDE MT,15/16in W/RESERVOIR
$97.43
Call (805) 388-1188

Compact Remote Side Mt Master Cyl-Banjo Outlet

This new version of Wilwood's Compact Combination (Side Mount) Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting boss and the fluid outlet. The new body design incorporates integral side mounting lugs with a 3.00” center to distance and no traditional mounting flange, which further enhances its ability to mount in tight spaces. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

Ordering Information for Compact Remote Side Mt Master Cyl-Banjo Outlet
KIT,M/C,COMPACT REMOTE,SIDE MT,15/16in. BANJO,W/RESERVOIR
$100.28
Call (805) 388-1188



PDFs found: 3

Wilwood now offers a 15/16” bore size in their line of compact combination master cylinders. This new size provides an additional option for fine-tuning system balance and leverage in the brake hydraulics. Compact master cylinders provide the full stroke and volume output capacity of standard full-size master cylinders in a space-saving, compact design.

COMPACT COMBINATION FLANGE MOUNT MASTER CYLINDER KITS

COMPACT COMBINATION SIDE MOUNT MASTER CYLINDER KITS
