Compact Tandem Master Cylinder w/ Pushrod

Wilwood’s Compact Tandem Master Cylinders w/ Pushrod available 4 bore sizes from 7/8" to 1-1/8th and in 2 finishes; ball burnished and black e-coat. These master cylinders are designed primarily for manual applications and include a pushrod. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see retrofit kits PN 260-14248 for L/H outlets, or 260-15667 for R/H outlets.

Compact Tandem Master Cylinder

Wilwood’s Compact Tandem Master Cylinder is available in 2 bore sizes 1.00” and 1-1/8” and 2 finishes; ball burnished and black e-coat. The 1” bore can be used in manual and power assisted applications and does not come with a pushrod. The 1-1/8” bore is designed for use primarily with power brake applications, either from vacuum assist or hydraulic assist systems. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see retrofit kits PN 260-14248 for L/H outlets, or 260-15667 for R/H outlets.

Compact Tandem Master for Classic Mustang

Wilwood’s Compact Tandem Master Cylinder for Mustangs comes with the correct pushrod; 4 bore sizes; 7/8" through 1-1/8th and is available in 2 finishes ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include the correct pushrod for the factory 64-72 brake pedal. They’re designed for mount flanges from 3.22” to 3.40”, which match the 64-72 factory manual master cylinder mount, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see retrofit kits PN 260-14248 for L/H outlets, or 260-15667 for R/H outlets.

Compact Tandem Master Cylinder Mopar 4-Bolt w/push

Wilwood now makes a performance master cylinder with a flange specifically for Mopar's unique four bolt pattern. The rectangular mounting flange of our Mopar Compact Tandem master cylinder matches the A-body, B-body and the E-body firewall mounts in the 1960's and 70's. Available in 15/16", 1.00" and 1-1/8" bore sizes without pushrod, 15/16" and 1.00 with pushrod and Mopar style eyelet. Available in either a chrome powder coat finish or a glossy black E-coat to complement any engine bay. Optional kits are available that include a combination valve with a hydraulic brake light switch, adjustable proportioning valve, bracket, and plumbing.

Compact Tandem Master Cylinder Mopar 4-Bolt

Wilwood now makes a performance master cylinder with a flange specifically for Mopar's unique four bolt pattern. The rectangular mounting flange of our Mopar Compact Tandem master cylinder matches the A-body, B-body and the E-body firewall mounts in the 1960's and 70's. Available in 15/16", 1.00" and 1-1/8" bore sizes without pushrod, 15/16" and 1.00 with pushrod and Mopar style eyelet. Available in either a chrome powder coat finish or a glossy black E-coat to complement any engine bay. Optional kits are available that include a combination valve with a hydraulic brake light switch, adjustable proportioning valve, bracket, and plumbing.

Compact Tandem M/C w/Bracket and Valve (Pushrod)

Wilwood has packaged the new Compact Tandem Chamber Master Cylinder (w/ pushrod) with the Combination Proportioning Valve, L/H mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control in a compact package with only 6.55" from mounting flange to end. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. Master cylinders with pushrods are generally intended for manual brake use and available in two bores sizes, 7/8" or 15/16", and two finishes, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and left-hand side bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

Compact Tandem M/C Kit with Bracket and Valve

Wilwood has packaged the new Compact Tandem Chamber Master Cylinder with the Combination Proportioning Valve, L/H mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control in a compact package with only 6.55" from mounting flange to end. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. Master cylinders without pushrods are generally intended for power brake use and available in two bores sizes, 1.00” or 1-1/8”, and two finishes, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and left-hand side bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

Compact Tandem M/C w/Bracket and Valve (Mustang)

Wilwood has packaged the new Compact Tandem Chamber Master Cylinder (w/ Mustang pushrod) with the Combination Proportioning Valve, L/H mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control in a compact package with only 6.55" from mounting flange to end. The slotted flange mounting and included pushrod clevis end makes it a simple bolt on for 1964 to 1973 Ford and Mustang and is compatible with manual system applications. Master cylinders with pushrods are generally intended for manual brake use and available in four bores sizes, 7/8", 15/16", 1.00" and 1-1/8" and two finishes, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and left-hand side bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

Compact Tandem M/C w/RH Brkt and Valve (Pushrod)

Wilwood has packaged the new Compact Tandem Chamber Master Cylinder (w/ pushrod) with the Combination Proportioning Valve, R/H mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control in a compact package with only 6.55" from mounting flange to end. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. Master cylinders with pushrods are generally intended for manual brake use and available in two bores sizes, 7/8" or 15/16", and two finishes, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and right-hand side bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

Compact Tandem M/C Kit with RH Bracket and Valve

Wilwood has packaged the new Compact Tandem Chamber Master Cylinder with the Combination Proportioning Valve, R/H mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control in a compact package with only 6.55" from mounting flange to end. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. Master cylinders without pushrods are generally intended for power brake use and available in two bores sizes, 1.00” or 1-1/8”, and two finishes, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and Right-hand side bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

Compact Tandem M/C w/RH Brkt and Valve (Mustang)

Wilwood has packaged the new Compact Tandem Chamber Master Cylinder (w/ Mustang pushrod) with the Combination Proportioning Valve, R/H mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control in a compact package with only 6.55" from mounting flange to end. The slotted flange mounting and included pushrod clevis end makes it a simple bolt on for 1964 to 1973 Ford and Mustang and is compatible with manual system applications. Master cylinders with pushrods are generally intended for manual brake use and available in four bores sizes, 7/8", 15/16", 1.00" and 1-1/8" and two finishes, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and right-hand side bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

Compact Tandem M/C w/Brkt, Valve and Push (Mopar)

Wilwood now makes a performance master cylinder with a flange specifically for Mopar's unique four bolt pattern. The rectangular mounting flange of our Mopar Compact Tandem master cylinder matches the A-body, B-body and the E-body firewall mounts in the 1960's and 70's. Available in 15/16", 1.00" and 1-1/8" bore sizes without pushrod, 15/16"" and 1.00 with pushrod and Mopar style eyelet. Available in either a chrome powder coat finish or a glossy black E-coat to complement any engine bay. These kits are available that include a combination valve with a hydraulic brake light switch, adjustable proportioning valve, bracket, and plumbing.

Compact Tandem M/C Kit with Brkt and Valve (Mopar)

Wilwood now makes a performance master cylinder with a flange specifically for Mopar's unique four bolt pattern. The rectangular mounting flange of our Mopar Compact Tandem master cylinder matches the A-body, B-body and the E-body firewall mounts in the 1960's and 70's. Available in 15/16", 1.00" and 1-1/8" bore sizes without pushrod, 15/16"" and 1.00 with pushrod and Mopar style eyelet. Available in either a chrome powder coat finish or a glossy black E-coat to complement any engine bay. These kits are available that include a combination valve with a hydraulic brake light switch, adjustable proportioning valve, bracket, and plumbing.

Compact Tandem M/C w/R/H Brkt Vlv and Push (Mopar)

Wilwood now makes a performance master cylinder with a flange specifically for Mopar's unique four bolt pattern. The rectangular mounting flange of our Mopar Compact Tandem master cylinder matches the A-body, B-body and the E-body firewall mounts in the 1960's and 70's. Available in 15/16", 1.00" and 1-1/8" bore sizes without pushrod, 15/16"" and 1.00 with pushrod and Mopar style eyelet. Available in either a chrome powder coat finish or a glossy black E-coat to complement any engine bay. These kits are available that include a combination valve with a hydraulic brake light switch, adjustable proportioning valve, bracket, and plumbing.

Compact Tandem M/C Kit w/R/H Bkt and Valve (Mopar)

Wilwood now makes a performance master cylinder with a flange specifically for Mopar's unique four bolt pattern. The rectangular mounting flange of our Mopar Compact Tandem master cylinder matches the A-body, B-body and the E-body firewall mounts in the 1960's and 70's. Available in 15/16", 1.00" and 1-1/8" bore sizes without pushrod, 15/16"" and 1.00 with pushrod and Mopar style eyelet. Available in either a chrome powder coat finish or a glossy black E-coat to complement any engine bay. These kits are available that include a combination valve with a hydraulic brake light switch, adjustable proportioning valve, bracket, and plumbing.

Proportioning Valve

Tandem Manual Master Cylinder for C2 Corvettes

Machined from high-pressure die-cast aluminum, the Compact Tandem Master Cylinder weighs just 3.25 lbs., more than 50% less than the cast-iron factory tandem unit. Despite the compact size, it has a full 1.10” stroke and the fluid volume needed for high-performance multi-piston calipers. Finish options include gloss black e-coat, or a media burnished polished aluminum finish. Fluid outputs (1/2”-20 UNF) are provided on both sides of the bore. Plugs and fittings are included to accommodate 3/8”-24, 1/2”-20, and 9/16”-18 IF brake lines. Slotted mount flanges with 3.22” to 3.40” holes bolt right to the factory studs on the Corvette firewall and fit most other domestic cars and trucks from the era. Residual valves for drum brake cars and adjustable proportioning valves to dial in the brake bias are also available.

Two bore sizes provide the correct output for optimal braking performance on all models with Wilwood big brake kits, retrofits to tandem circuit master cylinders for 1963-64 drum brake cars, and a tuning option to provide a softer pedal feel with reduced effort on factory non-power disc brake equipped 1965-67 models.

NOTE: Due to space constraints, the optional proportioning valve mounting kit (P/N 260-14248) will not work with these C2 Corvette tandem master cylinders.

Tandem Master Cylinder Hardware Kit

Tandem Master Cylinder Hardware Kit

Proportioning Valve

Proportioning Valve

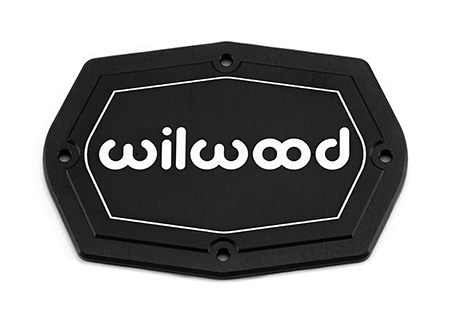

Master Cylinder Cap

Replacement lid (bare) Wilwood’s Compact Tandem Master Cylinders. Billet aluminum construction with a black e-coat finish.

Reservoir Kit

Lightweight Reservoir Kit -Direct Mount

Lightweight Reservoir Kit -Remote Mount

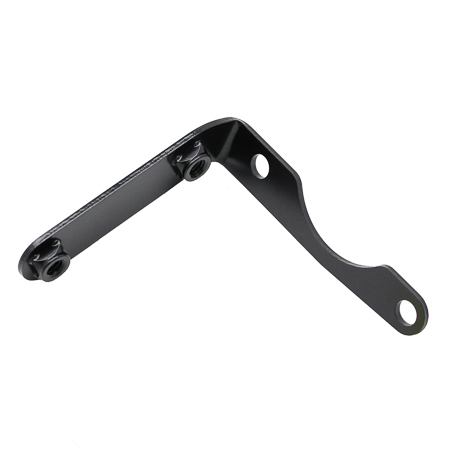

Bracket, Prop Valve to Master Cylinder

Proportioning Valve Mounting bracket for Wilwood Tandem Compact Mopar 4-bolt Master Cylinders. Steel construction with a plated finish. L/H side mount.

Bracket, Prop Valve to Master Cylinder

Proportioning Valve Mounting bracket for Wilwood Tandem Compact Mopar 4-bolt Master Cylinders. Steel construction with a plated finish. R/H side mount.

Push Rod Spacer

Push Rod Spacer for use in Wilwood’s Aluminum Tandem Compact Mopar 4-Bolt Master Cylinder. Used when a deep whole push rod retention is not required. Used with most power brake applications. With a 0.62” length, .468” diameter and fully radiused ends, made from high strength aluminum alloy.

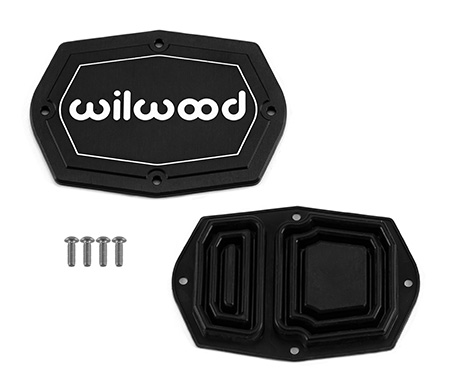

Master Cylinder Cap

Replacement lid kit with gasket and screws for Wilwood’s Aluminum Tandem Master Cylinders. Billet aluminum construction with a black e-coat finish.

Proportioning Valve Bracket Kit

Wilwood’s Proportioning Valve Bracket Kit Is specifically designed to work in conjunction with Wilwood Aluminum Tandem Master Cylinders, in manual or boosted system applications. This kit includes stainless steel fluid tubes which are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder.
