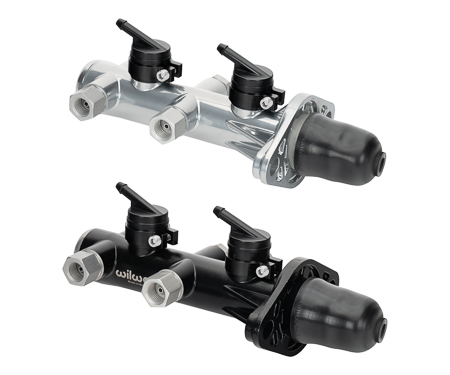

Remote Tandem Master Cylinder w/ Pushrod

Wilwood’s Remote Tandem Master Cylinder with pushrod is available in 4 bore sizes: 7/8”, 15/16”, 1.00” and 1-1/8”, and 2 finishes: ball burnished, and black e-coat. They’re designed to fit most mounting flanges and feature outlet ports both sides, for multiple plumbing options. Remote mount reservoir and bracket assemblies further enhance the utility of these cylinders.

Remote Tandem Master Cylinder

Wilwood’s Remote Tandem Master Cylinder w/out Push Rod is available in 2 bore sizes: 1.00” and 1-1/8”, and 2 finishes: ball burnished, and black e-coat. They’re designed to fit most mounting flanges and feature outlet ports both sides, for multiple plumbing options. Remote mount reservoir and bracket assemblies further enhance the utility of these cylinders.

Remote Tandem M/C for Classic Mustang

Wilwood’s Remote Tandem Master Cylinder for Classic Mustang is available in 2 bore sizes 7/8” and 15/16”, and in two finishes: ball burnished and black e-coat. They’re designed for mount flanges from 3.22” to 3.40” and a pushrod and eyelet for Calssic Mustang and other Ford vehicles from 1965 to 1973. Remote Tandem Master Cylinders offer fluid outlet ports on both sides of the bore. The stroke is set at 1.12” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see PN 260-14248 for a retrofit kit.

Reservoir Kit-G-Body Remote Tandem

Remote Tandem M/C Kit w/Pushrod, Bracket and Valve

Wilwood has packaged the pushrod equipped Remote Tandem Chamber Master Cylinder in a kit with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware. Wilwood's Tandem Master Cylinders represents the latest in refinement in brake pressure actuation and fluid control. The included captured pushrod is for manual brake equipped cars or conversions. The high-pressure die-cast aluminum cylinder is available 2 finishes, ball burnished or black E-coat, with slotted mounting flanges for 3.22” to 3.40” on center studs. Kit includes two 7 oz. fluid reservoirs, clamps, brackets, and hoses for direct or remote mounting. The Combination Proportioning Valve substantially simplifies wiring and brake proportioning, incorporating a hydraulic brake light switch, adjustable prop valve, and Y-junction block, and finished in black E-coat for durability and a performance look. Stainless steel fluid tubes are precision bent with pre-installed plated steel tube nuts for a simple bolt-on installation. Simply connect the fluid lines, bleed the system, and you're finished.

Remote Tandem M/C Kit with Bracket and Valve

Wilwood has packaged the new Remote Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Wilwood's Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting and two finishes: ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with pre-installed plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

Remote Tandem M/C Kit w/Brkt and Valve (Mustang)

Wilwood has packaged the new Remote Tandem Chamber Master Cylinder for Calssic Mustang with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Wilwood's Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting and two finishes: ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with pre-installed plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

Remote Tandem M/C Kit w/Brkt and Valve (Angled)

Wilwood has packaged the Remote Tandem Master Cylinder in a kit with the GM style angled reservoirs, Combination Proportioning Valve, mounting bracket, fluid tubes, and mounting hardware. Wilwood's Tandem Master Cylinders represent the latest in refinements in brake pressure actuation and fluid control, and the durable nylon reservoirs are designed so that the top is level when mounted at the 15° angle typical of GM power brake applications. The high-pressure die-cast aluminum cylinder is available 2 finishes, ball burnished or black E-coat, with slotted mounting flanges for 3.22” to 3.40” on center studs. The Combination Proportioning Valve substantially simplifies wiring and brake proportioning incorporating a hydraulic brake light switch, adjustable prop valve, and Y-junction block, and finished in black E-coat for durability and a performance look. Stainless steel fluid tubes are precision bent with pre-installed plated steel tube nuts for a simple bolt-on installation. Rear brake circuit reservoir, closest to the booster, holds nearly 5 oz, while front brake reservoir holds 8 oz. both made of black plastic with black screw caps.

Proportioning Valve

Combo Valve Tubing

Individual bent tubing for combination valve plumbing. Stainless Steel tubing with plated steel tube nuts.

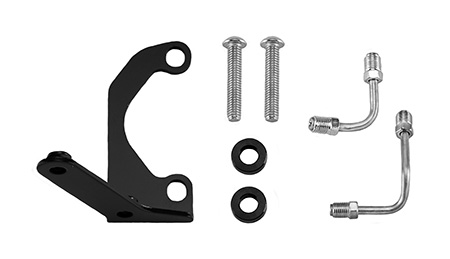

Proportioning Valve Bracket Kit

Wilwood’s Proportioning Valve Bracket Kit Is specifically designed to work in conjunction with Wilwood Aluminum Tandem Master Cylinders, in manual or boosted system applications. This kit includes stainless steel fluid tubes which are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder.

Reservoir Kit

Lightweight Reservoir Kit -Direct Mount

Lightweight Reservoir Kit -Remote Mount

Tandem Remote Master Cylinder

Bleed Screw

Wilwood’s fittings are manufactured to high quality standards and are available in various types and styles. This 7mm-1.00 bleed screw replacement is used with Remote Tandem master cylinders 260-7563 & 260-6842.

Tandem Remote M/C Rebuild Kit

Reservoir Clamp

Reservoirs

Reservoir Cap

Reservoir Clamp

Remote Inlet Adapter

Reservoirs

M/C Fitting

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. This ftting 220-13368 is a M15-1.00 to 3/8-24 IF tube adapter for the Wilwood Tandem Remote master cylinder 260-7563
