Front Brake Kit – Part No: 140-12956
Call (805) 388-1188
Dynapro Single Left Front Brake Kit
Prod #: 140-12956
Price: $237.93

*NOTE: Brake Line Kit Needed.
Front Brake Kit — 140-12956

Kit Summary
Spindle Type:
Mount Type: Lug
Caliper Type: 2 - Type III Ano
Rotor Diameter: 10.95
Min Wheel Diameter Req'd*:
*This Brake Kit may fit -inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545018387

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only

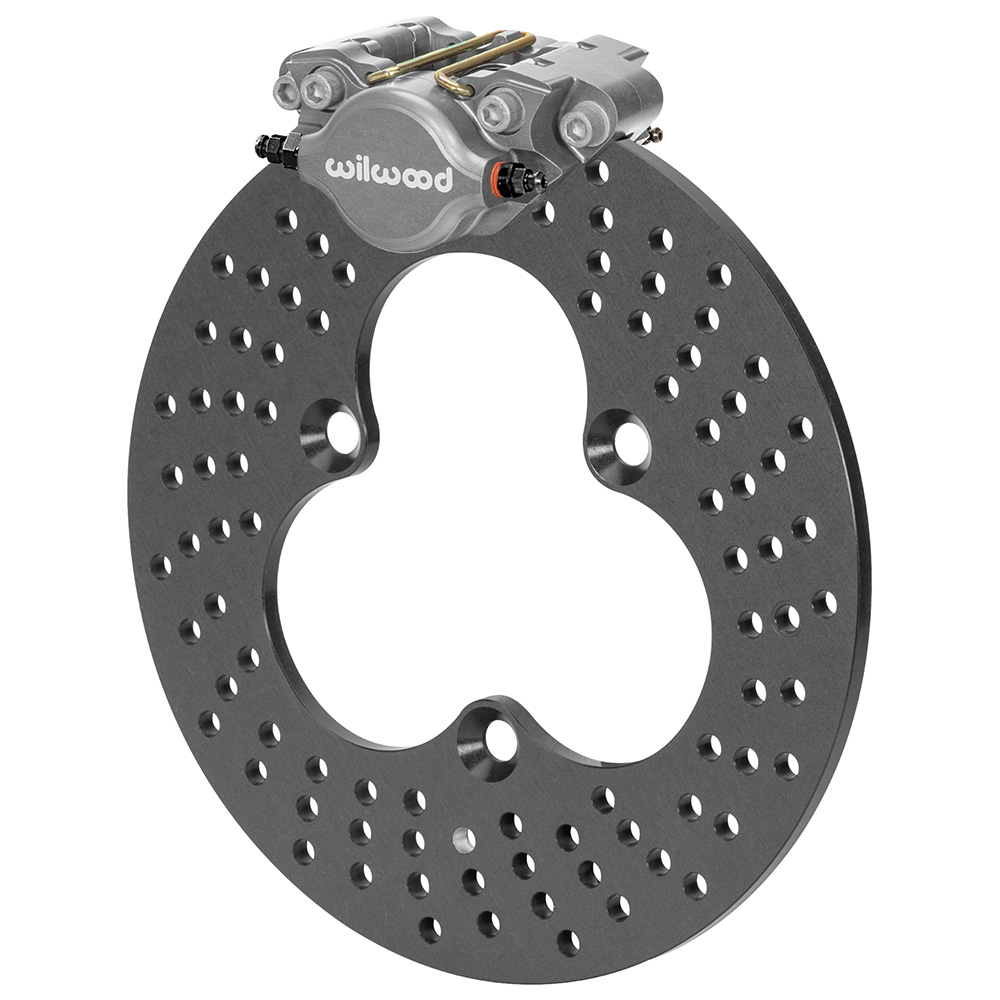

Dynapro Single Left Front Brake Kit

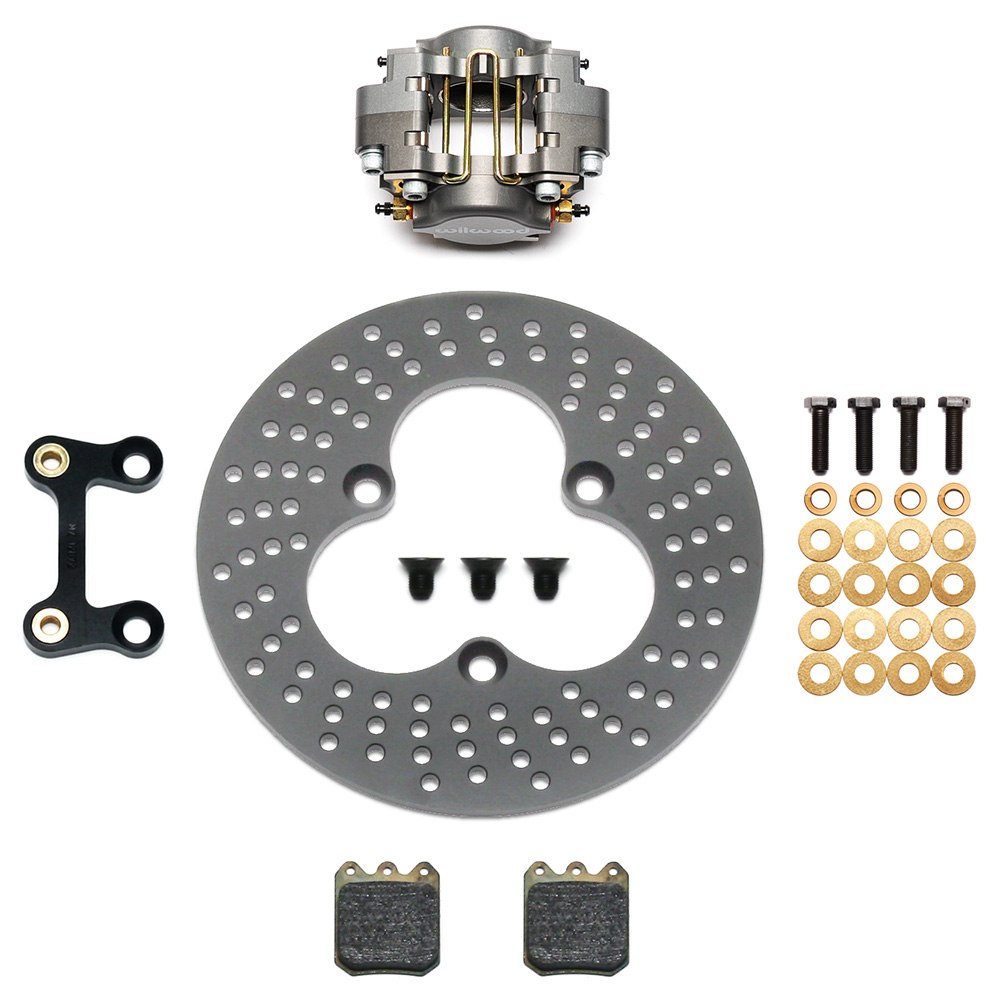

The Dynapro Single Left Front Sprint & Midget kits are a further evolution of a proven design from Wilwood’s 35+ years of engineering and producing the best open wheel braking systems. Dynapro single calipers have full 2.40 square inches of area for increased clamping force. Kits are offered with either Slotted Titanium or Scalloped Alloy Steel Rotors for high heat or Aluminum rotors for maximizing weight saving on light braking tracks. Kit come complete with caliper, brake pads, caliper mounting brackets, caliper mount bolt kit, rotor and rotor mounting hardware.


Fitment & Installation Details


Dynapro Single Left Front Brake Kit Assembly Schematic


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Dynapro Single Left Front Brake Kit
SPINDLE TYPE:
This Brake Kit is Compatible with the Following Vehicle Makes:

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-10188
Right Hand - Part No:
Type: Dynapro Single
Finish Color: Type III Ano
Piston Count: 2
Piston Area (In²): 2.40
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 6812
Brake Pad Area (In²): 3
Brake Pad Volume (In³): 1.1
Pad Compound: Polymatrix Q
Rotors
Left Hand - Part No: 160-3327
Right Hand - Part No:
Type: Aluminum
Style: Drilled
Surface Finish: Black Electro Coat
Material: Aluminum
Outside Diameter (in): 10.95
Width (in): 0.31
Vane Count: Solid
Design Type: Aluminum
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2655
Replacement Dustboot: N-A
Replacement Piston 1: 200-7528
Replacement Piston 2: N-A
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 300-9786
Bleed Screw Kit: 220-0627
Brake Lines
Hat
Bolt Kit:
Hub
Bolt Kit:
