AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit
Prod #: 140-13145-CSICR
Price: $9,320.44
Front Brake Kit — 140-13145-csicr


Kit Contents

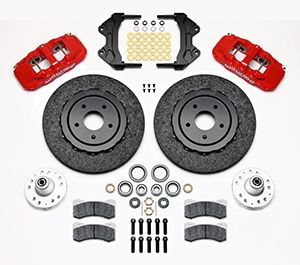

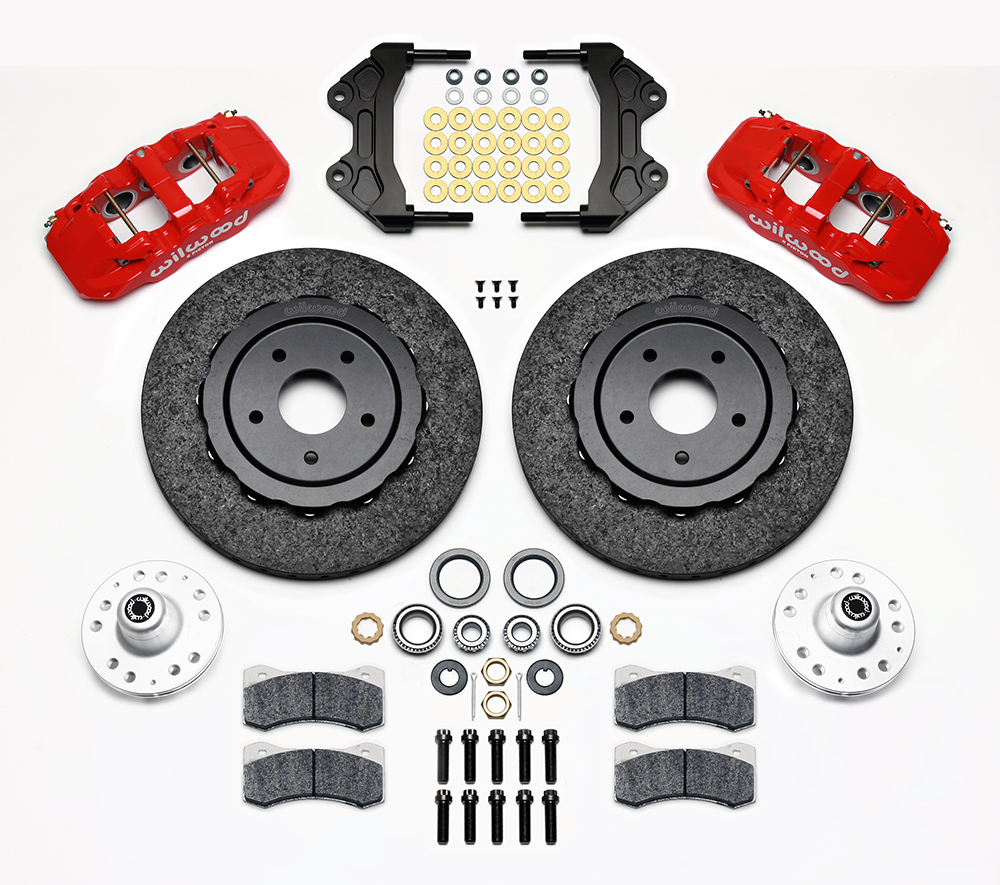

Wilwood AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor Wilwood AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
OE Hub Offset: +.68
(Increase / Decrease Track Width)
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Red Powder Coat
Rotor Diameter: 14.00
Min Wheel Diameter Req'd*: 18
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545018943

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only

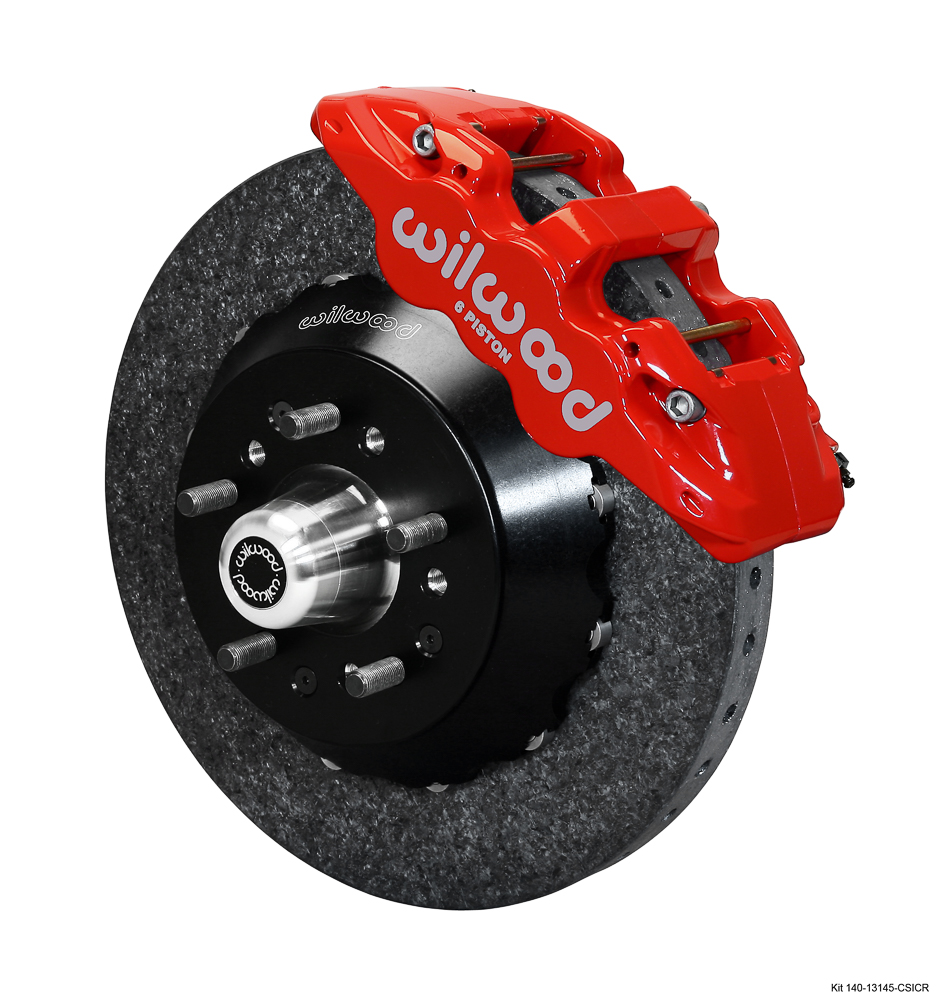

AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit

AERO6 WCCB Carbon-Ceramic Rotor Front Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO6 WCCB kits are engineered to maximize braking capacity inside custom wheels. These brake kits offer a simple bolt-on installation with minor modifications required to the front spindle only and are fully compatible with ABS and OE master cylinder output. AERO6 calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. Black or Red powder coat calipers are available as options. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.


Fitment & Installation Details

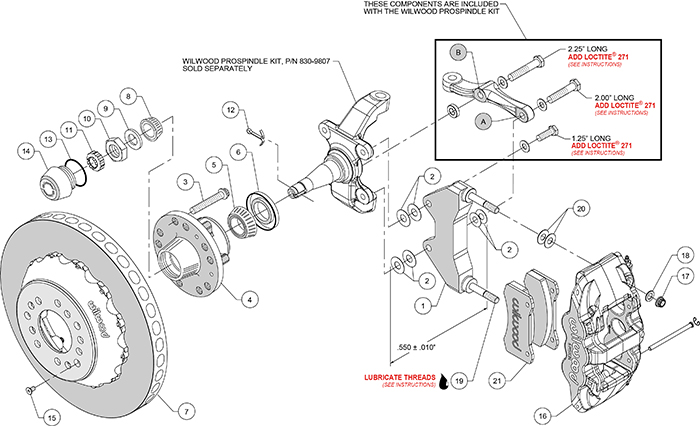

AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit Assembly Schematic

AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit Assembly Schematic AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Art Morrison Roadster Shop Wilwood

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF: +.68
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

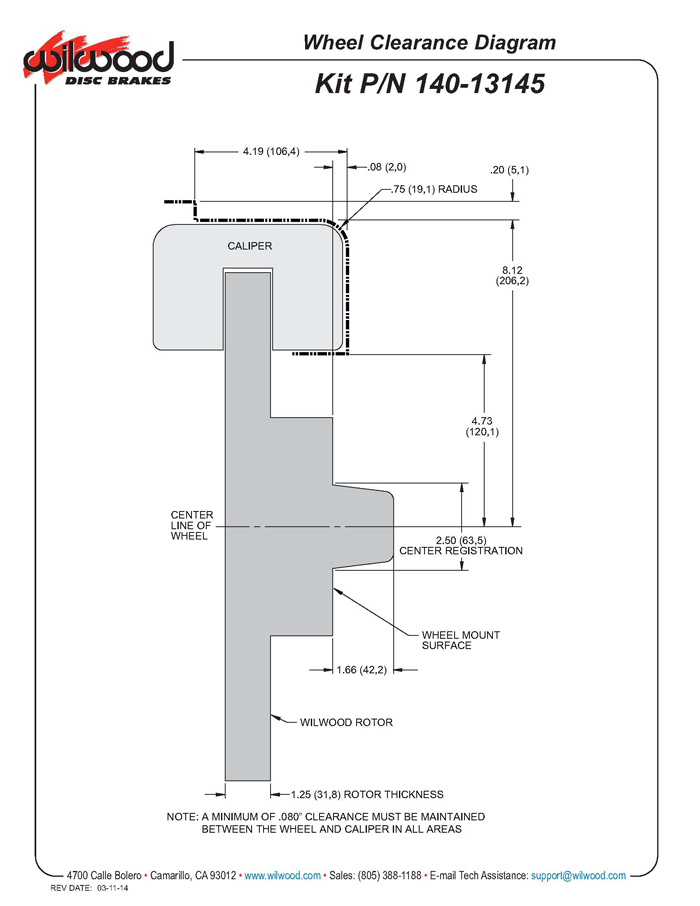

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. 14" Rotor




Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13290-RD
Right Hand - Part No: 120-13289-RD
Type: AERO6
Finish Color: Red Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.12
Piston 3 Bore (in): 1.12
Piston Area (In²): 4.04
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 6617
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 5.2
Pad Compound: PCM
AERO6 Caliper - Red Powder Coat AERO6 Caliper - Red Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-12442
Right Hand - Part No: 160-12442
Type: WCCD Carbon-Ceramic
Style: Plain Face
Surface Finish: Plain
Material: C/SiC
Outside Diameter (in): 14.00
Width (in): 1.25
Vane Count: 24 V
Design Type: C/SiC
Bedded: No
Dynamically Balanced: No

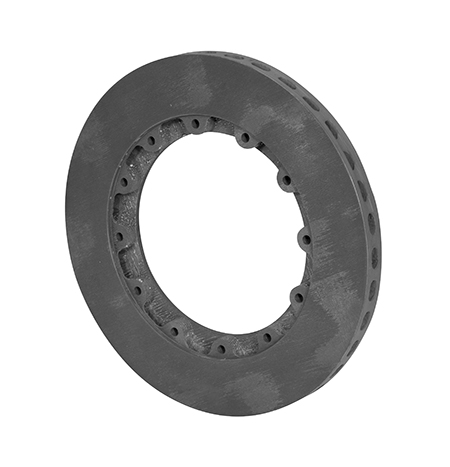

WCCD Carbon-Ceramic - C/SiC - Plain WCCD Carbon-Ceramic - C/SiC - Plain Zoom Image
Rotor Hats
Hat - Part No: 170-13136
Type: Big Brake Dynamic Bobbin Mount Hat - Flared Bell
Material: Aluminum
Finish Color: Type III Anodize
Hat Offset Dimension (in): 1.740
Bolt Circle 1: 5 x 4.75
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.520
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000

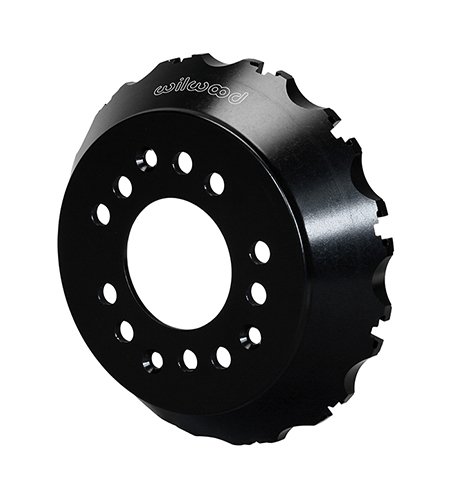

Big Brake Dynamic Bobbin Mount Hat - Flared Bell - Aluminum - Type III Anodize Big Brake Dynamic Bobbin Mount Hat - Flared Bell - Aluminum - Type III Anodize Zoom Image
Hubs
Hub - Part No: 270-6989
Type: Hub - Hat Mount
Material: Aluminum
Finish Color: Bare
Mount Style: Hat
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Bolt Circle 3:
Stud Diameter - BC 1: 1/2-20
Stud Diameter - BC 2: 1/2-20
Stud Diameter - BC 3:
Hub - Hat Mount - Aluminum - Bare Hub - Hat Mount - Aluminum - Bare Zoom Image

Parts & Accessories
Caliper Parts
O-ring Kit: 130-5972
Replacement Dustboot: N-A
Replacement Piston 1: 200-7519
Replacement Piston 2: 200-7513
Replacement Piston 3: 200-7513
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Front Line Kit:
220-8307
Hat
Bolt Kit: Call
Hub
Bolt Kit:
