Dynapro Radial Big Brake Front Brake Kit (Hat)
Prod #: 140-9193-DR
Price: $1,290.79
*NOTE: Brake Line Kit Needed.
220-7009 $77.72
Front Brake Kit — 140-9193-dr

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 12
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

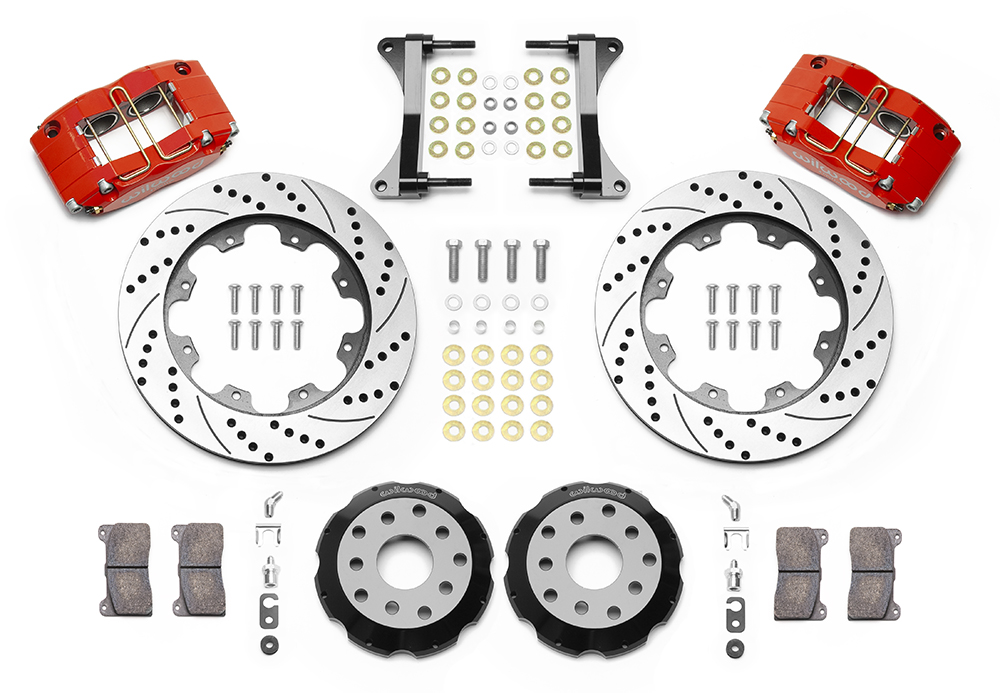

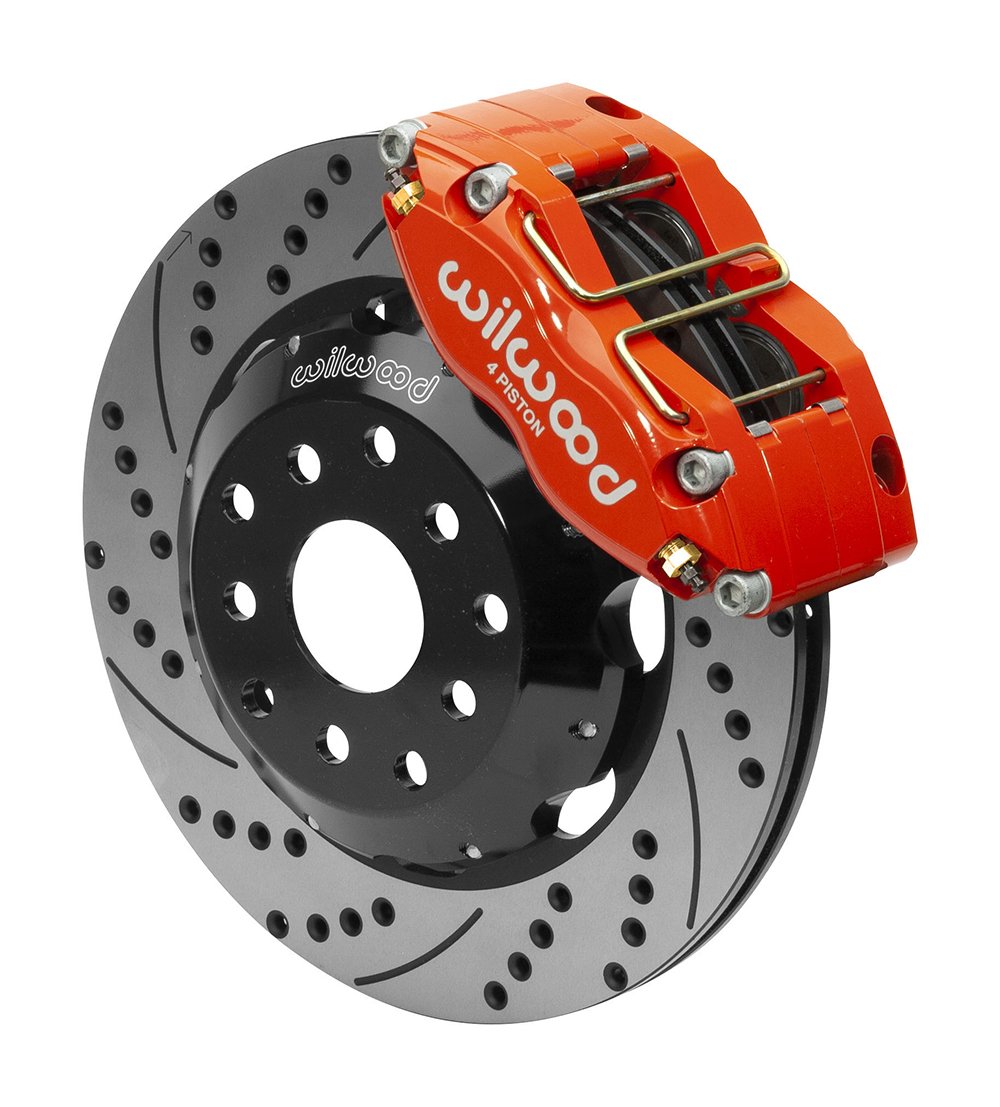

Dynapro Radial Big Brake Front Brake Kit (Hat)

Radial mounting provides secure and accurate installation of the forged billet DynaPro four piston caliper with large diameter rotors for this group of front and all wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered specific for each vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs provide choices that enable the builder to personalize the style and optimize brake performance.


Fitment & Installation Details


Dynapro Radial Big Brake Front Brake Kit (Hat) Assembly Schematic


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Dynapro Radial Big Brake Front Brake Kit (Hat)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Factory Five Racing Saab Subaru

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-14706-RD
Right Hand - Part No: 120-14706-RD
Type: Dynapro Dust Seal Radial Mount
Finish Color: Red Powder Coat
Piston Count: 4
Piston Area (In²): 4.12
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7816
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 3
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-8497-BK
Right Hand - Part No: 160-8496-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Spec-37 Iron
Outside Diameter (in): 12
Width (in): 0.81
Vane Count: 36 CV
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No: 170-9206
Type: Big Brake Hat - Short Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.1
Bolt Circle 1: 5 x 3.93
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.52
Stud Diameter - BC 2: 0
Stud Diameter - BC 3: 0
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-4346
Replacement Dustboot: 210-14384
Replacement Piston 1: 200-7519
Replacement Piston 2: 200-7519
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: 300-7316
Bleed Screw Kit: 220-6069
Brake Lines
Front Line Kit:
220-7009
Hat
Bolt Kit: 230-8390
Hub
Bolt Kit:
