Dynapro Radial Big Brake Front Brake Kit (Hat)
Prod #: 140-9193-R
Price: $1,450.80
Front Brake Kit — 140-9193-r


Kit Contents

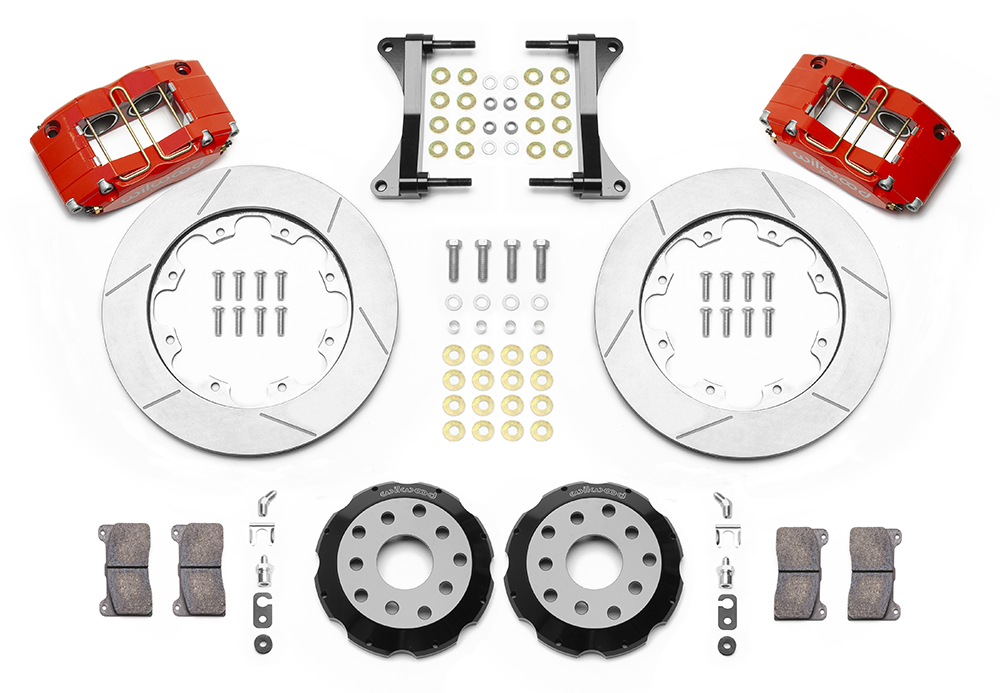

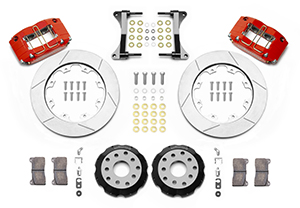

Wilwood Dynapro Radial Big Brake Front Brake Kit (Hat) Parts Laid Out - Red Powder Coat Caliper - GT Slotted Rotor Wilwood Dynapro Radial Big Brake Front Brake Kit (Hat) Parts Laid Out - Red Powder Coat Caliper - GT Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 12.00
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545030761

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only

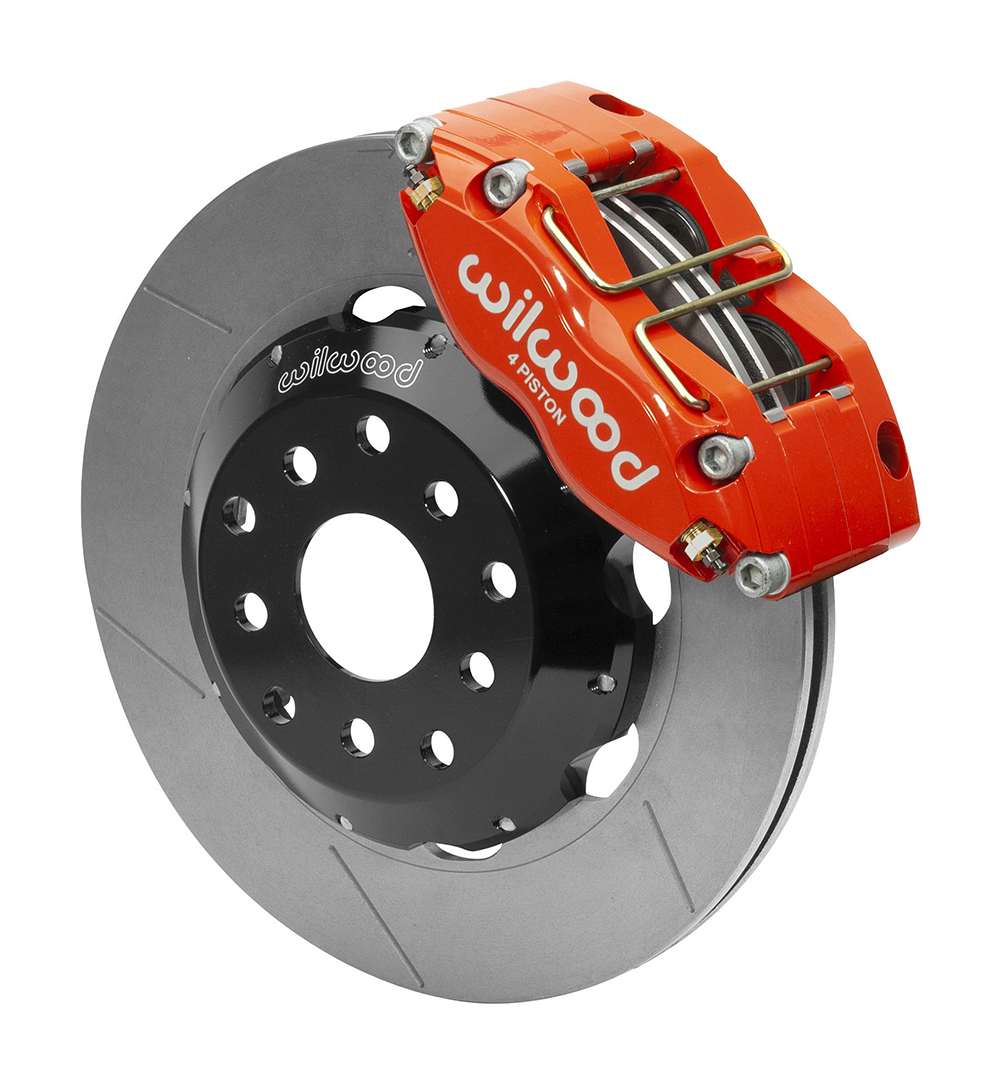

Dynapro Radial Big Brake Front Brake Kit (Hat)

Radial mounting provides secure and accurate installation of the forged billet DynaPro four piston caliper with large diameter rotors for this group of front and all wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered specific for each vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs provide choices that enable the builder to personalize the style and optimize brake performance.


Fitment & Installation Details


Dynapro Radial Big Brake Front Brake Kit (Hat) Assembly Schematic

Dynapro Radial Big Brake Front Brake Kit (Hat) Assembly Schematic Dynapro Radial Big Brake Front Brake Kit (Hat) Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Dynapro Radial Big Brake Front Brake Kit (Hat)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Factory Five Racing Subaru

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-14706-RD
Right Hand - Part No: 120-14706-RD
Type: Dynapro Dust Seal Radial Mount
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.62
Piston Area (In²): 4.12
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7816
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 3
Pad Compound: BP-10
Dynapro Dust Seal Radial Mount Caliper - Red Powder Coat Dynapro Dust Seal Radial Mount Caliper - Red Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-12288
Right Hand - Part No: 160-12287
Type: GT 36 Curved Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 12.00
Width (in): 0.81
Vane Count: 36 CV
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
GT 36 Curved Vane - Spec-37 Iron - Plain GT 36 Curved Vane - Spec-37 Iron - Plain Zoom Image
Rotor Hats
Hat - Part No: 170-9206
Type: Big Brake Hat - Short Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.100
Bolt Circle 1: 5 x 3.93
Bolt Circle 2: 5 x 4.50
Bolt Circle 3:
Stud Diameter - BC 1: 0.520
Stud Diameter - BC 2: 0.520
Stud Diameter - BC 3: 0.000
Big Brake Hat - Short Offset - Aluminum - Black E-Coat Big Brake Hat - Short Offset - Aluminum - Black E-Coat Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-17057
Replacement Dustboot: N-A
Replacement Piston 1: 200-7519
Replacement Piston 2: 200-7519
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: 300-7316
Bleed Screw Kit: 220-6069
*Brake Lines Needed
Front Line Kit:
 		220-12857
Hat
Bolt Kit: 230-8390
Hub
Bolt Kit:
