Rear Brake Kit – Part No: 140-4545-bd
Call (805) 388-1188

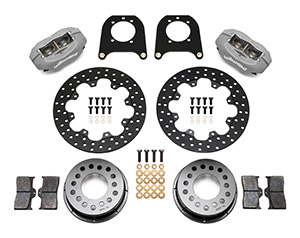

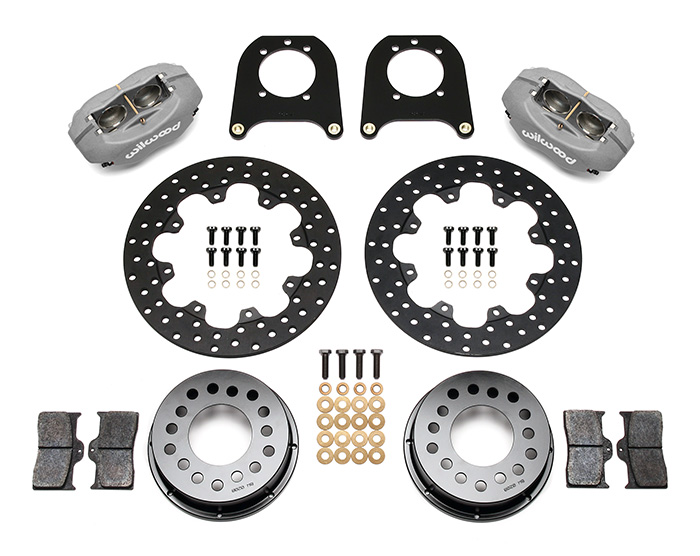

Forged Dynalite Rear Drag Brake Kit
Prod #: 140-4545-BD
Price: $567.71

*NOTE: Brake Line Kit Needed.
Rear Brake Kit - Rear Kit

Kit Summary
Rear End Axle: 12 Bolt C-Clip Eliminator
Axle Offset: 2.91
Mount Type: Lug
Caliper Type: 4 - Type III Ano
Rotor Diameter: 11.44
Min Wheel Diameter Req'd*: 15

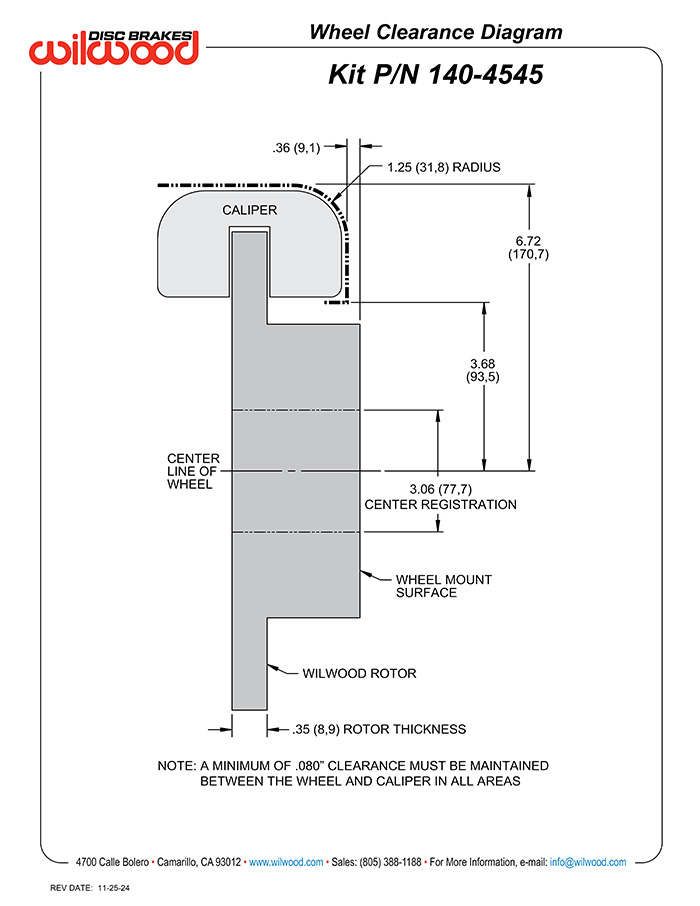

*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

Forged Dynalite Rear Drag Brake Kit

FDL Rear Drag kits are true bolt-on kits available for all popular muscle car rear axles and aftermarket rears built with custom axle ends. Kits in this group are purpose built for sportsman category door cars and others with full functional four-wheel disc brakes. Based on the specific style of housing end and axle offset, mounting kits securely install the four-piston forged Dynalite caliper over 3/8” plate steel rotors that are mounted to the axle with an aluminum hat. Standard kits include solid face rotors, with optional drilled rotor kits available to further reduce driveline weight in classes where every weight advantage is necessary.


Fitment & Installation Details

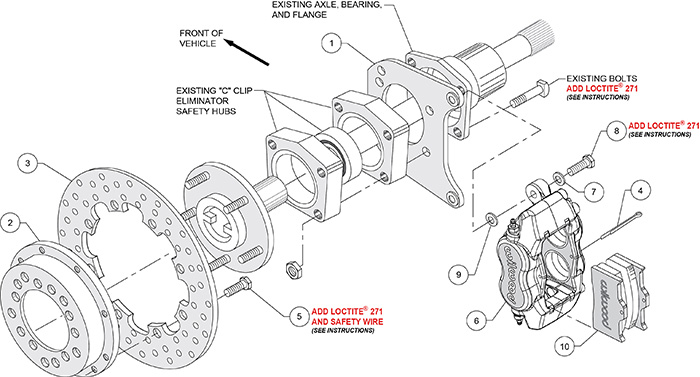

Forged Dynalite Rear Drag Brake Kit Assembly Schematic


Rear End / Axle Housing Flange
Confirm The Configuration!

12 Bolt C-Clip Eliminator Flange
Confirm Offset Measurement!

AXLE FLANGE CROSS-SECTION
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 2.91
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions





Assembly Instructions
Notes





Compatible Vehicles for this Brake Kit

BRAKE KIT:   Forged Dynalite Rear Drag Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   12 Bolt C-Clip Eliminator - Rear Kit

AXLE OFFSET:   2.91

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-6818
Right Hand - Part No: 120-6818
Type: Forged Dynalite
Finish Color: Type III Ano
Piston Count: 4
Piston Area (In²): 4.80
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-1601
Right Hand - Part No: 160-1601
Type: Drilled Steel Rotor
Style: Drilled
Surface Finish: Black Oxide
Material: Steel
Outside Diameter (in): 11.44
Width (in): 0.35
Vane Count: Solid
Design Type: Solid
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No: 170-0208
Type: Drag Hat - Standard
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.96
Bolt Circle 1: 5 X 4.50
Bolt Circle 2: 5 X 4.75
Bolt Circle 3: 5 X 5.00
Stud Diameter - BC 1: 0.52
Stud Diameter - BC 2: 0.52
Stud Diameter - BC 3: 0.52
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2655
Replacement Dustboot: N-A
Replacement Piston 1: 200-7528
Replacement Piston 2: 200-7528
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 180-0054
Bleed Screw Kit: 220-0627
Brake Lines
Hat
Bolt Kit: 230-0233D
Hub
Bolt Kit:
