Rear Brake Kit – Part No: 140-9405-dr
Call (805) 388-1188
TC6R Big Brake Truck Rear Brake Kit
Prod #: 140-9405-DR
Price: $2,239.94
*NOTE: Brake Line Kit Needed.
220-9811 $77.72
220-11196 $118.83
Rear Brake Kit - Rear Kit

Kit Summary
Rear End Axle: OEM
Axle Offset: 0
Mount Type: Radial
Caliper Type: 6 - Red Powder Coat
Rotor Diameter: 16
Min Wheel Diameter Req'd*: 20
*This Brake Kit may fit 20-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

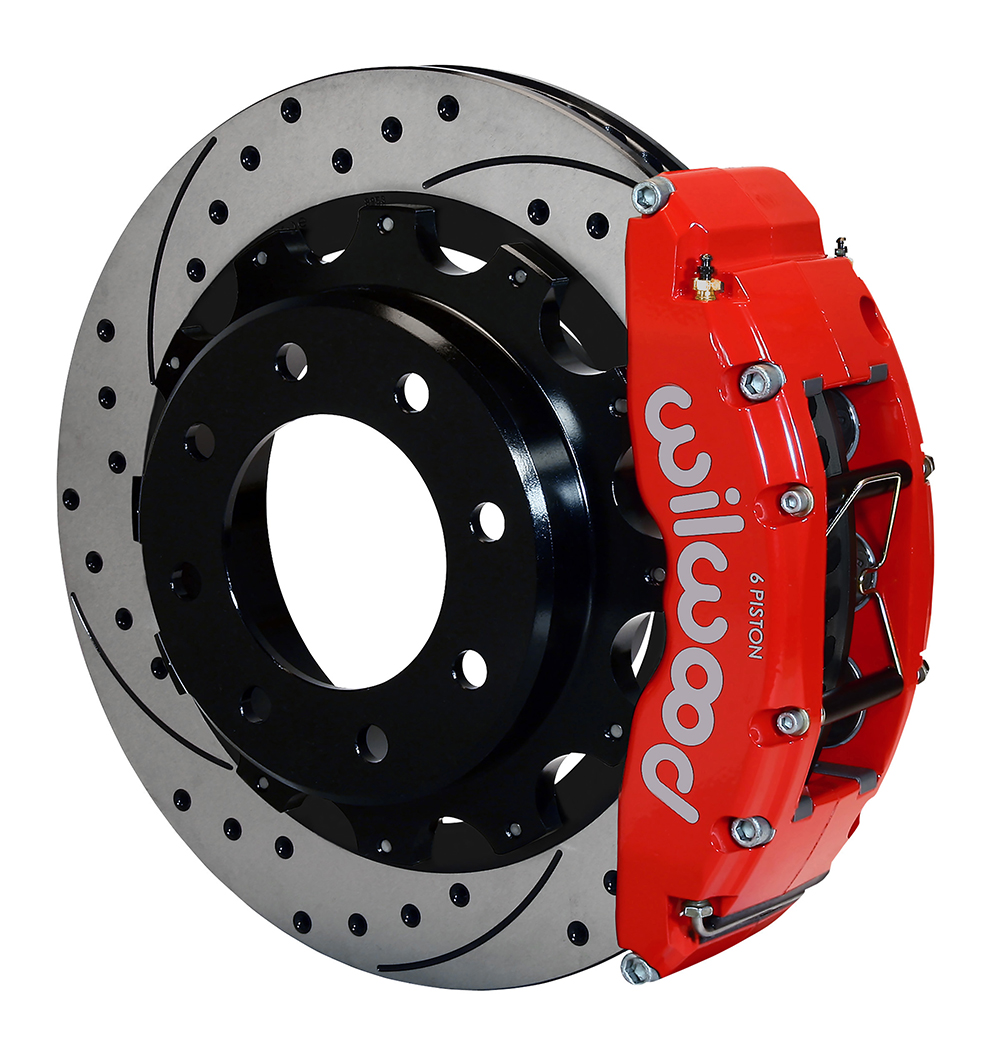

TC6R Big Brake Truck Rear Brake Kit

TC6R rear axle disc brake kits with 16” rotors are the ultimate big brake solution for highly customized and modified trucks or SUV’s upgraded to larger than stock wheels. TC6R kits can fit many 20”and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase). TC6R kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. TC6R calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle. These combined enhancements provide the necessary control over big wheels and tires to provide safe stopping on heavy weight vehicles.


Fitment & Installation Details

TC6R Big Brake Truck Rear Brake Kit Assembly Schematic


Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange
Confirm Offset Measurement!

AXLE FLANGE CROSS-SECTION
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions





Assembly Instructions
Notes
1. Fits axle with 4.63 center register only.




Compatible Vehicles for this Brake Kit

BRAKE KIT:   TC6R Big Brake Truck Rear Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   AM General Chevrolet GMC Hummer

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.

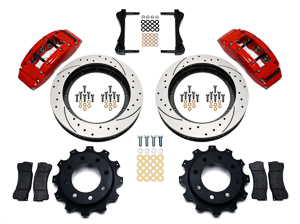

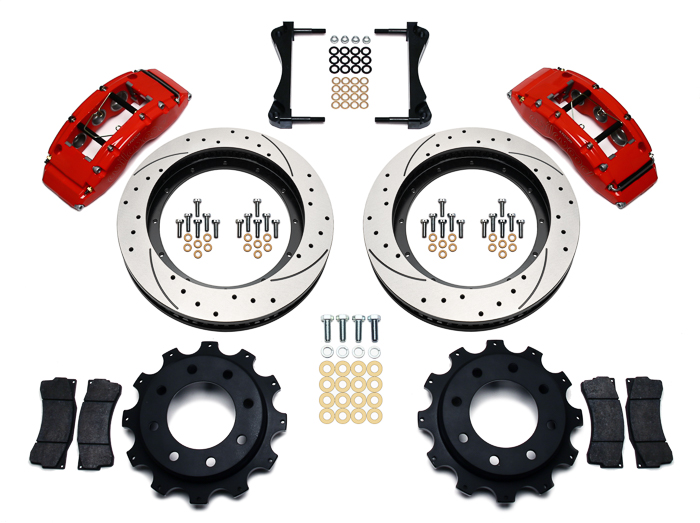

Kit Components & Specifications
Calipers
Left Hand - Part No: 120-14318-FSR
Right Hand - Part No: 120-14317-FSR
Type: TC6
Finish Color: Red Powder Coat
Piston Count: 6
Piston Area (In²): 5.40
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 6318
Brake Pad Area (In²): 13
Brake Pad Volume (In³): 6
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-8956-BK
Right Hand - Part No: 160-8955-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Spec-37 Iron
Outside Diameter (in): 16
Width (in): 1.38
Vane Count: 60 CV
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: Yes
Rotor Hats
Hat - Part No: 170-14028
Type: Parking Brake Hat - Truck
Material: Iron
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.78
Bolt Circle 1: 8 x 6.50
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.64
Stud Diameter - BC 2: 0
Stud Diameter - BC 3: 0
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-3084
Replacement Dustboot: N-A
Replacement Piston 1: 200-7528
Replacement Piston 2: 200-7518
Replacement Piston 3: 200-7518
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: 190-9172
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 230-9171
Wear Plate - Left Hand: 300-8894
Wear Plate - Right Hand: 300-8893
Pad Retainer: N-A
Bleed Screw Kit: 220-6069
Brake Lines
Front Line Kit:
Front Line Kit:
220-9811
220-11196
Hat
Bolt Kit:
Hub
Bolt Kit:
