SC1 / SC2 / SC3 Caliper – Part No: 120-8691
Call (805) 388-1188
SC2 Single Piston
Prod #: 120-8691
Price: $57.74

SC2 Single Piston - Product Summary
Caliper No: 120-8691

Pistons
Piston Count 1
Piston Area (in²) 1.06
Piston Type Aluminum
Dust Boot Yes
Rotor Dimensions
Rotor Width(in) 0.25
Rotor Diameter(in) 9
Pad Dimensions
Pad Area (in²) 1.7
Pad Volume (in³) 0.26
Duty Rating & Material
Material Aluminum
Weight(Lbs) 1
Colors & Finish
Color Clear
Finish Clear Anodize

Mounting
Mount Center(in) 3
Mount Position
Mount Side Universal
Mount Type Floating
Product Documents
Product Data Sheet

Click To Download
Installation Instructions


120-8691 - Product Description

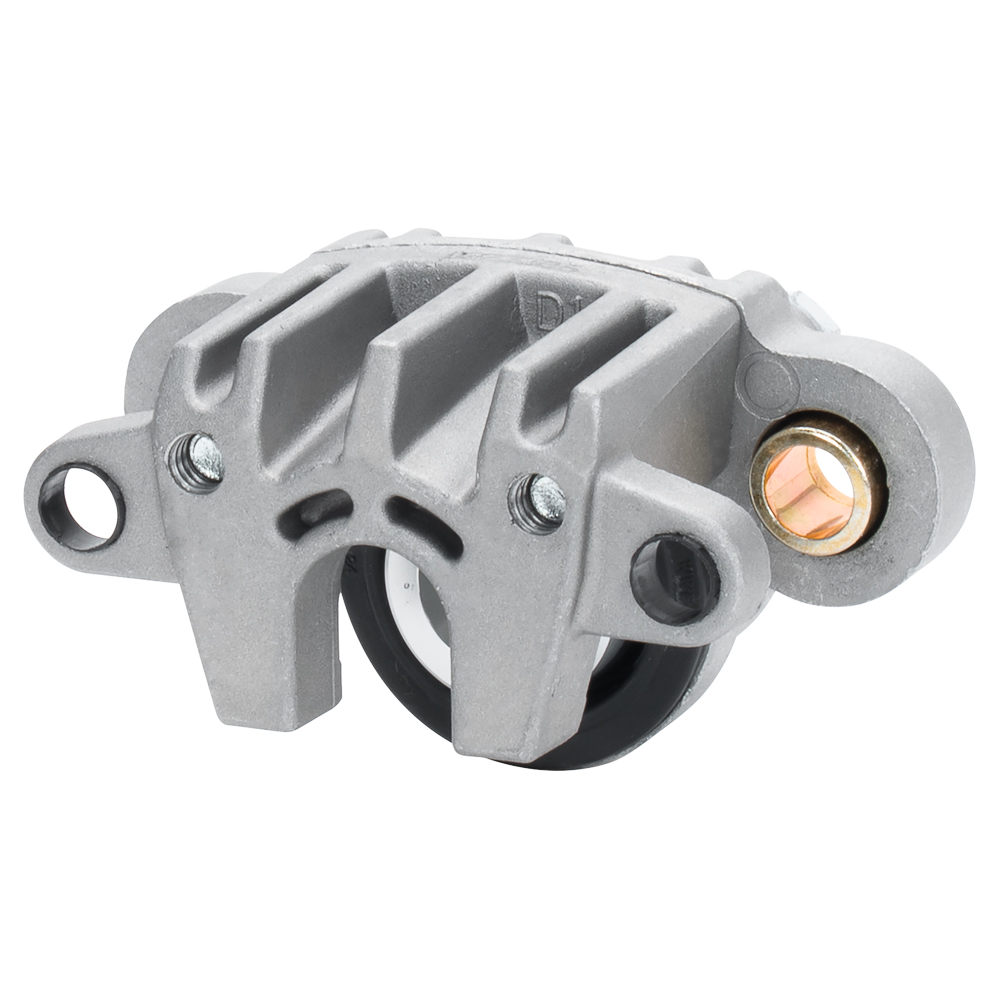

SC2 Single Piston

Designed, engineered and manufactured in the U.S.A., this floating die cast aluminum caliper is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this single piston design include availability of either 1.06”, 1.19” or 1.25” bore size, fitted dust seal to prevent ingress of environmental contamination, dual bleed fittings for versatility in mounting position and fluid inlets in M10 x 1.0 banjo.

The mounting system features corrosion resistant slide pins floating in viscoelastic rings mounted in the ears of the body for smooth, rattle-free operation. This system controls pad knock-back to retain a consistent pedal or hand lever feel throughout the life of the pads. Weight: from 1.1 pounds. Rotor thickness range: .15” to .25”


Vehicle Applications
Driving Environment Power Sports
Vehicle Sub-Types ATV, Snowmobile
Application Duty Medium Duty
Driving Environment Industrial
Vehicle Sub-Types
Application Duty Medium Duty

Product Specifications

Rotor Compatibility
Rotor Width(in) 0.25
Maximum Rotor Width(in) 0.25
Minimum Rotor Width(in) 0.15
Maximum Rotor Diameter(in) 9
Minimum Rotor Diameter(in) 6.5

Brake Pad Specifications
Brake Pad Type 1 6407
Brake Pad Type 2 N-A
Brake Pad Type 3 N-A
Total Pad Area (in²) 1.7
Total Pad Volume (in³) 0.26
Mount
Piston Specifications
Piston 1 Bore(in) 1.19
Piston 2 Bore(in
Piston 3 Bore(in)
Piston 4 Bore(in)
Total Piston Area (in²) 1.06

Mounting Specifications
Mount Type Floating
Mount Side Universal
Mount Center(in) 3
Mount Hole Size(in) 0.67
Mount Height(in) 0.12
Inlet Thread Size M10 x 1.00
Pad Dimensions & Part Numbers
Mount Dimensions & Part Numbers

Additional Notes


Parts & Accessories

O-Ring Kit 130-4320
Replacement Dust Boot 210-6391
Replacement Piston 1 200-7200
Replacement Piston 2 N-A
Replacement Piston 3 N-A
Replacement Piston 4 N-A
Cross-Over O-Ring Kit N-A
Bridge Bolt Kit N-A
Wear Plate L/H N-A
Wear Plate R/H N-A
Pad Retainer N-A
Bleed Screw Kit 220-7496
Self Bleeder Tube N-A
Cross-Over Tube N-A
