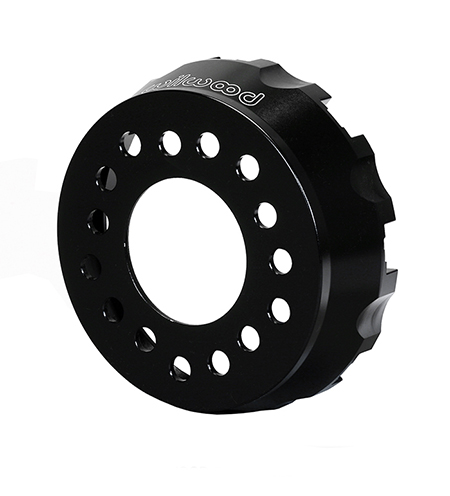

Dynamic Drag Hat - Lug Drive
Prod #: 170-12429
Price: $189.13
Dynamic Drag Hat - Lug Drive 170-12429

Hat Dimensions
Mount Hole Type Lug
Rotor Bolt Circle (in) 8Lug-7.18
Hat Offset (in) 1.960
Center Reg. (in) 3.06
Hat Type
Material Aluminum
Mount Style Dynamic Lug Mount
Finish Type III Anodize
Weight (lbs) 1.700
Bolt Circle Dimensions
Hat Bolt Circle 1 5 X 4.50
Hat Bolt Circle 2 5 X 4.75
Hat Bolt Circle 3 5 X 5.00
UPC Number
UPC 889545041811
Application Info
Application Note General Drag Applications
Hat Bolt Kit Part # 300-12561
Application Note
Application Note
Dynamic Drag Hat - Lug Drive - Product Description

Wilwood's new Lug Drive Dynamic hats incorporate a new rotor mounting system that eliminates the rotor bolts and allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Brake response and pedal feel remain consistent. Pad knock back and rotor drag are eliminated. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. All problems associated with thermal distortion, including bolt hole alignment issues when trying to re-install new rotors on a previously used hat, are eliminated.


Spring-loaded, replaceable stainless steel inserts in each lug-drive slot protect the aluminum hat from wear that would otherwise be caused by loading of the stainless steel rotor against the hat when brake torque is applied. A large, single snap-ring retains the rotor in the hat, making assembly and installation literally a snap. There is no longer any need to torque or safety wire rotor mounting bolts. The already lightweight stainless alloy discs are additionally drilled to remove all unnecessary rotating weight from the driveline.




Rotor Hat Dimensions

Dynamic Drag Hat - Lug Drive Hat Drawing Dynamic Drag Hat - Lug Drive Hat Drawing Zoom Image
Additional Hat Dimensions
Rotor Mount Hole Size (in) N/A
Shoe I.D. (in)
Clearance I.D. (in) 6.20
Face Thickness (in) 0.25
Hat Stud Diamenter - BC 1 (in) 0.520
Hat Stud Diamenter - BC 2 (in) 0.520
Hat Stud Diamenter - BC 3 (in) 0.520
Additional Notes
300-12561 Dynamic Lug Mount Clip & Snap Ring kit are required for rotor mounting.
