Flexline No: 220-10417

Call (805) 388-1188

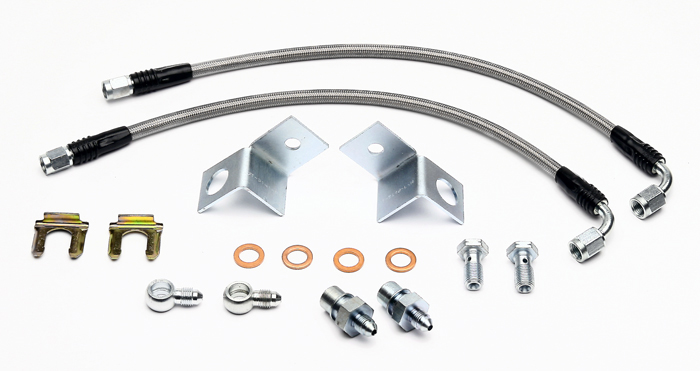

Flexline Kit - 220-10417
Prod #: 220-10417
Price: $124.95



Applications
Mustang 2005 CPB Rear Kit
Kit Notes
FLEXLINE KIT,CPB,MUSTANG,2005-2010

Size & Fittings
Length 14.00
Size -3
Chassis Fitting Size -3 to M10 x 1 BF
Inlet Fitting -3 Female
Inlet Fitting Angle Straight
Outlet Fitting -3 Female
Outlet Fitting Angle 90 Degree
Caliper Fit Angle Banjo 0 De
Caliper Fit Thread 10mm Banjo
Additional Info
Weight (lb) 1
Qty Each 1
Qty per Kit 2
Chassis Clip 300-6416
Line Bracket 250-9140 / 250-9141

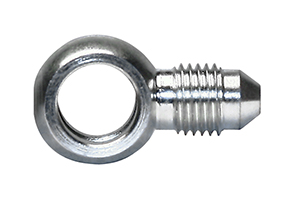

Caliper Fitting
Fitting 220-10416
Angle Banjo 0 De
Thread 10mm Banjo

Chassis Fitting
Fitting 220-6890
Size -3 to M10 x 1 BF

Flexline Kit Product Description

Wilwood’s stainless steel braided Flexline Kits are manufactured to high quality standards and are available in various -3 styles. These premium grade flexline kits have been designed for application specific kits. They are available as an optional item when ordering your disc brake kits and include all the required fittings. Wilwood highly recommends using these top quality flexlines as replacement for the OE rubber hoses.
