Flexline No: 220-11196

Call (805) 388-1188
Flexline Kit - 220-11196
Prod #: 220-11196
Price: $118.83



Applications
GM 1500 Rear 14.25" Rotor 2007-up
Kit Notes
FLEXLINE KIT,REAR,GM TRUCK/SUV,1500   SERIES,2007-2011,14.25 ROTOR

Size & Fittings
Length 12.00
Size -3
Chassis Fitting Size -3 to M10 x 1 IF
Inlet Fitting M10 IF Female
Inlet Fitting Angle Straight
Outlet Fitting -3 Female
Outlet Fitting Angle Straight
Caliper Fit Angle Straight
Caliper Fit Thread 1/8-27 NPT
Additional Info
Weight (lb) 0.8
Qty Each 1
Qty per Kit 2
Chassis Clip 300-6416
Line Bracket

Caliper Fitting
Fitting 220-6956
Angle Straight
Thread 1/8-27 NPT

Chassis Fitting
Fitting 220-6413
Size -3 to M10 x 1 IF

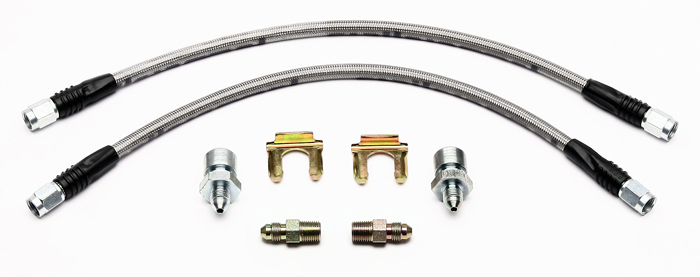

Flexline Kit Product Description

Wilwood’s stainless steel braided Flexline Kits are manufactured to high quality standards and are available in various -3 styles. These premium grade flexline kits have been designed for application specific kits. They are available as an optional item when ordering your disc brake kits and include all the required fittings. Wilwood highly recommends using these top quality flexlines as replacement for the OE rubber hoses.
