MasterCylinder No: 260-10373

Call (805) 388-1188

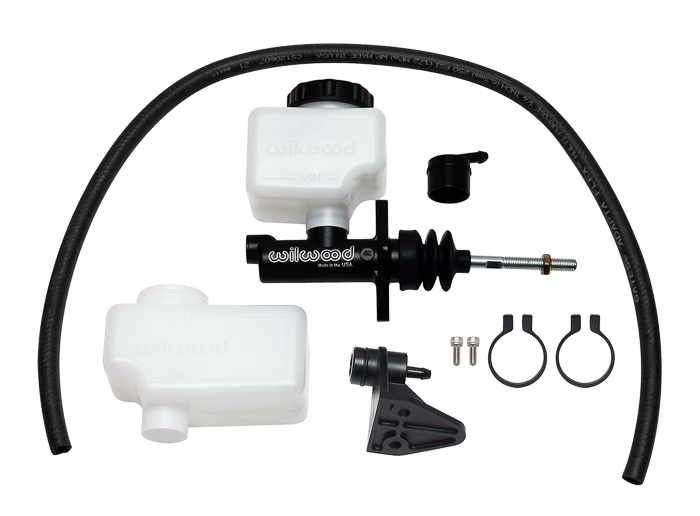

Compact Remote Flange Mount Master Cylinder
Prod #: 260-10373
Price: $90.66

Master Cylinder Dimensions
Bore Size 13/16"
Area (in²) 0.52
Stroke 1.12
Volume (cu in) 0.58
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum / Plastic
Finish Black E-coat
Reservoir
Res Type Remote
Res Size (oz) 10.0 or 7.0
Res Size(cu in) 18.0 or 12.6
Rate
Product Documents
Rebuild Kit Product Data Sheet


260-10515 Click To Download

Compact Remote Flange Mount Master Cylinder - Product Summary

Wilwood’s Compact Combination Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

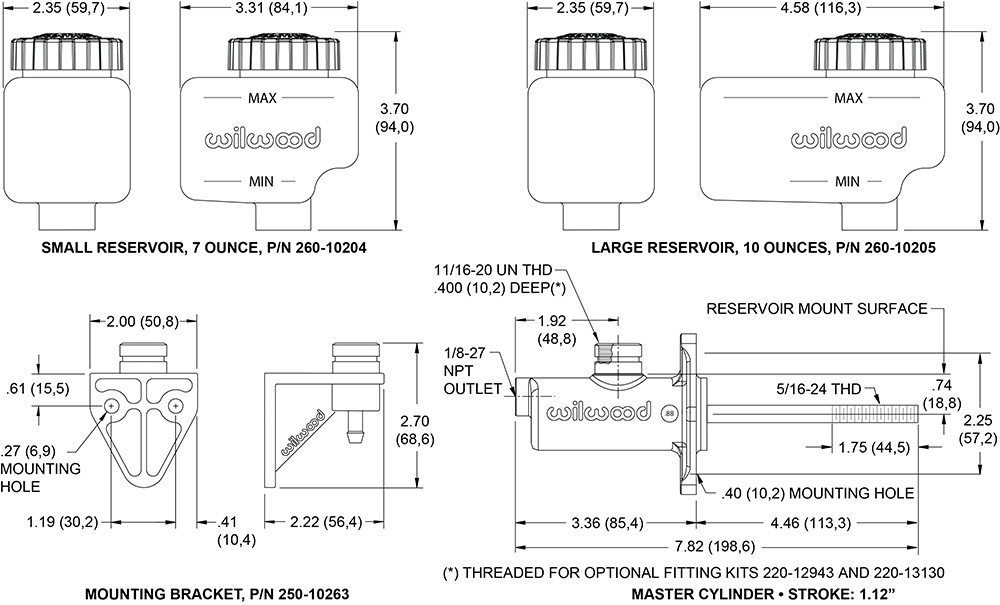

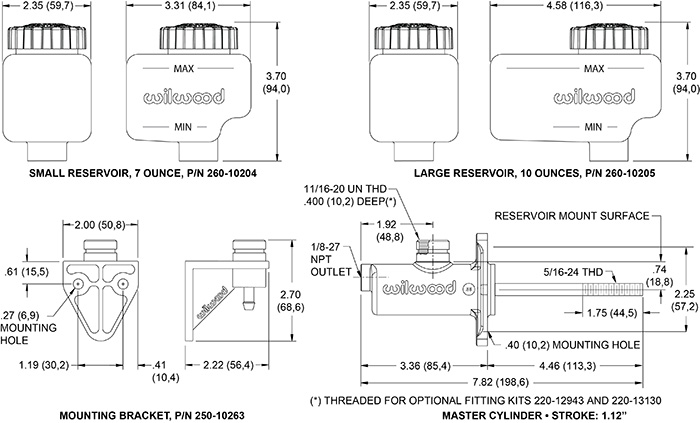

Master Cylinder Dimensions

Additional Dimensions
Overall Length(in) 7.80"
Flange to End Length (in) 3.37"
Inlet Size (in) .87" or 11/16-20
Inlet Fit (in) 1/4" Hose
Outlet Size 1 (in) 1/8-27 NPT
Outlet Fit 1 (in)
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
