Ultralite 30 Vane Scalloped Rotor

Search Hat (Bell) Mount Rotors
Select one or any combination to display a list of Rotors:
Bolt Circle:
Ultralite 30 Vane Scalloped Rotor
Rotor Diameter: 10.50
Rotor Width: 0.75
Rotor Bolt Circle(s): 6 x 5.50
Material: Iron

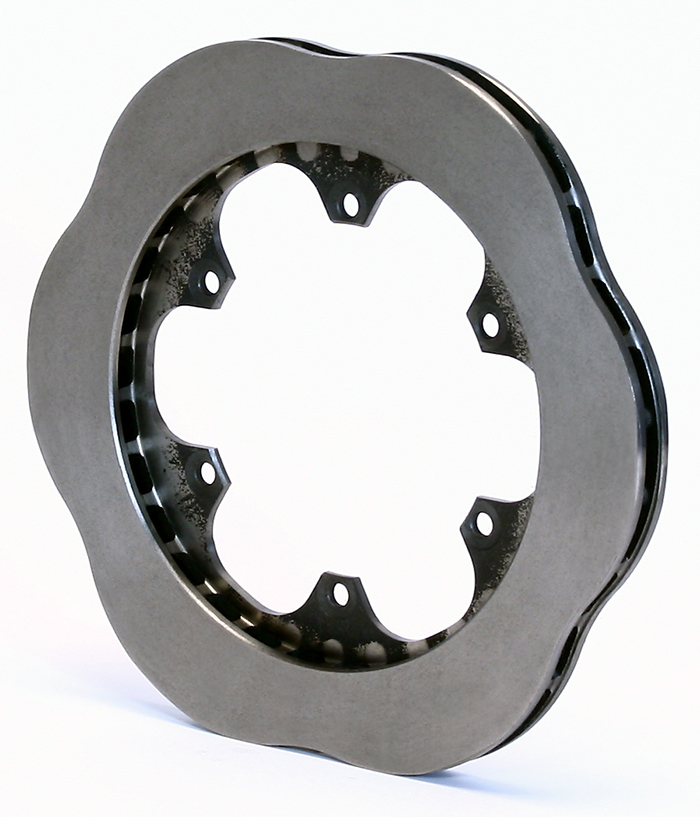

Ultralite 30 Vane Scalloped Rotor Ultralite 30 Vane Scalloped Rotor Zoom Image

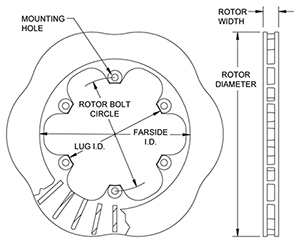

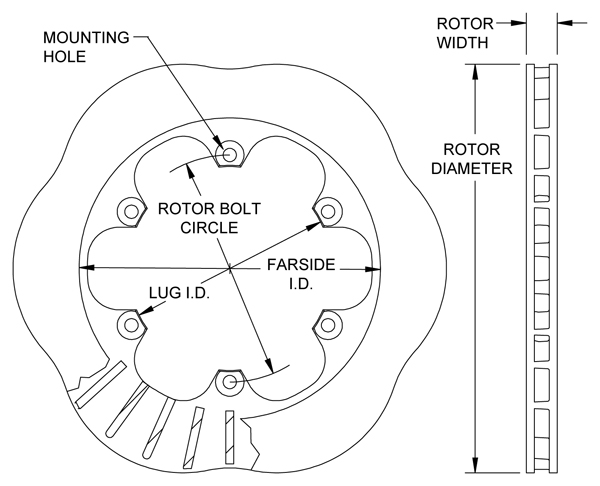

Ultralite 30 Vane Scalloped Rotor Drawing Ultralite 30 Vane Scalloped Rotor Drawing Zoom Image

Ultralite 30 Vane Scalloped Rotor Description

When it comes to rotors, racers are constantly searching for the ultimate balance between the lowest weight and the ability to effectively manage heat. Decreased rotating weight in the drive line provides quicker deceleration under braking and quicker acceleration out of the corners. Lower weight also benefits handling with improved spring and shock control over the unsprung suspension mass. Wilwood's ULS-32 scalloped iron rotors provides effective lightweight options for sprints, late models, modifieds, and other competition applications that race in low to medium temperature ranges.
Suitable applications: Dirt Sprint / Midget Racing

Ordering Information for Ultralite 30 Vane Scalloped Rotor
Item No 160-8427
Info Details
Rotor Style Plain Face
Bedded N
Lug I.D. 4.94
Far Side I.D. 7.30
Price $159.07
Call (805) 388-1188
