Motorcycle Rotor
Prod #: 160-13355
Price: $98.80
Available Rotor #160-13355 Configurations
Motorcycle Rotor – Product Summary
Rotor No: 160-13355

Rotor Dimension Diagram

Rotor Dimensions
Width (in) 0.2
Diameter (in) 11.8
Mount Side
Rotor Design
Material Stainless
Vane Count Solid
Weight(Lbs) 4.5
Rotor Style & Finish
Type Solid
Style Drilled
Surface Finish Satin
Rotor Upgrades
Bedded No
Balanced No
160-13355 – Product Description

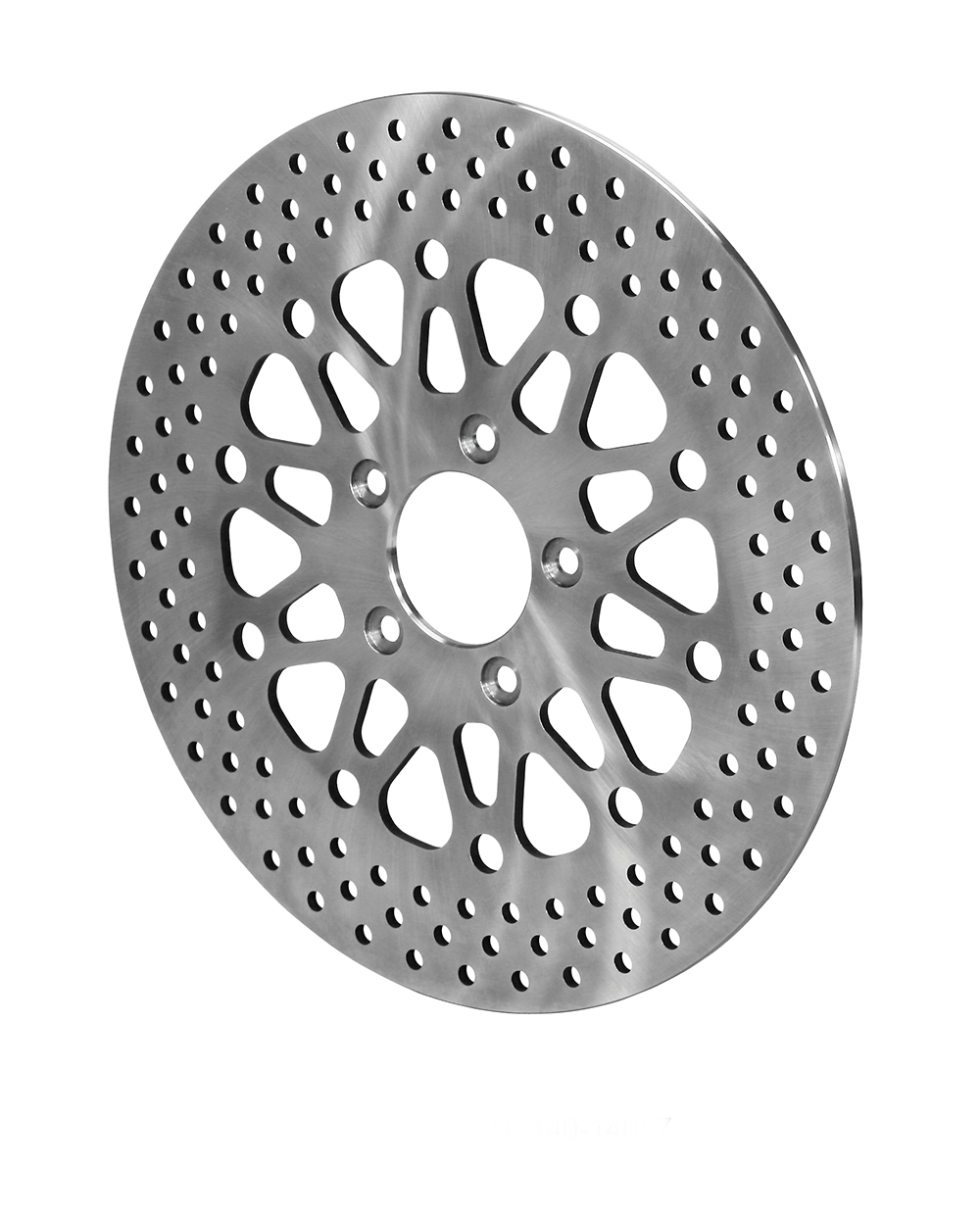

Motorcycle Rotor

Wilwood's Satin finished stainless rotors combine the ultimate in performance and distinctive style for production bikes and full customs using OE dimension brake components. A proprietary finishing & coating process on a select stainless alloy provides a appealing, high-tech finish, and the stopping power you expect from the world leader in high performance brake systems. Available in Black or Bright Stainless finish.

Performance Characteristics
• 2008-up Harley-Davidson® Front
• Harley-Davidson 2008-up Front




Additional Rotor Dimensions

Rotor Bolt Circle (in) 5 x 3.25
Rotor Mount Hole Size (in) 0.344
Lug ID / Registration (in) 2.22
Far Side Inside Diameter (in)
Offset Dimension (in)

Shoe Inside Dimension (in)
Clearance Inside Diameter (in)
Wheel Bolt Circle (in
Stud Diameter (in)
Face Thickness (in)

Additional Notes

Front rotors are available for most models from 2008 to present that use 11.80" diameter discs with the 5" X 3.25" mounting pattern.

Satin finished rotors can be used as a direct replacement with the OE calipers or coupled with Wilwood GP calipers and high performance BP-10 compound pads as the ultimate combination of all out stopping power and distinctive show winning style.
