Front Brake Kit – Part No.: 140-10107-P
Call (805) 388-1188
Stealth Motorcycle Front Brake Kit      Product Number: 140-10107-P     Price: $895.05
*NOTE: Brake Line Kit Needed.

Brake Kit No: 140-10107-P

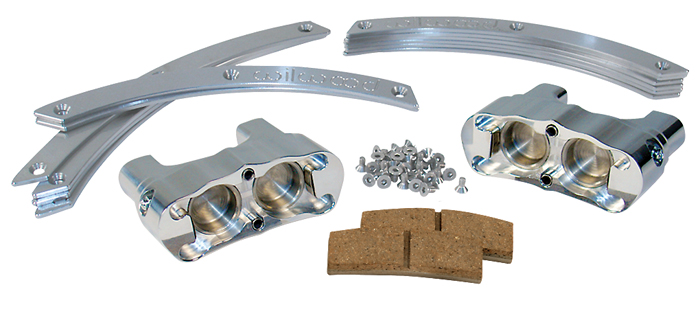

Wilwood Stealth Motorcycle Front Brake Kit - Polish Caliper - Plain Face Rotor

Wilwood Stealth Motorcycle Front Brake Kit - Polish Caliper - Plain Face Rotor
zoom image
Kit Contents:

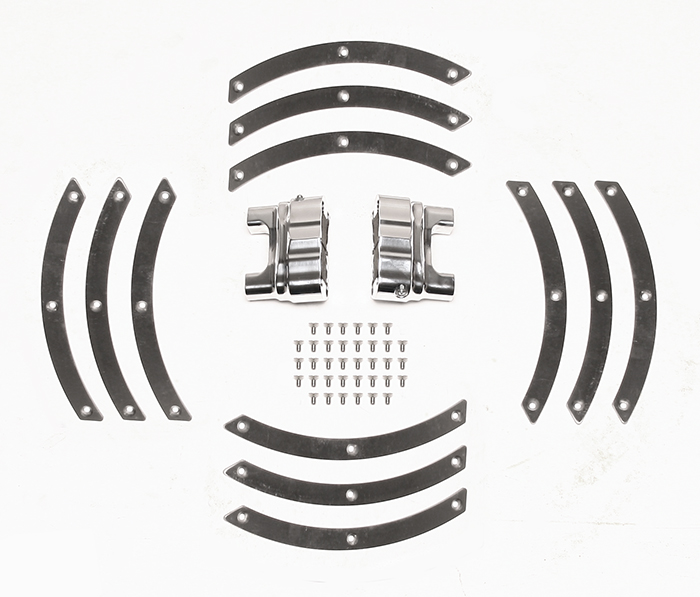

Wilwood Stealth Motorcycle Front Brake Kit Parts Laid Out - Polish Caliper - Plain Face Rotor

Wilwood Stealth Motorcycle Front Brake Kit Parts Laid Out - Polish Caliper - Plain Face Rotor
zoom image
Kit Summary:

Spindle Type:
Mount Type: Fork
Caliper Type: 4 - Polish
Rotor Diameter: 18.75
Min Wheel Diameter Req'd*:
*This Brake Kit may fit -inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

Price: $895.05
Stealth Motorcycle Front Brake Kit

Wilwood's Stealth Brake System Features: Brakes mount up and inside the fork legs for “invisible” installation. Polished Billet brake bodies. Large 18.75” diameter rotor offers great stopping power and suspension modulation. No rotor or caliper to clutter your custom wheel . With unlimited wheel design possibilities. Works with, or without a fender. Stealth is designed specifically for 21” diameter wheels. Works with the original equipment master cylinder. Custom wheels must be designed to accept Stealth. Required fork brace (truss) is not included. Contact Wilwood for details or download data sheet for specifics.


Fitment & Installation Details


Stealth Motorcycle Front Brake Kit Assembly Schematic

Stealth Motorcycle Front Brake Kit Assembly Schematic

Stealth Motorcycle Front Brake Kit Assembly Schematic
zoom image
Compatible Vehicles for this Brake Kit:
BRAKE KIT:   Stealth Motorcycle Front Brake Kit
SPINDLE TYPE:
This Brake Kit is Compatible with the Following Vehicle Makes:   View All Vehicles

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
lookup vehicles
Search Front Brake Kits by Year-Make-Model
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fenderby this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.
Wheel Clearance: Assembly Instructions:
Wheel Clearance Diagram

Wheel Clearance Diagram
zoom image


Assembly Instructions
Note(s):





Kit Components & Specifications Click on BLUE LINKS for Additional Details
Calipers: Info / Part Number:
Left Hand - Part No: 120-10104-P
Right Hand - Part No:
Type: Stealth
Finish Color: Polish
Piston Count: 4
Piston Area (In²): 1.98
Piston Type: Stainless
Mount Type: Fork
Brake Pad Plate: 9008
Brake Pad Area (In²): 1.97
Brake Pad Volume (In³): 0.34
Pad Compound: BP-10
Stealth Caliper - Polish

Stealth Caliper - Polish
zoom image
Rotors: Info / Part Number:
Left Hand - Part No: 160-10106
Right Hand - Part No:
Type: Motorcyle
Style: Plain Face
Surface Finish: Plain
Material: Stainless
Outside Diameter (in): 18.75
Width (in): 0.15
Vane Count: Solid
Design Type: Segment
Bedded: No
Dynamically Balanced: No
Motorcyle   - Stainless - Plain

Motorcyle - Stainless - Plain
zoom image
Rotor Hats: Info / Part Number:
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs: Info / Part Number:
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Calipers: Info / Part Number:
O-ring Kit: 130-10340
Replacement Dustboot: N-A
Replacement Piston 1: 200-5089
Replacement Piston 2: 200-5089
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: N-A
Wear Plate - Right Hand: N-A
Pad Retainer: N-A
Bleed Screw Kit: 220-4269
Brake Line Kits: Info / Part Number:
Hat: Info / Part Number:
Bolt Kit:
Hubs: Info / Part Number:
Bolt Kit:
