Front Brake Kit – Part No.: 140-8805
Call (805) 388-1188
Promatrix Front Replacement Rotor Kit      Product Number: 140-8805     Price: $659.34
*NOTE: Brake Line Kit 220-8806 is included in this Brake Kit.

Brake Kit No: 140-8805

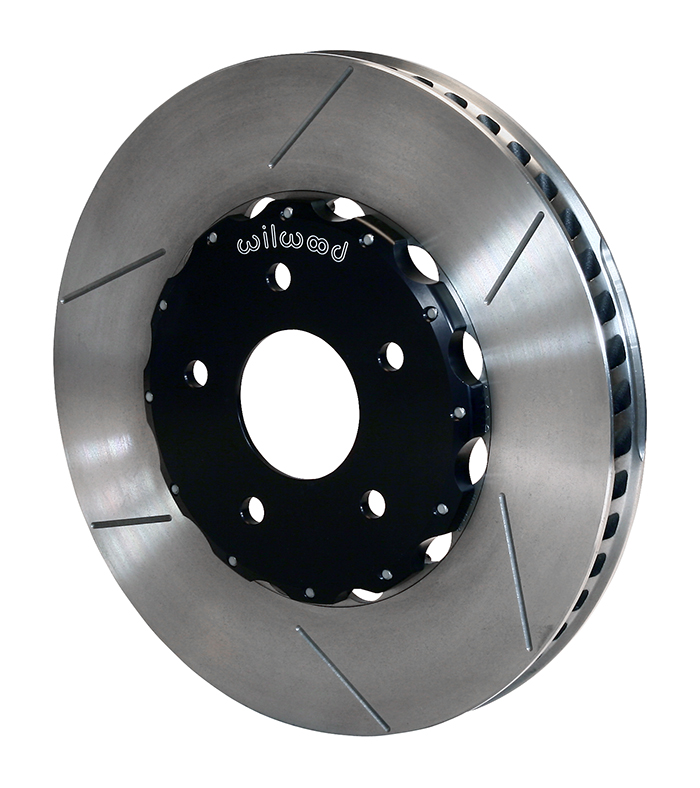

Wilwood Promatrix Front Replacement Rotor Kit - GT Slotted Rotor

Wilwood Promatrix Front Replacement Rotor Kit - GT Slotted Rotor
zoom image
Kit Contents:
Wilwood Promatrix Front Replacement Rotor Kit Parts Laid Out - GT Slotted Rotor

Wilwood Promatrix Front Replacement Rotor Kit Parts Laid Out - GT Slotted Rotor
zoom image
Kit Summary:

Spindle Type:
Factory Disc Spindle ;
Mount Type:
Caliper Type: 0 - No Calipers Included
Rotor Diameter: 12.6
Min Wheel Diameter Req'd*: 16
*This Brake Kit may fit 16-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

Price: $659.34
Promatrix Front Replacement Rotor Kit

ProMatrix pad, rotor, and flexline upgrade kits offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers. High performance pad compounds are specially selected to provide increased brake response and higher resistance against fade. A choice of two-piece directional vane GT rotor kits provide high temperature durability for the track or street. Stainless steel braided flexlines add style, durability, and firmer response with reduced deflection under load.


Fitment & Installation Details


Promatrix Front Replacement Rotor Kit Assembly Schematic

Promatrix Front Replacement Rotor Kit Assembly Schematic

Promatrix Front Replacement Rotor Kit Assembly Schematic
zoom image
Compatible Vehicles for this Brake Kit:
BRAKE KIT:   Promatrix Front Replacement Rotor Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes:   View All Vehicles
Mitsubishi

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
lookup vehicles
Search Front Brake Kits by Year-Make-Model
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fenderby this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.
Wheel Clearance: Assembly Instructions:
Wheel Clearance Diagram

Wheel Clearance Diagram
zoom image


Assembly Instructions
Note(s):
1. OE replacement rotor kit with brake pads.




Kit Components & Specifications Click on BLUE LINKS for Additional Details
Calipers: Info / Part Number:
Left Hand - Part No:
Right Hand - Part No:
Type:
Finish Color:
Piston Count:
Piston Area (In²):
Piston Type:
Mount Type:
Brake Pad Plate: D100
Brake Pad Area (In²):
Brake Pad Volume (In³):
Pad Compound: PM - ProMatrix
Rotors: Info / Part Number:
Left Hand - Part No: 160-8747
Right Hand - Part No: 160-8746
Type: GT 48 Curved Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 12.6
Width (in): 1.29
Vane Count: 48 CV
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
GT 48 Curved Vane - Spec-37 Iron - Plain

GT 48 Curved Vane - Spec-37 Iron - Plain
zoom image
Rotor Hats: Info / Part Number:
Hat - Part No: 170-8750
Type: Big Brake Hat - Short Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.21
Bolt Circle 1: 5 x 4.50
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.52
Stud Diameter - BC 2: 0
Stud Diameter - BC 3: 0
Big Brake Hat - Short Offset - Aluminum - Black E-Coat

Big Brake Hat - Short Offset - Aluminum - Black E-Coat
zoom image
Hubs: Info / Part Number:
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Calipers: Info / Part Number:
O-ring Kit:
Replacement Dustboot:
Replacement Piston 1:
Replacement Piston 2:
Replacement Piston 3:
Replacement Piston 4:
CrossOver O-Ring Kit:
Crossover Tube:
Self-Bleeder Tube:
Bridge Bolt Kit:
Wear Plate - Left Hand:
Wear Plate - Right Hand:
Pad Retainer:
Bleed Screw Kit:
Brake Line Kits: Info / Part Number:
Front Line Kit:
220-8806
Hat: Info / Part Number:
Bolt Kit: 230-8008
Hubs: Info / Part Number:
Bolt Kit:
