2013 Scion FR-S - Rear Brake Kit No.: 140-12871
REAR BRAKE KIT DETAILS:
Call (805) 388-1188
Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake Select Brake Kit:      Price: $1,741.59
OEM - Rear Kit

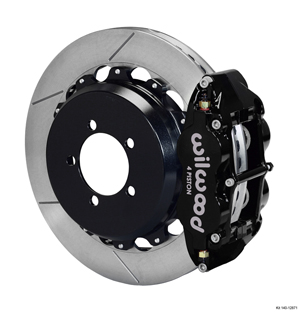

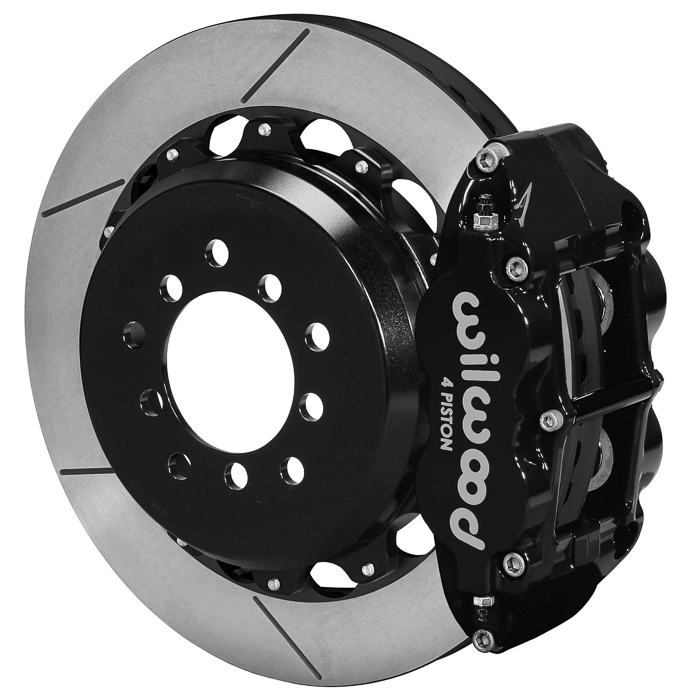

Wilwood Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake - Black Powder Coat Caliper - GT Slotted Rotor

Wilwood Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake - Black Powder Coat Caliper - GT Slotted Rotor zoom image
Kit Contents:
Wilwood Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake Parts Laid Out - Black Powder Coat Caliper - GT Slotted Rotor

Wilwood Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake Parts Laid Out - Black Powder Coat Caliper - GT Slotted Rotor zoom image
Kit Summary:
Rear End Axle: OEM
Axle Offset: 0

Mount Type: Radial
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 12.88
Wheel Diameter: 17

Price: 1741.59
Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake

Forged Narrow Superlite 4R four piston calipers are combined with BP-10 compound pads and 12.88” rotors in this group of big brake kits for custom high performance Import Cars. This group of specialized kits retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL4R rear kits provide complimentary style and performance with 12.88” and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications.


FITMENT AND INSTALLATION DETAILS
Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake Assembly Schematic

Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake Assembly Schematic

Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake Assembly Schematic zoom image
Rear End / Axle Housing Flange:
Confirm The Configuration! Confirm Offset Measurement!
OEM Flange AXLE FLANGE CROSS-SECTION

To Search Rear Kits Again By Rear End and Offset. Click Here
THIS BRAKE KIT HAS AN AXLE OFFSET OF: 0
CHECK THE DIAGRAM ABOVE AND VERIFY THIS MEASUREMENT. THIS KIT MAY BE AVAILALE IN SEVERAL DIFFERENT OFFSETS
PLEASE CALL WITH ANY QUESTIONS: (805) 388-1188
Wheel Clearance:
Wheel Clearance Diagram

Wheel Clearance Diagram zoom image
Assembly Instructions:




Assembly Instructions
Note(s):





COMPATIBLE VEHICLES FOR THIS BRAKE KIT:
BRAKE KIT:   Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake     REAR END:   OEM - Rear Kit     AXLE OFFSET:   0
This Brake Kit is Compatible with the Following Vehicle Makes:
Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
Scion Subaru
FOR A COMPLETE LISTING INCLUDING ALL Makes, Models, and Years, Please Click Here! >>>

KIT COMPONENTS AND SPECIFICATIONS Click on BLUE LINKS for Additional Details
Calipers: Info / Part Number:
Left Hand - Part No: 120-11876-BK
Right Hand - Part No: 120-11876-BK
Type: Forged Narrow Superlite 4R
Finish Color: Black Powder Coat
Piston Count: 4
Piston Area (In²): 1.96
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7416
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 3.8
Pad Compound: BP-10
Forged Narrow Superlite 4R Caliper - Black Powder Coat

Forged Narrow Superlite 4R Caliper - Black Powder Coat zoom image
