Wide 5 Hubs
Hubs Category
Search Hubs
  Select from the following options to display a list of hubs matching your search criteria:
  Mount Type:

           Search Results: Hubs - Select -
Wide 5 - Starlite 55
HubOffset(N): 2.93  Mount Type: Direct  Wheel Bolt Circle(O): 8 x 7.00  Flange Bolt Circle(R):   Mount Location:  Front / Rear  Material:  Aluminum  Finish:  Black E-Coat
Wide 5 - Starlite 55

Wide 5 - Starlite 55 zoom image
 Wide 5 - Starlite 55 Drawing

Wide 5 - Starlite 55 Drawing zoom image
 Wide 5 - Starlite 55 Side View Drawing

Wide 5 - Starlite 55 Side View Drawing zoom image

Wide 5 - Starlite 55 Description

Starlite "55" hubs provide the superior strength of permanent mold, high-density aircraft aluminum at weights comparable to the much higher priced magnesium hub assemblies. The Starlite "55" features the strength of our traditional Starlite hub, but redesigned to eliminate unnecessary weight in the hub and its related components. 5 bolt Drive flanges and snap-cap front hubs pare the 'loaded' weight of these hubs to being the lightest available.

CAUTION:
Hub contains drilled & lightened wheel studs. Use with caution. Check for legality with your sanctio
NOTE:
Wide 5 Spindle
General Information Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Drive Flange:
(Standard)		 Drive Flange:
(Lightweight)		 8 Bolt:
(8 x 7.00)		 Dust Cap Inner Race Bearing Bearing I.D. Outer Race Bearing Bearing I.D. Price Product Number Purchase Information
270-6732 270-6733 270-9498 370-0314 370-0431 2 370-0315 370-0432 1.813 $133.43
Call (805) 388-1188
Wide 5 - Starlite 55
HubOffset(N): 2.93  Mount Type: Direct  Wheel Bolt Circle(O): 8 x 7.00  Flange Bolt Circle(R):   Mount Location:  Front / Rear  Material:  Aluminum  Finish:  Bare
Wide 5 - Starlite 55

Wide 5 - Starlite 55 zoom image
 Wide 5 - Starlite 55 Drawing

Wide 5 - Starlite 55 Drawing zoom image
 Wide 5 - Starlite 55 Side View Drawing

Wide 5 - Starlite 55 Side View Drawing zoom image

Wide 5 - Starlite 55 Description

Starlite "55" hubs provide the superior strength of permanent mold, high-density aircraft aluminum at weights comparable to the much higher priced magnesium hub assemblies. The Starlite "55" features the strength of our traditional Starlite hub, but redesigned to eliminate unnecessary weight in the hub and its related components. 5 bolt Drive flanges and snap-cap front hubs pare the 'loaded' weight of these hubs to being the lightest available.

CAUTION:

NOTE:
Wide 5 Spindle
General Information Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Drive Flange:
(Standard)		 Drive Flange:
(Lightweight)		 8 Bolt:
(8 x 7.00)		 Dust Cap Inner Race Bearing Bearing I.D. Outer Race Bearing Bearing I.D. Price Product Number Purchase Information
270-6732 270-6733 270-9498 370-0314 370-0431 2 370-0315 370-0432 1.813 $109.43
Call (805) 388-1188
Wide 5 - Starlite 55
HubOffset(N): 2.93  Mount Type: Direct  Wheel Bolt Circle(O): 8 x 7.00  Flange Bolt Circle(R):   Mount Location:  Front  Material:  Aluminum  Finish:  Bare
Wide 5 - Starlite 55

Wide 5 - Starlite 55 zoom image
 Wide 5 - Starlite 55 Drawing

Wide 5 - Starlite 55 Drawing zoom image
 Wide 5 - Starlite 55 Side View Drawing

Wide 5 - Starlite 55 Side View Drawing zoom image

Wide 5 - Starlite 55 Description

Starlite "55" hubs provide the superior strength of permanent mold, high-density aircraft aluminum at weights comparable to the much higher priced magnesium hub assemblies. The Starlite "55" features the strength of our traditional Starlite hub, but redesigned to eliminate unnecessary weight in the hub and its related components. 5 bolt Drive flanges and snap-cap front hubs pare the 'loaded' weight of these hubs to being the lightest available.

CAUTION:

NOTE:
Wide 5 Spindle
General Information Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Drive Flange:
(Standard)		 Drive Flange:
(Lightweight)		 8 Bolt:
(8 x 7.00)		 Dust Cap Inner Race Bearing Bearing I.D. Outer Race Bearing Bearing I.D. Price Product Number Purchase Information
270-6913 370-0314 370-0431 2 370-0315 370-0432 1.813 $124.43
Call (805) 388-1188

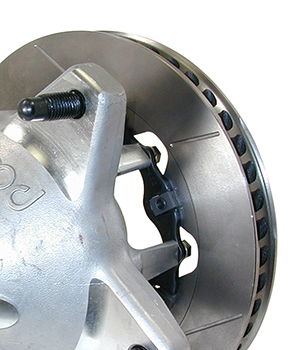

Wide 5 - Starlite 5 - Dynamic
HubOffset(N): 2.87  Mount Type: Adapter-Dynamic  Wheel Bolt Circle(O): 8 x 7.00  Flange Bolt Circle(R):   Mount Location:  Front / Rear  Material:  Aluminum  Finish:  Bare
Wide 5 - Starlite 5 - Dynamic

Wide 5 - Starlite 5 - Dynamic zoom image
 Wide 5 - Starlite 5 - Dynamic Drawing

Wide 5 - Starlite 5 - Dynamic Drawing zoom image
 Wide 5 - Starlite 5 - Dynamic Side View Drawing

Wide 5 - Starlite 5 - Dynamic Side View Drawing zoom image

Wide 5 - Starlite 5 - Dynamic Description

Starlite 5 Dynamic Mount hubs are specifically designed for use with dynamic mount rotor adapters. Dynamic mounting benefits include: moderating heat related distortion and run out of rotors in high temperature asphalt racing. Based on the traditional eight-bolt drive flange design, Starlite hubs demonstrate superior strength from permanent mold, high-density aircraft aluminum construction.

CAUTION:

NOTE:
Wide 5 Spindle
General Information Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Drive Flange:
(Standard)		 Drive Flange:
(Lightweight)		 8 Bolt:
(8 x 7.00)		 Dust Cap Inner Race Bearing Bearing I.D. Outer Race Bearing Bearing I.D. Price Product Number Purchase Information
270-2290 300-8431 270-0374 370-0314 370-0431 2 370-0315 370-0432 1.813 $115.95
Call (805) 388-1188
Wide 5 - Starlite 55
HubOffset(N): 2.93  Mount Type: Direct  Wheel Bolt Circle(O): 8 x 7.00  Flange Bolt Circle(R):   Mount Location:  Front / Rear  Material:  Aluminum  Finish:  Black E-Coat
Wide 5 - Starlite 55

Wide 5 - Starlite 55 zoom image
 Wide 5 - Starlite 55 Drawing

Wide 5 - Starlite 55 Drawing zoom image
 Wide 5 - Starlite 55 Side View Drawing

Wide 5 - Starlite 55 Side View Drawing zoom image

Wide 5 - Starlite 55 Description

Starlite "55" hubs provide the superior strength of permanent mold, high-density aircraft aluminum at weights comparable to the much higher priced magnesium hub assemblies. The Starlite "55" features the strength of our traditional Starlite hub, but redesigned to eliminate unnecessary weight in the hub and its related components. 5 bolt Drive flanges and snap-cap front hubs pare the 'loaded' weight of these hubs to being the lightest available.

CAUTION:

NOTE:
Wide 5 Spindle
General Information Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Drive Flange:
(Standard)		 Drive Flange:
(Lightweight)		 8 Bolt:
(8 x 7.00)		 Dust Cap Inner Race Bearing Bearing I.D. Outer Race Bearing Bearing I.D. Price Product Number Purchase Information
270-6732 270-6733 270-9498 370-0314 370-0431 2 370-0315 370-0432 1.813 $125.93
Call (805) 388-1188
Wide 5 - Starlite 55XD
HubOffset(N): 2.93  Mount Type: Adapter  Wheel Bolt Circle(O): 8 x 7.00  Flange Bolt Circle(R):   Mount Location:  Front / Rear  Material:  Aluminum  Finish:  Black E-Coat
Wide 5 - Starlite 55XD

Wide 5 - Starlite 55XD zoom image
 Wide 5 - Starlite 55XD Drawing

Wide 5 - Starlite 55XD Drawing zoom image
 Wide 5 - Starlite 55XD Side View Drawing

Wide 5 - Starlite 55XD Side View Drawing zoom image

Wide 5 - Starlite 55XD Description

Starlite 55-XD hubs elevate performance and versatility for racing applications that require uncompromised strength without excessive additional weight. At just over 7 pounds, the 55-XD achieves it superior strength and modest weight through a highly efficient redesign of racing’s most popular wide 5 hub, the Starlight 55. The 55-XD employs a bolt-on rotor mount plate that adds overall strength by eliminating the brake torque loading from the main hub body, by taking the stress loads of the braking torque out of the hub body and moving it to the thicker, stronger section of the hub near the inner wheel bearing, provides a measurable decrease in stress deflection in the body.

CAUTION:

NOTE:
Wide 5 Spindle
General Information Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Drive Flange:
(Standard)		 Drive Flange:
(Lightweight)		 8 Bolt:
(8 x 7.00)		 Dust Cap Inner Race Bearing Bearing I.D. Outer Race Bearing Bearing I.D. Price Product Number Purchase Information
270-6732 270-6733 300-11211 270-9498 370-0314 370-0431 2 370-0315 370-0432 1.813 $215.94
Call (805) 388-1188
Wide 5 - Starlite 55XD
HubOffset(N): 2.93  Mount Type: Adapter  Wheel Bolt Circle(O): 8 x 7.00  Flange Bolt Circle(R):   Mount Location:  Front  Material:  Aluminum  Finish:  Black E-Coat
Wide 5 - Starlite 55XD

Wide 5 - Starlite 55XD zoom image
 Wide 5 - Starlite 55XD Drawing

Wide 5 - Starlite 55XD Drawing zoom image
 Wide 5 - Starlite 55XD Side View Drawing

Wide 5 - Starlite 55XD Side View Drawing zoom image

Wide 5 - Starlite 55XD Description

Starlite 55-XD hubs elevate performance and versatility for racing applications that require uncompromised strength without excessive additional weight. At just over 7 pounds, the 55-XD achieves it superior strength and modest weight through a highly efficient redesign of racing’s most popular wide 5 hub, the Starlight 55. The 55-XD employs a bolt-on rotor mount plate that adds overall strength by eliminating the brake torque loading from the main hub body, by taking the stress loads of the braking torque out of the hub body and moving it to the thicker, stronger section of the hub near the inner wheel bearing, provides a measurable decrease in stress deflection in the body.

CAUTION:

NOTE:
Wide 5 Spindle
General Information Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Drive Flange:
(Standard)		 Drive Flange:
(Lightweight)		 8 Bolt:
(8 x 7.00)		 Dust Cap Inner Race Bearing Bearing I.D. Outer Race Bearing Bearing I.D. Price Product Number Purchase Information
300-11211 270-6913 370-0314 370-0431 2 370-0315 370-0432 1.813 $232.44
Call (805) 388-1188
Wide 5 - Starlite 55
HubOffset(N): 2.93  Mount Type: Direct  Wheel Bolt Circle(O): 8 x 7.00  Flange Bolt Circle(R):   Mount Location:  Front  Material:  Aluminum  Finish:  Bare
Wide 5 - Starlite 55

Wide 5 - Starlite 55 zoom image
 Wide 5 - Starlite 55 Drawing

Wide 5 - Starlite 55 Drawing zoom image
 Wide 5 - Starlite 55 Side View Drawing

Wide 5 - Starlite 55 Side View Drawing zoom image

Wide 5 - Starlite 55 Description

Starlite "55" hubs provide the superior strength of permanent mold, high-density aircraft aluminum at weights comparable to the much higher priced magnesium hub assemblies. The Starlite "55" features the strength of our traditional Starlite hub, but redesigned to eliminate unnecessary weight in the hub and its related components. 5 bolt Drive flanges and snap-cap front hubs pare the 'loaded' weight of these hubs to being the lightest available.

CAUTION:
Hub contains drilled & lightened wheel studs. Use with caution. Check for legality with your sanctio
NOTE:
Wide 5 Spindle
General Information Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Drive Flange:
(Standard)		 Drive Flange:
(Lightweight)		 8 Bolt:
(8 x 7.00)		 Dust Cap Inner Race Bearing Bearing I.D. Outer Race Bearing Bearing I.D. Price Product Number Purchase Information
270-6913 370-0314 370-0431 2 370-0315 370-0432 1.813 $131.93
Call (805) 388-1188
Wide 5 - Starlite 5 - Dynamic
HubOffset(N): 2.87  Mount Type: Adapter-Dynamic  Wheel Bolt Circle(O): 8 x 7.00  Flange Bolt Circle(R):   Mount Location:  Front / Rear  Material:  Aluminum  Finish:  Bare
Wide 5 - Starlite 5 - Dynamic

Wide 5 - Starlite 5 - Dynamic zoom image
 Wide 5 - Starlite 5 - Dynamic Drawing

Wide 5 - Starlite 5 - Dynamic Drawing zoom image
 Wide 5 - Starlite 5 - Dynamic Side View Drawing

Wide 5 - Starlite 5 - Dynamic Side View Drawing zoom image

Wide 5 - Starlite 5 - Dynamic Description

Starlite 5 Dynamic Mount hubs are specifically designed for use with dynamic mount rotor adapters. Dynamic mounting benefits include: moderating heat related distortion and run out of rotors in high temperature asphalt racing. Based on the traditional eight-bolt drive flange design, Starlite hubs demonstrate superior strength from permanent mold, high-density aircraft aluminum construction.

CAUTION:
Hub contains drilled & lightened wheel studs. Use with caution. Check for legality with your sanctio
NOTE:
Wide 5 Spindle
General Information Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Drive Flange:
(Standard)		 Drive Flange:
(Lightweight)		 8 Bolt:
(8 x 7.00)		 Dust Cap Inner Race Bearing Bearing I.D. Outer Race Bearing Bearing I.D. Price Product Number Purchase Information
270-2290 300-8431 270-0374 370-0314 370-0431 2 370-0315 370-0432 1.813 $123.45
Call (805) 388-1188
Wide 5 - Starlite 55
HubOffset(N): 2.93  Mount Type: Direct  Wheel Bolt Circle(O): 8 x 7.00  Flange Bolt Circle(R):   Mount Location:  Front  Material:  Aluminum  Finish:  Black E-Coat
Wide 5 - Starlite 55

Wide 5 - Starlite 55 zoom image
 Wide 5 - Starlite 55 Drawing

Wide 5 - Starlite 55 Drawing zoom image
 Wide 5 - Starlite 55 Side View Drawing

Wide 5 - Starlite 55 Side View Drawing zoom image

Wide 5 - Starlite 55 Description

Starlite "55" hubs provide the superior strength of permanent mold, high-density aircraft aluminum at weights comparable to the much higher priced magnesium hub assemblies. The Starlite "55" features the strength of our traditional Starlite hub, but redesigned to eliminate unnecessary weight in the hub and its related components. 5 bolt Drive flanges and snap-cap front hubs pare the 'loaded' weight of these hubs to being the lightest available.

CAUTION:
Hub contains drilled & lightened wheel studs. Use with caution. Check for legality with your sanctio
NOTE:
Wide 5 Spindle
General Information Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Drive Flange:
(Standard)		 Drive Flange:
(Lightweight)		 8 Bolt:
(8 x 7.00)		 Dust Cap Inner Race Bearing Bearing I.D. Outer Race Bearing Bearing I.D. Price Product Number Purchase Information
270-6913 370-0314 370-0431 2 370-0315 370-0432 1.813 $148.43
Call (805) 388-1188

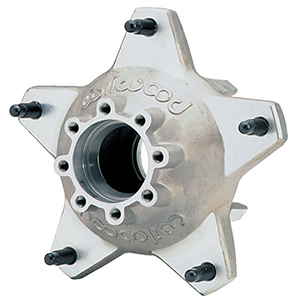

Wide 5 - Starlite 5
HubOffset(N): 2.87  Mount Type: Direct  Wheel Bolt Circle(O): 8 x 7.00  Flange Bolt Circle(R):   Mount Location:  Front / Rear  Material:  Aluminum  Finish:  Bare
Wide 5 - Starlite 5

Wide 5 - Starlite 5 zoom image
 Wide 5 - Starlite 5 Drawing

Wide 5 - Starlite 5 Drawing zoom image
 Wide 5 - Starlite 5 Side View Drawing

Wide 5 - Starlite 5 Side View Drawing zoom image

Wide 5 - Starlite 5 Description

Starlite hubs remain as the oval track benchmark standard. Based on the traditional eight-bolt drive flange design, Starlite hubs demonstrate superior strength from permanent mold, high density aircraft aluminum. The close tolerance castings are precision machined to assure consistent fit, strength, and durability. Over the years, this innovative hollow core design has been refined and is race proven. Wilwood's high volume, quality assured manufacturing capability has made it both racing tough and economical.

CAUTION:

NOTE:
Wide 5 Spindle
General Information Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Drive Flange:
(Standard)		 Drive Flange:
(Lightweight)		 8 Bolt:
(8 x 7.00)		 Dust Cap Inner Race Bearing Bearing I.D. Outer Race Bearing Bearing I.D. Price Product Number Purchase Information
270-2290 270-0374 370-0314 370-0431 2 370-0315 370-0432 1.813 $103.14
Call (805) 388-1188
Wide 5 - Starlite 55
HubOffset(N): 2.93  Mount Type: Direct  Wheel Bolt Circle(O): 8 x 7.00  Flange Bolt Circle(R):   Mount Location:  Front  Material:  Aluminum  Finish:  Black E-Coat
Wide 5 - Starlite 55

Wide 5 - Starlite 55 zoom image
 Wide 5 - Starlite 55 Drawing

Wide 5 - Starlite 55 Drawing zoom image
 Wide 5 - Starlite 55 Side View Drawing

Wide 5 - Starlite 55 Side View Drawing zoom image

Wide 5 - Starlite 55 Description

Starlite "55" hubs provide the superior strength of permanent mold, high-density aircraft aluminum at weights comparable to the much higher priced magnesium hub assemblies. The Starlite "55" features the strength of our traditional Starlite hub, but redesigned to eliminate unnecessary weight in the hub and its related components. 5 bolt Drive flanges and snap-cap front hubs pare the 'loaded' weight of these hubs to being the lightest available.

CAUTION:

NOTE:
Wide 5 Spindle
General Information Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Drive Flange:
(Standard)		 Drive Flange:
(Lightweight)		 8 Bolt:
(8 x 7.00)		 Dust Cap Inner Race Bearing Bearing I.D. Outer Race Bearing Bearing I.D. Price Product Number Purchase Information
270-6913 370-0314 370-0431 2 370-0315 370-0432 1.813 $140.93
Call (805) 388-1188
Wide 5 - Starlite 5
HubOffset(N): 2.87  Mount Type: Direct  Wheel Bolt Circle(O): 8 x 7.00  Flange Bolt Circle(R):   Mount Location:  Front / Rear  Material:  Aluminum  Finish:  Bare
Wide 5 - Starlite 5

Wide 5 - Starlite 5 zoom image
 Wide 5 - Starlite 5 Drawing

Wide 5 - Starlite 5 Drawing zoom image
 Wide 5 - Starlite 5 Side View Drawing

Wide 5 - Starlite 5 Side View Drawing zoom image

Wide 5 - Starlite 5 Description

Starlite hubs remain as the oval track benchmark standard. Based on the traditional eight-bolt drive flange design, Starlite hubs demonstrate superior strength from permanent mold, high density aircraft aluminum. The close tolerance castings are precision machined to assure consistent fit, strength, and durability. Over the years, this innovative hollow core design has been refined and is race proven. Wilwood's high volume, quality assured manufacturing capability has made it both racing tough and economical.

CAUTION:

NOTE:
Wide 5 Spindle
General Information Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Drive Flange:
(Standard)		 Drive Flange:
(Lightweight)		 8 Bolt:
(8 x 7.00)		 Dust Cap Inner Race Bearing Bearing I.D. Outer Race Bearing Bearing I.D. Price Product Number Purchase Information
270-2290 270-0374 370-0314 370-0431 2 370-0315 370-0432 1.813 $103.14
Call (805) 388-1188
Wide 5 - Starlite 55
HubOffset(N): 2.93  Mount Type: Direct  Wheel Bolt Circle(O): 8 x 7.00  Flange Bolt Circle(R):   Mount Location:  Front / Rear  Material:  Aluminum  Finish:  Bare
Wide 5 - Starlite 55

Wide 5 - Starlite 55 zoom image
 Wide 5 - Starlite 55 Drawing

Wide 5 - Starlite 55 Drawing zoom image
 Wide 5 - Starlite 55 Side View Drawing

Wide 5 - Starlite 55 Side View Drawing zoom image

Wide 5 - Starlite 55 Description

Starlite "55" hubs provide the superior strength of permanent mold, high-density aircraft aluminum at weights comparable to the much higher priced magnesium hub assemblies. The Starlite "55" features the strength of our traditional Starlite hub, but redesigned to eliminate unnecessary weight in the hub and its related components. 5 bolt Drive flanges and snap-cap front hubs pare the 'loaded' weight of these hubs to being the lightest available.

CAUTION:
Hub contains drilled & lightened wheel studs. Use with caution. Check for legality with your sanctio
NOTE:
Wide 5 Spindle
General Information Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Drive Flange:
(Standard)		 Drive Flange:
(Lightweight)		 8 Bolt:
(8 x 7.00)		 Dust Cap Inner Race Bearing Bearing I.D. Outer Race Bearing Bearing I.D. Price Product Number Purchase Information
270-6732 270-6733 270-9498 370-0314 370-0431 2 370-0315 370-0432 1.813 $116.93
Call (805) 388-1188
