Pedal No: 340-11295

Swing Mount Pedals

Swing Mount Brake and Clutch Pedal
Wilwood Swing Mount Brake and Clutch Pedal

Wilwood Swing Mount Brake and Clutch Pedal
zoom image
This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged 6.25:1 ratio pedal arms. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.

<Go Back>

Call (805) 388-1188

Product Number: 340-11295     Price: $244.02
Swing Mount Brake and Clutch Pedal - Product Summary
Pedal Type
Type: Material: Finish:
Swing Mount Brake and Clutch Pedal Aluminum Black E-coat
Pedal Description
Mount Loc: Mount Facing: Balance Bar: Mount Length (in):
Swing Forward Yes 12.38
Ratio / Length
Pedal 1 Ratio: Pedal 2 Ratio: Pedal 1 Length (in): Pedal 2 Length (in):
6.25 to 1 6.25 to 1 12.05 12.05
Notes
Desc 1: Desc 2:
PEDAL ASSEMBLY,FORWARD MT,HD,6.25:1 ADJUSTABLE,TRIPLE M/C
Cautionary Info
Replaces cast aluminum arm pedal 340-3950
Product Documents
Product Data Sheets
Click To View Click To View

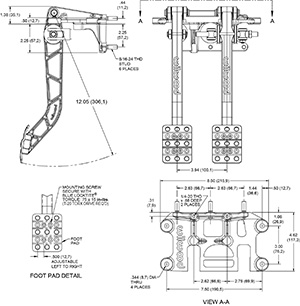

Pedal Dimensions
Replaces cast aluminum arm pedal 340-3950 Drawing

Replaces cast aluminum arm pedal 340-3950 Drawing
zoom image
Additional Pedal Dimensions
Mount Length (in): 12.38
Pedal 1 Length (in): 12.05
Pedal 2 Length (in): 12.05
Additional Notes:
