Pedal No: 340-1285

Floor Mount Pedals

Floor Mount Brake Pedal
Wilwood Floor Mount Brake Pedal

Wilwood Floor Mount Brake Pedal
zoom image
This is one of racing's most popular pedals for floor mounting two brake master cylinders with a bias balance bar. The pedal features all aluminum frame and arm construction with steel pivots, mounting studs, and an anti-skid pedal pad. Wilwood's clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias. It can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. With a 6.00 to 1 pedal ratio.

<Go Back>

Call (805) 388-1188

Product Number: 340-1285     Price: $139.76
Floor Mount Brake Pedal - Product Summary
Pedal Type
Type: Material: Finish:
Floor Mount Brake Pedal Aluminum Black E-coat
Pedal Description
Mount Loc: Mount Facing: Balance Bar: Mount Length (in):
Floor Forward Yes 10.26
Ratio / Length
Pedal 1 Ratio: Pedal 2 Ratio: Pedal 1 Length (in): Pedal 2 Length (in):
6.0 to 1 9.52
Notes
Desc 1: Desc 2:
PEDAL ASSEMBLY,6:1,DUAL,M/C (OBSOLESCENT)
Cautionary Info
Superseded by forged aluminum arm adjustable pedal 340-13831
Product Documents
Product Data Sheets
Click To View

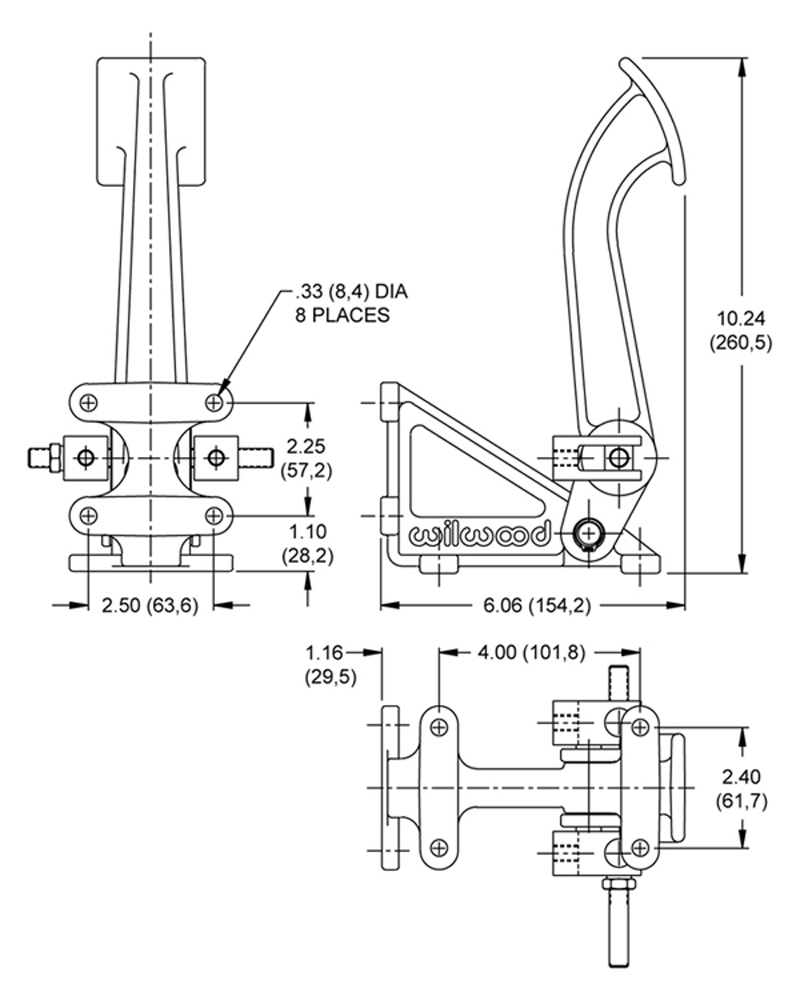

Pedal Dimensions
Superseded by forged aluminum arm adjustable pedal 340-13831 Drawing

Superseded by forged aluminum arm adjustable pedal 340-13831 Drawing
zoom image
Additional Pedal Dimensions
Mount Length (in): 10.26
Pedal 1 Length (in): 9.52
Pedal 2 Length (in):
Additional Notes:
