Pedal No: 340-1287


Call (805) 388-1188
Swing Mount Brake Pedal
Prod #: 340-1287
Price: $139.75

Pedal Type
Material Aluminum
Finish Black E-coat
Pedal Description
Mount Loc Swing
Mount Facing Forward
Balance Bar Yes
Mount Length (in) 12.65
Pedal Ratio & Length
Pedal 1 Ratio 7.0 to 1
Pedal 2 Ratio
Pedal 1 Length (in) 11.91
Pedal 2 Length (in)
UPC Number
UPC 889545028478
Product Documents

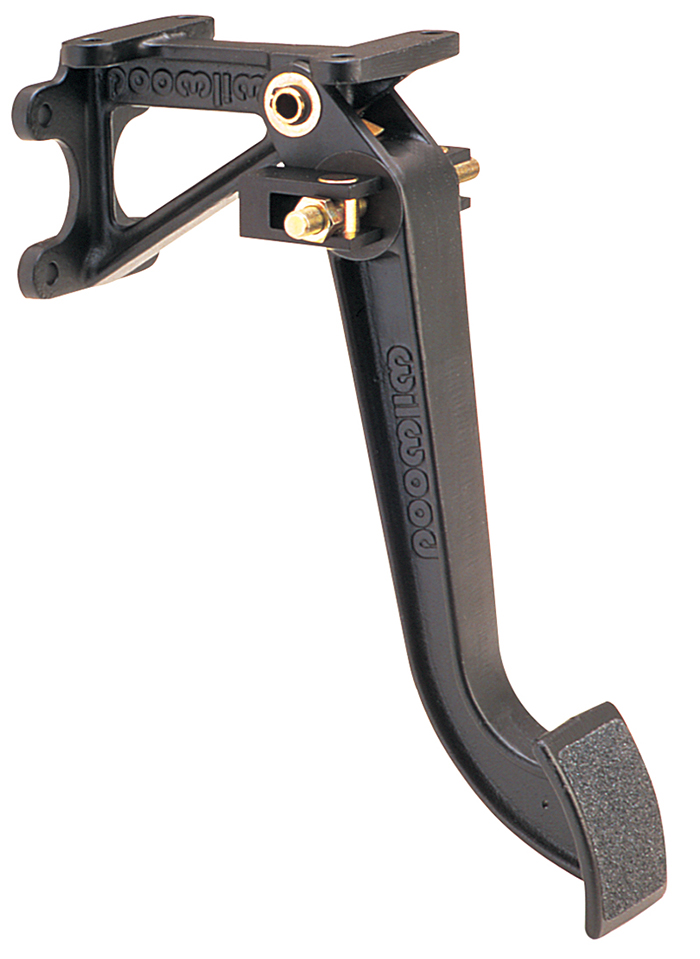

Swing Mount Brake Pedal - Product Description

This is one of racing's most popular pedals for Swing mounting two brake master cylinders with a bias balance bar. The pedal features all aluminum frame and arm construction with steel pivots, mounting studs, and an anti-skid pedal pad. Wilwood's clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias. It can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. With a 7.00 to 1 pedal ratio.

Caution: *



Pedal Dimensions

Superseded by forged aluminum arm adjustable pedal 340-13832 Drawing Superseded by forged aluminum arm adjustable pedal 340-13832 Drawing Zoom Image
Additional Pedal Dimensions
Mount Length (in) 12.65
Pedal 1 Length (in) 11.91
Pedal 2 Length (in)
Additional Notes

*

Additional related products:




More Details






All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
