Pedal No: 340-1757

Pedal Accessories

Balance Bar Replacement
Wilwood Pedal Accessories

Wilwood Pedal Accessories
zoom image
This balance bar kit includes a steel sleeve to use when fabricating custom steel arm pedals. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable or adjustment knob for quick on-track adjustments

<Go Back>

Call (805) 388-1188

Product Number: 340-1757     Price: $65.93
Pedal Accessories - Product Summary
Pedal Type
Type: Material: Finish:
Pedal Accessories Steel None
Pedal Description
Mount Loc: Mount Facing: Balance Bar: Mount Length (in):
Ratio / Length
Pedal 1 Ratio: Pedal 2 Ratio: Pedal 1 Length (in): Pedal 2 Length (in):
Notes
Desc 1: Desc 2:
BALANCE BAR,ASSEMBLY,WITH TUBE
Cautionary Info
Replacement balance bar assembly w/ clevises and bearing for all Wilwood Pedals w/ balance bars (contains a tube for welding on for user fabrication of steel pedals)
Product Documents
Product Data Sheets
Click To View
Pedal Dimensions

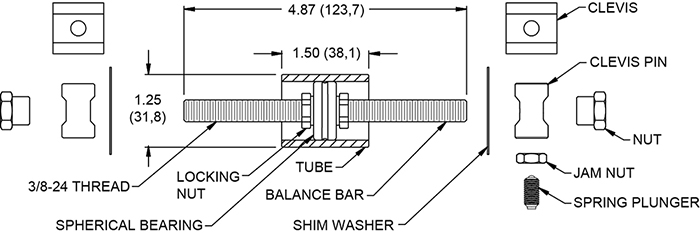

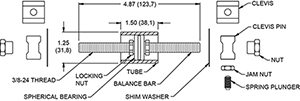

Replacement balance bar assembly w/ clevises and bearing for all Wilwood Pedals w/ balance bars (contains a tube for welding on for user fabrication of steel pedals) Drawing

Replacement balance bar assembly w/ clevises and bearing for all Wilwood Pedals w/ balance bars (contains a tube for welding on for user fabrication of steel pedals) Drawing
zoom image
Additional Pedal Dimensions
Mount Length (in):
Pedal 1 Length (in):
Pedal 2 Length (in):
Additional Notes:
