Pedal No: 340-4828

Swing Mount Pedals

Swing Mount Brake and Clutch Pedal
Wilwood Swing Mount Brake and Clutch Pedal

Wilwood Swing Mount Brake and Clutch Pedal
zoom image
This assembly combines the brake and clutch pedals together in one unit and positions the master cylinders inside the firewall and away from engine heat. It features all aluminum frame and arm construction with steel pivots, mounting studs, and anti-skid pedal pads. Wilwood's clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias. It can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. With a 5.00 to 1 ratio on both clutch and brake pedal.

<Go Back>

Call (805) 388-1188

Product Number: 340-4828     Price: $224.51
Swing Mount Brake and Clutch Pedal - Product Summary
Pedal Type
Type: Material: Finish:
Swing Mount Brake and Clutch Pedal Aluminum Black E-coat
Pedal Description
Mount Loc: Mount Facing: Balance Bar: Mount Length (in):
Swing Reverse Yes 10.35
Ratio / Length
Pedal 1 Ratio: Pedal 2 Ratio: Pedal 1 Length (in): Pedal 2 Length (in):
5.1 to 1 5.1 to 1 10.02 10.02
Notes
Desc 1: Desc 2:
PEDAL ASSEMBLY,REVERSE MT,5.1:1,TRIPLE M/C (OBSOLESCENT)
Cautionary Info

Product Documents
Product Data Sheets
Click To View Click To View

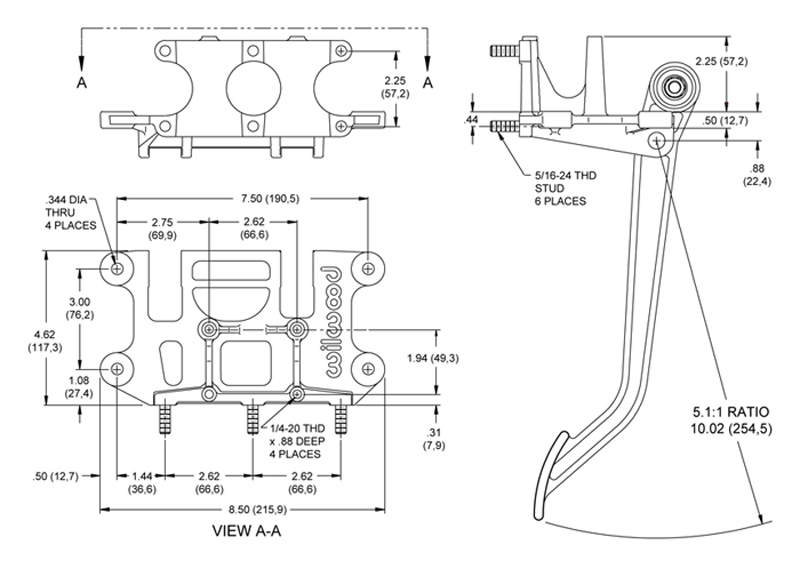

Pedal Dimensions
 Drawing

Drawing
zoom image
Additional Pedal Dimensions
Mount Length (in): 10.35
Pedal 1 Length (in): 10.02
Pedal 2 Length (in): 10.02
Additional Notes:
