Wednesday, July 29, 2015
Wilwood's New Products

Wilwood Engineering is the leader in racing and high performance disc brake technology for over 30 years. Listed below are some of our newly released products. To view all of Wilwood's bolt-on brake products and related components, visit the Product Center. If you want additional information, or would like to place an order contact our technical experts at (805) 388-1188. They can also help you with applications that you cannot find on our website.

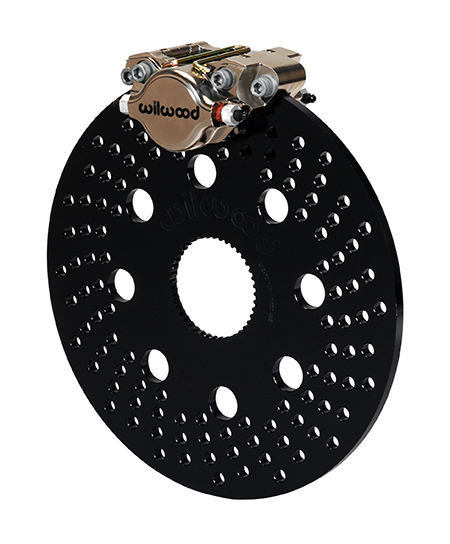

Billet Narrow Dynalite Radial Mount Sprint Inboard Brake Kit

Billet Narrow Dynalite Radial Mount Sprint Inboard Brake Kit

Billet Narrow Dynalite Radial Mount Sprint Inboard Brake Kit
Billet Narrow Dynalite Radial Sprint Inboard Kit Features: A fully engineered bolt-on brake system for sprint car quick change rears with 3.00 x 46 splined axles. With titanium, Super Alloy or Steel, .810 vented or solid discs and a newly designed dynamic mount rotor axle clamp, are the lowest rotating weights available for Sprint racing. • The lightweight advantages of Wilwood Sprint rotors are fortified with the high durability, long wear, and superior heat control properties of advanced materials. • Billet Dynalite Radial mount calipers with either Composition Metallic or BP-40 pads, produce superior stopping power and consistent fade-free response. Kit includes Axle Clamp with Dual Mount Rotor Adapter with T-nuts, radial mount bracket assembly and mounting hardware.
Info Description Price Item No Purchase
KIT,SPRINT,BNDLR,INBOARD,SCALLOPED SA VENTED ROTOR,.81x.11.75,DYNAMIC MT $769.93 140-15147 Call (805) 388-1188

Forged Superlite 4R Big Brake Front Brake Kit (Race)

Forged Superlite 4R Big Brake Front Brake Kit (Race)

Forged Superlite 4R Big Brake Front Brake Kit (Race)
These kits are configured for dedicated road racing on 1998-02 Camaros and Firebirds, or 1993-97 cars that have been upgraded with 1998-02 spindles. Four piston, nickel finish Quick-Silver FSL4R/ST calipers, with Thermlock pistons, are matched to the OE power brake system output and easily paired with common master cylinder sizes for manual balance bar brake pedals. Two-piece, 13.06” diameter, Spec 37 alloy slotted face GT series or smooth face HD series directional vane rotors with forged aluminum hats.
Info Description Price Item No Purchase
KIT,FRONT,GM F BODY,1998-02,ROAD RACE FSL4R/ST,GT48 SP37,13.06 ROTOR,NICKEL $2,195.19 140-14074-N Call (805) 388-1188
KIT,FRONT,GM F BODY,1998-02,ROAD RACE FSL4R/ST,HD48 SP37,13.06 ROTOR,NICKEL $2,170.00 140-14075-N Call (805) 388-1188

TX6R Forged Radial Mount

TX6R Forged Radial Mount

TX6R Forged Radial Mount
‘The Tactical Xtreme TX6R radial mount six-piston calipers are engineered and purpose built for severe duty service on heavy duty Trucks, SUV's, and Class 1, 2, and 3 Armored Vehicles up to 14,000 lbs. GVWR. The combination of the forged aluminum body, stainless steel pistons, large pad volume, and the ability to accommodate brake rotors up to 1.50” thick, make the TX6R the ultimate choice for high strength, lightweight, and tactical level braking capacity for all types of highway and off-road extreme duty service applications. TX6R calipers have a hard anodized finish on base models with options for gloss black or red powder coat.
Info Description Price Item No Purchase
CALIPER,TX6R,2.00/1.88/1.88,1.50 ROTOR R/H,CLEAR $509.93 120-13813 Call (805) 388-1188
CALIPER,TX6R,2.00/1.88/1.88,1.50 ROTOR R/H,BLACK $599.93 120-13813-BK Call (805) 388-1188
CALIPER,TX6R,2.00/1.88/1.88,1.50 ROTOR R/H,RED $599.93 120-13813-RD Call (805) 388-1188
CALIPER,TX6R,2.00/1.88/1.88,1.50 ROTOR L/H,CLEAR $509.93 120-13814 Call (805) 388-1188
CALIPER,TX6R,2.00/1.88/1.88,1.50 ROTOR L/H,BLACK $599.93 120-13814-BK Call (805) 388-1188
CALIPER,TX6R,2.00/1.88/1.88,1.50 ROTOR L/H,RED $599.93 120-13814-RD Call (805) 388-1188
CALIPER,TX6R,2.00/1.88/1.88,1.38 ROTOR R/H,CLEAR $509.93 120-13815 Call (805) 388-1188
CALIPER,TX6R,2.00/1.88/1.88,1.38 ROTOR R/H,BLACK $599.93 120-13815-BK Call (805) 388-1188
CALIPER,TX6R,2.00/1.88/1.88,1.38 ROTOR R/H,RED $599.93 120-13815-RD Call (805) 388-1188
CALIPER,TX6R,2.00/1.88/1.88,1.38 ROTOR L/H,CLEAR $509.93 120-13816 Call (805) 388-1188
CALIPER,TX6R,2.00/1.88/1.88,1.38 ROTOR L/H,BLACK $599.93 120-13816-BK Call (805) 388-1188
CALIPER,TX6R,2.00/1.88/1.88,1.38 ROTOR L/H,RED $599.93 120-13816-RD Call (805) 388-1188
CALIPER,TX6R,1.75/1.62/1.62,1.38 ROTOR R/H,CLEAR $509.93 120-13817 Call (805) 388-1188
CALIPER,TX6R,1.75/1.62/1.62,1.38 ROTOR R/H,BLACK $599.93 120-13817-BK Call (805) 388-1188
CALIPER,TX6R,1.75/1.62/1.62,1.38 ROTOR R/H,RED $599.93 120-13817-RD Call (805) 388-1188
CALIPER,TX6R,1.75/1.62/1.62,1.38 ROTOR L/H,CLEAR $509.93 120-13818 Call (805) 388-1188
CALIPER,TX6R,1.75/1.62/1.62,1.38 ROTOR L/H,BLACK $599.93 120-13818-BK Call (805) 388-1188
CALIPER,TX6R,1.75/1.62/1.62,1.38 ROTOR L/H,RED $599.93 120-13818-RD Call (805) 388-1188

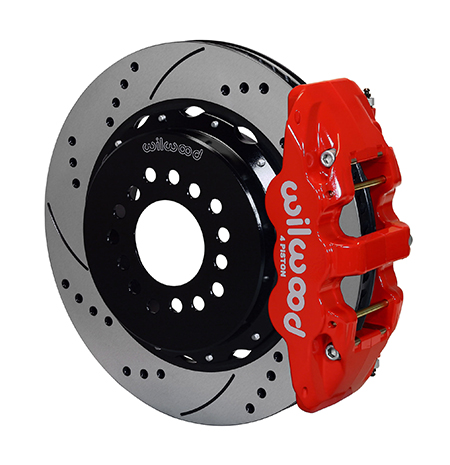

AERO4-MC4 Big Brake Rear Parking Brake Kit

AERO4-MC4 Big Brake Rear Parking Brake Kit

AERO4-MC4 Big Brake Rear Parking Brake Kit
AERO4 Big Brake Rear Axle Kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the W4AR calipers, BP-10 compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
Info Description Price Item No Purchase
KIT,REAR,MUSTANG,2015-UP,AERO4/MC4,14.00 ROTOR,W/LINES/CABLES $2,049.59 140-13888 Call (805) 388-1188
KIT,REAR,MUSTANG,2015-UP,AERO4/MC4,14.00 ROTOR,SRP,W/LINES/CABLES $2,161.59 140-13888-D Call (805) 388-1188
KIT,REAR,MUSTANG,2015-UP,AERO4/MC4,14.00 ROTOR,SRP,RED,W/LINES/CABLES $2,161.59 140-13888-DR Call (805) 388-1188
KIT,REAR,MUSTANG,2015-UP,AERO4/MC4,14.00 ROTOR,RED,W/LINES/CABLES $2,049.59 140-13888-R Call (805) 388-1188

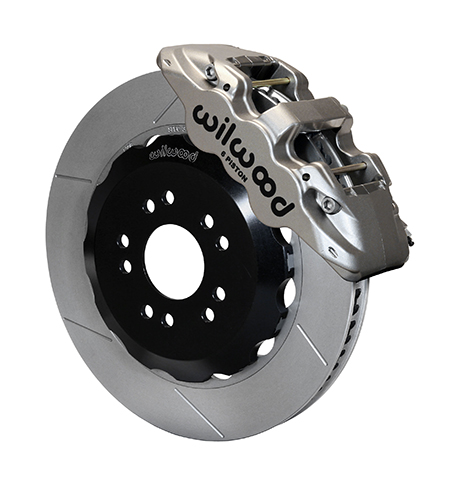

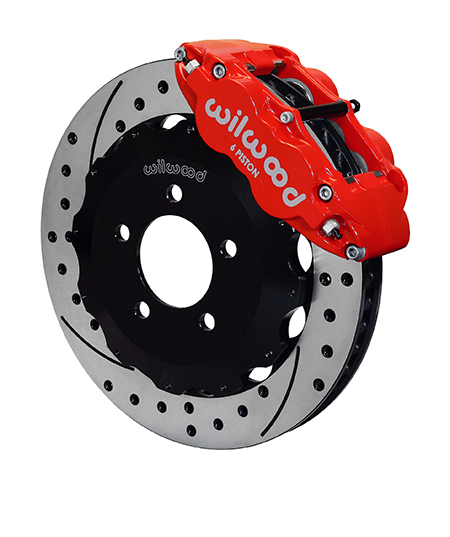

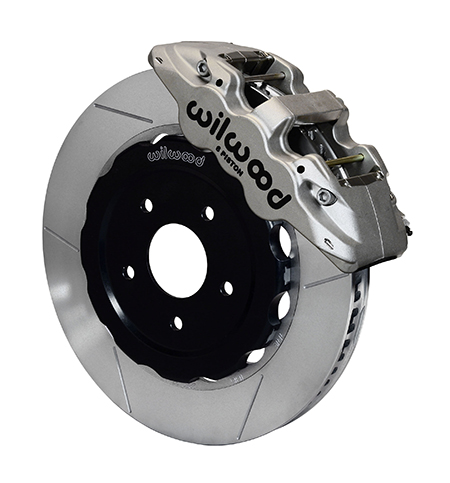

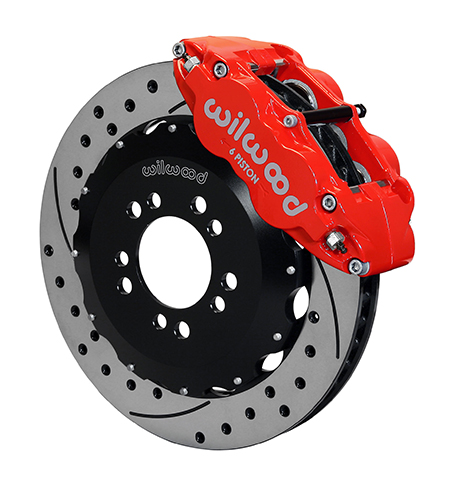

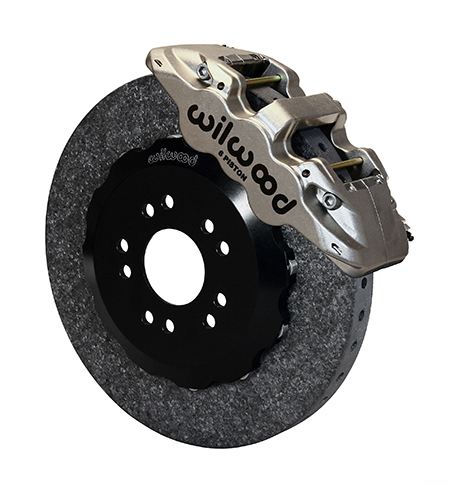

AERO6 Big Brake Front Brake Kit

AERO6 Big Brake Front Brake Kit

AERO6 Big Brake Front Brake Kit
AERO6 calipers are the newest design for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Direction staggered vane 14” or larger rotors provide maximum cooling for sustained high heat durability.
Info Description Price Item No Purchase
KIT,FRONT,MUSTANG,2015-UP,AERO6,14.00 ROTOR,W/LINES $2,105.59 140-13886 Call (805) 388-1188
KIT,FRONT,MUSTANG,2015-UP,AERO6,14.00 ROTOR,SRP,W/LINES $2,217.59 140-13886-D Call (805) 388-1188
KIT,FRONT,MUSTANG,2015-UP,AERO6,14.00 ROTOR,SRP,NICKEL,W/LINES $2,385.59 140-13886-DN Call (805) 388-1188
KIT,FRONT,MUSTANG,2015-UP,AERO6,14.00 ROTOR,SRP,RED,W/LINES $2,217.59 140-13886-DR Call (805) 388-1188
KIT,FRONT,MUSTANG,2015-UP,AERO6,14.00 ROTOR,NICKEL,W/LINES $2,273.59 140-13886-N Call (805) 388-1188
KIT,FRONT,MUSTANG,2015-UP,AERO6,14.00 ROTOR,RED,W/LINES $2,105.59 140-13886-R Call (805) 388-1188
KIT,FRONT,MUSTANG,2015-UP,AERO6,15.00 ROTOR,W/LINES $2,245.59 140-13887 Call (805) 388-1188
KIT,FRONT,MUSTANG,2015-UP,AERO6,15.00 ROTOR,SRP,W/LINES $2,357.59 140-13887-D Call (805) 388-1188
KIT,FRONT,MUSTANG,2015-UP,AERO6,15.00 ROTOR,SRP,NICKEL,W/LINES $2,525.59 140-13887-DN Call (805) 388-1188
KIT,FRONT,MUSTANG,2015-UP,AERO6,15.00 ROTOR,SRP,RED,W/LINES $2,357.59 140-13887-DR Call (805) 388-1188
KIT,FRONT,MUSTANG,2015-UP,AERO6,15.00 ROTOR,NICKEL,W/LINES $2,413.59 140-13887-N Call (805) 388-1188
KIT,FRONT,MUSTANG,2015-UP,AERO6,15.00 ROTOR,RED,W/LINES $2,245.59 140-13887-R Call (805) 388-1188
KIT,FRONT,C5/C6 VETTE 97-13,AERO6,15.00 ROTOR $2,245.59 140-13903 Call (805) 388-1188
KIT,FRONT,C5/C6 VETTE 97-13,AERO6,15.00 ROTOR,SRP $2,357.59 140-13903-D Call (805) 388-1188
KIT,FRONT,C5/C6 VETTE 97-13,AERO6,15.00 ROTOR,SRP,RED $2,357.59 140-13903-DR Call (805) 388-1188
KIT,FRONT,C5/C6 VETTE 97-13,AERO6,15.00 ROTOR,RED $2,245.59 140-13903-R Call (805) 388-1188
KIT,FRONT,C7 VETTE 2014-UP,AERO6,15.00 ROTOR,W/LINES $2,245.59 140-13911 Call (805) 388-1188
KIT,FRONT,C7 VETTE 2014-UP,AERO6,15.00 ROTOR,SRP,W/LINES $2,357.59 140-13911-D Call (805) 388-1188
KIT,FRONT,C7 VETTE 2014-UP,AERO6,15.00 ROTOR,SRP,NICKEL,W/LINES $2,525.59 140-13911-DN Call (805) 388-1188
KIT,FRONT,C7 VETTE 2014-UP,AERO6,15.00 ROTOR,SRP,RED,W/LINES $2,357.59 140-13911-DR Call (805) 388-1188
KIT,FRONT,C7 VETTE 2014-UP,AERO6,15.00 ROTOR,NICKEL,W/LINES $2,413.59 140-13911-N Call (805) 388-1188
KIT,FRONT,C7 VETTE 2014-UP,AERO6,15.00 ROTOR,RED,W/LINES $2,245.59 140-13911-R Call (805) 388-1188

Dynapro Low-Profile Rear Parking Brake Kit

Dynapro Low-Profile Rear Parking Brake Kit

Dynapro Low-Profile Rear Parking Brake Kit
Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Info Description Price Item No Purchase
KIT,REAR,DISC/DRUM,STRANGE FLOATER 11.00x.81 ROTOR $978.53 140-13952 Call (805) 388-1188
KIT,REAR,DISC/DRUM,STRANGE FLOATER 11.00x.81 ROTOR,SRP $1,090.53 140-13952-D Call (805) 388-1188

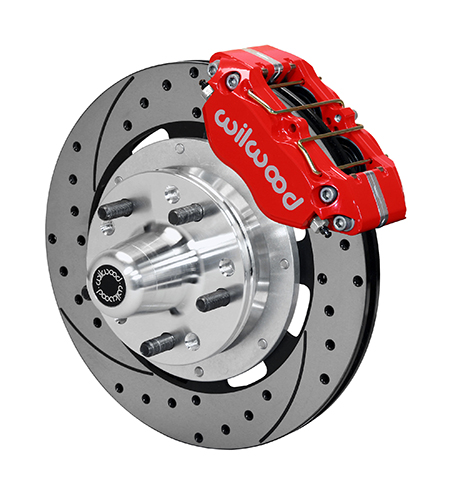

Forged Dynalite 1 Piece Rotor and Hub Front Brake Kits

Forged Dynalite 1 Piece Rotor and Hub Front Brake Kits

Forged Dynalite 1 Piece Rotor and Hub Front Brake Kits
Wilwood's new FDL Pro-Series Front 1 Piece Hub and Rotor Kits for Early GM and Ford vehicles ranging from 1941 to 1965, offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, utilizing a large 11.88" or 11.28" diameter rotor and hub. assembly . Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL 1 piece kits can be used with either manual or power boost master cylinders. Kits come complete calipers, rotors and, hub assembly brackets and hardware.
Info Description Price Item No Purchase
KIT,FRONT,WWE PRO SPINDLE, FDL,11.03 HUB/ROTOR,BLACK ANO $601.93 140-14065 Call (805) 388-1188

TX6R Big Brake Truck Front Brake Kit

TX6R Big Brake Truck Front Brake Kit

TX6R Big Brake Truck Front Brake Kit
Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation.
Info Description Price Item No Purchase
KIT,FRONT,GM 2500 HD,11-15,TX6R 15.00x1.50 ROTOR,BLACK $2,295.94 140-13873 Call (805) 388-1188
KIT,FRONT,GM 2500 HD,11-15,TX6R 15.00x1.50 ROTOR,CLEAR $2,127.94 140-13873-C Call (805) 388-1188
KIT,FRONT,GM 2500 HD,11-15,TX6R 15.00x1.50 ROTOR,RED $2,295.94 140-13873-R Call (805) 388-1188
KIT,FRONT,TX6R,GM TRK/SUV,1500 SERIES 99-2014,16.00 ROTOR,BLACK $2,295.94 140-13876 Call (805) 388-1188
KIT,FRONT,TX6R,GM TRK/SUV,1500 SERIES 99-2014,16.00 ROTOR,CLEAR $2,127.94 140-13876-C Call (805) 388-1188
KIT,FRONT,TX6R,GM TRK/SUV,1500 SERIES 99-2014,16.00 ROTOR,RED $2,295.94 140-13876-R Call (805) 388-1188
KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,BLACK $2,295.94 140-13877 Call (805) 388-1188
KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,CLEAR $2,127.94 140-13877-C Call (805) 388-1188
KIT,FRONT,TX6R,H2/2500 SERIES,99-2010 16.00 ROTOR,RED $2,295.94 140-13877-R Call (805) 388-1188

TX6R Big Brake Truck Rear Brake Kit

TX6R Big Brake Truck Rear Brake Kit

TX6R Big Brake Truck Rear Brake Kit
Wilwood’s Tactical Extreme TX6R Big Brake rear kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. TX6R rear kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.
Info Description Price Item No Purchase
KIT,REAR,GM 2500 HD,11-15,TX6R,15.50x1.3 ROTOR,BLACK $2,295.94 140-13874 Call (805) 388-1188
KIT,REAR,GM 2500 HD,11-15,TX6R,15.50x1.3 ROTOR,CLEAR $2,127.94 140-13874-C Call (805) 388-1188
KIT,REAR,GM 2500 HD,11-15,TX6R,15.50x1.3 ROTOR,RED $2,295.94 140-13874-R Call (805) 388-1188
KIT,REAR,TX6R,H2/2500,99-2010,4.63 CENTER REGISTRATION,16.00 ROTOR,BLACK $2,295.94 140-13878 Call (805) 388-1188
KIT,REAR,TX6R,H2/2500,99-2010,4.63 CENTER REGISTRATION,16.00 ROTOR,CLEAR $2,127.94 140-13878-C Call (805) 388-1188
KIT,REAR,TX6R,H2/2500,99-2010,4.63 CENTER REGISTRATION,16.00 ROTOR,RED $2,295.94 140-13878-R Call (805) 388-1188
KIT,REAR,TX6R,2500,99-2010,4.84 CENTER REGISTRATION,16.00 ROTOR,BLACK $2,295.94 140-13879 Call (805) 388-1188
KIT,REAR,TX6R,2500,99-2010,4.84 CENTER REGISTRATION,16.00 ROTOR,CLEAR $2,127.94 140-13879-C Call (805) 388-1188
KIT,REAR,TX6R,2500,99-2010,4.84 CENTER REGISTRATION,16.00 ROTOR,RED $2,295.94 140-13879-R Call (805) 388-1188

PAD,7525-20,GN,1.00 THK,AXLE SET

PAD,7525-20,GN,1.00 THK,AXLE SET

PAD,7525-20,GN,1.00 THK,AXLE SET
PAD,7525-20,GN,1.00 THK,AXLE SET
Info Description Price Item No Purchase
PAD,7525-20,GN,1.00 THK,AXLE SET $131.93 150-13794K Call (805) 388-1188

PAD,7525-40,GN,1.00 THK,AXLE SET

PAD,7525-40,GN,1.00 THK,AXLE SET

PAD,7525-40,GN,1.00 THK,AXLE SET
PAD,7525-40,GN,1.00 THK,AXLE SET
Info Description Price Item No Purchase
PAD,7525-40,GN,1.00 THK,AXLE SET $262.43 150-13795K Call (805) 388-1188

PAD,7525A,GN,POLYMATRIX,.985THK,AXLE

PAD,7525A,GN,POLYMATRIX,.985THK,AXLE

PAD,7525A,GN,POLYMATRIX,.985THK,AXLE
PAD,7525A,GN,POLYMATRIX,.985THK,AXLE
Info Description Price Item No Purchase
PAD,7525A,GN,POLYMATRIX,.985THK,AXLE SET $404.70 15A-13796K Call (805) 388-1188

PAD,7525H,GN,POLYMATRIX,.985 THK,AXLE

PAD,7525H,GN,POLYMATRIX,.985 THK,AXLE

PAD,7525H,GN,POLYMATRIX,.985 THK,AXLE
PAD,7525H,GN,POLYMATRIX,.985 THK,AXLE
Info Description Price Item No Purchase
PAD,7525H,GN,POLYMATRIX,.985 THK,AXLE SET $368.93 15H-13797K Call (805) 388-1188

Aero4 Radial Mount

Aero4 Radial Mount

Aero4 Radial Mount
The new Aero4 forged four piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, multiple options for piston volume, and a rotor diameter ranging from 12.88" to 15.00" give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new Aero4 is the latest innovation to the W4A / W6A series of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes and massive center bridge assembly.
Info Description Price Item No Purchase
CALIPER,AERO4,1.12/1.12,.81 ROTOR BLACK $488.93 120-14004-BK Call (805) 388-1188
CALIPER,AERO4,1.12/1.12,.81 ROTOR NICKEL $578.93 120-14004-N Call (805) 388-1188
CALIPER,AERO4,1.12/1.12,.81 ROTOR RED $488.93 120-14004-RD Call (805) 388-1188

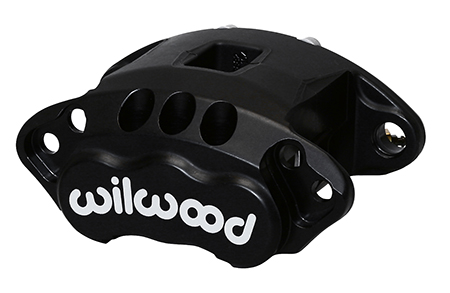

D154-R Single Piston Floater

D154-R Single Piston Floater

D154-R Single Piston Floater
Wilwood's newest race caliper, the D154-R starts with a forged aluminum black anodized body with stainless steel piston. With a choice of 2.50” or 2.00” pistons and covering rotors from .81” to 1.04” thickness up to 12.19” diameter. Caliper fluid inlet port centered directly behind the piston eliminates any interference with slide pins. Lower deflection rate and higher volumetric efficiency than all the competitions’ heavier cast models, D154-R calipers with a 2.50" piston weighs only 3.3 pounds and use standard metric D154 pads. Caliper mounting uses stock height and offset.
Info Description Price Item No Purchase
CALIPER,D154-R,2.00,1.04 ROTOR,BLACK ANODIZE $112.20 120-13899 Call (805) 388-1188
CALIPER,D154-R,2.50,1.04 ROTOR,BLACK ANODIZE $112.20 120-13900 Call (805) 388-1188

Forged Dynalite-M

Forged Dynalite-M

Forged Dynalite-M
The Forged Billet Dynalite-M is further enhancement of the venerable Forged Dynalite series calipers. Specifically designed to enhance outboard clearance and is the basis for Wilwood’s new Classic Style brake kits. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models.
Info Description Price Item No Purchase
CALIPER,FDL-M,1.75,.810 ROTOR,BLACK ANO $149.94 120-13744 Call (805) 388-1188
CALIPER,FDL-M,1.75,.810 ROTOR,BLACK $203.94 120-13744-BK Call (805) 388-1188
CALIPER,FDL-M,1.75,.810 ROTOR,RED $203.94 120-13744-RD Call (805) 388-1188
CALIPER,FDL-M,1.75,1.25 ROTOR,BLACK ANO $149.94 120-13745 Call (805) 388-1188
CALIPER,FDL-M,1.75,1.25 ROTOR,BLACK $203.94 120-13745-BK Call (805) 388-1188
CALIPER,FDL-M,1.75,1.25 ROTOR,RED $203.94 120-13745-RD Call (805) 388-1188

Forged Dynapro 6A Lug Mount

Forged Dynapro 6A Lug Mount

Forged Dynapro 6A Lug Mount
Wilwood's newest DynaPro DP6A Calipers combine pure-bred racing technology with contemporary design to deliver superior braking and high-tech style on a wide range of custom, show, and competition vehicles. This newest model in the DynaPro series features a reinforced triple bridge construction, with five high strength steel bridge bolts, making it the strongest and stiffest DP6 caliper ever built. Offers direct interchange with all 5.25” pattern lug mount DynaPro and Dynalite calipers. With Forged aluminum, six piston differential bore body and stainless steel pistons with high temperature seals. DP6A calipers accommodate rotors up to 13”inch diameter and widths from .38” to 1.10”. DP6A calipers are available in gloss black or red powder coat, or Wilwood’s Quick-Silver nickel base plating.
Info Description Price Item No Purchase
CALIPER,DP6,ST,1.62/1.38/1.38,.810 ROTOR R/H,NICKEL $614.93 120-14021-N Call (805) 388-1188
CALIPER,DP6,ST,1.62/1.38/1.38,.810 ROTOR L/H,NICKEL $614.93 120-14022-N Call (805) 388-1188
CALIPER,DP6,ST,1.62/1.38/1.38,.38 ROTOR R/H,NICKEL $614.93 120-14023-N Call (805) 388-1188
CALIPER,DP6,ST,1.62/1.38/1.38,.38 ROTOR L/H,NICKEL $614.93 120-14024-N Call (805) 388-1188

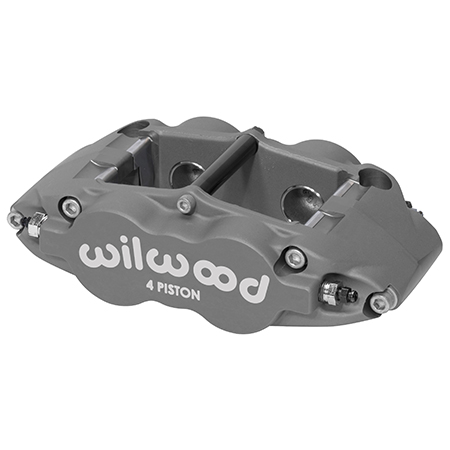

Forged Superlite 4 Radial MT-Quick-Silver

Forged Superlite 4 Radial MT-Quick-Silver

Forged Superlite 4 Radial MT-Quick-Silver
FSL4R/ST-QS calipers provide the pad wear performance advantages of differential bore pistons with the option for ultimate heat protection using Thermlock® pistons in the ST models. Differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face to reduce pad taper wear in sustained high temperature applications. Thermlock® pistons in the ST-QS models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. Featuring Quick-Silver Nickel finish, these are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.
Info Description Price Item No Purchase
CALIPER,FSL4R,ST,1.62/1.62,1.25 ROTOR NICKEL $488.34 120-15130-N Call (805) 388-1188

Grand National GN6R

Grand National GN6R

Grand National GN6R
Grand National GN6R forged aluminum six-piston radial mount calipers bring current state-of-the-art design, materials, and manufacturing technology to this long standing icon in the Wilwood caliper line. With a High-strength forged aluminum body in either hard-anodized or Quick-Silver nickel plate finish and Compatible with rotors from 1.25” to 1.38” thickness and diameters from 12.19” to 13.06”. Two body widths are available for use with .80” (20,3) or .99” (25,0) thick pads. Stainless steel pistons are included base model GN6R anodized calipers and Thermlock® pistons in the GN6R/ST Quick-Silver nickel plate models. Uses 3.5” or 6.0” center mount bracket kits to replace all previous Grand National caliper models.
Info Description Price Item No Purchase
CALIPER,GN6R,1.75/1.38/1.38,1.38 ROTOR,.80 THK PAD,R/H,BLACK ANODIZE $449.94 120-13946 Call (805) 388-1188
CALIPER,GN6R,1.75/1.38/1.38,1.38 ROTOR,.80 THK PAD,L/H,BLACK ANODIZE $449.94 120-13947 Call (805) 388-1188
CALIPER,GN6R,ST,1.75/1.38/1.38,1.38 ROTOR,.80 THK PAD,R/H,NICKEL $594.00 120-13948-N Call (805) 388-1188
CALIPER,GN6R,ST,1.75/1.38/1.38,1.38 ROTOR,.80 THK PAD,L/H,NICKEL $594.00 120-13949-N Call (805) 388-1188
CALIPER,GN6R,ST,1.75/1.38/1.38,1.38 ROTOR,1.00 THK PAD,R/H,NICKEL $646.92 120-13950-N Call (805) 388-1188
CALIPER,GN6R,ST,1.75/1.38/1.38,1.38 ROTOR,1.00 THK PAD,L/H,NICKEL $646.92 120-13951-N Call (805) 388-1188

MC4 Mechanical - Less Logo

MC4 Mechanical - Less Logo

MC4 Mechanical - Less Logo
Wilwood’s MC4 Mechanical Parking Brake Caliper (Less Logo)is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810” thick, with 11.00” - 12.88” diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields.
Info Description Price Item No Purchase
CALIPER,MC4,MECH,P-BRAKE,1.19,.81 ROTOR BLACK,R/H,LESS LOGO $103.43 120-14007-BK Call (805) 388-1188
CALIPER,MC4,MECH,P-BRAKE,1.19,.81 ROTOR RED,R/H,LESS LOGO $103.43 120-14007-RD Call (805) 388-1188
CALIPER,MC4,MECH,P-BRAKE,1.19,.81 ROTOR BLACK,L/H,LESS LOGO $103.43 120-14008-BK Call (805) 388-1188
CALIPER,MC4,MECH,P-BRAKE,1.19,.81 ROTOR RED,L/H,LESS LOGO $103.43 120-14008-RD Call (805) 388-1188

Proportioning Valve Bracket Kit

Proportioning Valve Bracket Kit

Proportioning Valve Bracket Kit
Wilwood finally has an elegant answer to the question, “Where do I mount my Combination Proportioning Valve?” with their new Mounting Bracket Kit. • Specifically designed to work in conjunction with Wilwood Aluminum Tandem Master Cylinders (P/N’s 260-8555, 260-8556 or 260-9439), in manual or boosted system applications. Kit includes: • Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. • Stainless steel button head fasteners thread into the black e-coated R/H bracket for a simple installation and years of durable, rust-free performance. This complete Mounting Bracket Kit includes all the mounting hardware.
Info Description Price Item No Purchase
KIT,BRACKET,COMBO P-VALVE TO DIECAST M/C R/H $37.74 220-15047 Call (805) 388-1188

Master Cylinder Firewall Mounting Kit

Master Cylinder Firewall Mounting Kit

Master Cylinder Firewall Mounting Kit
Wilwood's new billet aluminum Master Cylinder Firewall Mounting Kit, part number 250-13167. This mounting kit is specifically designed to work in conjunction with Wilwood’s Forward Mount Brake and Clutch Pedal Assembly and Flange Mounted Compact Remote Master Cylinders.The kit allows precision mounting of the pedal and master cylinders to the firewall, and leaves the engine compartment with a high-tech pro-finish look. The mounting plates recess the master cylinder mounting surface by .25”, which allows more clearance in the engine compartment. Both the engine compartment faceplate and interior side mounting plate are media burnished billet aluminum. The kit is designed to accept a firewall material thickness range of .040” - .080”, and requires a minimum flat area the size of the 4” x 8” faceplate. Also provided is all mounting hardware, including attractive, corrosion resistant stainless steel 12 point fasteners, and detailed installation instructions.
Info Description Price Item No Purchase
M/C MT KIT,FIREWALL,ASSEMBLY $183.54 250-13167 Call (805) 388-1188

Proportioning Valve

Proportioning Valve

Proportioning Valve
Wilwood finally has an elegant answer to the question, “Where do I mount my Combination Proportioning Valve?” with their new Mounting Bracket Kit. • Specifically designed to work in conjunction with Wilwood Aluminum Tandem Master Cylinders (P/N’s 260-8555, 260-8556, 260-9439, 260-12900 or 260-13375), in manual or boosted system applications. Kit includes: • Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. • Stainless steel button head fasteners thread into the black e-coated R/H bracket for a simple installation and years of durable, rust-free performance. This complete Mounting Bracket Kit includes all the mounting hardware, plus a Combination Proportioning Valve, 260-11179.
Info Description Price Item No Purchase
P-VALVE,COMBO PROPORTIONING W/MOUNTING BRACKET,R/H $115.50 260-15048 Call (805) 388-1188

Clutch Pedal Kits

Clutch Pedal Kits

Clutch Pedal Kits
Wilwood’s Clutch Pedal Kit comes with a floor mount forged adjustable clutch pedal of a 6 to 1 ratio, Integral Reservoir Master cylinder in a ¾ bore and universal pull type slave cylinder in a convenient kit.
Info Description Price Item No Purchase
PEDAL KIT,FORGED,CLUTCH,6:1,3/4in.,M/C SLAVE CYLINDER,FLOOR MOUNT $222.75 341-15169 Call (805) 388-1188
PEDAL KIT,FORGED,CLUTCH,7:1,3/4in.,M/C SLAVE CYLINDER,SWING MOUNT $222.75 341-15170 Call (805) 388-1188

Clutch Pedal Kits

Clutch Pedal Kits

Clutch Pedal Kits
Wilwood’s Clutch Pedal Kit comes with a swing mount forged adjustable clutch pedal of a 7 to 1 ratio, Integral Reservoir Master cylinder in a ¾ bore and universal pull type slave cylinder in a convenient kit.
Info Description Price Item No Purchase
PEDAL KIT,FORGED,CLUTCH,6:1,3/4in.,M/C SLAVE CYLINDER,FLOOR MOUNT $222.75 341-15169 Call (805) 388-1188
PEDAL KIT,FORGED,CLUTCH,7:1,3/4in.,M/C SLAVE CYLINDER,SWING MOUNT $222.75 341-15170 Call (805) 388-1188

Floor Mount Brake Pedal

Floor Mount Brake Pedal

Floor Mount Brake Pedal
This floor mount pedal assembly mounts two single outlet brake master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.
Info Description Price Item No Purchase
PEDAL ASSEMBLY,6:1,DUAL,M/C,FORGED PEDAL $140.36 340-13831 Call (805) 388-1188

Floor Mount Clutch / Brake Pedal

Floor Mount Clutch / Brake Pedal

Floor Mount Clutch / Brake Pedal
This floor mount pedal assembly mounts a single brake or clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are ordered separately by style and bore size
Info Description Price Item No Purchase
PEDAL ASSEMBLY,6:1,SINGLE CLUTCH/BRAKE ALUMINUM BASE,FORGED PEDAL $83.03 340-13833 Call (805) 388-1188

Reverse Swing Mount Brake and Clutch Pedals

Reverse Swing Mount Brake and Clutch Pedals

Reverse Swing Mount Brake and Clutch Pedals
This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged pedal arms. The brake pedal uses a 6.25:1 ratio arm, but with a shorter 5.1:1 ratio arm on the clutch pedal for additional clearance when necessary. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size. .
Info Description Price Item No Purchase
PEDAL ASSEMBLY,REVERSE MT,5:1 TRIPLE M/C,FORGED PEDAL $244.02 340-13835 Call (805) 388-1188
PEDAL ASSEMBLY,REVERSE MT,6.25:1 BRAKE 5:1 CLUTCH,FORGED PEDAL $244.02 340-13836 Call (805) 388-1188
PEDAL ASSEMBLY,REVERSE MT,5:1,DUAL M/C,FORGED PEDAL $176.94 340-13837 Call (805) 388-1188

Reverse Swing Mount Brake and Clutch Pedals

Reverse Swing Mount Brake and Clutch Pedals

Reverse Swing Mount Brake and Clutch Pedals
This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged 5.1:1 ratio pedal arms. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.
Info Description Price Item No Purchase
PEDAL ASSEMBLY,REVERSE MT,5:1 TRIPLE M/C,FORGED PEDAL $244.02 340-13835 Call (805) 388-1188
PEDAL ASSEMBLY,REVERSE MT,6.25:1 BRAKE 5:1 CLUTCH,FORGED PEDAL $244.02 340-13836 Call (805) 388-1188
PEDAL ASSEMBLY,REVERSE MT,5:1,DUAL M/C,FORGED PEDAL $176.94 340-13837 Call (805) 388-1188

Reverse Swing Mount Brake and Clutch Pedals

Reverse Swing Mount Brake and Clutch Pedals

Reverse Swing Mount Brake and Clutch Pedals
This swinging mount pedal assembly mounts two single outlet brake master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 5.1:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.
Info Description Price Item No Purchase
PEDAL ASSEMBLY,REVERSE MT,5:1 TRIPLE M/C,FORGED PEDAL $244.02 340-13835 Call (805) 388-1188
PEDAL ASSEMBLY,REVERSE MT,6.25:1 BRAKE 5:1 CLUTCH,FORGED PEDAL $244.02 340-13836 Call (805) 388-1188
PEDAL ASSEMBLY,REVERSE MT,5:1,DUAL M/C,FORGED PEDAL $176.94 340-13837 Call (805) 388-1188

Swing Mount Brake Pedal

Swing Mount Brake Pedal

Swing Mount Brake Pedal
This swinging mount pedal assembly mounts two single outlet brake master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 7:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size
Info Description Price Item No Purchase
PEDAL ASSEMBLY,7:1,DUAL,M/C,FORGED PEDAL $140.36 340-13832 Call (805) 388-1188

Swing Mount Clutch / Brake Pedal

Swing Mount Clutch / Brake Pedal

Swing Mount Clutch / Brake Pedal
This swinging mount pedal assembly mounts a single brake or clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 7:1 ratio pedal Arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are ordered separately by style and bore size.
Info Description Price Item No Purchase
PEDAL ASSEMBLY,7:1,SINGLE,M/C ,ALUMINUM BASE,FORGED PEDAL $83.03 340-13834 Call (805) 388-1188

GT 60 Curved Vane Rotor

GT 60 Curved Vane Rotor

GT 60 Curved Vane Rotor
Wilwood's GT 60 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Every Spec 37 rotor is precision machined to less than .001" run-out, flatness, and parallelism. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest, vibration free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.
Info Description Price Item No Purchase
ROTOR1500-150CR903-000ZJCXXXXR 12x9.75,60 CVANE,GT,SPEC-37 $382.44 160-13785 Call (805) 388-1188
ROTOR1500-150CR903-000ZJCXXXXL 12x9.75,60 CVANE,GT,SPEC-37 $382.44 160-13786 Call (805) 388-1188
ROTOR1600-150CR903-000ZJCXXXXR 12x9.75,60 CVANE,GT,SPEC-37 $382.44 160-13787 Call (805) 388-1188
ROTOR1600-150CR903-000ZJCXXXXL 12x9.75,60 CVANE,GT,SPEC-37 $382.44 160-13788 Call (805) 388-1188
ROTOR1550-138CU878-000ZJCXXXXR 12x10.250 BC,60 CVANE,GT,SPEC-37 $382.44 160-13789 Call (805) 388-1188
ROTOR1550-138CU878-000ZJCXXXXL 12x10.250 BC,60 CVANE,GT,SPEC-37 $382.44 160-13790 Call (805) 388-1188
ROTOR1500-138CR903-000ZJCXXXXR 12x9.75 BC,60 CVANE,GT,SPEC-37 $382.44 160-15049 Call (805) 388-1188
ROTOR1500-138CR903-000ZJCXXXXL 12x9.75 BC,60 CVANE,GT,SPEC-37 $382.44 160-15050 Call (805) 388-1188

Super Alloy Scalloped Rotor

Super Alloy Scalloped Rotor

Super Alloy Scalloped Rotor
Our newest Super Alloy rotor in 11.75” diameter is targeted directly to Dirt Late Model and Modified racing. Wilwood’s proprietary Super Alloy material provides the lowest rotating and un-sprung weight, without degradation, shrinkage and warping like comparable Iron & Steel lightweight rotors. Super Alloy rotors provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range, and high heat spikes are only observed on an intermittent basis. Our special alloy and proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads.
Info Description Price Item No Purchase
ROTOR1175-081AT638-000HCJXXXXN 8x7.00,32 VANE,SCALLOPED,SA $215.94 160-13373 Call (805) 388-1188
