Street Performance Brake Kits



Kit Components
Caliper: D154
Pistons: 2
Mount Type: Floating
Rotor Dia: 10.50" - 12.00"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: N-A
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Polished

D154 Front Caliper Kit

Wilwood's D154 Front Caliper Kit is a direct bolt-on 1 or 2 piston, lightweight, high-strength, extreme duty alternative to the OE cast iron "Metric" calipers that were used on a wide range of factory disc brake equipped mid size GM cars and small trucks beginning in 1978. Use of this caliper can still be found on some GM models as late as the year 2002. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D154 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D154 calipers mount in the stock location over stock rotors; use the original style OE D154 brake pads and an OE M10-1.5 banjo bolt brake line mounting. D154 Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.50” piston provide 4.90 square inches of piston area per caliper, in order to maintain the original front to rear brake bias and use of the OE master cylinder. The D154 is also available in a two piston version with 1.62 pistons, offering 4.12 square inches of area. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations. Custom stainless steel brake lines are also available.
Click for detailed information on the Wilwood D154 Front Caliper Kit



Kit Components
Caliper: Powerlite
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.10"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: 15"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Yellow

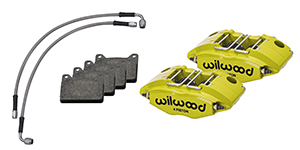

Powerlite Front Caliper and Bracket Kit

Powerlite Front Caliper and Bracket Kits allow easy upgrade to 4 piston Powerlite calipers and BP-10 performance pads using the stock rotor and spaincdle mounting. Kits complete with hardware and stianles steel flexlines.
Click for detailed information on the Wilwood Powerlite Front Caliper and Bracket Kit



Kit Components
Caliper: Powerlite
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.10"
Rotor Type: Vented Rotor & Hat
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Yellow

Powerlite Front Brake Kit

Powerlite Front Brake Kits allow easy upgrade to 4 piston Powerlite calipers, 1 piece rotor and hat assemblies formulated from proprietary iron compounds and BP-10 performance pads. using the stock rotor and spindle mounting. Kits come complete with hardware and stainless steel flexlines.
Click for detailed information on the Wilwood Powerlite Front Brake Kit



Kit Components
Caliper: D52
Pistons: 2
Mount Type: Floating
Rotor Dia: 11.00" - 12.00"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: N-A
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

D52 Front Caliper Kit

Wilwood's D52 Front Caliper Kit is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00” piston provide 6.28 square inches of piston area per caliper, in order to maintain the original front to rear brake bias and use of the OE master cylinder. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations. Vehicles 1978 & Up (with M10-1.5 banjo bolts) will require new brake lines available below.
Click for detailed information on the Wilwood D52 Front Caliper Kit



Kit Components
Caliper: D11
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.30"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: 14"
Hat: N-A
Hub: N-A
Pad Compound: Promatrix
Finishes: Black / Red

D11 Front Replacement Caliper Kit

D11 4 piston calipers are a direct bolt-on replacement for the original equipment calipers on all 1965-67 Ford Mustang, Falcon, Fairlane and 1967 Mercury Cougar. Forged billet aluminum bodies, stainless steel pistons and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D11 calipers provide low-maintenance performance, a huge weight savings, and high temperature reliability for street or track. D8-4 calipers mount in the stock location over stock rotors, use the original style D11 brake pads, and fit snugly inside most 65 or newer production wheels. Kits contain DOT compliant stainless braided brake lines and Promatrix compound pads.
Click for detailed information on the Wilwood D11 Front Replacement Caliper Kit



Kit Components
Caliper: D8-4
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.75"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: 15"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Polished

D8-4 Front Replacement Caliper Kit

D8-4 calipers are a direct bolt-on replacement for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-4 calipers provide low-maintenance performance, a huge weight savings, and high temperature reliability for street or track. D8-4 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most 67 or newer production wheels. Some wheels, including the 1965-66 OE "JK" code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16" or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and BP-10 compound "Smart Pads"
Click for detailed information on the Wilwood D8-4 Front Replacement Caliper Kit



Kit Components
Caliper: D8-6
Pistons: 6
Mount Type: Lug
Rotor Dia: 11.75"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: 15"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

D8-6 Front Replacement Caliper Kit

D8-6 calipers are a direct bolt-on replacement for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-4 calipers provide low-maintenance performance, a huge weight savings, and high temperature reliability for street or track. D8-4 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most 67 or newer production wheels. Some wheels, including the 1965-66 OE "JK" code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16" or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and BP-10 compound "Smart Pads"
Click for detailed information on the Wilwood D8-6 Front Replacement Caliper Kit



Kit Components
Caliper: Forged DPHA
Pistons: 4
Mount Type: Lug
Rotor Dia: 10.32"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: 15"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged DPHA Front Caliper Kit

Wilwood’s new DynaPro Honda/Acura Caliper (DPHA) for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels including the EM1 Si 15” wheel. Designed around Wilwood’s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power.
Click for detailed information on the Wilwood Forged DPHA Front Caliper Kit



Kit Components
Caliper: DPHA
Pistons: 4
Mount Type: Lug
Rotor Dia: 10.32"
Rotor Type: UL-HP
Rotor Format: Plain / SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged DPHA Front Caliper and Rotor Kit

Wilwood’s new DynaPro Honda/Acura Caliper (DPHA) for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels including the EM1 Si 15” wheel. Designed around Wilwood’s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with the OE master cylinder and ABS functions, and are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood’s signature logo.
Click for detailed information on the Wilwood Forged DPHA Front Caliper and Rotor Kit



Kit Components
Caliper: SLC56 Caliper
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.80"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: 17"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

SLC56 Front Replacement Caliper Kit

SLC56 front calipers are engineered as a high performance street and custom replacement for Corvettes and hot rods using Corvette suspension. These kits combine the high-tech styling and superior performance of the SLC56 calipers with the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits are a direct bolt-on replacement for the OE calipers on all models of the C5 from 1997 to 2004, and all base model C6’s from 2005 to 2013 using the existing 12.8” diameter OE dimension front rotors. The calipers attach directly to the Corvette spindle without the need for brackets.
Click for detailed information on the Wilwood SLC56 Front Replacement Caliper Kit



Kit Components
Caliper: SLC56 Caliper
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.80"
Rotor Type: SRP Drilled Rotor & Hat
Rotor Format: SRP Drilled & Slotted
Min Wheel Dia: 17"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

SLC56 Front Replacement Caliper and Rotor Kit

SLC56 front caliper, pad, and rotor kits are engineered as high performance street and custom show replacements for Corvettes and hot rods using Corvette suspension. These kits combine the high-tech styling and superior performance of the SLC56 calipers, 12.8” diameter SRP series drilled and slotted e-coat rotors, and the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits bolt directly to the front spindle of any model C5 or C6 from 1997-2013, without the need for additional brackets or adapters.
Click for detailed information on the Wilwood SLC56 Front Replacement Caliper and Rotor Kit



Kit Components
Caliper: Forged Narrow Superlite 4R
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.10"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: 15"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Yellow

Forged Narrow Superlite 4R Front Caliper and Bracket Kit

Wilwood's FNSL4R Caliper & Bracket Kits are built around the Forged Narrow Superlite 4 Piston Caliper. Outfitted with bracket assemblies to bolt to your specific apllication. Kits come with BP compound pads and hardware.
Click for detailed information on the Wilwood Forged Narrow Superlite 4R Front Caliper and Bracket Kit



Kit Components
Caliper: Forged Narrow Superlite 4R
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.10"
Rotor Type: Vented Rotor & Hat
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Yellow

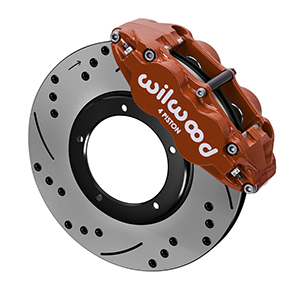

Forged Narrow Superlite 4R Front Brake Kit

Wilwood's FNSL4R Caliper & Rotor Kits 140-16679 are built around the Forged Narrow Superlite 4 Piston Caliper. Outfitted with bracket assemblies to bolt to your specific apllication. Kits come with HD or SRP Rotor & Hat assemblies, BP compound pads and hardware.
Click for detailed information on the Wilwood Forged Narrow Superlite 4R Front Brake Kit



Kit Components
Caliper: AERO6
Pistons: 6
Mount Type: Radial
Rotor Dia: 13.98"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: N-A
Hat: N-A
Hub: N-A
Pad Compound: BP-20
Finishes: Black / Red / Type III Ano

AERO6 Front Caliper and Bracket Upgrade Kit for Corvette C5-C6

Aerolite 6R six piston radial mount front caliper kits add big brake stopping power and style to any 1997-2013 C5 or C6 Corvette front suspension. These kits replace the OE calipers on all models and mount in the stock caliper location. All the necessary hardware is included for correct mounting height and offset with the very affordable one-piece 13.38” Z51 or 13.97” Z06 OE style rotors. Aerolite 6R calipers incorporate race proven technology in a high strength forged triple bridge body design. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high temperature fade resistance for auto-cross and other sport driving applications.
Click for detailed information on the Wilwood AERO6 Front Caliper and Bracket Upgrade Kit for Corvette C5-C6



Kit Components
Caliper: D31F
Pistons: 2
Mount Type: Lug
Rotor Dia: 11.10"
Rotor Type: Vented Rotor & Hat
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

D31 Front Brake Kit

Wilwood’s D31 Front Brake Kits utilizing our forged aluminum D31 direct mount calipers provide the ultimate in strength, weight savings, and high efficiency brake clamping for Porsche 911 with "M" 3.00" OEM front calipers. These calipers feature a high strength, lightweight 4.1-pound forged aluminum body fitted with machined stainless-steel pistons. D31 series calipers utilize the same 3.00" mounting centers, height and offset as the traditional 911 "M" calipers and contain standard D31 brake pads in BP-10 compound, OEM 11.10” diameter and 0.79” thickness rotors.
Click for detailed information on the Wilwood D31 Front Brake Kit



Kit Components
Caliper: D45
Pistons: 2
Mount Type: Lug
Rotor Dia: 11.10"
Rotor Type: Vented Rotor & Hat
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

D45 Front Brake Kit

Wilwood’s D45 Front Brake Kits utilizing our forged aluminum D45 direct mount calipers provide the ultimate in strength, weight savings, and high efficiency brake clamping for Porsche 911 with "A"or "S" 3.50" OEM front calipers. These calipers feature a high strength, lightweight 5.1-pound forged aluminum body fitted with machined stainless-steel pistons. D45 series calipers utilize the same 3.50" mounting centers, height and offset as the traditional 911 "A"/"S" calipers and contain standard D45 brake pads in BP-10 compound, OEM 11.10” diameter and 0.79” or 0.95"thickness rotors.
Click for detailed information on the Wilwood D45 Front Brake Kit



Kit Components
Caliper: Forged Dynalite Internal
Pistons: 4
Mount Type: Lug
Rotor Dia: 10.75" - 11.00"
Rotor Type: Ultralite 30 Vane
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: N-A
Hub: Forged Aluminum
Pad Compound: BP-10
Finishes: Black / Red

Forged Dynalite Pro Series Front Brake Kit

FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15” wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.
Click for detailed information on the Wilwood Forged Dynalite Pro Series Front Brake Kit



Kit Components
Caliper: Forged Dynalite Internal-Dust Seal
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.00"
Rotor Type: Ultralite 30 Vane
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: N-A
Hub: Forged Aluminum
Pad Compound: BP-10
Finishes: Black / Red

Dynapro Dust-Boot Pro Series Front Brake Kit

Wilwood's new DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable Forged Dynapro Dustboot caliper, these kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. DP-DB Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.
Click for detailed information on the Wilwood Dynapro Dust-Boot Pro Series Front Brake Kit



Kit Components
Caliper: Forged Dynalite-M
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.30"
Rotor Type: 1Pc Hub and Rotor
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 14"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Classic Series Dynalite Front Brake Kit

Wilwood's Classic Series front disc brake kits offer disc brake upgrade solutions for many OEM drum or disc spindles. These kits feature either the FDLI or FDL-M four piston forged aluminum calipers and 11.00” to 11.88" diameter one-piece rotors. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14" or 15" OEM or aftermarket disc brake wheels. Kits generally will not fit OEM drum brake wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware and detailed installation instructions.
Click for detailed information on the Wilwood Classic Series Dynalite Front Brake Kit



Kit Components
Caliper: Forged Dynalite Internal
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.00" - 12.19"
Rotor Type: Ultralite 32 Vane
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 16"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Dynalite Big Brake Front Brake Kit (Hat)

Forged billet Dynalite calipers, oversized rotors, and high performance Wilwood brake pads deliver big brake stopping power with high-tech style for front wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades. Options for caliper finish and rotor design make it simple to match the brake response and style preferences on all types of daily drivers, race vehicles, and ultra-styled show machines. Each kit is engineered specific for each vehicle. They are fully compatible with OE master cylinder output while retaining the full factory ABS functions.
Click for detailed information on the Wilwood Forged Dynalite Big Brake Front Brake Kit (Hat)



Kit Components
Caliper: Forged Dynalite Internal
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.19"
Rotor Type: Ultralite 32 Vane
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: N-A
Hub: 270-14515
Pad Compound: BP-10
Finishes: Black / Red

Forged Dynalite Big Brake Front Brake Kit (5 x 5 Hub)

FDLI Big Brake Front 5 x 5.00" Hub Kits provide the added advantage of larger diameter brake rotors for traditional spindles on American muscle cars and vintage rods. These kits are specially designed for 5 x 5.00" bolt circle wheels. Forged billet Dynalite calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.
Click for detailed information on the Wilwood Forged Dynalite Big Brake Front Brake Kit (5 x 5 Hub)



Kit Components
Caliper: Forged Dynalite Internal
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.19"
Rotor Type: Ultralite 32 Vane
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 16"
Hat: N-A
Hub: Forged Aluminum
Pad Compound: BP-10
Finishes: Black / Red

Forged Dynalite Big Brake Front Brake Kit (Hub)

FDL Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.
Click for detailed information on the Wilwood Forged Dynalite Big Brake Front Brake Kit (Hub)



Kit Components
Caliper: Forged Dynalite Internal-Dust Seal
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.19"
Rotor Type: Ultralite 32 Vane
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 16"
Hat: N-A
Hub: Forged Aluminum
Pad Compound: BP-10
Finishes: Black / Red

Dynapro Dust-Boot Big Brake Front Brake Kit (Hub)

DP-DB Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Dynapro Dustboot calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power. These kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-boot sealed aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.
Click for detailed information on the Wilwood Dynapro Dust-Boot Big Brake Front Brake Kit (Hub)



Kit Components
Caliper: Narrow Dynapro Radial Mount
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.75"
Rotor Type: Ultralite 32 Vane
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 16"
Hat: Aluminum
Hub: 270-11746
Pad Compound: BP-10
Finishes: Type III Ano / Red

Dynapro Radial Big Brake Front Brake Kit (Hub)

Radial mounting provides secure and accurate installation of the Forged Billet Narrow DynaPro four piston caliper with large diameter rotors for this group of rear wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers and competition vehicles.
Click for detailed information on the Wilwood Dynapro Radial Big Brake Front Brake Kit (Hub)



Kit Components
Caliper: Dynapro Radial Mount
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.75" - 12.19"
Rotor Type: Ultralite 32 Vane
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 16"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Dynapro Radial Big Brake Front Brake Kit (Hat)

Radial mounting provides secure and accurate installation of the forged billet DynaPro four piston caliper with large diameter rotors for this group of front and all wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered specific for each vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs provide choices that enable the builder to personalize the style and optimize brake performance.
Click for detailed information on the Wilwood Dynapro Radial Big Brake Front Brake Kit (Hat)



Kit Components
Caliper: Narrow Dynapro Radial Mount
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.00"
Rotor Type: 36 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 15"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Narrow Dynapro Big Brake Front Brake Kit (Hat)

Radial mounting provides secure and accurate installation of the forged billet DynaPro four piston caliper with large diameter rotors for this group of front and all wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered specific for each vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs provide choices that enable the builder to personalize the style and optimize brake performance.
Click for detailed information on the Wilwood Forged Narrow Dynapro Big Brake Front Brake Kit (Hat)



Kit Components
Caliper: Dynapro 6
Pistons: 6
Mount Type: Lug
Rotor Dia: 12.19"
Rotor Type: Ultralite 32 Vane
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 16"
Hat: N-A
Hub: Forged Aluminum
Pad Compound: BP-10
Finishes: Black / Red / Polished

Forged Dynapro 6 Big Brake Front Brake Kit (Hub)

DynaPro 6 forged billet calipers are combined with 12.19” diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.
Click for detailed information on the Wilwood Forged Dynapro 6 Big Brake Front Brake Kit (Hub)



Kit Components
Caliper: Forged Dynalite Internal
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.19"
Rotor Type: Ultralite 32 Vane
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: N-A
Hub: 270-14515
Pad Compound: BP-10
Finishes: Black / Red

Forged Dynapro 6 Big Brake Front Brake Kit (5 x 5 Hub)

DynaPro 6 forged billet calipers are combined with 12.19” diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits are specially designed for 5 x 5.00" bolt circle wheels. DynaPro 6 kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.
Click for detailed information on the Wilwood Forged Dynapro 6 Big Brake Front Brake Kit (5 x 5 Hub)



Kit Components
Caliper: Dynapro 6
Pistons: 6
Mount Type: Lug
Rotor Dia: 12.19" - 12.88"
Rotor Type: Ultralite 32 Vane
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 16"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Dynapro 6 Big Brake Front Brake Kit (Hat)

The enhanced brake capacity and pad performance of the DynaPro 6 forged billet six-piston caliper is combined with 12.19”to 12.88" diameter rotors for this group of front wheel drive sport compact kits. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered vehicle specific to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Click for detailed information on the Wilwood Forged Dynapro 6 Big Brake Front Brake Kit (Hat)



Kit Components
Caliper: D11
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.30"
Rotor Type: 1Pc Hub and Rotor
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 14"
Hat: N-A
Hub: N-A
Pad Compound: Promatrix
Finishes: Black / Red

Classic Series D11 Caliper Front Brake Kit

Wilwood's Classic Series D11 four piston calipers are a direct bolt-on replacement for the original equipment Kelsey-Hayes calipers on all 1965-67 Ford Mustang, Fairlane, Ranchero, Falcon, Mercury Comet, and Cougar. Forged billet aluminum bodies, internal fluid crossover, stainless steel pistons, and high-temperature seals put an end to the rust, leaking, bore pitting and seal failures that plague the OE caliper design. These kits feature the D11 calipers, 11.30" diameter one-piece rotors, DOT compliant stainless braided brake lines, and Promatrix performance compound pads. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb thermal stability and wear resistance. D11 calipers can use factory-style brake pads, and fit in stock location with original brackets and rotors.
Click for detailed information on the Wilwood Classic Series D11 Caliper Front Brake Kit



Kit Components
Caliper: Forged Narrow Superlite 6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 11.86"
Rotor Type: 1Pc Hub and Rotor
Rotor Format: Plain
Min Wheel Dia: 15"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Classic Series Forged Narrow Superlite 6R Front Brake Kit

Wilwood's Classic Series front disc brake kits for Chevrolet and GMC C10 / C15 ½ Ton Trucks from 1960 to 1970, offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring a one piece 11.86" x 1.25” rotor and hub assembly. Based on the venerable Forged Billet Narrow Superlite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FNSL6R 1 piece kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors and hub assembly, brackets, hardware and line kit.
Click for detailed information on the Wilwood Classic Series Forged Narrow Superlite 6R Front Brake Kit



Kit Components
Caliper: Forged Superlite 4
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.72"
Rotor Type: 1Pc Hub and Rotor
Rotor Format: Plain
Min Wheel Dia: 15"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Type III Ano

Classic Series Forged Superlite 4 Front Brake Kit

Wilwood's Classic Series front disc brake kits for Trucks, offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit designs, featuring a one piece rotor and hub assembly. Based on the venerable Forged Billet Superlite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FSL4 1 piece kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors and hub assembly, brackets, hardware and line kit.
Click for detailed information on the Wilwood Classic Series Forged Superlite 4 Front Brake Kit



Kit Components
Caliper: Dynapro 6
Pistons: 6
Mount Type: Lug
Rotor Dia: 11.75"
Rotor Type: 1Pc Hub and Rotor
Rotor Format: Plain
Min Wheel Dia: 15"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Classic Series Dynapro 6 Front Brake Kit

Wildwood’s Classic Series front disc brake kits for trucks, offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring a one piece rotor and hub assembly. Based on the venerable Forged Billet Dynapro 6 caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and should provide plenty of clearance inside popular 15" wheels. DP6 1 piece kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors and hub assembly, brackets, and hardware
Click for detailed information on the Wilwood Classic Series Dynapro 6 Front Brake Kit



Kit Components
Caliper: Forged Narrow Superlite 6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 12.88" - 14.00"
Rotor Type: 48 to 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 17" - 18"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
Click for detailed information on the Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)



Kit Components
Caliper: Forged Narrow Superlite 6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 12.88"
Rotor Type: 32 Straight Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 17"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)

FNSL6R Billet Forged six-piston calipers with 12.88" diameter, 1 piece rotor and hats kits deliver the cost effective combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17” and larger wheels, FNSL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Click for detailed information on the Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)



Kit Components
Caliper: Forged Narrow Superlite 6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 12.19"
Rotor Type: 32 Straight Vane
Rotor Format: Plain / SRP Drilled & Slotted
Min Wheel Dia: 16"
Hat: N-A
Hub: 270-15790
Pad Compound: BP-10
Finishes: Black / Red

Forged Narrow Superlite 6R Big Brake Front Brake Kit (6 x 5.50 Hub and Rotor)

FNSL6R Billet Forged six-piston calipers with 12.19" diameter, 1 piece rotor and hubs with 5 x 5.50" wheel bolt circle kits deliver the cost effective combination for braking power and style in this group of kits engineered for GM C10 ProSpindles. Built exclusively for 16” and larger wheels, FNSL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Click for detailed information on the Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (6 x 5.50 Hub and Rotor)



Kit Components
Caliper: Forged Superlite
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.88"
Rotor Type: 48 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 17"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Type III Ano / Red

Forged Superlite 4 Big Brake Front Brake Kit (Hat)

The big pad capacity of the forged Superlite four piston caliper is combined with oversized rotors for this unique group of specialized application kits. The roots of the forged Superlite are deep in competition. It is a track proven performer. But the FSL is far from one dimensional. Lug mounting and a full range of piston sizes give the FSL widespread adaptability for applications with unique mounting and piston volume requirements. Options for caliper finish and rotor design provide the opportunity to configure these kits for high-tech style with full capability for extreme duty use on the street or at the track.
Click for detailed information on the Wilwood Forged Superlite 4 Big Brake Front Brake Kit (Hat)



Kit Components
Caliper: Forged Narrow Superlite 6R-DS
Pistons: 6
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 19"
Hat: N-A
Hub: 270-9502
Pad Compound: BP-10
Finishes: Black / Red

Forged Narrow Superlite 6R Dust-Seal Big Brake Front Brake Kit (Hub)

FNSL6R-DS Billet Forged six-piston calipers with 14” rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 18” and larger wheels, FNSL6R-DS kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Click for detailed information on the Wilwood Forged Narrow Superlite 6R Dust-Seal Big Brake Front Brake Kit (Hub)



Kit Components
Caliper: Forged Narrow Superlite 6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 12.88" - 14.00"
Rotor Type: 48 to 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 17" - 18"
Hat: Aluminum
Hub: Aluminum
Pad Compound: BP-10
Finishes: Black / Red / Polished

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)

FNSL6R billet Forged six-piston calipers with 13”-14” rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17” and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Click for detailed information on the Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)



Kit Components
Caliper: Forged Narrow Superlite 6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 12.88" - 14.00"
Rotor Type: 48 to 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 17" - 18"
Hat: Aluminum
Hub: 270-10658
Pad Compound: BP-10
Finishes: Black / Red

Forged Narrow Superlite 6R Big Brake Front Brake Kit (5 x 5 Hub)

FNSL6R billet Forged six-piston calipers with 13”-14” rotors deliver the ultimate combination for braking power and style in kits engineered for Wilwood's Pro Spindles and offer complete disc brake upgrade solutions for drop spindle applications on American muscle cars and vintage rods. Now with modified hubs for 5 x 4.50" and 5 x 5.00" bolt circle wheels. Built exclusively for 17” and larger wheels, FNSL6R kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Click for detailed information on the Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (5 x 5 Hub)



Kit Components
Caliper: Forged Narrow Superlite 6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 13.06" - 14.00"
Rotor Type: 48 to 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 17" - 18"
Hat: Aluminum
Hub: 270-15790
Pad Compound: BP-10 / BP-20
Finishes: Black / Red

Forged Narrow Superlite 6R Big Brake Front Brake Kit (6 x 5.50 Hub)

FNSL6R billet Forged six-piston calipers with 13”-14” rotors deliver the ultimate combination for braking power and style in kits engineered for Wilwood's C10 Iron ProSpindles and offer complete disc brake upgrade solutions for drop spindle applications on American Trucks. Now with modified hubs for 6 x 5.50" bolt circle wheels. Built exclusively for 17” and larger wheels, FNSL6R kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Click for detailed information on the Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (6 x 5.50 Hub)



Kit Components
Caliper: Forged Narrow Superlite 4R
Pistons: 4
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 18"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat)

The unsurpassed braking capacity of the Forged Narrow Superlite 4R four-piston caliper, serves as the basis for these big rotor kits for popular trucks and SUVs. FSL4R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Two piece hat and rotor designs simplify installations and maximize weight savings & durability. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
Click for detailed information on the Wilwood Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat)



Kit Components
Caliper: Forged Narrow Superlite 6R-DS
Pistons: 6
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 19"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Narrow Superlite 6R Dust-Seal Big Brake Front Brake Kit (Hat)

The unsurpassed braking capacity of the Forged Narrow Superlite 6R-DS caliper serves as the base of this group of 14” big rotor kits for these popular late model vehicles. FNSL6R-DS kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
Click for detailed information on the Wilwood Forged Narrow Superlite 6R Dust-Seal Big Brake Front Brake Kit (Hat)



Kit Components
Caliper: Billet Superlite 6
Pistons: 6
Mount Type: Lug
Rotor Dia: 12.88"
Rotor Type: 48 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 17" - 18"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Superlite 6 Big Brake Front Brake Kit (Hat)

The unsurpassed braking capacity of the SL6 forged billet six-piston caliper serves as the base of this group of 12.88” big rotor kits for these popular late model vehicles. SL6 kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
Click for detailed information on the Wilwood Superlite 6 Big Brake Front Brake Kit (Hat)



Kit Components
Caliper: AERO6
Pistons: 6
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: WCCB Carbon-Ceramic
Rotor Format: Plain
Min Wheel Dia: 18"
Hat: Aluminum
Hub: N-A
Pad Compound: PCM
Finishes: Black / Red / Type III Ano

AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit

AERO6 WCCB Carbon-Ceramic Rotor Front Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO6 WCCB kits are engineered to maximize braking capacity inside custom wheels. These brake kits offer a simple bolt-on installation with minor modifications required to the front spindle only and are fully compatible with ABS and OE master cylinder output. W6AR calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. A high temperature, fluid resistant Type III anodize plating is the standard for performance, other colors (Black and Red powder coat) are available as options. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.
Click for detailed information on the Wilwood AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit



Kit Components
Caliper: AERO6
Pistons: 6
Mount Type: Radial
Rotor Dia: 14.00" - 15.00"
Rotor Type: 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 18" - 19"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

AERO6 Big Brake Front Brake Kit

AERO6 calipers are the newest design for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Direction staggered vane 14” or larger rotors provide maximum cooling for sustained high heat durability.
Click for detailed information on the Wilwood AERO6 Big Brake Front Brake Kit



Kit Components
Caliper: AERO6
Pistons: 6
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 18" - 19"
Hat: Aluminum
Hub: 270-15790
Pad Compound: BP-10 / BP-20
Finishes: Black / Red

AERO6 Big Brake Front Brake Kit (6 x 5.50 Hub)

AERO6 calipers are the newest design for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. This kit with a 6 x 5.50" wheel bolt circle is for the Wilwood's C10 Iron ProSpindle. It’s the biggest of the big, providing big brake performance for trucks. It provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Direction staggered vane 14” rotors provide maximum cooling for sustained high heat durability.
Click for detailed information on the Wilwood AERO6 Big Brake Front Brake Kit (6 x 5.50 Hub)



Kit Components
Caliper: D8-4
Pistons: 6
Mount Type: Lug
Rotor Dia: 12.19"
Rotor Type: Ultralite 32 Vane
Rotor Format: Plain
Min Wheel Dia: 15" - 16"
Hat: Aluminum
Hub: N-A
Pad Compound: Promatrix
Finishes: Black / Red

D8-4 Truck Front Brake Kit

D8-4 Truck Front Brake Kits are designed for ultimate in braking torque and durability to fit inside of 15" to 16" rim. D8-4 four piston calipers are designed with forged billet aluminum bodies, stainless steel pistons and high-temperature seals. Kits are paired with a massive 12.19" x 1.25" rotor for maximum torque and thermal stability. Kits include, aluminum hat assemblies, brackets, hardware and Promatrix brake pads.
Click for detailed information on the Wilwood D8-4 Truck Front Brake Kit



Kit Components
Caliper: AERODM
Pistons: 6
Mount Type: Lug
Rotor Dia: 13.38"
Rotor Type: Vented Rotor & Hat
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 18"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-Q
Finishes: Black / Red

AERO6-DM Direct-Mount Truck Front Brake Kit

The Aero6-DM Direct-Mount Brake Kits provide better holding power while crawling and more thermal capacity for high-demand off-road and highway use, including towing, hauling, and commercial applications. They are engineered for direct mounting on Chevy, Ford, Jeep, and Toyota trucks, SUVs, and 4x4s. Forged aluminum Aero6-DM six piston calipers deliver increased clamping force and are compatible with OEM rear brakes, master cylinder, and onboard computer systems. 13.38” x 1.25” premium grade, long-grain carbon iron alloy rotors substantially increase braking performance with fade-resistant Wilwood performance brake pads. Kits fit in most 17" and larger wheels.
Click for detailed information on the Wilwood AERO6-DM Direct-Mount Truck Front Brake Kit



Kit Components
Caliper: AERODM
Pistons: 6
Mount Type: Lug
Rotor Dia: 13.38"
Rotor Type: Vented Rotor & Hat
Rotor Format: GT Slotted
Min Wheel Dia: 18"
Hat: Iron Integral
Hub: N-A
Pad Compound: TX1
Finishes: Type III Ano

AERO6-DM Direct-Mount Armored Vehicle Front Brake Kit

AERODM Six Piston caliper Armored Vehicle kits were designed for the specific purpose of providing a direct mount, large capacity braking solution with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power and enhanced braking with wheel and tire upgrades. High friction TX1 Smart Pads are provided for the ultimate stopping power and temperature range. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. OEM style 1 piece 13.38" to 13.56" diameter rotors provide maximum cooling for sustained high heat durability.
Click for detailed information on the Wilwood AERO6-DM Direct-Mount Armored Vehicle Front Brake Kit



Kit Components
Caliper: AERO6
Pistons: 6
Mount Type: Radial
Rotor Dia: 14.25"
Rotor Type: 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 18" - 19"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

AERO6 Big Brake Truck Front Brake Kit

AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. It’s the biggest of the big providing big brake performance for show and dual purpose street and off-road vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Direction staggered vane 14.25” rotors provide maximum cooling for sustained high heat durability
Click for detailed information on the Wilwood AERO6 Big Brake Truck Front Brake Kit



Kit Components
Caliper: TC6
Pistons: 6
Mount Type: Radial
Rotor Dia: 16.00"
Rotor Type: 60 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 20"
Hat: Aluminum
Hub: Steel (F150 Only)
Pad Compound: BP-10
Finishes: Black / Red

TC6R Big Brake Truck Front Brake Kit

TC6R calipers are purpose built to provide unsurpassed braking capacity on trucks and SUV’s using 20” and larger wheels and tires. Combining the high clamping efficiency of the TC6R caliper with 16” diameter directional vane rotors and high friction BP-10 compound brake pads, TC6R kits provide the braking power necessary to control the higher rotating weight of ultra-sized wheels and tires, especially with high GVW vehicles and vehicles used for towing. TC6R kits are engineer application to be fully compatible with the OE master cylinder output and retain full function of the ABS system.
Click for detailed information on the Wilwood TC6R Big Brake Truck Front Brake Kit



Kit Components
Caliper: N-A
Pistons:
Mount Type: N-A
Rotor Dia: 12.80"
Rotor Type: Vented Rotor & Hat
Rotor Format: Drilled & Slotted
Min Wheel Dia: N-A
Hat: Iron Integral
Hub: N-A
Pad Compound: N-A
Finishes: N-A

Promatrix Front and Rear Replacement Rotor Kit

ProMatrix Rotor Kits can offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers. These Rotor Kits, dependent on part number can be of one piece or two piece rotor and hat construction and offered in GT slotted or SRP dilled and slotted black e-coat rotors. Some kits are offered with high performance brake pads or stainless steel flexline kits.
Click for detailed information on the Wilwood Promatrix Front and Rear Replacement Rotor Kit



Kit Components
Caliper: Grand National GN6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 13.28"
Rotor Type: 72 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 17"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

GN6R Big Brake Truck Front Brake Kit

Wilwood’s GN6R Big Brake Front Truck Kits combines Type III Anodized GN6R calipers, BP-30 SmartPads, and two piece slotted 13.28" rotors. Designed for use with the OE master cylinder output and ABS function, this Wilwood kit provides nearly effortless enhanced brake performance, durability for OE, Enhanced and Up-Armored vehicles. Verify fitment on Wilwood website.
Click for detailed information on the Wilwood GN6R Big Brake Truck Front Brake Kit



Kit Components
Caliper: AV6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 13.28"
Rotor Type: 72 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 17"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-20 / BP-30
Finishes: Type III Ano

AV6R Big Brake Truck Front Brake Kit

Wilwood’s AV6R Big Brake Front Truck Kits combines Type III Anodized GN6R calipers, BP-30 SmartPads, and two piece slotted 13.28" rotors. Designed for use with the OE master cylinder output and ABS function, this Wilwood kit provides nearly effortless enhanced brake performance, durability for OE, Enhanced and Up-Armored vehicles. Verify fitment on Wilwood website.
Click for detailed information on the Wilwood AV6R Big Brake Truck Front Brake Kit



Kit Components
Caliper: TX6-DM
Pistons: 6
Mount Type: Lug
Rotor Dia: 15.00"
Rotor Type: Vented Rotor & Hat
Rotor Format: GT Slotted
Min Wheel Dia: 20"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-Q
Finishes: Black / Red

TX6-DM Big Brake Truck Front Brake Kit

Wilwood’s Tactical Extreme TX6-DM Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6-DM Direct Mount six-piston calipers and massive 15.00” 1 piece rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include BP-Q high friction brake pads, flexline kits and all the necessary hardware to complete the installation.
Click for detailed information on the Wilwood TX6-DM Big Brake Truck Front Brake Kit



Kit Components
Caliper: TX6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 15.00" - 16.00"
Rotor Type: 60 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 20"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-20
Finishes: Black / Red / Type III Ano

TX6R Big Brake Truck Front Brake Kit

Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation.
Click for detailed information on the Wilwood TX6R Big Brake Truck Front Brake Kit



Kit Components
Caliper: SX6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 14.00" - 15.00"
Rotor Type: 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 18" - 19"
Hat: Aluminum
Hub: N-A
Pad Compound: Promatrix
Finishes: Black / Red

SX6R Big Brake Dynamic Front Brake Kit

SX6R calipers were designed for the specific purpose of providing high capacity braking with large diameter rotors for extreme duty and race vehicles. It is the largest dual purpose caliper Wilwood has produced, providing big brake performance for show and dual purpose street and track vehicles. Offering additional enhanced braking with wheel and tire upgrades. Kits are fully compatible with OE master cylinder output and ABS function. Directional 72 staggered vane 14.00” to 15.00”rotors provide maximum cooling for sustained high heat durability.
Click for detailed information on the Wilwood SX6R Big Brake Dynamic Front Brake Kit



Kit Components
Caliper: SX6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 15.00"
Rotor Type: WCCB Carbon-Ceramic
Rotor Format: Plain
Min Wheel Dia: 19"
Hat: Aluminum
Hub: N-A
Pad Compound: PCM
Finishes: Black / Red

SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit

SX6R WCCB Carbon-Ceramic Rotor Front Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. SX6R WCCB kits are engineered to maximize braking capacity inside custom wheels. These brake kits offer a simple bolt-on installation with minor modifications required to the front spindle only and are fully compatible with ABS and OE master cylinder output. SX6R calipers were designed for the specific purpose of providing high capacity braking with large diameter rotors for extreme duty and race vehicles. It is the largest dual purpose caliper Wilwood has produced, providing big brake performance for dual purpose street and track vehicles.
Click for detailed information on the Wilwood SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit



Kit Components
Caliper: N-A
Pistons:
Mount Type: N-A
Rotor Dia: 12.40" - 13.00"
Rotor Type: 48 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 17"
Hat: Aluminum
Hub: N-A
Pad Compound: Promatrix
Finishes: N-A

Promatrix Front Replacement Rotor Kit

ProMatrix Rotor Kits can offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers. These Rotor Kits, dependent on part number can be of one piece or two piece rotor and hat construction and offered in GT slotted or SRP dilled and slotted black e-coat rotors. Some kits are offered with high performance brake pads or stainless steel flexline kits.
Click for detailed information on the Wilwood Promatrix Front Replacement Rotor Kit



Kit Components
Caliper: N-A
Pistons:
Mount Type: N-A
Rotor Dia: 12.80"
Rotor Type: GT 48 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 17"
Hat: N-A
Hub: N-A
Pad Compound: N-A
Finishes: N-A

ProMatrix Front Track Rotor Kit

This ProMatrix track rotor kit was developed for competition as a direct replacement for the 12.8” diameter front rotors found on all 1997-2004 C5 models, and all 2005-2013 C6 base model Corvettes. GT-48 directional vane Spec37 race alloy rotors are mounted to the OE hubs with lightweight forged aluminum hats to deliver maximum thermal stability, cooling efficiency, and durability in sustained high heat braking cycles.
Click for detailed information on the Wilwood ProMatrix Front Track Rotor Kit



Kit Components
Caliper: D154
Pistons: 2
Mount Type: Floating
Rotor Dia: 10.50" - 12.00"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: N-A
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Polished

D154 Rear Caliper Kit

Wilwood's D154 Rear Caliper Kit offers a matching rear replacement option for our front D154 calipers. It is a direct bolt-on 2-piston replacement for the factory original single piston "Metric" calipers used on many custom application rears. With the added benefit of smaller rear piston sizing (1.96 sq-inches of area) not normally available in OEM calipers, for correct front and rear bias. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D154 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors; use the original style OE D154 brake pads and an OE M10-1.5 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads.
Click for detailed information on the Wilwood D154 Rear Caliper Kit



Kit Components
Caliper: D52
Pistons: 2
Mount Type: Floating
Rotor Dia: 11.00" - 12.00"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: N-A
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

D52 Rear Caliper Kit

Wilwood's D52 Rear Caliper Kit offers a matching rear replacement option for our front D52 calipers. It is a direct bolt-on 2-piston replacement for the factory original single piston calipers used on many custom application rears. With the added benefit of smaller rear piston sizing (2.46 sq-inches of area) not normally available in OEM calipers, for correct front and rear bias. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations.
Click for detailed information on the Wilwood D52 Rear Caliper Kit



Kit Components
Caliper: D8-4
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.75"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: 15"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Polished

D8-4 Rear Replacement Caliper Kit

D8-4 calipers are a direct bolt-on replacement for the OE calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-4 calipers provide low-maintenance performance, a huge weight savings, and high temperature reliability for street or track. D8-4 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most 67 or newer production wheels. Some wheels, including the 1965-66 OE "JK" code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16" or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and BP-10 compound "Smart Pads"
Click for detailed information on the Wilwood D8-4 Rear Replacement Caliper Kit



Kit Components
Caliper: DPC56 Caliper
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.01"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: 17"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

DPC56 Rear Replacement Caliper Kit

DPC56 rear calipers are engineered as a high performance street and custom replacement for Corvettes and hot rods using Corvette suspension. These kits combine the high-tech styling and superior performance of the SLC56 calipers with the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits are a direct bolt-on replacement for the OE calipers on all models of the C5 from 1997 to 2004, and all base model C6’s from 2005 to 2013 using the existing 12.00” diameter OE dimension rear rotors. The calipers attach directly to the Corvette spindle without the need for brackets or adapters and accept all types of OE banjo bolt style brake hoses.
Click for detailed information on the Wilwood DPC56 Rear Replacement Caliper Kit



Kit Components
Caliper: DPC56 Caliper
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.01"
Rotor Type: SRP Drilled Rotor & Hat
Rotor Format: SRP Drilled & Slotted
Min Wheel Dia: 17"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

DPC56 Rear Replacement Caliper and Rotor Kit

DPC56 rear caliper, pad, and rotor kits are engineered as high performance street and custom show replacements for Corvettes and hot rods using Corvette suspension. These kits combine the high-tech styling and superior performance of the DPC56 calipers, 12.00” diameter SRP series drilled and slotted e-coat rotors, and the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits bolt directly to the rear spindle of any model C5 or C6 from 1997-2013, without the need for additional brackets or adapters.
Click for detailed information on the Wilwood DPC56 Rear Replacement Caliper and Rotor Kit



Kit Components
Caliper: Forged Narrow Superlite 4R
Pistons: 4
Mount Type: Radial
Rotor Dia: 13.00"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: 17"
Hat: N-A
Hub: N-A
Pad Compound: BP-20
Finishes: Black / Red / Type III Ano

Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6

Superlite 4R four piston radial mount rear caliper kits add big brake stopping power and style to any 1997-2013 C5 or C6 Corvette rear suspension. These caliper kits mount in the stock location and replace the OE calipers on all models that have been updated with 13.00” rotors from the 2005-09 C6 Z51 models. Superlite 4R calipers incorporate race proven technology in a high strength, center bridge reinforced forged body design. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high temperature fade resistance for auto-cross and other sport driving applications.
Click for detailed information on the Wilwood Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6



Kit Components
Caliper: Narrow Dynapro-P Radial Mount
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.10"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: 15"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Yellow

Narrow Dynapro-P Radial Rear Caliper and Bracket Kit

Forged Narrow Dynapro Radial caliper, pad, and bracket kits are engineered as high performance street and race for Porsche 911's. These kits combine the high-tech styling and superior performance of the NDPR-P calipers and the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads
Click for detailed information on the Wilwood Narrow Dynapro-P Radial Rear Caliper and Bracket Kit



Kit Components
Caliper: D31R
Pistons: 2
Mount Type: Lug
Rotor Dia: 11.42"
Rotor Type: Vented Rotor & Hat
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

D31 Rear Brake Kit

Wilwood’s D31 Rear Brake Kits utilizing our forged aluminum D31 direct mount calipers provide the ultimate in strength, weight savings, and high efficiency brake clamping for Porsche 911 with "M" 3.00" OEM rear calipers. These calipers feature a high strength, lightweight 4.1-pound forged aluminum body fitted with machined stainless-steel pistons. D31 series calipers utilize the same 3.00" mounting centers, height and offset as the traditional 911 "M" calipers and contain standard D31 brake pads in BP-10 compound, OEM replacement 11.42” diameter and 0.79” or 0.95" thickness rotors.
Click for detailed information on the Wilwood D31 Rear Brake Kit



Kit Components
Caliper: Forged Dynalite Internal
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.19"
Rotor Type: Ultralite 32 Vane
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Dynalite Pro Series Rear Brake Kit

FDL Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications where individual wheel parking brake assemblies are not required. Forged billet Dynalite four piston calipers, two-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of off-road, competition, and other customized applications. FDL calipers can be optioned with a full range of finishes to reflect personalized style. Rotor choices provide options for high-tech show winning style, or heavy weight durability and cooling capacity for high heat competition.
Click for detailed information on the Wilwood Forged Dynalite Pro Series Rear Brake Kit



Kit Components
Caliper: Forged Dynalite Internal
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.19"
Rotor Type: Ultralite 32 & Hat
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Dynalite Rear Parking Brake Kit

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Click for detailed information on the Wilwood Forged Dynalite Rear Parking Brake Kit



Kit Components
Caliper: Forged Dynalite Internal
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.19"
Rotor Type: Ultralite 32 & Hat
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Dynalite Rear Electronic Parking Brake Kit

These FDL Pro-Series Rear EPB (Electric Parking Brake) Kits provide an innovative parking brake solution for popular car and truck rear axles. Forged billet aluminum Dynalite four piston calipers, 12.19” one-piece rotors, and high-friction pads provide balanced front/rear brake bias for all types of high-performance street machines. The unique EPB caliper provides secure parking with high-torque holding power, but simplifies installation with no mechanical cable connection needed. Comes complete with switch, indicator, control unit and harness assembly.
Click for detailed information on the Wilwood Forged Dynalite Rear Electronic Parking Brake Kit



Kit Components
Caliper: Forged Dynalite Internal
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.19"
Rotor Type: Ultralite 32 & Hat
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Dynalite Rear Parking Brake Kit (6 x 5.50 Rotor)

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Click for detailed information on the Wilwood Forged Dynalite Rear Parking Brake Kit (6 x 5.50 Rotor)



Kit Components
Caliper: Dynapro Lug Mount
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.19"
Rotor Type: Ultralite 32 & Hat
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Dynapro Lug Mount Rear Parking Brake Kit

This group of DPL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynapro Lug Mount four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Click for detailed information on the Wilwood Dynapro Lug Mount Rear Parking Brake Kit



Kit Components
Caliper: Dynapro Dust-Boot
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.19"
Rotor Type: Ultralite 32 & Hat
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Dynapro Dust-Boot Rear Parking Brake Kit

DP-DB Pro-Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Dynapro Dustboot calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. These kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-boot sealed aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Click for detailed information on the Wilwood Dynapro Dust-Boot Rear Parking Brake Kit



Kit Components
Caliper: Forged Dynapro-Low Priofile Lug Mount
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.00"
Rotor Type: Ultralite 32 & Hat
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 14"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Polished

Forged Dynapro Low-Profile Rear Parking Brake Kit

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Click for detailed information on the Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit



Kit Components
Caliper: Forged Dynapro Lug Mount Low-Profile-Dust Seal
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.00"
Rotor Type: Ultralite 32 & Hat
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 14"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Polished

Forged Dynapro Low-Profile Dust Seal Rear Parking Brake Kit

Forged Dynapro Low-Profile Dust Seal Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile Dust Seal four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Click for detailed information on the Wilwood Forged Dynapro Low-Profile Dust Seal Rear Parking Brake Kit



Kit Components
Caliper: Forged Dynapro-Low Priofile Lug Mount
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.00"
Rotor Type: Ultralite 32 & Hat
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 14"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Dynapro Low-Profile Rear Electronic Parking Brake Kit

Forged Dynapro Low-Profile Rear Electronic Parking Brake Kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The unique Electronic Parking Brake caliper provides a static high torque static holding power for parking. Supplied with control unit and harness assembly.
Click for detailed information on the Wilwood Forged Dynapro Low-Profile Rear Electronic Parking Brake Kit



Kit Components
Caliper: Forged Dynapro-Low Priofile Lug Mount
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.00"
Rotor Type: Ultralite 32 & Hat
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 14"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Polished

Forged Dynapro Low-Profile Rear Parking Brake Kit (6 x 5.50 Rotor)

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Click for detailed information on the Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit (6 x 5.50 Rotor)



Kit Components
Caliper: D154
Pistons: 2
Mount Type: Floating
Rotor Dia: 12.19"
Rotor Type: Ultralite 32 & Hat
Rotor Format: Undrilled or Drilled
Min Wheel Dia: 15"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

D154 Rear Parking Brake Kit

D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.
Click for detailed information on the Wilwood D154 Rear Parking Brake Kit



Kit Components
Caliper: AERO4
Pistons: 4
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: 48 to 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 18" - 19"
Hat: Iron
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Type III Ano

AERO4 Big Brake Rear Parking Brake Kit

AERO4 Radial rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. AERO4 four piston calipers, 12.88" or 14.00” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.
Click for detailed information on the Wilwood AERO4 Big Brake Rear Parking Brake Kit



Kit Components
Caliper: AERO4
Pistons: 4
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 18"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

AERO4 Big Brake Rear Electronic Parking Brake Kit

AERO4 Big Brake Rear Electronic Parking Brake Kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. Aero4 radial mount four piston calipers, 14” two-piece rotors, and high performance BP compound pads, provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The unique Electronic Parking Brake caliper provides a static high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Click for detailed information on the Wilwood AERO4 Big Brake Rear Electronic Parking Brake Kit



Kit Components
Caliper: Combination Parking Brake
Pistons: 1
Mount Type: Radial
Rotor Dia: 11.00" - 12.88"
Rotor Type: 48 Curved Vane
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 17"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Combination Parking Brake Caliper Rear Brake Kit

Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.
Click for detailed information on the Wilwood Combination Parking Brake Caliper Rear Brake Kit



Kit Components
Caliper: Powerlite
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.38"
Rotor Type: 36 Curved Vane
Rotor Format: Undrilled or SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Type III Ano

Powerlite-MC4 Rear Parking Brake Kit

Powerlite Rear MC4 Parking Brake Kits allow easy upgrade to 4 piston Powerlite calipers. This kit contains aluminum hubs, 2 piece rotor and hat assemblies and BP-10 performance pads. This using the stock rear upricght mounting. Kits come complete with hardware, parking brake cablee and stainless steel flexlines.
Click for detailed information on the Wilwood Powerlite-MC4 Rear Parking Brake Kit



Kit Components
Caliper: Dynapro Radial Mount
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.00" - 12.88"
Rotor Type: 48 to 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 15" - 17"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Dynapro Radial-MC4 Rear Parking Brake Kit

Dynapro 4 Radial-MC4 Rear Axle Kits replace the factory disc brakes and use the MC4 parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the Dynapro Radial calipers, BP-10 compound pads, and oversized 11.00" to 12.88” rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
Click for detailed information on the Wilwood Dynapro Radial-MC4 Rear Parking Brake Kit



Kit Components
Caliper: Dynapro Radial Mount
Pistons: 4
Mount Type: Radial
Rotor Dia: 12.88"
Rotor Type: 48 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 17"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Dynapro Radial-EPB Rear Parking Brake Kit

Dynapro 4 Radial-EPB Rear Axle Kits replace the factory disc brakes and use the EPB electronic parking brake caliper as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the Dynapro Radial calipers, BP-10 compound pads, and oversized 11.00" to 12.88” rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
Click for detailed information on the Wilwood Dynapro Radial-EPB Rear Parking Brake Kit



Kit Components
Caliper: Dynapro Radial Mount
Pistons: 4
Mount Type: Radial
Rotor Dia: 12.19" - 12.88"
Rotor Type: Vented Rotor & Hat
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 15" - 16"
Hat: Iron
Hub: N-A
Pad Compound: BP-20
Finishes: Black / Red

Dynapro Radial Rear Brake Kit For OE Parking Brake

Forged billet DynaPro four piston calipers and high performance BP-10 compound pads generate high clamping power with firm pedal response for this group of specialized rear axle brake kits. These kits retain full function of the OE parking brake and provide complimentary performance and style with front big brake upgrades. Caliper piston sizes are selected to provide balanced rear bias ratios using the output from the OE master cylinder. Rear rotor and hat combinations are engineered specific to each vehicle to provide brake performance upgrades and precise fit with the mounting of the DynaPro calipers.
Click for detailed information on the Wilwood Dynapro Radial Rear Brake Kit For OE Parking Brake



Kit Components
Caliper: Dynapro Lug Mount
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.19"
Rotor Type: Ultralite 32 Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 15"
Hat: Iron
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Dynapro Rear Brake Kit For OE Parking Brake

Forged billet DynaPro four piston calipers and high performance BP-10 compound pads generate high clamping power with firm pedal response for this group of specialized rear axle brake kits. These kits retain full function of the OE parking brake and provi
Click for detailed information on the Wilwood Dynapro Rear Brake Kit For OE Parking Brake



Kit Components
Caliper: Forged Narrow Superlite 4R
Pistons: 4
Mount Type: Radial
Rotor Dia: 12.88" - 14.00"
Rotor Type: 48 to 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 18"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Polished

Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit

Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13” or 14” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.
Click for detailed information on the Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit



Kit Components
Caliper: Forged Narrow Superlite 4R
Pistons: 4
Mount Type: Radial
Rotor Dia: 12.88" - 14.00"
Rotor Type: 48 to 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 17" - 18"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Narrow Superlite 4R Big Brake Rear Electronic Parking Brake Kit

Forged Narrow Superlite 4R Rear Electronic Parking Brake Kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13” or 14” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The unique Electronic Parking Brake caliper provides a static high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use.
Click for detailed information on the Wilwood Forged Narrow Superlite 4R Big Brake Rear Electronic Parking Brake Kit



Kit Components
Caliper: Forged Narrow Superlite 4R
Pistons: 4
Mount Type: Radial
Rotor Dia: 12.88"
Rotor Type: 48 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 17"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Narrow Superlite 4R-MC4 Big Brake Rear Parking Brake Kit

FNSL4R-MC4 Big Brake Rear Axle Kits area novel way add disc brakes with an effective parking brake actuation using the MC4 parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the FNSL4R calipers, BP-10 compound pads, and oversized 12.88" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
Click for detailed information on the Wilwood Forged Narrow Superlite 4R-MC4 Big Brake Rear Parking Brake Kit



Kit Components
Caliper: Forged Narrow Superlite 4R
Pistons: 4
Mount Type: Radial
Rotor Dia: 12.75" - 14.00"
Rotor Type: 48 to 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 17" - 18"
Hat: Iron
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake

Forged Narrow Superlite 4R four piston calipers are combined with BP-10 compound pads and 13”-14” rotors in this group of big brake kits for custom high performance street and show machines. This group of specialized kits for cars, trucks, and SUV’s retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL4R rear kits provide complimentary style and performance with 13” and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications.
Click for detailed information on the Wilwood Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake



Kit Components
Caliper: Forged Narrow Superlite 4R
Pistons: 4
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: 36 Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 19"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Forged Narrow Superlite 4R Big Brake Rear Kit

Forged Narrow Superlite 4R four piston calipers are combined with BP-10 compound pads and 14” rotors in this group of big brake kits for custom high performance street and show machines. This group of specialized kits retain full use of the OE master cylinder output and ABS where used. FNSL4R rear kits provide complimentary style and performance with 14” and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications.
Click for detailed information on the Wilwood Forged Narrow Superlite 4R Big Brake Rear Kit



Kit Components
Caliper: Forged Narrow Superlite 6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 14.25"
Rotor Type: GT 72 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 18"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-20
Finishes: Black / Red

Forged Narrow Superlite 6R Big Brake Rear Brake Kit For OE Parking Brake

Forged Narrow Superlite 6R four piston calipers are combined with BP-10 compound pads and 14.25” rotors in this group of big brake kits for Trucks. This group of specialized kits retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL6R rear kits provide complimentary style and performance with 14.25” and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications.
Click for detailed information on the Wilwood Forged Narrow Superlite 6R Big Brake Rear Brake Kit For OE Parking Brake



Kit Components
Caliper: Forged Narrow Superlite 6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 12.88"
Rotor Type: 48 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 17"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

FNSL6R/EPB Big Brake Truck Rear Brake Kit

Wilwood’s FNSL6R/EPB Big Brake Rear Truck Kits combines Type III Anodized FNSL6R calipers, BP-30 SmartPads, and two piece slotted 12.88" rotors. Equipped with our newest Electronic Parking Brake Caliper (EPB). Designed for use with the OE master cylinder output and ABS function, this Wilwood kit provides nearly effortless enhanced brake performance, durability for OE, Enhanced and Up-Armored vehicles. Verify fitment on Wilwood website.
Click for detailed information on the Wilwood FNSL6R/EPB Big Brake Truck Rear Brake Kit



Kit Components
Caliper: AERO4
Pistons: 4
Mount Type: Radial
Rotor Dia: 14.00" - 14.25"
Rotor Type: 48 to 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 18" - 19"
Hat: Iron
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red / Type III Ano

AERO4 Big Brake Rear Brake Kit For OE Parking Brake

AERO4 Big Brake rear axle kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the AERO4 calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
Click for detailed information on the Wilwood AERO4 Big Brake Rear Brake Kit For OE Parking Brake



Kit Components
Caliper: AERO6
Pistons: 4
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: 72 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 18" - 19"
Hat: Iron
Hub: N-A
Pad Compound: BP-20
Finishes: Black / Red

AERO6 Big Brake Rear Brake Kit For OE Parking Brake

AERO6 Big Brake rear axle kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the AERO6 calipers, BP-20 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
Click for detailed information on the Wilwood AERO6 Big Brake Rear Brake Kit For OE Parking Brake



Kit Components
Caliper: AERO4
Pistons: 4
Mount Type: Radial
Rotor Dia: 15.00"
Rotor Type: 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 19"
Hat: Aluminum
Hub: 170-17010
Pad Compound: BP-10
Finishes: Black / Red

AERO4 Big Brake Rear Dynamic Electronic Parking Brake Kit

AERO4 Big Brake Dynamic Rear Electronic Parking Brake Kits provide the ultimate Big Brake solution for Super Car rear axles that require a parking brake. Aero4 four piston calipers, 15” Dynamic Lug Mount rotors, and high performance BP compound pads, provide optimized and balanced braking to compliment front big brake upgrades. The unique Electronic Parking Brake caliper provides a static high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Click for detailed information on the Wilwood AERO4 Big Brake Rear Dynamic Electronic Parking Brake Kit



Kit Components
Caliper: AERO4
Pistons: 4
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: 36 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 18"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

AERO4-MC4 Big Brake Rear Parking Brake Kit

AERO4 Big Brake Rear Axle Kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the W4AR calipers, BP-10 compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
Click for detailed information on the Wilwood AERO4-MC4 Big Brake Rear Parking Brake Kit



Kit Components
Caliper: AERO4
Pistons: 4
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: WCCD Carbon-Ceramic
Rotor Format: Plain
Min Wheel Dia: 18"
Hat: Aluminum
Hub: N-A
Pad Compound: PCM
Finishes: Black / Red / Type III Ano

AERO4 WCCB Carbon-Ceramic Big Brake Rear Parking Brake Kit

AERO4 WCCB Carbon-Ceramic Rotor Rear Parking Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO4 WCCB kits are engineered to maximize braking capacity inside custom wheels. Rear parking brake kits offer a simple bolt-on installation with internal shoe backing plates for outstanding holding power and are fully compatible with ABS and OE master cylinder output. AERO4 calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. A high temperature, fluid resistant Type III anodize plating is the standard for performance, other colors (Black and Red powder coat) are available as options. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.
Click for detailed information on the Wilwood AERO4 WCCB Carbon-Ceramic Big Brake Rear Parking Brake Kit



Kit Components
Caliper: AERO4
Pistons: 4
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: WCCD Carbon-Ceramic
Rotor Format: Plain
Min Wheel Dia: 18"
Hat: Aluminum
Hub: N-A
Pad Compound: PCM
Finishes: Black / Red / Type III Ano

AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit

AERO4 WCCB Carbon-Ceramic Rotor Rear OE Parking Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO4 WCCB kits are engineered to maximize braking capacity inside custom wheels. Rear parking brake kits offer a simple bolt-on installation with OE original internal shoe parking brakes for outstanding holding power and are fully compatible with ABS and OE master cylinder output. AERO4 calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. A high temperature, fluid resistant Type III anodize plating is the standard for performance, other colors (Black and Red powder coat) are available as options. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.
Click for detailed information on the Wilwood AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit



Kit Components
Caliper: AERO4
Pistons: 4
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: WCCD Carbon-Ceramic
Rotor Format: Plain
Min Wheel Dia: 19"
Hat: Aluminum
Hub: N-A
Pad Compound: PCM
Finishes: Black / Red

AERO4 WCCB Carbon-Ceramic Big Brake Rear Kit

AERO4 WCCB Carbon-Ceramic Rotor Rear Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO4 WCCB kits are engineered to maximize braking capacity inside custom wheels. Rear parking brake kits offer a simple bolt-on installation and are fully compatible with ABS and OE master cylinder output. AERO4 calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.
Click for detailed information on the Wilwood AERO4 WCCB Carbon-Ceramic Big Brake Rear Kit



Kit Components
Caliper: AERO4
Pistons: 4
Mount Type: Radial
Rotor Dia: 14.25"
Rotor Type: 72 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 18" - 19"
Hat: Iron
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

AERO4 Big Brake Truck Rear Brake Kit

AERO4 Big Brake rear axle kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model trucks and SUV’s. High capacity braking from the AERO4 calipers, BP-10 or BP-20 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles, tow rigs, and all others with increased brake requirements from high GVW.
Click for detailed information on the Wilwood AERO4 Big Brake Truck Rear Brake Kit



Kit Components
Caliper: TC6
Pistons: 6
Mount Type: Radial
Rotor Dia: 16.00"
Rotor Type: 60 Curved Vane
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 20"
Hat: Iron
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

TC6R Big Brake Truck Rear Brake Kit

TC6R rear axle disc brake kits with 16” rotors are the ultimate big brake solution for highly customized and modified trucks or SUV’s with 20” and larger wheels. TC6R kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. TC6R calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle. These combined enhancements provide the necessary control over big wheels and tires to provide safe stopping on heavy weight vehicles.
Click for detailed information on the Wilwood TC6R Big Brake Truck Rear Brake Kit



Kit Components
Caliper: TX6R
Pistons: 4
Mount Type: Radial
Rotor Dia: 16.00"
Rotor Type: Vented Rotor & Hat
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: 20"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-20
Finishes: Black / Red / Type III Ano

TX4R Big Brake Truck Rear Brake Kit

Wilwood’s Tactical Extreme TX4R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX4R radial mount four-piston calipers and massive 16.00”, 1 piece, GTB alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines are supplied for this specific application.
Click for detailed information on the Wilwood TX4R Big Brake Truck Rear Brake Kit



Kit Components
Caliper: TX6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 15.00" - 16.00"
Rotor Type: 60 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 20"
Hat: Iron
Hub: N-A
Pad Compound: BP-20
Finishes: Black / Red / Type III Ano

TX6R Big Brake Truck Rear Brake Kit

Wilwood’s Tactical Extreme TX6R Big Brake rear kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. TX6R rear kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.
Click for detailed information on the Wilwood TX6R Big Brake Truck Rear Brake Kit



Kit Components
Caliper: TX6-DM
Pistons: 6
Mount Type: Lug
Rotor Dia: 15.50"
Rotor Type: Vented Rotor & Hat
Rotor Format: GTB Slotted
Min Wheel Dia: 20"
Hat: Iron Integral
Hub: N-A
Pad Compound: BP-Q
Finishes: Black / Red

TX6-DM Big Brake Truck Rear Brake Kit

Wilwood’s Tactical Extreme TX6-DM Direct Mount Big Brake rear kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6-DM direct mount six-piston calipers and massive 15.50” GTB grooved rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. TX6-DM rear kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades.
Click for detailed information on the Wilwood TX6-DM Big Brake Truck Rear Brake Kit



Kit Components
Caliper: Billet Narrow Dynalite
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.19"
Rotor Type: Ultralite 30 Vane
Rotor Format: Drilled & Slotted
Min Wheel Dia: N-A
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Polished

Narrow Dynalite Rear Inboard Rear Brake Kit

Narrow Dynalite Rear Inboard kits offer complete disc brake upgrade solutions for Winters IRS Quick Change applications used on Street Rods. Based on the venerable Styled Billet Narrow Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. kit require no modifications for installation, and contain 12.19 x 0.81 rotors, adapters, bolt kits and BP-10 brake pads.
Click for detailed information on the Wilwood Narrow Dynalite Rear Inboard Rear Brake Kit



Kit Components
Caliper: N-A
Pistons:
Mount Type: N-A
Rotor Dia: 11.66" - 12.27"
Rotor Type: Vented Rotor & Hat
Rotor Format: GT Slotted / SRP Drilled & Slotted
Min Wheel Dia: N-A
Hat: Iron Integral
Hub: N-A
Pad Compound: Promatrix
Finishes: N-A

Promatrix Rear Replacement Rotor Kit

ProMatrix Rotor Kits can offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers. These Rotor Kits, dependent on part number can be of one piece or two piece rotor and hat construction and offered in GT slotted or SRP dilled and slotted black e-coat rotors. Some kits are offered with high performance brake pads or stainless steel flexline kits.
Click for detailed information on the Wilwood Promatrix Rear Replacement Rotor Kit



Kit Components
Caliper: MC4
Pistons:
Mount Type: Lug
Rotor Dia: 12.19"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: 15"
Hat: N-A
Hub: N-A
Pad Compound: CM - Composite Metallic
Finishes: Black / Red

MC4 Rear Pro Street Parking Brake Upgrade Kit

MC4 Rear Pro Street Parking Brake Upgrade Kit uses the MC4 parking brake to upgrade Forged Dynalite Pro Series Rear Brake Kits: 140-2111 thru 140-2118 and 140-3018, 140-3722, 140-5236, 140-5591, 140-5746 to a full and effective parking brake assembly. Contains, brackets and calipers and mounting hardware to adapt your existing bracket assembly. Kit use universal parking brake cable kit part number 330-9371.
Click for detailed information on the Wilwood MC4 Rear Pro Street Parking Brake Upgrade Kit



Kit Components
Caliper: Electronic Parking Brake
Pistons:
Mount Type: Lug
Rotor Dia: 11.00" - 14.00"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: N-A
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

Electronic Parking Brake Rear Retrofit Brake Kit

Wilwood’s Electronic Parking Brake kits provides a complete parking brake solution for 0.81" and 1.10" rotor width rear brake kits. The Black or Red powder coat external electronic parking brake provides superior static holding power and a simplified installation with the included controller, harness and switch assembly. Installation would require custom bracket assemblies to fit to most applications.
Click for detailed information on the Wilwood Electronic Parking Brake Rear Retrofit Brake Kit

Drag Racing Brake Kits



Kit Components
Caliper: Dynalite Single Floater
Pistons: 1
Mount Type: Floating
Rotor Dia: 10.00"
Rotor Type: Solid Steel Rotor
Rotor Format: Undrilled or Drilled
Min Wheel Dia: N-A
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Type III Ano

Dynalite Single Floater Front Drag Brake Kit

The Dynalite Single Floater front drag kit is purpose built for use on lightweight cars using spindle mount brakes on various lightweight drag spindles. The DLSF calipers and lightweight steel rotors combine to provide excellent static holding power for use as a staging brake or as a supplementary brake on vehicles using parachutes and rear brakes to provide the majority of the stopping power. Aluminum hats are provided to mount the rotors directly to the spindle mount wheels. A choice of solid or lightweight drilled rotors is offered to provide the lowest possible weight to the front axle. Mount brackets are included.
Click for detailed information on the Wilwood Dynalite Single Floater Front Drag Brake Kit



Kit Components
Caliper: Dynapro Single
Pistons: 2
Mount Type: Lug
Rotor Dia: 10.00"
Rotor Type: Solid Steel Rotor
Rotor Format: Undrilled or Drilled
Min Wheel Dia: 14"
Hat: N-A
Hub: Forged Aluminum
Pad Compound: BP-10
Finishes: Type III Ano

Dynapro Single Front Drag Brake Kit

DPS Front Drag kits incorporate the newest DynaPro caliper technology in this traditional style front brake kit. DPS kits are built for the common front spindles and aftermarket struts used on four-wheel disc brake drag cars that weigh in under 2,400 pounds. The billet DPS caliper is a fixed mount, two-piston design that mounts directly to the spindle with a bolt-on bracket. Forged billet, five lug hubs with direct mount lightweight steel rotors combine to provide consistent braking with an average weight savings of 35 pounds over stock drum or disc brakes. Kits include all new hardware, wheel bearings, and seals.
Click for detailed information on the Wilwood Dynapro Single Front Drag Brake Kit



Kit Components
Caliper: Forged Dynalite
Pistons: 4
Mount Type: Lug
Rotor Dia: 10.75"
Rotor Type: Solid Steel Rotor
Rotor Format: Undrilled or Drilled
Min Wheel Dia: 15"
Hat: N-A
Hub: Forged Aluminum
Pad Compound: BP-10
Finishes: Type III Ano

Forged Dynalite Front Drag Brake Kit

FDL Front Drag kits are drag racing’s most popular front brake kits. FDL kits are available for the popular muscle car spindles and select aftermarket front struts used on four-wheel disc cars weighing up to 2,800 pounds, or rear drum brake equipped cars weighing up to 2,400 pounds. Forged billet FDL four piston calipers mount directly to the spindle with a bolt-on bracket. Forged billet, five lug hubs with direct mount steel rotors combine to provide an average weight savings of over 30 pounds compared to stock drum or disc brakes. Kits include all new hardware, wheel bearings, seals and extra length lug studs.
Click for detailed information on the Wilwood Forged Dynalite Front Drag Brake Kit



Kit Components
Caliper: Dynapro Lug Mount
Pistons: 4
Mount Type: Lug
Rotor Dia: 10.75"
Rotor Type: Solid Steel Rotor
Rotor Format: Drilled
Min Wheel Dia: 15"
Hat: N-A
Hub: Forged Aluminum
Pad Compound: BP-20
Finishes: Nickel

Dynapro Lug Mount Front Dynamic Drag Brake Kit

Wilwood’s newest Dynapro Front Dynamic Drag kits will soon be drag racing’s most popular front brake kits. DPL kits are available for the popular muscle car spindles and struts used on four-wheel disc cars weighing up to 2,800 pounds, or rear drum brake equipped cars weighing up to 2,400 pounds. Dynamic rotor mounting adapters with t-nuts promote less distortion due to temperature and extends rotor life. Forged billet DPL four piston calipers mount directly to the spindle with an aluminum bolt-on brackets. Forged billet, five lug hubs with direct mount steel rotors combine to provide an average weight savings of over 30 pounds compared to stock drum or disc brakes. Kits include all new hardware, wheel bearings, seals and extra length lug studs.
Click for detailed information on the Wilwood Dynapro Lug Mount Front Dynamic Drag Brake Kit



Kit Components
Caliper: Forged Dynalite Internal
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.75"
Rotor Type: Solid Steel Rotor
Rotor Format: Undrilled or Drilled
Min Wheel Dia: 15"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Type III Ano

Forged Dynalite Front Drag Brake Kit (Hat)

FDL Front Drag Brake Kits with Hats are drag racing’s most popular front brake kits. FDL kits are available for the popular Import car spindles or front struts used on four-wheel disc cars weighing up to 2,800 pounds, or rear drum brake equipped cars weighing up to 2,400 pounds. Forged billet FDL four piston calipers mount directly to the spindle with a bolt-on bracket. Forged Hats with direct mount steel rotors combine to provide an average weight savings of over 30 pounds compared to stock drum or disc brakes. Kits include attachment hardware, brake pads, and instructions.
Click for detailed information on the Wilwood Forged Dynalite Front Drag Brake Kit (Hat)



Kit Components
Caliper: Dynapro Radial Mount
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.75"
Rotor Type: Solid Steel Rotor
Rotor Format: Undrilled or Drilled
Min Wheel Dia: 15"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Type III Ano

Dynapro Radial Front Drag Brake Kit

DPR forged billet, radial mount four piston calipers are used in this select group of drag racing kits. The OE brakes on vehicles originally equipped with 16” or larger wheels generally do not fit inside the popular 15” drag wheels. Specially designed radial caliper mount brackets bolt directly to the OE caliper mount, and provide secure and accurate mounting for the DPR caliper. Kits with 3/8” steel rotors are recommended for four-wheel disc brake cars up to 2,800 pounds. Kits with .81” rotors should be used on cars over 2,800 pound cars, or lighter cars running extreme speeds desiring increased rotor durability.
Click for detailed information on the Wilwood Dynapro Radial Front Drag Brake Kit



Kit Components
Caliper: Forged Dynalite
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.44"
Rotor Type: Solid Steel Rotor
Rotor Format: Undrilled or Drilled
Min Wheel Dia: 15"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-10
Finishes: Type III Ano

Forged Dynalite Rear Drag Brake Kit

FDL Rear Drag kits are true bolt-on kits available for all popular muscle car rear axles and aftermarket rears built with custom axle ends. Kits in this group are purpose built for sportsman category door cars and others with full functional four-wheel disc brakes. Based on the specific style of housing end and axle offset, mounting kits securely install the four-piston forged Dynalite caliper over 3/8” plate steel rotors that are mounted to the axle with an aluminum hat. Standard kits include solid face rotors, with optional drilled rotor kits available to further reduce driveline weight in classes where every weight advantage is necessary.
Click for detailed information on the Wilwood Forged Dynalite Rear Drag Brake Kit



Kit Components
Caliper: Narrow Dynapro Radial Mount
Pistons: 4
Mount Type: Radial
Rotor Dia: 12.90"
Rotor Type: Solid Steel Rotor
Rotor Format: Drilled
Min Wheel Dia: 17"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-20
Finishes: Type III Ano

Dynapro Radial Rear Drag Brake Kit

DynaPro4R Drag Race rear brake kits deliver high torque stopping power with a substantial weight savings over the OE brake components. Dynamic mount steel rotors weigh only 5.7 pounds each. They attach to the OE hubs with lightweight forged aluminum hats using our T-nut mounting system that allows the rotor to move independently of the hat during heat cycles. This eliminates stress at the mount points and the subsequent rotor distortion that can otherwise occur with fixed mount steel plate rotors. Dynamic mount rotors also assure full release from the pads to run true and drag free down the track.
Click for detailed information on the Wilwood Dynapro Radial Rear Drag Brake Kit



Kit Components
Caliper: Dynapro Lug Mount
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.44"
Rotor Type: Super Alloy
Rotor Format: Drilled
Min Wheel Dia: 15"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-28
Finishes: Type III Ano

Dynapro SA Lug Drive Dynamic Rear Drag Brake Kit

Wilwood's new Billet Dynapro Lug Drive Dynamic Rotor Mount Brake Kits are especially beneficial to cars that rely heavily on the rear brakes for stopping and any other high speed, heavy weight cars that generate above average rear brake heat. The lug-drive rotor mounting system eliminates the rotor bolts and allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Brake response and pedal feel remain consistent. Pad knock back and rotor drag are eliminated. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. All problems associated with thermal distortion, including bolt hole alignment issues when trying to re-install new rotors on a previously used hat, are eliminated. Kits are available in Single and Dual caliper configurations.
Click for detailed information on the Wilwood Dynapro SA Lug Drive Dynamic Rear Drag Brake Kit



Kit Components
Caliper: Dynapro Lug Mount
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.44"
Rotor Type: Super Alloy
Rotor Format: Drilled
Min Wheel Dia: 15"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-28
Finishes: Type III Ano

Dynapro Dual SA Lug Drive Dynamic Rear Drag Brake Kit

Wilwood's new Billet Dynapro Lug Drive Dynamic Rotor Mount Brake Kits are especially beneficial to cars that rely heavily on the rear brakes for stopping and any other high speed, heavy weight cars that generate above average rear brake heat. The lug-drive rotor mounting system eliminates the rotor bolts and allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Brake response and pedal feel remain consistent. Pad knock back and rotor drag are eliminated. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. All problems associated with thermal distortion, including bolt hole alignment issues when trying to re-install new rotors on a previously used hat, are eliminated. Kits are available in Single and Dual caliper configurations.
Click for detailed information on the Wilwood Dynapro Dual SA Lug Drive Dynamic Rear Drag Brake Kit

Road Racing Brake Kits



Kit Components
Caliper: Forged Dynalite
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.00"
Rotor Type: 72 Vane
Rotor Format: GT Slotted
Min Wheel Dia: 15"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

Forged Dynalite Big Brake Front Brake Kit (Race)

Kits in this competition group are configured for road racing on vehicles equipped with OE production based suspension in categories where brake system upgrades are permitted. Each component is selected application specific for performance and durability in sustained high heat competition. All kits include forged aluminum, fixed mount “ST” series calipers equipped with Thermlock® pistons to resist fade and extend service life by reducing the heat transfer into the calipers from the pads. GT series Spec 37 alloy rotors provide high cooling efficiency, thermal stability, and durability. Overall unsprung and rotating weight are minimized by mounting the rotors to the hubs or axle with forged aluminum hats. Kits also include high temperature race compound pads, stainless steel braided flexlines, caliper mounting brackets, and all premium grade hardware. Click on the kit part number for the specific kit details including a component list, wheel clearance requirements, and a detailed installation guide.
Click for detailed information on the Wilwood Forged Dynalite Big Brake Front Brake Kit (Race)



Kit Components
Caliper: Forged Dynapro
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.00"
Rotor Type: 72 Vane
Rotor Format: GT Slotted
Min Wheel Dia: 15"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

Forged Dynapro Big Brake Front Brake Kit (Race)

Forged Dynapro 4 piston lug mount calipers are coupled with the high cooling capacity of Wilwood’s proprietary Spec-37 material 11.00" diameter GT 72 directional vane rotors to provide the ultimate brake package for unrestricted road race competition. High temperature, fluid and abrasion resistant proprietary type III anodize finish is standard with Dynapro/ST calipers.
Click for detailed information on the Wilwood Forged Dynapro Big Brake Front Brake Kit (Race)



Kit Components
Caliper: Dynapro Radial Mount
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.75"
Rotor Type: 36 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 15"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

Dynapro Radial Big Brake Front Brake Kit (Race)

Forged Dynapro 4 piston radial mount calipers are coupled with the high cooling capacity of Wilwood’s proprietary Spec-37 material 11.75" diameter GT 36 directional vane rotors to provide the ultimate brake package for unrestricted road race competition. High temperature, fluid and abrasion resistant proprietary type III anodize finish is standard with Dynapro/ST calipers.
Click for detailed information on the Wilwood Dynapro Radial Big Brake Front Brake Kit (Race)



Kit Components
Caliper: Narrow Dynapro Radial Mount
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.00"
Rotor Type: 36 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 15"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-40
Finishes: Type III Ano

Forged Narrow Dynapro Big Brake Front Brake Kit (Race)

Forged Narrow Dynapro 4 piston radial mount calipers are coupled with the high cooling capacity of Wilwood’s proprietary Spec-37 material 11.00" diameter GT 36 directional vane rotors dynamically mounted to lightweight aluminum hats to provide the ultimate brake package for unrestricted road race competition. High temperature, fluid and abrasion resistant proprietary type III anodize finish is standard with Narrow Dynapro calipers.
Click for detailed information on the Wilwood Forged Narrow Dynapro Big Brake Front Brake Kit (Race)



Kit Components
Caliper: Forged Superlite 4R
Pistons: 4
Mount Type: Radial
Rotor Dia: 13.06"
Rotor Type: 48 Curved Vane
Rotor Format: GT Slotted / Plain
Min Wheel Dia: 18"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

Forged Superlite 4R Big Brake Front Brake Kit (Race)

Kits in this competition group are configured for road racing on vehicles equipped with OE production based suspension in categories where brake system upgrades are permitted. Each component is selected application specific for performance and durability in sustained high heat competition. All kits include forged aluminum, fixed mount “ST” series calipers equipped with Thermlock® pistons to resist fade and extend service life by reducing the heat transfer into the calipers from the pads. GT series Spec 37 alloy rotors provide high cooling efficiency, thermal stability, and durability. Overall unsprung and rotating weight are minimized by mounting the rotors to the hubs or axle with forged aluminum hats. Kits also include high temperature race compound pads, stainless steel braided flexlines, caliper mounting brackets, and all premium grade hardware. Click on the kit part number for the specific kit details including a component list, wheel clearance requirements, and a detailed installation guide.
Click for detailed information on the Wilwood Forged Superlite 4R Big Brake Front Brake Kit (Race)



Kit Components
Caliper: Forged Superlite 6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 12.88"
Rotor Type: 48 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 17" - 18"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

Forged Superlite 6R Big Brake Front Brake Kit (Race)

Kits in this competition group are configured for use in unrestricted class road racing with 17” or larger wheels. FSL6R/ST six-piston calipers with Thermlock pistons are matched with 12.88” directional vane GT competition rotors. These proven winners have delivered championship performance in road racings’ most grueling production car categories. Dynamically mounted rotors to forged aluminum hats, with radial mount brackets secure the calipers to the OE location without modification. Kits also include BP-30 high friction race compound pads, premium grade hardware, and stainless steel braided flexlines.
Click for detailed information on the Wilwood Forged Superlite 6R Big Brake Front Brake Kit (Race)



Kit Components
Caliper: Forged Superlite 4R
Pistons: 4
Mount Type: Radial
Rotor Dia: 12.19" -13.06"
Rotor Type: GT 48 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 16" - 17"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

Forged Superlite 4R Big Brake Lug Drive Front Brake Kit (Race)

These kits are configured for dedicated road racing and requires 17” or larger wheels designed with additional inside clearance to accommodate the larger than stock brake package. The four piston FNSL4R/ST radial mount calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Lug Drive Spec37 alloy, GT 12.19" to 13.00” diameter directional vane rotors are dynamically mounted to the OE hubs with weight saving forged aluminum hats.
Click for detailed information on the Wilwood Forged Superlite 4R Big Brake Lug Drive Front Brake Kit (Race)



Kit Components
Caliper: Forged Narrow Superlite 6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 12.88"
Rotor Type: 48 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 17"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Race)

These kits are configured for dedicated road racing and requires 17” or larger wheels designed with additional inside clearance to accommodate the larger than stock brake package. The six piston FNSL6R/ST radial mount calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Spec37 alloy, GT competition series 12.88” diameter directional vane rotors are dynamically or fixed mounted to the OE hubs with weight saving forged aluminum hats.
Click for detailed information on the Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (Race)



Kit Components
Caliper: Forged Superlite 6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 13.08"
Rotor Type: 48 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 17"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

Forged Superlite 6R Big Brake Lug Drive Front Brake Kit (Race)

These kits are configured for dedicated road racing and requires 17” or larger wheels designed with additional inside clearance to accommodate the larger than stock brake package. The six piston FSL6R/ST radial mount calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Spec37 alloy, GT competition series 12.88" to 13.08” diameter directional vane rotors are dynamically or fixed mounted to the OE hubs with weight saving forged aluminum hats.
Click for detailed information on the Wilwood Forged Superlite 6R Big Brake Lug Drive Front Brake Kit (Race)



Kit Components
Caliper: Forged Narrow Superlite 6R
Pistons: 6
Mount Type: Radial
Rotor Dia: 13.06"
Rotor Type: 48 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 16" - 17"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

Forged Narrow Superlite 6R Big Brake Lug Drive Front Brake Kit (Race)

This kit is configured for dedicated road racing on 2019 - 2022 Hyundai Velocitor models. The six piston FNSL6R/ST radial mount calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Spec37 alloy, GT competition series 13.06” diameter directional vane rotors are dynamically mounted to the OE hubs with weight saving forged aluminum hats. Unsprung and rotating weight are minimized while providing high cooling efficiency and rugged durability with thermal stability in sustained high heat competition. Mounting brackets, including all premium grade fasteners, secure the calipers in the stock location without modifications. This race winning system is completed with high temperature, high friction, endurance compound race pads selected specifically by application. Stainless steel braided flexlines are included for installation.
Click for detailed information on the Wilwood Forged Narrow Superlite 6R Big Brake Lug Drive Front Brake Kit (Race)



Kit Components
Caliper: AERO6
Pistons: 6
Mount Type: Radial
Rotor Dia: 14.25"
Rotor Type: 72 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 18" - 19"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

AERO6 Big Brake Front Brake Kit (Race)

Aerolite four or six piston calipers and dynamic lug-drive Spec37 alloy staggered directional vane rotors combine to deliver high capacity, consistent braking, and thermal stability for road racing, autocross, and track days. Forged aluminum, Type III hard-anodized, radial-mount racing calipers feature a central bridge for less deflection. Spec37 alloy GT72 rotors are dynamically mounted with a single snap ring to allow thermal expansion. Forged aluminum lug-drive hats reduce rotational and unsprung weight and simplify installation without the need for rotor mounting bolts. Kits include caliper mounting brackets and premium hardware. Click on the kit part number for details, including wheel clearance requirements and a detailed installation guide. Kits are a direct bolt-on for production C5/C6 cars or custom builds using Corvette suspension.
Click for detailed information on the Wilwood AERO6 Big Brake Front Brake Kit (Race)



Kit Components
Caliper: AERO4
Pistons: 4
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: GT 72 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 18" - 19"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

AERO4 Big Brake Lug Drive Front Brake Kit (Race)

AERO4R/ST four piston radial mount race calipers are coupled with the high cooling capacity of 14.00" Dynamic Lug Drive Spec37 GT directional vane rotors to provide the ultimate brake package for unrestricted road race competition. AERO6R/ST calipers use a forged aluminum body and feature a Type III Mil-Spec, medium gray color hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. This latest model of the AERO4R/ST calipers features a wider than standard body that accepts 20mm thick pads to add volume for longer service life. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance.
Click for detailed information on the Wilwood AERO4 Big Brake Lug Drive Front Brake Kit (Race)



Kit Components
Caliper: AERO6
Pistons: 6
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: 72 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 18" - 19"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

AERO6 Big Brake Lug Drive Front Brake Kit (Race)

AERO6R/ST six piston radial mount race calipers are coupled with the high cooling capacity of 14.00" Dynamic Lug Drive Spec37 GT directional vane rotors to provide the ultimate brake package for unrestricted road race competition. AERO6R/ST calipers use a forged aluminum body and feature a Type III Mil-Spec, medium gray color hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. This latest model of the AERO6R/ST calipers features a wider than standard body that accepts 20mm thick pads to add volume for longer service life. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance.
Click for detailed information on the Wilwood AERO6 Big Brake Lug Drive Front Brake Kit (Race)



Kit Components
Caliper: GN4R
Pistons: 4
Mount Type: Radial
Rotor Dia: 14.00"
Rotor Type: 48 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 18" - 19"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

GN4R Big Brake Lug Drive Front Brake Kit (Race)

GN4R/ST four piston radial mount race calipers are coupled with the high cooling capacity of 13.00" Dynamic Lug Drive Spec37 GT directional vane rotors to provide the ultimate brake package for road race competition restricted to four piston calipers. GN4R/ST calipers use a forged aluminum body and feature a Type III Mil-Spec, medium gray color hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. This latest model of the GN4R/ST calipers features a 20mm thick pads to add volume for longer service life. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance.
Click for detailed information on the Wilwood GN4R Big Brake Lug Drive Front Brake Kit (Race)



Kit Components
Caliper: Forged Narrow Superlite 4R
Pistons: 4
Mount Type: Radial
Rotor Dia: 12.88"
Rotor Type: 48 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 17"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race)

Forged Narrow Superlite 4R caliper rear road race kits provide matched performance in conjunction with FSL6R and AERO6R front race kits on vehicles built specifically for competition. FSL4R calipers use stainless steel pistons to retard heat transfer from the pads and high temperature seals for reliability in sustained high heat. Radial mount brackets attach the caliper in the stock location. GT series directional vane competition rotors provide high efficiency cooling and mount to the drive axles with forged aluminum hats. Kits also include high temperature, high friction race compound pads and all premium grade fasteners.
Click for detailed information on the Wilwood Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race)



Kit Components
Caliper: Forged Superlite 4R
Pistons: 4
Mount Type: Radial
Rotor Dia: 14.00:
Rotor Type: 36 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 18"
Hat: Aluminum
Hub: N-A
Pad Compound: BP-30
Finishes: Type III Ano

Forged Superlite 4R Big Brake Rear Brake Kit (Race)

Forged Superlite 4R caliper rear road race kits provide matched performance in conjunction with FSL6R and AERO6R front race kits on vehicles built specifically for competition. FNSL4R calipers use high temperature, fluid resistant Type III hard anodize finish, stainless steel pistons to retard heat transfer from the pads and high temperature seals for reliability in sustained high heat. Radial mount brackets attach the caliper in the stock location. GT series directional vane competition rotors are dynamically mounted to forged aluminum hats. Kits also include high temperature, high friction race compound pads and all premium grade fasteners.
Click for detailed information on the Wilwood Forged Superlite 4R Big Brake Rear Brake Kit (Race)

Open Wheel Sprint & Midget Brake Kits



Kit Components
Caliper: Dynapro Radial Mount
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.75"
Rotor Type: 36 Curved Vane
Rotor Format: GT Slotted
Min Wheel Dia: 15"
Hat: N-A
Hub: N-A
Pad Compound: BP-40
Finishes: Type III Ano

Dynapro Radial Front Sprint Brake Kit

The Dynapro Radial Asphalt Sprint kits are a further evolution of a proven design from Wilwood’s 40 years of engineering and producing the best open wheel braking systems. Dynapro Radial 4 piston calipers have full 4.80 square inches of area for increased clamping force. Kits are offered with GT 36 curved vane Spec-37 for high heat durability and BP-40 high friction racing pads. Kit come complete with caliper, brake pads, caliper mounting brackets, caliper mount bolt kit, rotor and rotor mounting hardware.
Click for detailed information on the Wilwood Dynapro Radial Front Sprint Brake Kit



Kit Components
Caliper: GP320
Pistons: 4
Mount Type: Lug
Rotor Dia: 10.50"
Rotor Type: Polymetalic SA
Rotor Format: Drilled & Slotted
Min Wheel Dia: N-A
Hat: N-A
Hub: Aluminum Dynamic
Pad Compound: Purple
Finishes: Type III Ano

GP320 Midget Front Brake Kit

The GP320 System features Wilwood’s competition proven dynamic rotor mount system, specially treated PolyMetallic lightweight steel alloy rotors, and the highly efficient clamping force of the GP320 billet caliper for the most positive and fade-free performance available for sprint racing.Component Features: GP 320 Billet Aluminum 4 Piston Calipers with Four small pistons provide balanced distribution of the pad load for improved response and longer pad wear. PolyMetallic Steel Alloy Rotors: Unlike ceramic coatings that can flake away from the base metal during high heat cycling, Wilwood’s PolyMetallic coating controls heat transfer and provides a durable surface that can generate high friction for long, trouble-free duty cycles without the need for recoating. Dynamic mounting with Wilwood’s t-nut system isolates all thermal stress and distortion at the rotor mounting points caused by the different temperatures and expansion rates between the lightweight alloy steel rotor and the aluminum rotor mount plate. The rotors stay flatter and run truer to eliminate any possibility of pad knock-back or deflection. Dynamic Mount Rotor Plate: Lightweight billet alloy plate is machined with the slots to accept the rotor bolt t-nuts and adapt the rotor directly to 3 bolt sprint hubs. Wilwood 6211-CM Brake Pads A rigid caliper mounting bracket with premium grade fasteners and shim washers are included for secure, deflection free mounting.
Click for detailed information on the Wilwood GP320 Midget Front Brake Kit



Kit Components
Caliper: GP320
Pistons: 4
Mount Type: Lug
Rotor Dia: 10.50"
Rotor Type: Polymetalic SA
Rotor Format: Drilled
Min Wheel Dia: N-A
Hat: N-A
Hub: Aluminum Dynamic
Pad Compound: Purple
Finishes: Type III Ano

GP320 Sprint Left Front Brake Kit

Wilwood’s GP320 Sprint Left Front Brake kit offers increased braking torque and thermal performance of the GP320 4 piston calipers. A definitive increase in braking and durability over traditional aluminum or steel rotor systems. Mounts are included for standard Sprint spindle to match the included 10.50 x 0.19” Polymetalic stainless steel rotor. Also includes Composition Metallic brake pads, lightweight aluminum dynamic mount 3-pin rotor adapter and T-nut hardware kit.
Click for detailed information on the Wilwood GP320 Sprint Left Front Brake Kit



Kit Components
Caliper: GP200
Pistons: 2
Mount Type: Lug
Rotor Dia: 10.50"
Rotor Type: Polymetalic SA
Rotor Format: Drilled
Min Wheel Dia: N-A
Hat: N-A
Hub: Aluminum Dynamic
Pad Compound: Purple
Finishes: Type III Ano

GP200 Left Front Brake Kit

Wilwood’s GP200 Left Front System features Wilwood’s competition proven dynamic rotor mount system, specially treated Super Alloy lightweight steel alloy rotors, and the highly efficient clamping force of the GP200 billet caliper. Dynamic mounting with Wilwood’s t-nut system isolates thermal stress and distortion at the rotor mounting points.
Click for detailed information on the Wilwood GP200 Left Front Brake Kit



Kit Components
Caliper: Dynapro Single
Pistons: 2
Mount Type: Lug
Rotor Dia: 10.20" - 11.00"
Rotor Type: Aluminum and Steel
Rotor Format: Drilled / Scalloped
Min Wheel Dia: N-A
Hat: N-A
Hub: N-A
Pad Compound: Purple - BP-28/40
Finishes: Type III Ano

Dynapro Single Left Front Brake Kit

The Dynapro Single Left Front Sprint & Midget kits are a further evolution of a proven design from Wilwood’s 35+ years of engineering and producing the best open wheel braking systems. Dynapro single calipers have full 2.40 square inches of area for increased clamping force. Kits are offered with either Scalloped Alloy Steel Rotors for high heat or Aluminum rotors for maximizing weight saving on light braking tracks. Kit come complete with caliper, brake pads, caliper mounting brackets, caliper mount bolt kit, rotor and rotor mounting hardware.
Click for detailed information on the Wilwood Dynapro Single Left Front Brake Kit



Kit Components
Caliper: Dynapro Single
Pistons: 2
Mount Type: Lug
Rotor Dia: 11.75"
Rotor Type: Steel
Rotor Format: Drilled & Scalloped
Min Wheel Dia: N-A
Hat: N-A
Hub: N-A
Pad Compound: BP-40
Finishes: Type III Ano

Dynapro Single Front Dirt Modified Brake Kit

Wilwood’s new DPS front brake kit is one of DIRT modified racing’s most popular and lightest weight brake packages that is now offered from Wilwood at the most affordable prices ever. This popular package is now being bundled to provide our absolute lowest cost to racers in the DIRT Sportsman category, 358’s, and even for Big Block racers when track conditions and driving style are properly suited to this popular combination. Kit contains: Dynapro Single calipers and 11.75 x .35” Scalloped LW rotors for the front.
Click for detailed information on the Wilwood Dynapro Single Front Dirt Modified Brake Kit



Kit Components
Caliper: Powerlite
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.75"
Rotor Type: Steel
Rotor Format: Drilled & Scalloped
Min Wheel Dia: N-A
Hat: N-A
Hub: N-A
Pad Compound: BP-40
Finishes: Type III Ano

Powerlite Front Dirt Modified Brake Kit

Wilwood's new Powerlite front brake kit is one of DIRT modified racing's most popular and lightest weight brake packages that is now offered from Wilwood at the most affordable prices ever. This popular package is now being bundled to provide our absolute lowest cost to racers in the DIRT Sportsman category, 358’s, and even for Big Block racers when track conditions and driving style are properly suited to this popular combination. Kit contains: Powerlite Radial Mount calipers and 11.75 x .35” Scalloped LW rotors for the front.
Click for detailed information on the Wilwood Powerlite Front Dirt Modified Brake Kit



Kit Components
Caliper: Forged Superlite 4 Radial Mount
Pistons: 4
Mount Type: Radial
Rotor Dia: 12.19"
Rotor Type: 32 Curved Vane
Rotor Format: Plain
Min Wheel Dia: N-A
Hat: N-A
Hub: Aluminum Dynamic
Pad Compound: BP-40
Finishes: Type III Ano

Forged Superlite 4 Radial Sprint Inboard Rear Brake Kit

Forged Superlite 4 Radial Sprint Inboard Kit Features: A fully engineered bolt-on brake system for sprint car quick change rears with 3.00 x 46 splined axles. With an Super Alloy .810 vented disc and a newly designed dynamic mount rotor axle clamp, are the lowest rotating weights available for Sprint racing. • The lightweight advantages of Wilwood Sprint rotors are fortified with the high durability, long wear, and superior heat control properties of advanced materials. • Forged Superlite 4 Radial Mount calipers with BP-40 pads, produce superior stopping power and consistent fade-free response. Kit includes Axle Clamp with Dual Mount Rotor Adapter with T-nuts, radial mount bracket assembly and mounting hardware.
Click for detailed information on the Wilwood Forged Superlite 4 Radial Sprint Inboard Rear Brake Kit



Kit Components
Caliper: Billet Narrow Dynalite Radial
Pistons: 4
Mount Type: Radial
Rotor Dia: 10.50" - 12.19"
Rotor Type: Ti, SA or Steel
Rotor Format: Plain / Scalloped /Drilled
Min Wheel Dia: N-A
Hat: N-A
Hub: Aluminum Dynamic
Pad Compound: BP-28, BP-30, BP-40
Finishes: Type III Ano

Billet Narrow Dynalite Radial Mount Sprint Inboard Brake Kit

Billet Narrow Dynalite Radial Sprint Inboard Kit Features: A fully engineered bolt-on brake system for sprint car quick change rears with 3.00 x 46 splined axles. With titanium, Super Alloy or Steel, .810 vented or solid discs and a newly designed XRZ dynamic mount rotor axle clamp, are the lowest rotating weights available for Sprint racing. • The lightweight advantages of Wilwood Sprint rotors are fortified with the high durability, long wear, and superior heat control properties of advanced materials. • Billet Dynalite Radial mount calipers with either BP-28 or BP-40 pads, produce superior stopping power and consistent fade-free response. Kit includes Axle Clamp with Dual Mount Rotor Adapter with T-nuts, radial mount bracket assembly and mounting hardware.
Click for detailed information on the Wilwood Billet Narrow Dynalite Radial Mount Sprint Inboard Brake Kit



Kit Components
Caliper: Forged Narrow Superlite 6 Radial Mount
Pistons: 6
Mount Type: Lug
Rotor Dia: 12.00"
Rotor Type: BP-28
Rotor Format: Slotted
Min Wheel Dia: N-A
Hat:
Hub: Aluminum Lug Mount
Pad Compound: BP-28
Finishes: Type III Ano

Forged Narrow Superlite 6 Radial Mount Sprint Inboard Brake Kit

Forged Narrow Superlite 6 Radial Sprint Inboard Kit Features: A fully engineered bolt-on brake system for sprint car quick change rears with 3.00 x 46 splined axles. With 12.00" x 0.36” solid Titanium rotor and a newly designed dynamic mount rotor axle clamp, offer the lowest rotating weight available for Sprint racing. The lightweight advantages of Wilwood Sprint rotors are fortified with the high durability, long wear, and superior heat control properties of advanced materials. Newly redesigned Type III hard anodize FNSL6R/ST Radial mount calipers equipped with Thermlock insulated pistons and with BP-28 pads
Click for detailed information on the Wilwood Forged Narrow Superlite 6 Radial Mount Sprint Inboard Brake Kit



Kit Components
Caliper: Billet Narrow Dynalite Radial
Pistons: 4
Mount Type: Radial
Rotor Dia: 10.50"
Rotor Type: SA or Steel
Rotor Format: Plain / Scalloped
Min Wheel Dia: N-A
Hat: N-A
Hub: Aluminum Dynamic
Pad Compound: BP-40
Finishes: Type III Ano

Billet Narrow Dynalite Radial Mount Midget Inboard Brake Kit

Billet Narrow Dynalite Radial Midget Inboard Kit Features: A fully engineered bolt-on brake system for sprint car quick change rears with 3.50 x 38 splined axles. With Super Alloy .78" vented or .35" Steel discs and a newly designed dynamic mount rotor axle clamp, are the lowest rotating weights available for Sprint racing. • The lightweight advantages of the Super Alloy rotor are fortified with the high durability, long wear, and superior heat control properties of advanced materials technology. • Forged billet DynaPro Lug mount calipers with Composition Metallic pads, produce superior stopping power and consistent fade-free response. Kit includes Axle Clamp with Dynamic Mount Rotor Adapter assembly with T-nuts and mounting hardware.
Click for detailed information on the Wilwood Billet Narrow Dynalite Radial Mount Midget Inboard Brake Kit



Kit Components
Caliper: Dynapro Single
Pistons: 2
Mount Type: Lug
Rotor Dia: 10.20" - 10.95"
Rotor Type: Aluminum
Rotor Format: Drilled / Scalloped
Min Wheel Dia: N-A
Hat: N-A
Hub: N-A
Pad Compound: Purple
Finishes: Type III Ano

Dynapro Single Right Rear Brake Kit

The Dynapro Single Left Front Sprint & Midget kits are a further evolution of a proven design from Wilwood’s 35+ years of engineering and producing the best open wheel braking systems. Dynapro single calipers have full 2.40 square inches of area for increased clamping force. Kits are offered with either Scalloped Alloy Steel Rotors for high heat or Aluminum rotors for maximizing weight saving on light braking tracks. Kit come complete with caliper, brake pads, caliper mounting brackets, caliper mount bolt kit, rotor and rotor mounting hardware.
Click for detailed information on the Wilwood Dynapro Single Right Rear Brake Kit



Kit Components
Caliper: GP320
Pistons: 4
Mount Type: Lug
Rotor Dia: 10.50"
Rotor Type: Polymetalic SA
Rotor Format: Drilled
Min Wheel Dia: N-A
Hat: N-A
Hub: Aluminum Dynamic
Pad Compound: Purple
Finishes: Type III Ano

GP320 Sprint Right Rear Brake Kit

Wilwood’s GP320 Sprint Right Rear Brake kit offers increased braking torque and thermal performance of the GP320 4 piston calipers. A definitive increase in braking and durability over traditional aluminum rotor systems. Kit includes 10.50 x 0.19” Polymetalic stainless steel rotor, Composition Metallic brake pads, lightweight aluminum dynamic mount splined rotor adapter and T-nut hardware kit.
Click for detailed information on the Wilwood GP320 Sprint Right Rear Brake Kit

Motorcycle Brake Kits



Kit Components
Caliper: GP310
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.50"
Rotor Type: N-A
Rotor Format: N-A
Min Wheel Dia: N-A
Pad Compound: BP-10
Finishes: Chrome / Polished

GP310 Motorcycle Rear Brake Kit

Wilwood's GP310 rear kit for Harley Davidson 00-06 FLH / FLT contains GP310 calipers available in chrome or polished finish, BP-10 high–friction brake pads, bracket (in a chrome or polished finish) and bracket mounting hardware. Mounts over OE diameter stock or aftermarket 10.50 diameter rotors.
Click for detailed information on the Wilwood GP310 Motorcycle Rear Brake Kit



Kit Components
Caliper: GP310
Pistons: 4
Mount Type: Lug
Rotor Dia: 9.94"
Rotor Type: Motorcyle (sprocket)
Rotor Format: Drilled
Min Wheel Dia: N-A
Pad Compound: BP-10
Finishes: Chrome / Polished

GP310 Motorcycle Rear Spocket Brake Kit

Wilwood’s Sprocket Brake system is available in either 48 or 51 tooth sprockets. The bolt circle is consistent on all Harley Davidson models, 5” x 3.25”. The accompanying GP 310 calipers are available in either chrome or a bright polished finish. Sprocket brake calipers are currently available for left hand applications only.
Click for detailed information on the Wilwood GP310 Motorcycle Rear Spocket Brake Kit

OEM Brake Kits



Kit Components
Caliper: GNX4
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.00"
Rotor Type: 53 Vane
Rotor Format: Undrilled
Min Wheel Dia: N-A
Hat: Iron Integral
Hub: N-A
Pad Compound: SM
Finishes: Clear

GNX4 Front Brake Kit

GNX4 caliper Brake Kits are the product of Wilwood’s in-house FEA design and 3-D modeling technology. Paired with 12.00" diameter, .95" width rotors offers a duarble, high torque braking solution for AM General Military HUMVEE vehicles. The GNX4 Caliper With its unyielding strength and superior piston design, generates positive pedal response and high clamping efficiency with a substantial weight savings over original Calipers. The caliper feature a natural aluminum finish protected by a durable clear coat anodizing. Forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting, and seal failures that plague many OE caliper design. Stainless steel pistons delay the heat transfer from the pads while the aluminum calipers dissipate the heat quicker than the OE cast iron calipers. Cooler operating temperatures translate into longer service life, regardless of the driving environment.
Click for detailed information on the Wilwood GNX4 Front Brake Kit



Kit Components
Caliper: GNX4
Pistons: 4
Mount Type: Lug
Rotor Dia: 12.00"
Rotor Type: 53 Vane
Rotor Format: Undrilled
Min Wheel Dia: N-A
Hat: Iron Integral
Hub: N-A
Pad Compound: SM
Finishes: Clear

GNX4 Rear Brake Kit

GNX4 caliper Brake Kits are the product of Wilwood’s in-house FEA design and 3-D modeling technology. Paired with 12.00" diameter, .95" width rotors offers a duarble, high torque braking solution for AM General Military HUMVEE vehicles. The GNX4 Caliper With its unyielding strength and superior piston design, generates positive pedal response and high clamping efficiency with a substantial weight savings over original Calipers. The caliper feature a natural aluminum finish protected by a durable clear coat anodizing. Forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting, and seal failures that plague many OE caliper design. Stainless steel pistons delay the heat transfer from the pads while the aluminum calipers dissipate the heat quicker than the OE cast iron calipers. Cooler operating temperatures translate into longer service life, regardless of the driving environment.
Click for detailed information on the Wilwood GNX4 Rear Brake Kit

UTV Brake Kits



Kit Components
Caliper: UTV6
Pistons: 6
Mount Type: Lug
Rotor Dia: 11.25"
Rotor Type: Solid Steel Rotor
Rotor Format: Plain / Drilled
Min Wheel Dia: 14"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

UTV6 Front Brake Kit

Wilwood’s matched front UTV6 brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, BP-10 brake pads and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs.
Click for detailed information on the Wilwood UTV6 Front Brake Kit



Kit Components
Caliper: UTV6
Pistons: 6
Mount Type: Lug
Rotor Dia: 11.25"
Rotor Type: Solid Steel Rotor
Rotor Format: Plain
Min Wheel Dia: 14"
Hat: N-A
Hub: N-A
Pad Compound: BP-20
Finishes: Type III Ano

UTV6 Front Brake Kit (Race)

Wilwood’s matched front UTV6 Race brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, BP-20 (High Friction) brake pads and larger diameter floating rotors
Click for detailed information on the Wilwood UTV6 Front Brake Kit (Race)



Kit Components
Caliper: NDPR
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.25"
Rotor Type: Solid Steel Rotor
Rotor Format: Plain / Drilled
Min Wheel Dia: 14"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

NDPR Front UTV Brake Kit

Wilwood’s matched front NDPR Race brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, BP-10 (High Friction) brake pads and larger diameter floating rotors.
Click for detailed information on the Wilwood NDPR Front UTV Brake Kit



Kit Components
Caliper: NDPR
Pistons: 4
Mount Type: Radial
Rotor Dia: 11.25"
Rotor Type: Solid Steel Rotor
Rotor Format: Plain
Min Wheel Dia: 14"
Hat: N-A
Hub: N-A
Pad Compound: Polymatrix E
Finishes: Type III Ano

NDPR Front UTV Brake Kit (Race)

Wilwood’s matched front NDPR Race brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, Polymatrix E (High Friction) brake pads and larger diameter floating rotors.
Click for detailed information on the Wilwood NDPR Front UTV Brake Kit (Race)



Kit Components
Caliper: UTV4
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.25"
Rotor Type: Solid Steel Rotor
Rotor Format: Plain / Drilled
Min Wheel Dia: 14"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

UTV4 Rear Brake Kit

Wilwood’s matched rear UTV4 brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, BP-10 brake pads and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs.
Click for detailed information on the Wilwood UTV4 Rear Brake Kit



Kit Components
Caliper: UTV6
Pistons: 6
Mount Type: Lug
Rotor Dia: 11.25"
Rotor Type: Solid Steel Rotor
Rotor Format: Plain / Drilled
Min Wheel Dia: 14"
Hat: N-A
Hub: N-A
Pad Compound: BP-10
Finishes: Black / Red

UTV6 Rear Brake Kit

Wilwood’s matched rear UTV6 brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, BP-10 brake pads and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs.
Click for detailed information on the Wilwood UTV6 Rear Brake Kit



Kit Components
Caliper: UTV4
Pistons: 4
Mount Type: Lug
Rotor Dia: 11.25"
Rotor Type: Solid Steel Rotor
Rotor Format: Plain
Min Wheel Dia: 14"
Hat: N-A
Hub: N-A
Pad Compound: BP-20
Finishes: Type III Ano

UTV4 Rear Brake Kit (Race)

Wilwood’s matched rear UTV4 Race brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, BP-20 (High Friction) brake pads and larger diameter floating rotors
Click for detailed information on the Wilwood UTV4 Rear Brake Kit (Race)



Kit Components
Caliper: UTV6
Pistons: 6
Mount Type: Lug
Rotor Dia: 11.25"
Rotor Type: Solid Steel Rotor
Rotor Format: Plain
Min Wheel Dia: 14"
Hat: N-A
Hub: N-A
Pad Compound: BP-20
Finishes: Type III Ano

UTV6 Rear Brake Kit (Race)

Wilwood’s matched rear UTV6 Race brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, BP-20 (High Friction) brake pads and larger diameter floating rotors
Click for detailed information on the Wilwood UTV6 Rear Brake Kit (Race)





All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
Copyright © 1977 - 2024 Wilwood Engineering, Inc. - All Rights Reserved
Version: 3.05 June 23, 2023
​ ​
