Wilwood Master Cylinders

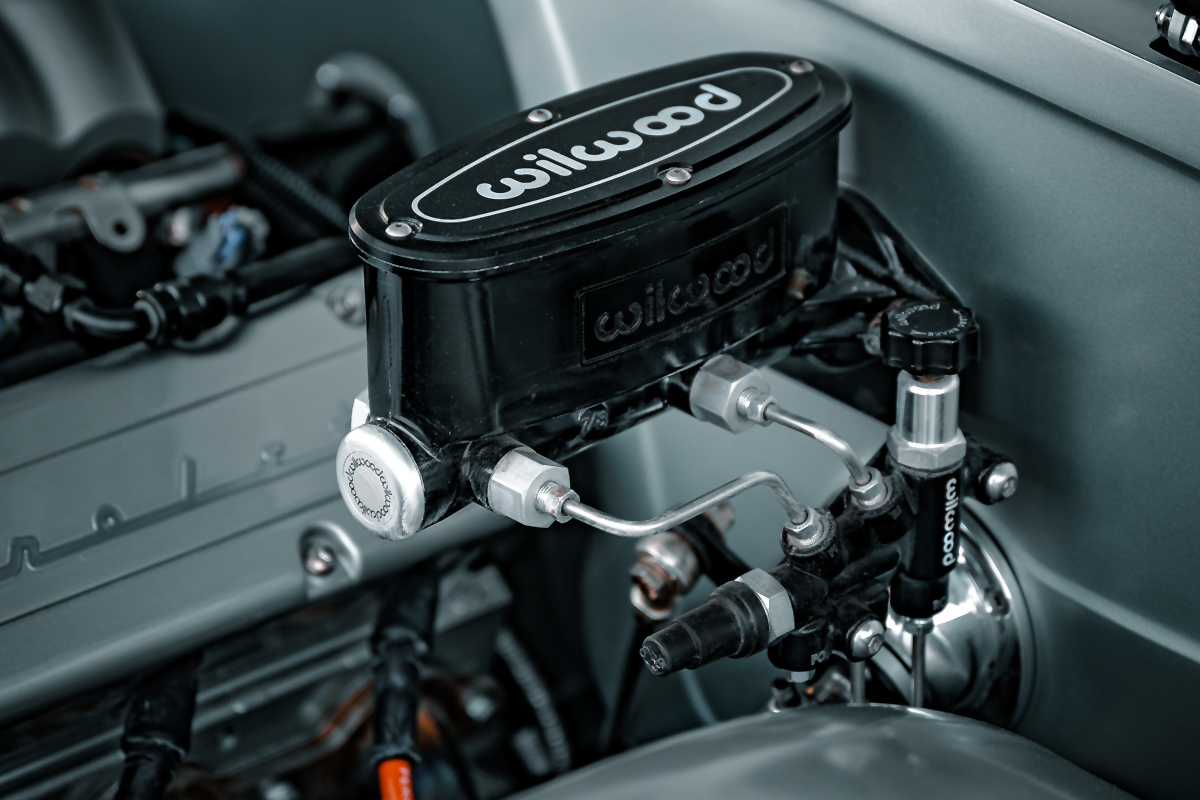

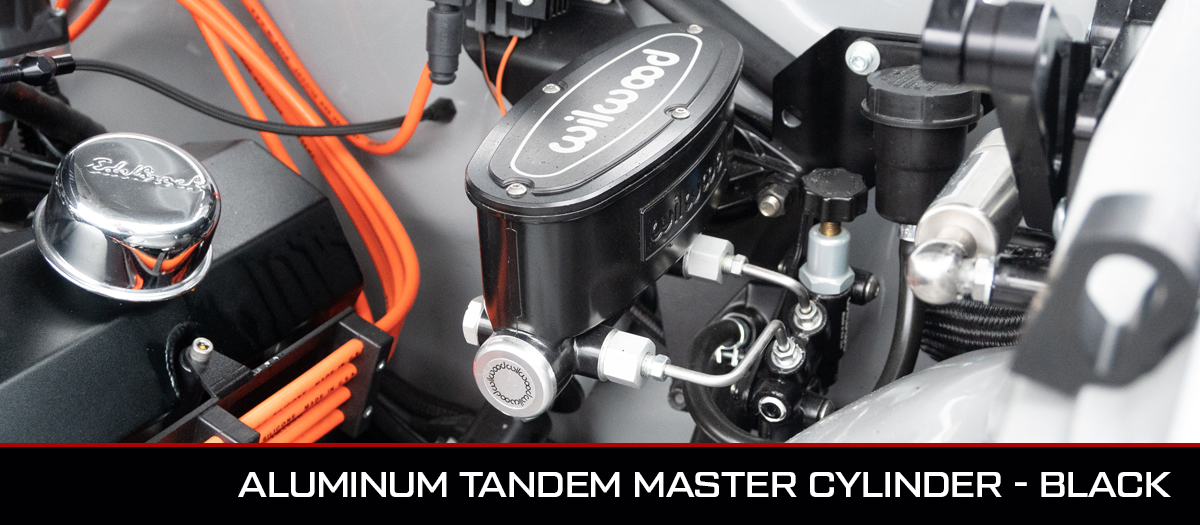

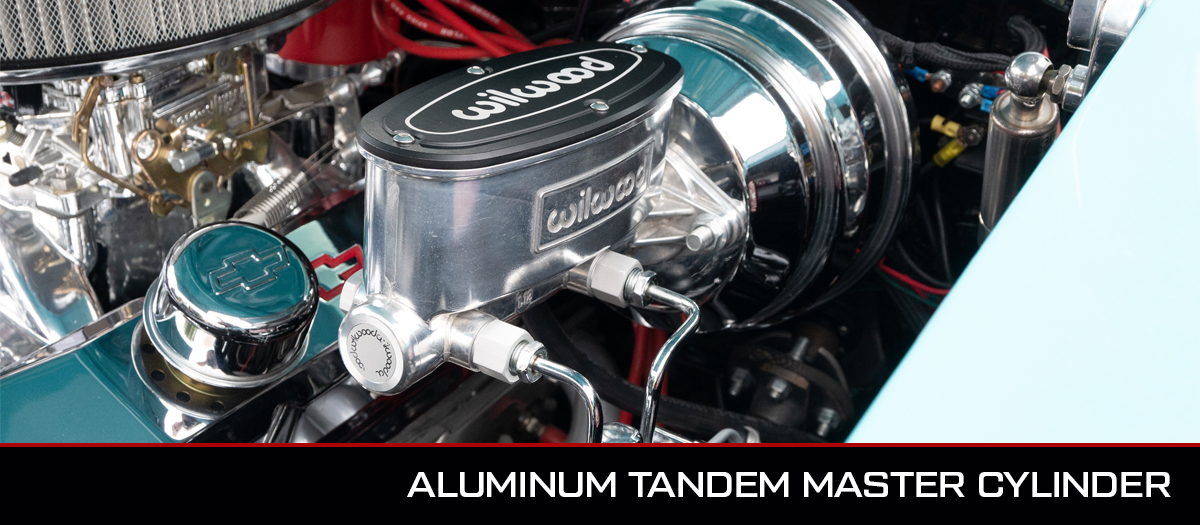

  • Wilwood Aluminum Tandem Master Cylinder Kit Installed in Car
  • Wilwood Aluminum Tandem Master Cylinder Kit Installed in Car at Goodguys Event

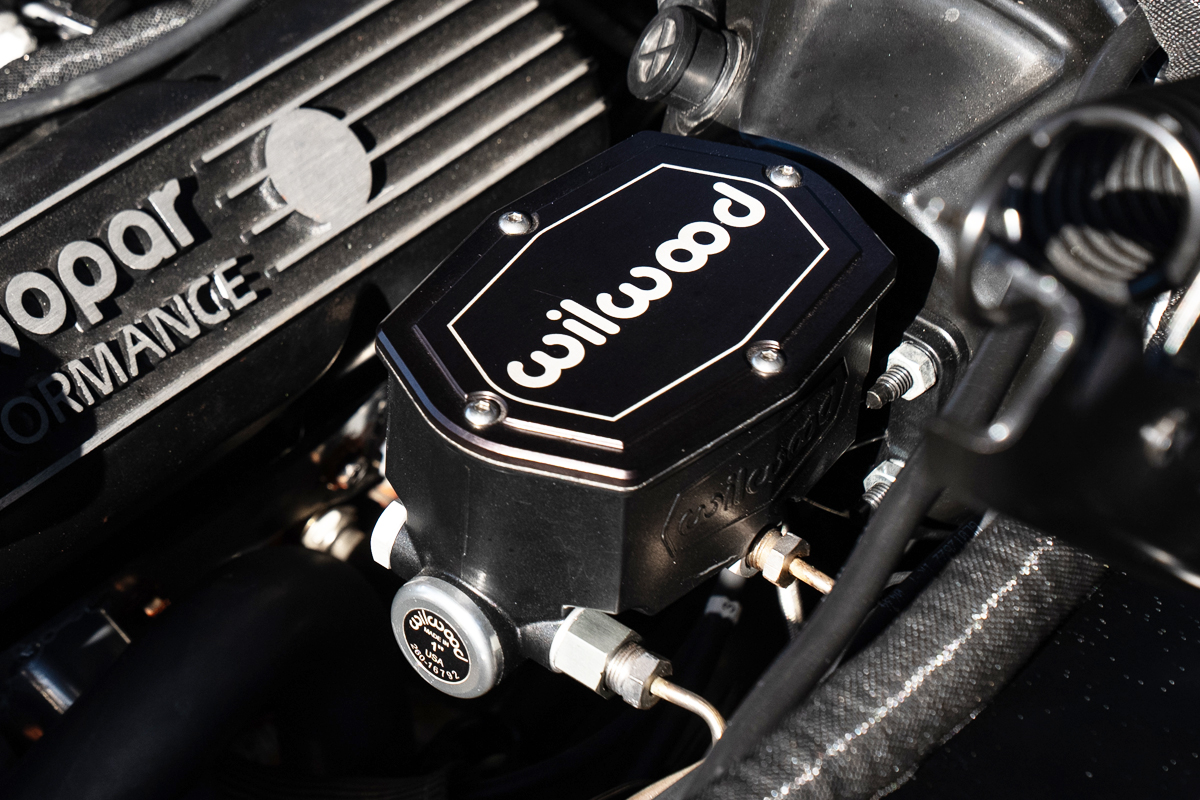

  • Wilwood Compact Tandem Master Cylinder Kit Installed in K5 Blazer

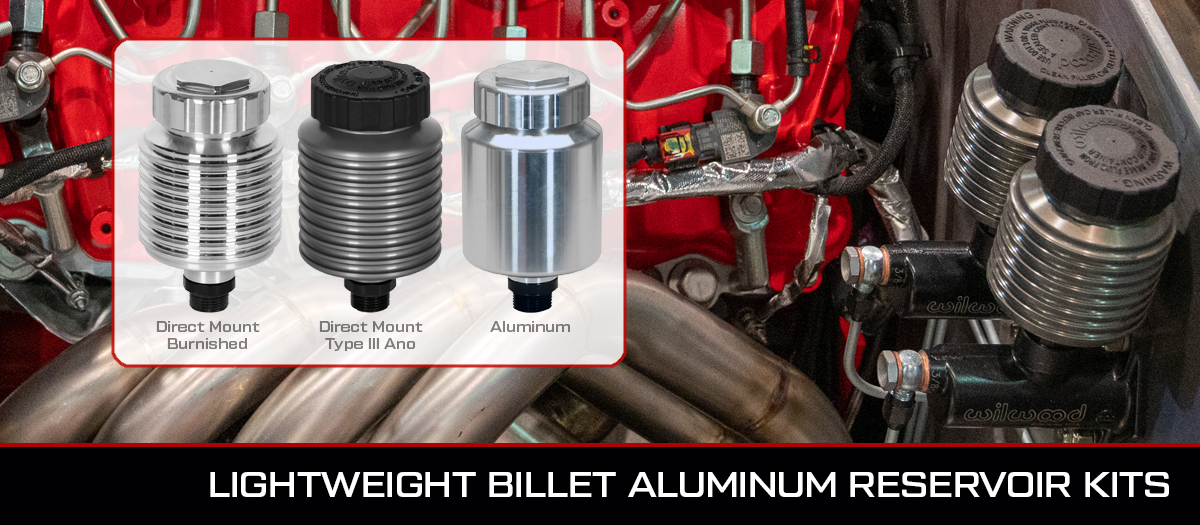

  • Wilwood Lightweight Billet Aluminum Reservoirs
Download Pedal Ratio Chart
How to Calculate Pedal Ratio

Master Cylinder by Type

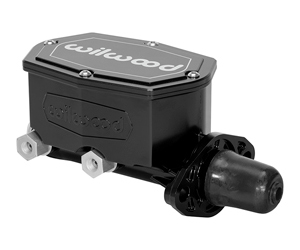

Wilwood’s Compact Tandem Master Cylinder is available in 4 bore sizes 7/8” through 1-1/8” and 2 finishes ball burnished and black e-coat. Also available with or without push rod assembly and versions specificaly designed for early Ford (64-72) using manual pushrods.
Wilwood has packaged the new Compact Tandem Chamber Master Cylinder with the Combination Proportioning Valve, left-hand or right-hand mounting brackets, fluid tubes and mounting hardware in a kit. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits.
Wilwood’s New Remote Tandem Master Cylinder w/out Push Rod is available in 2 bore sizes: 1.00” and 1-1/8”; and 2 finishes: ball burnished and black e-coat. They’re designed to fit most mounting flanges and feature outlet ports both sides, for multiple plumbing options. Remote mount reservoir and bracket assemblies further enhance the utility of these cylinders.
Wilwood has packaged the new Remote Tandem Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Remote Tandem Master Cylinder.
Wilwood’s Tandem Aluminum Master Cylinder is available in 4 bore sizes from 7/8"" to 1-1/8”; and 3 finishes, plain, ball burnished and black e-coat. They’re designed to fit most mounting flanges, and feature outlet ports both sides, for multiple plumbing options. 7/8” & 15/16"" bore master cylinders are availble with various pushrod options.
Wilwood has packaged the popular Aluminum Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder.

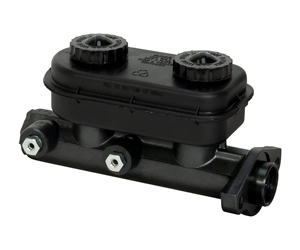

This tandem aluminum master cylinder with plastic reservoirs is often referred to as the “Chrysler Type” and has been a drag racing staple for decades. It weights 2.5lbs and has a bore of 1.062”.

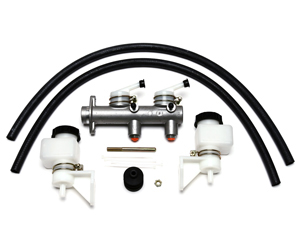

These tandem master cylinders have a bore size of 1” and features direct or remote mount reservoirs. Part # 260-7563 contains addition hoses and accesories for remote mounting.
Wilwood’s Compact Remote Combination Master Cylinder, commonly called our “shorty” master cylinder; only 3.375”long, is about the size of a roll of quarters. It’s available in bore sizes from 5/8" to 1.125”, and with or without reservoirs.

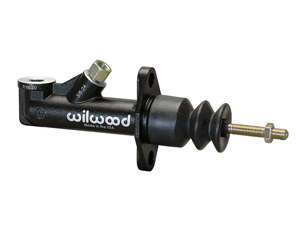

Wilwood’s new GS Compact Remote Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet.

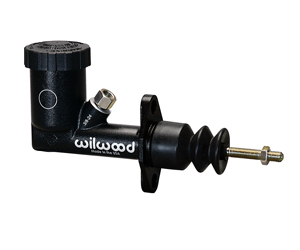

Wilwood’s new GS Compact Integral Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Integral cylinders feature a positive seal internal bellows cap.

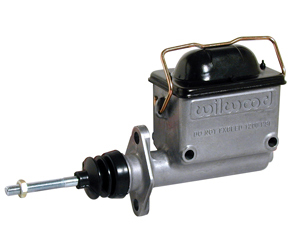

Wilwood’s High Volume Master Cylinders are made from high pressure die-cast bodies, feature 8.2oz of reservoir volume, and 1.43” of piston stroke.

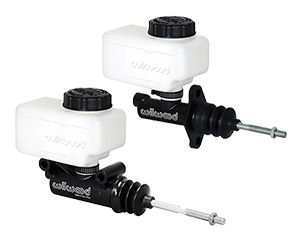

Wilwood’s Combination Remote Master Cylinder features direct and remote reservoir mounting, two reservoir sizes, and a stroke of 1-1.3” depending on bore size.

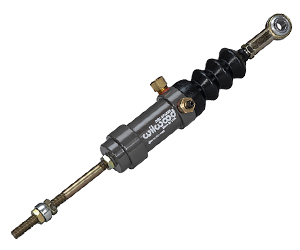

Wilwood’s clutch slave cylinder is a “Pull Type” made from billet aluminum and features a stroke of 1.375”, plenty long enough to assure full release of the clutch.

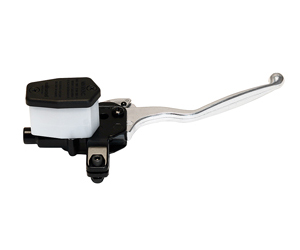

Wilwood’s Handlebar Master Cylinder is used on several small vehicles by many manufacturers, and it’s now available to you. The bore size is .625” and it’s designed to fit a standard .875 bar. Available in both Left Hand and Right Hand units.

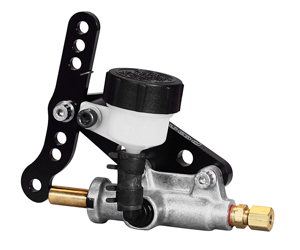

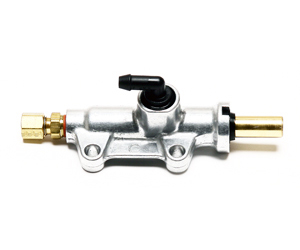

This master cylinder was designed specifically for karts and Jr. Dragsters. It features a .500” bore, and weighs only 8.8 ounces.
Replacement cylinder assembly for Wilwood’s Kart master Cylinder. Easy bolt on replacement onto your existing bracket assembly.

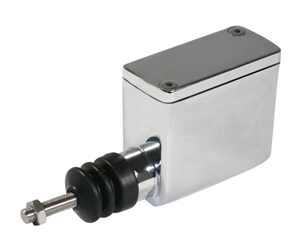

Wilwood's Motorcycle Foot Pedal Master Cylinder features a .625” bore and and is available in R/H or L/H mount, finished in show quality chrome.

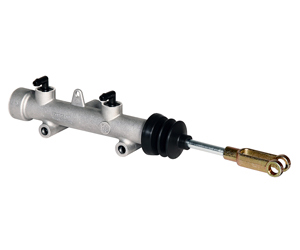

Wilwood’s TM1 Master Cylinder features a .625” bore and 1.3” stroke, and fluid inlets specifically designed for remote reservoirs.

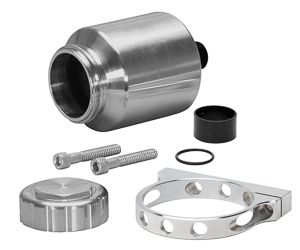

Wilwood's new Billet Aluminum Master Cylinder Fluid Reservoir Kit with Bracket provides a stylish and durable 4 ounce capacity reservoir that is manufactured from billet aluminum.

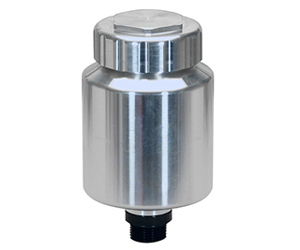

Wilwood's new Billet Aluminum Master Cylinder Fluid Reservoir provides a stylish and durable 4 ounce reservoir that is manufactured from billet aluminum.

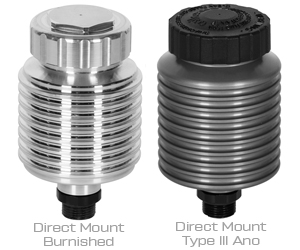

Wilwood's new Lightweight Billet Aluminum Reservoir kits provide a stylish and durable 4-ounce reservoir manufactured from billet aluminum. Finishes are available in bright billet or Type III hard anodized grey finish. These reservoirs can be purchased with a direct master cylinder mount or a remote mount with the necessary fittings.
Wilwood’s new Billet Reservoir brackets are made from high strength aluminum alloy and available in a plain billet finish or type III anodize finish. Available in both single and dual reservoir configurations.
Wilwood dry break quick connect/disconnect -3 AN fittings make changing brake components faster with no need to bleed the system. A quick quarter-turn disconnects it, without tools, but they connect as secure as a threaded flexline fitting. The internal spring-loaded seal prevents air from entering or fluid from escaping.

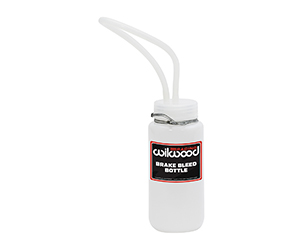

Wilwood’s new Brake Bleed Bottle makes the messy chore, a bit less messy. With a 500 ML capacity polyethylene bottle and semi-transparent 3/16” silicone tubing that will fit most brake bleeders.

VIDEO: How to Bench Bleed a Master Cylinder
Wilwood Aluminum Tandem Master Cylinder with Proportioning Valve

Aluminum Tandem Master Cylinder Kit w Valve


Visit Product

Enlarge Image
Aluminum Tandem Master Cylinder with Prop Valve
Wilwood Compact Tandem Master Cylinder - SEMA 2019

Compact Tandem Master Cylinder


Visit Product

Enlarge Image
Compact Tandem Master Cylinder Shown at SEMA

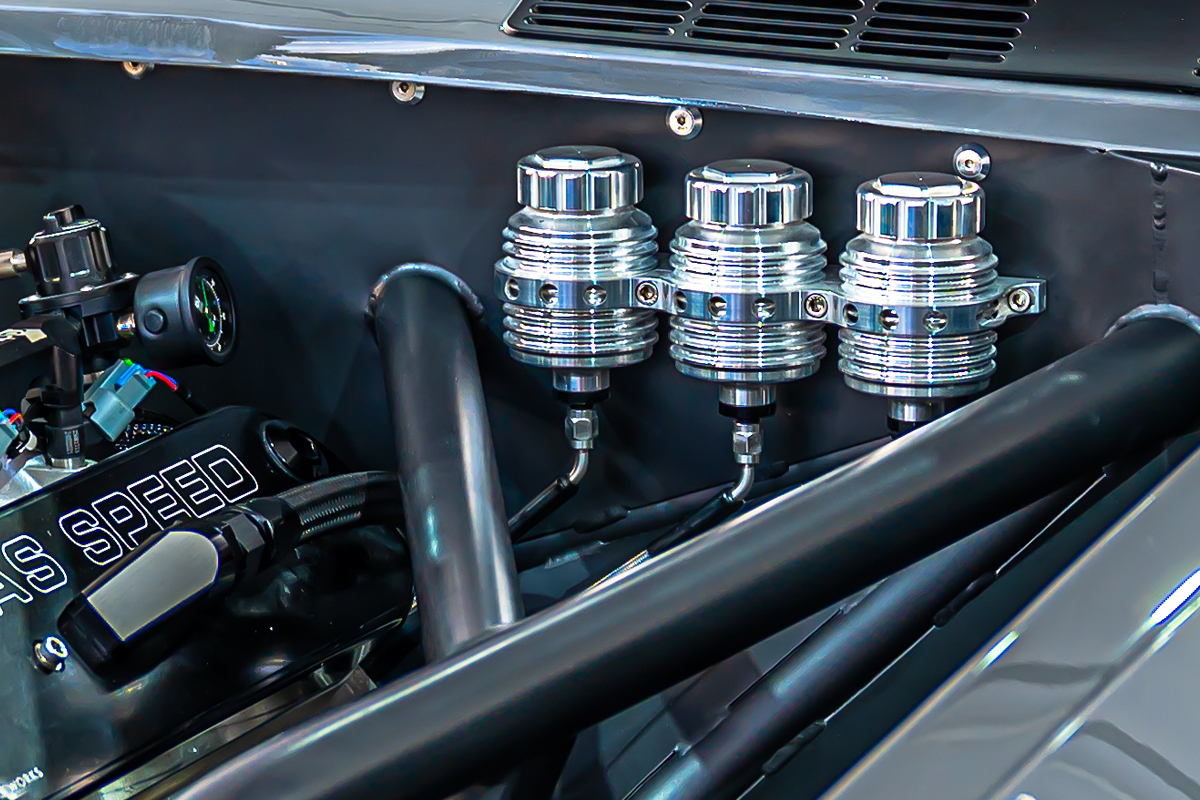

Wilwood Billet Aluminum Remote Reservoirs

Billet Aluminum Reservoirs


Visit Product

Enlarge Image
Billet Aluminum Remote Mount Reservoirs
